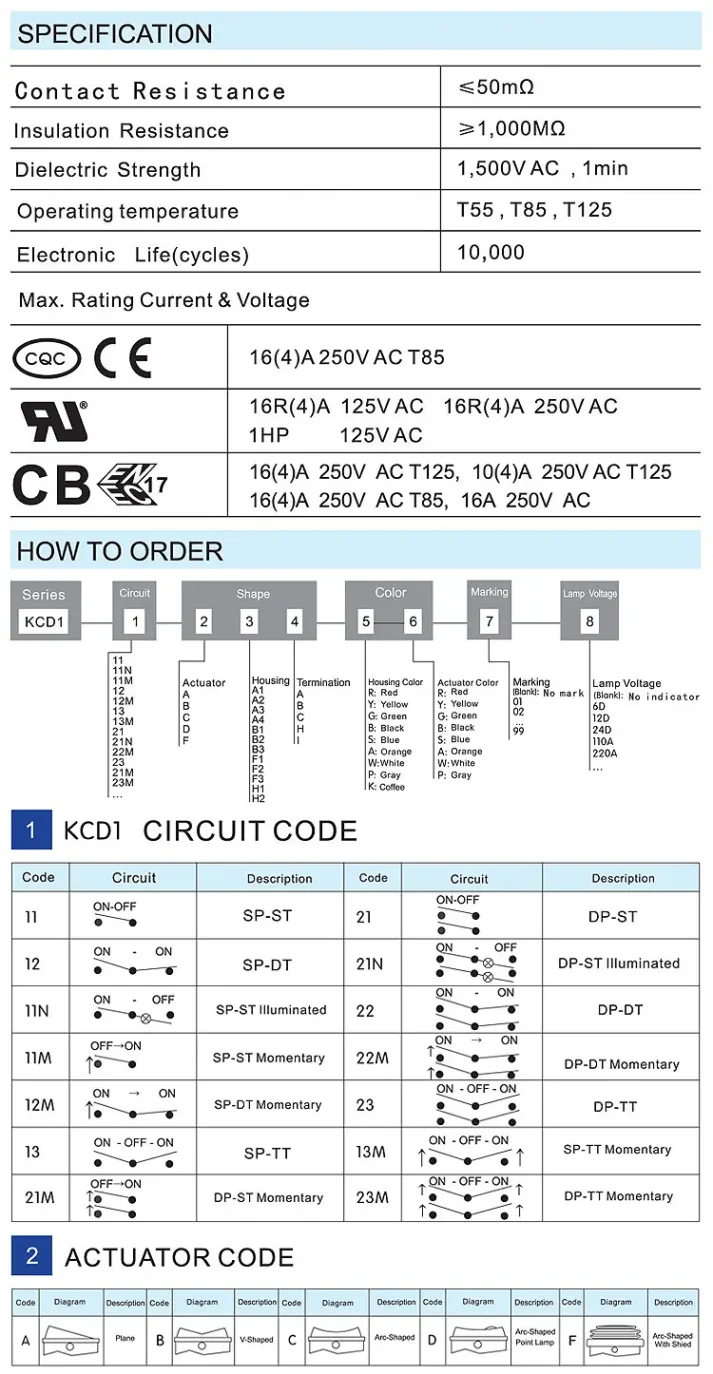

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |

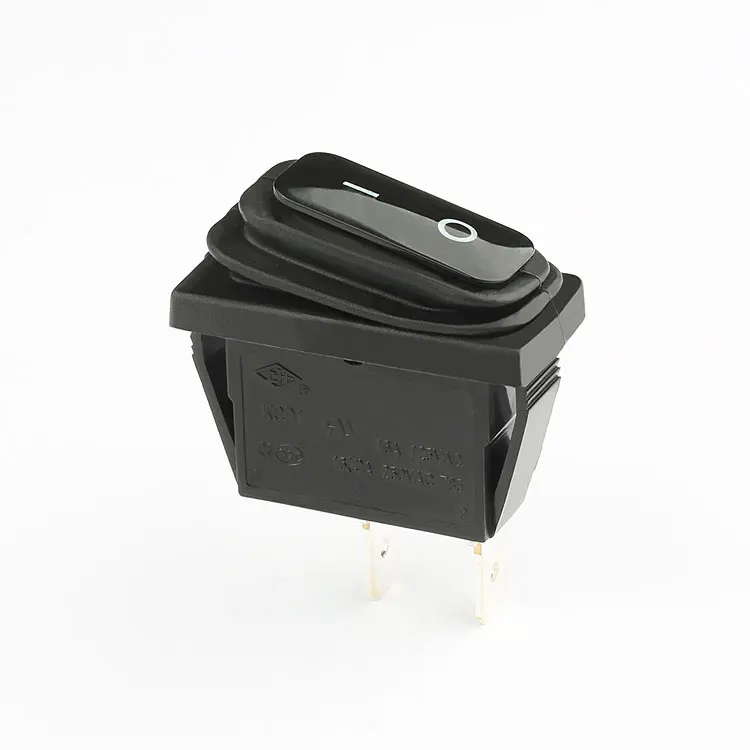

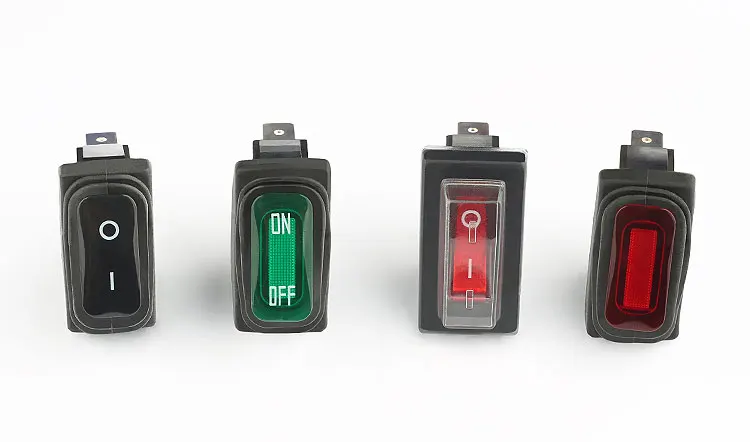

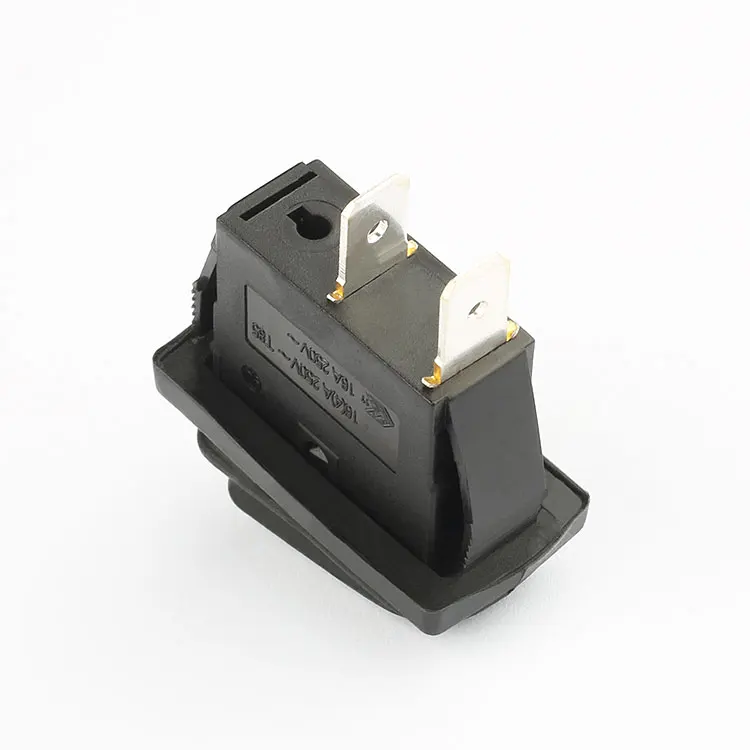

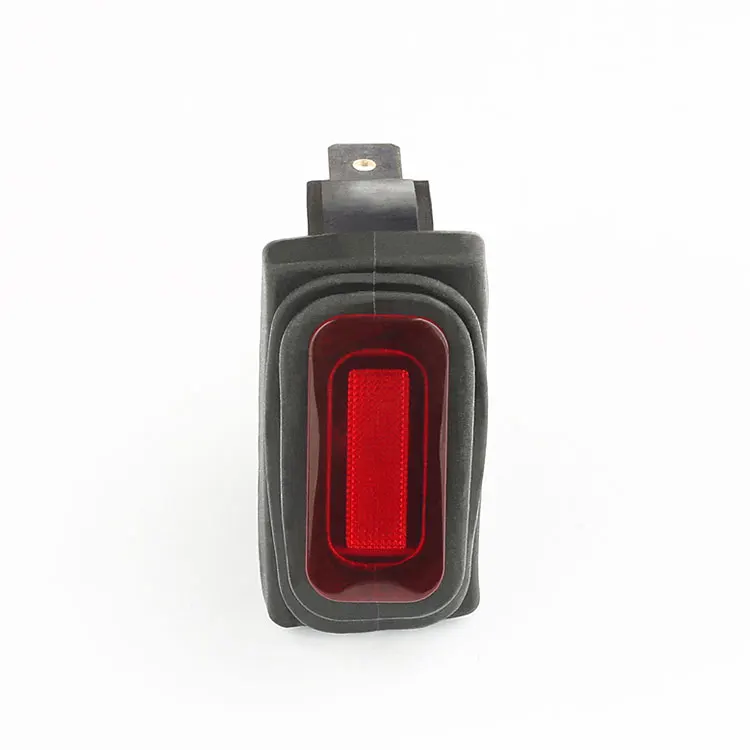

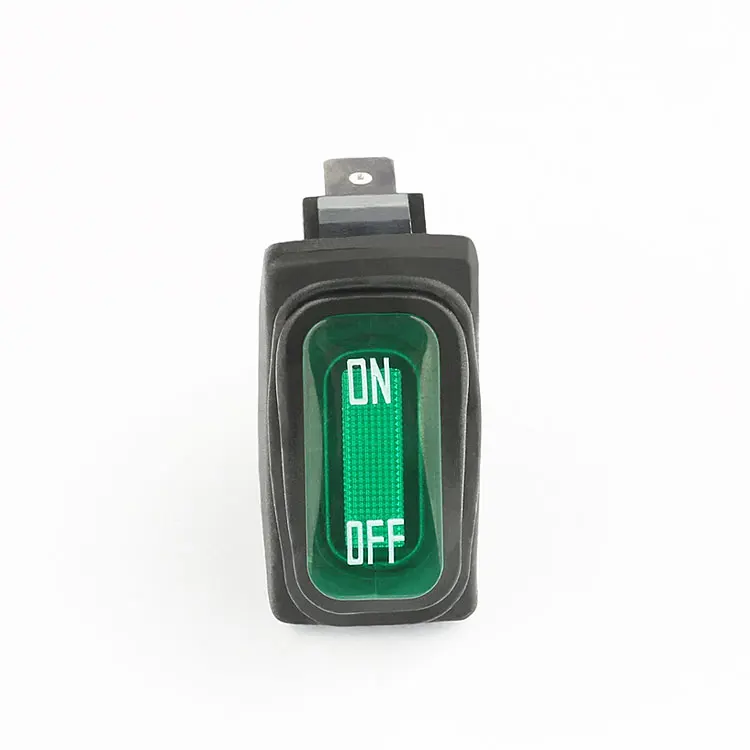

Why Choose Our KCD1 Waterproof Rocker Switch?
Our KCD1 IP65 16A 250VAC Waterproof Rocker Switch stands out for its durability, reliability, and value. As a factory direct supplier, we offer competitive wholesale pricing, making it an affordable choice for businesses and individuals alike. The robust rubber cover ensures waterproof protection, making it ideal for outdoor or harsh environments where moisture and dust are a concern.
What Are the Key Features of Our KCD1 Switch?
The KCD1 switch boasts a maximum current rating of 16A and a voltage rating of 250V AC, meeting the demands of various electrical systems. It has a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500V AC for 1 minute, ensuring safety and performance. With a mechanical life of 50,000-100,000 cycles and an electronic life of 10,000 cycles, it offers long-lasting reliability.
Is Our KCD1 Switch Certified?
Yes, our KCD1 Waterproof Rocker Switch is certified by CQC, CE, UL, ENEC, and CB, complying with international standards. This certification ensures that the switch meets the highest quality and safety requirements, giving you peace of mind when using it in your electrical systems.
