Description
Our KCD1 Rocker Switch boasts a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500V AC for 1 minute, ensuring safe and efficient operation. With a mechanical life of 50,000-100,000 cycles and an electronic life of 10,000 cycles, this switch is built to last.

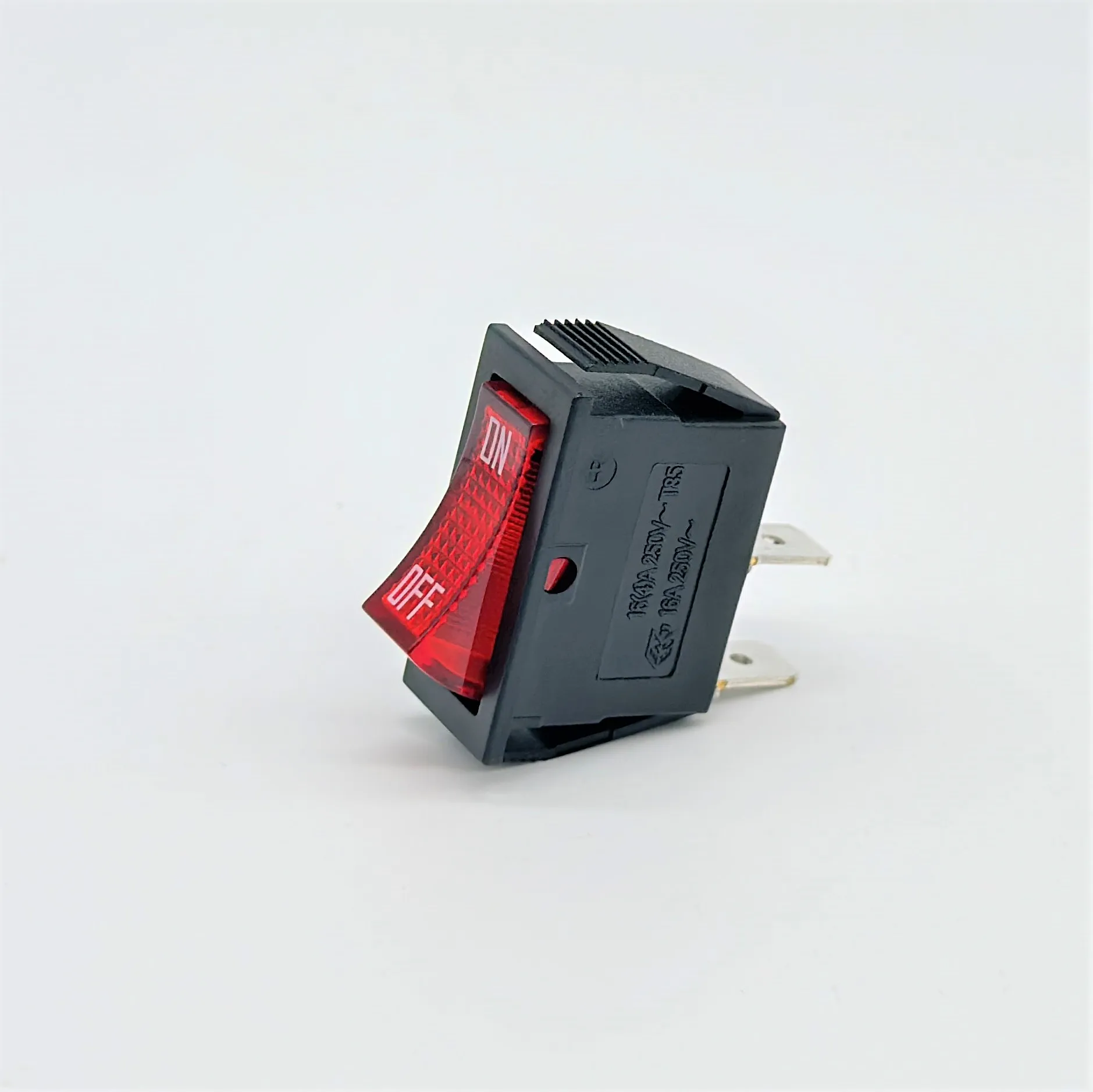

Available in a sleek black housing with a red actuator, our KCD1 Rocker Switch is not only functional but also aesthetically pleasing. Its 2-pin termination type and ON-OFF switch action make it easy to install and use.
As a trusted supplier, we pride ourselves on providing exceptional customer service and after-sales support. Whether you need technical assistance or have questions about our products, our team is here to help.
Choose our KCD1 Rocker Switch for its superior quality, competitive pricing, and reliable performance. Contact us today to learn more about our wholesale options and how we can meet your needs.
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Our KCD1 Rocker Switch?
Our KCD1 Rocker Switch stands out for its superior quality, durability, and reliability. With a waterproof rubber cap and IP65 protection, it's perfect for use in harsh environments. The switch's 16A 250V AC rating ensures it can handle high currents and voltages, making it suitable for a variety of applications.
What Are the Key Features of Our KCD1 Rocker Switch?
Our KCD1 Rocker Switch features a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500V AC for 1 minute. It has a mechanical life of 50,000-100,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. The switch's 2-pin termination type and ON-OFF switch action make it easy to install and use.
How Can We Help You?
As a direct factory supplier, we offer wholesale pricing on our KCD1 Rocker Switch, making it an affordable option for your business. We also provide exceptional customer service and after-sales support, ensuring you have a positive experience with our products. Contact us today to learn more about how we can meet your needs.
