Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-FB1B-B-B-01
|
|
Max. Current
|
6 A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Operating Temperature
|
T85
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 (21.4×15)
|
|
Contact Piece Code
|
B (4.8×0.8 standard)
|
|
Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
On Off
|

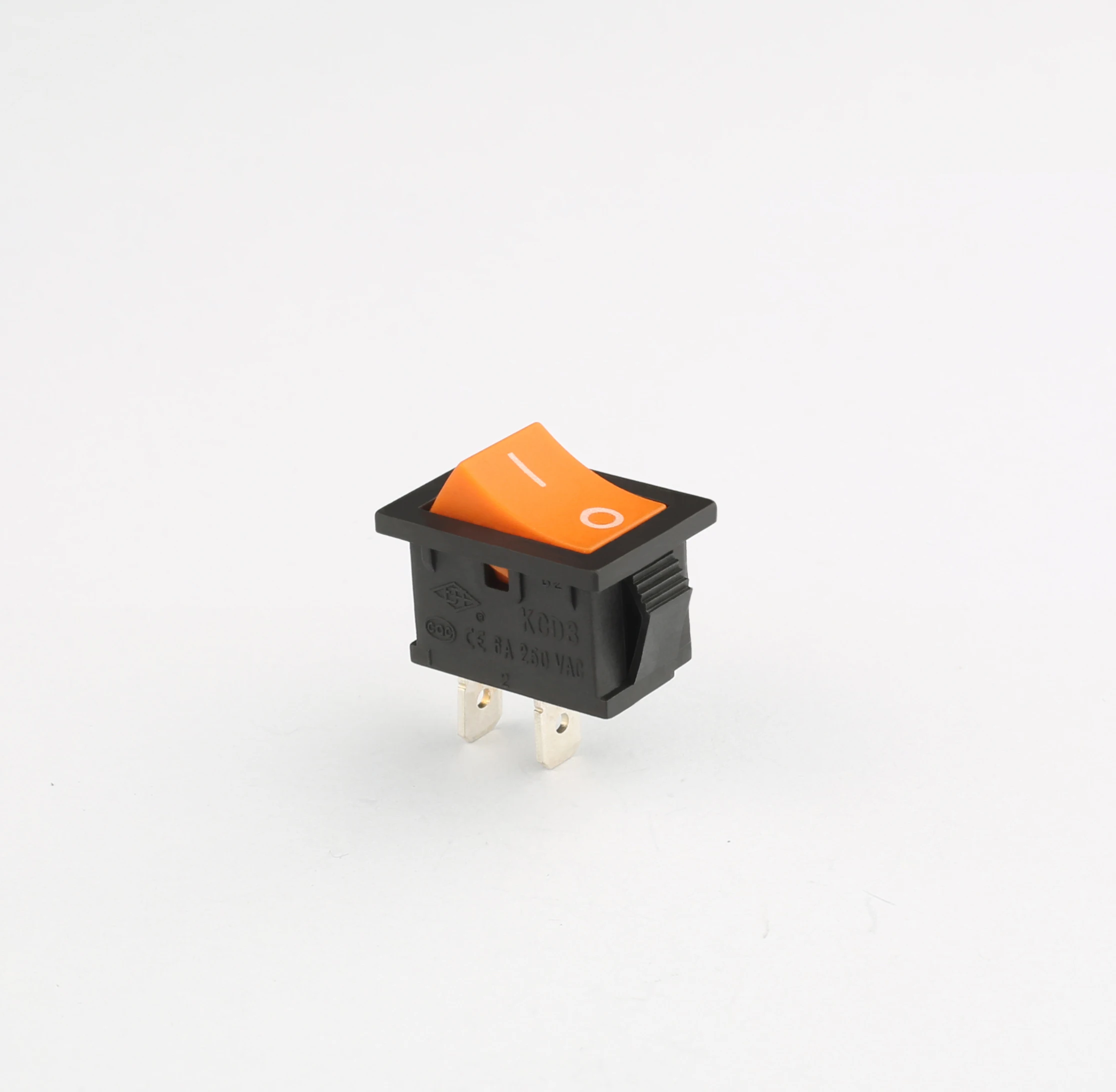

Why Choose Our KCD3 Waterproof Rocker Switch?
Our KCD3 Waterproof Rocker Switch stands out for its durability, reliability, and versatility. With an IP65 rating, it offers excellent waterproof performance, making it ideal for use in boats, machinery, and other environments where moisture is a concern. The switch's 6A current rating and 250V AC voltage ensure it can handle a wide range of electrical loads, while its long mechanical life and low contact resistance guarantee efficient and safe operation.
What Makes Our Switch Different from Others?
Unlike many other switches on the market, our KCD3 Rocker Switch is factory-direct, meaning we cut out the middleman to offer you the best possible price. Additionally, its CE, CQC, and ENEC certifications ensure it meets international safety standards, giving you peace of mind. The switch's wide range of color options also allows for easy customization to match your project's aesthetic.
Where Can You Use Our KCD3 Rocker Switch?
Our KCD3 Rocker Switch is perfect for a variety of applications, including boat control panels, machinery, and electrical projects. Its on/off function makes it easy to use, while its compact size and standard mounting holes make it a breeze to install. Whether you're a professional electrician or a DIY enthusiast, our switch is a reliable choice for all your electrical needs.
