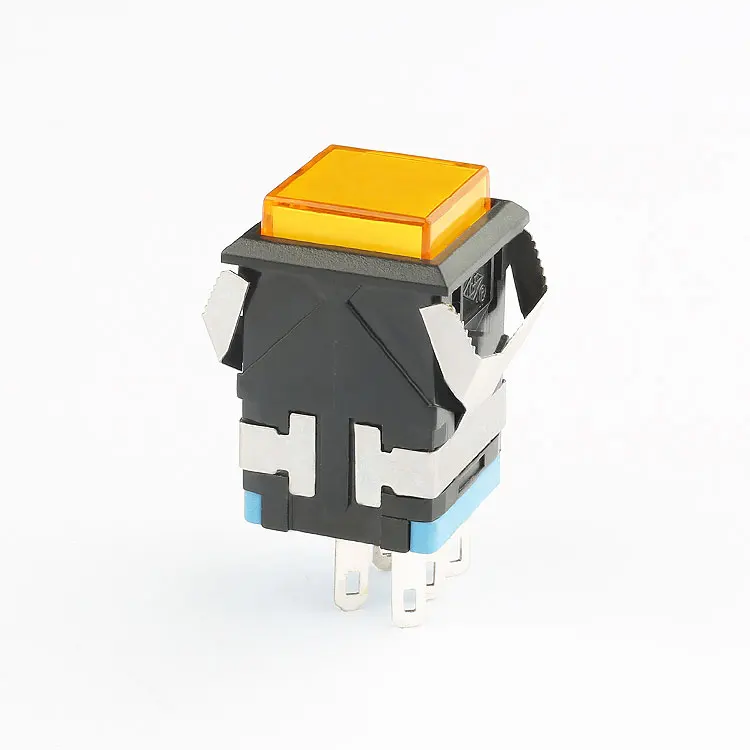

KD2 5 Pin Orange Single Pole Push Button Switch – Factory Wholesale Supplier

Name: KD2 5 Pin Orange Single Pole Push Button Switch - Factory Wholesale Supplier
SKU: 74234
Availability: InStock

Category: KD2 Series (17×17mm) Tags: Factory Wholesale, Push Button Switch, Single Pole Switch

>= 10 pieces
$0.62

Rated 0 out of 5

0 reviews

KD2 5 Pin Push Button Switch – Factory Wholesale Supplier, Durable & Reliable

Description
Specification

Description

Introducing our KD2 5 Pin Orange Single Pole Push Button Switch, a high-quality product from our factory, available for wholesale and direct supply. This switch is designed with precision, featuring a durable plastic construction that ensures longevity and reliability. It supports a maximum current of 3A and a maximum voltage of 250V AC, making it suitable for a wide range of applications including home appliances, electric devices, and industrial control systems. The switch comes with a full illuminated LED, available in multiple colors (red, green, yellow, white, blue, orange), and operates at various LED voltages (2V, 6V, 12V, 24V, 110V, 220V). With an IP40 rating, it offers adequate protection against dust and small objects. Our switch boasts an electric life of 1000 cycles and a mechanical life of 50000 cycles, demonstrating its superior durability. The square head design and pin terminal type make installation straightforward. As a factory direct supplier, we offer competitive pricing and excellent after-sales service. Choose our KD2 5 Pin Orange Single Pole Push Button Switch for a reliable and cost-effective solution.

contact resistance	≤50MΩ	electronic life	10000
insulation resistance	≥100MΩ	operating temperature	25T55
dielectric strength	1500V	IP code	IP40

Why Choose Our KD2 5 Pin Push Button Switch?

Our KD2 5 Pin Push Button Switch stands out for its durability, reliability, and versatility. Made from high-quality plastic, it ensures long-lasting performance even under demanding conditions. The switch supports a wide range of voltages and currents, making it suitable for various applications, from home appliances to industrial control systems.

What Are the Key Features of This Switch?

Key features include a full illuminated LED (available in multiple colors), an IP40 rating for dust protection, and a long electric and mechanical life. The square head design and pin terminal type facilitate easy installation, while the momentary self-locking function provides added convenience.

Why Buy from Us as a Factory Wholesale Supplier?

As a factory direct supplier, we offer competitive pricing without compromising on quality. Our strict quality control measures ensure that every switch meets the highest standards. Additionally, we provide excellent after-sales service, including technical support and warranty coverage, giving you peace of mind with your purchase.

Additional information

Max. Current	3A
Max. Voltage	250V AC
Place of Origin	Shanghai, China
Brand Name	Yongxing
Model Number	KD2-B12L
LED	Other
Application	Home Appliance, Electric, Industrial Control, latching
Material	plastic
Structure	Mechanical, Electronic, Electromagnetic
Head Type	Square Head

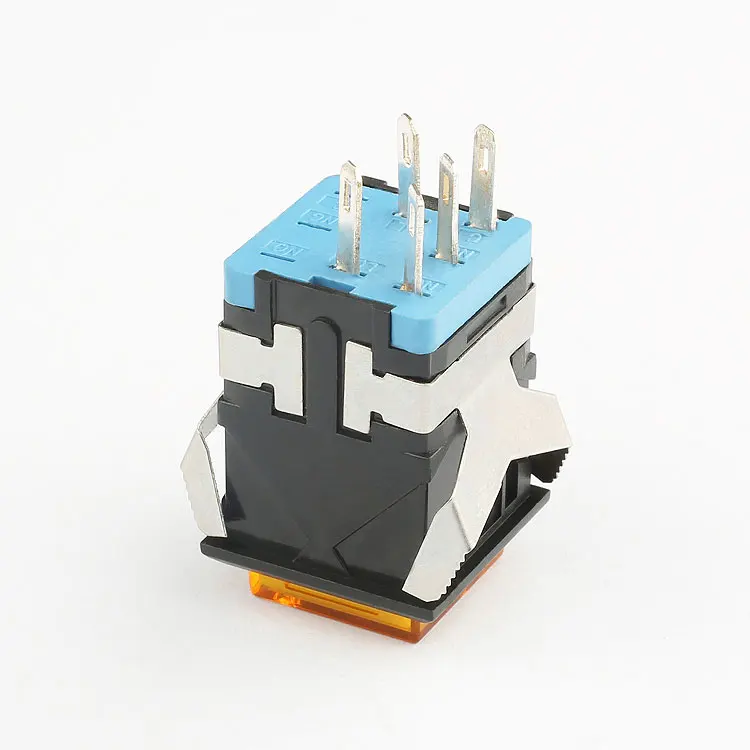

Terminal Type	Pin terminal
Whether the smart	NO
illuminated Type	full illuminated
IP level	IP40
Switch Combination	1NO1NC
Product name	KD2-B1
Certification	CQC, CE

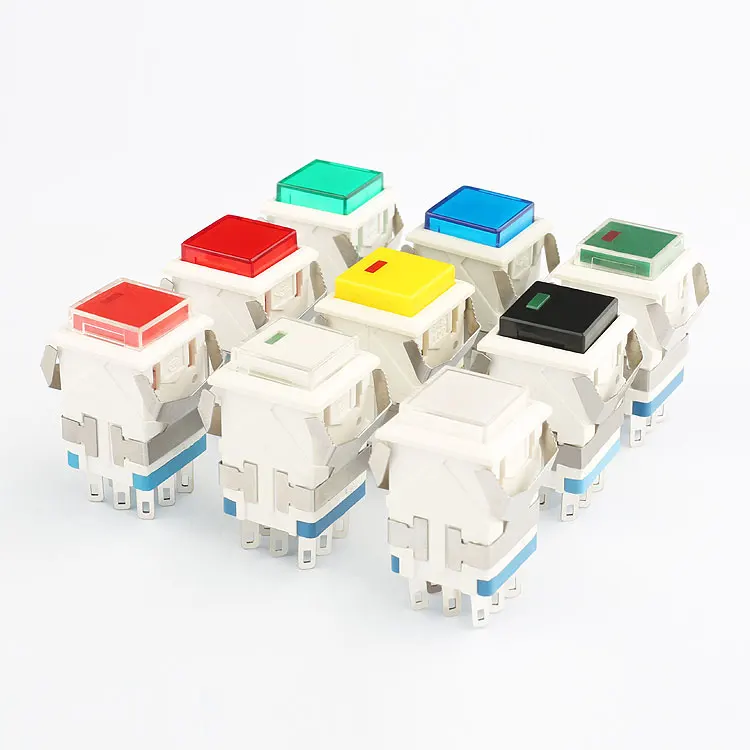

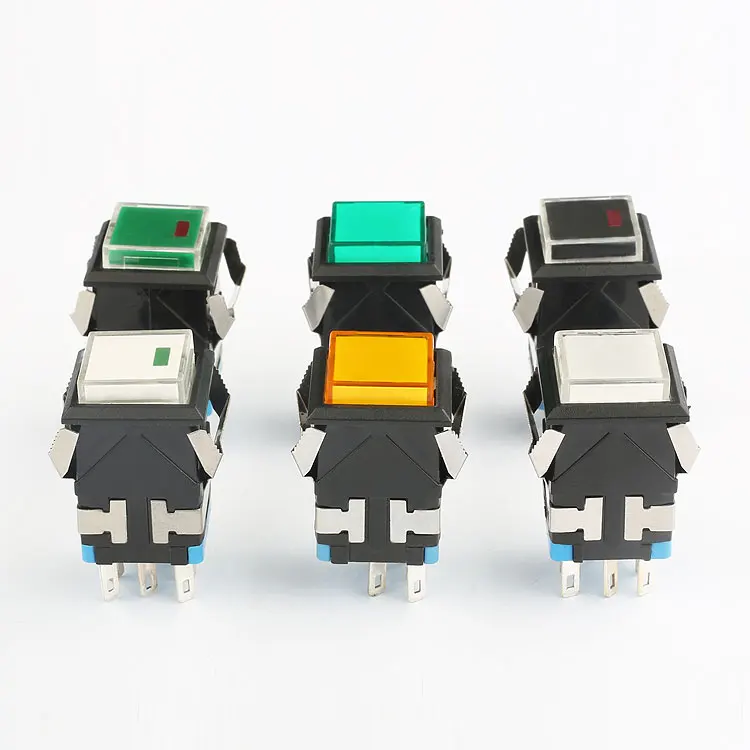

Button Color	red,green,yellow,white,blue,orange
Voltage of led	2V,6V,12V,24V,110V,220V
Operating temperature	-25℃~+55℃(-13℉~ 131℉)
Protective level	IP40 Push Button Switch
Pole	Single Pole
Electric Life	1000 Push Button Light Switch
Mechanical Life	50000 Automatic Selector Switch
Max Rating Current & Voltage	3A 250V AC
