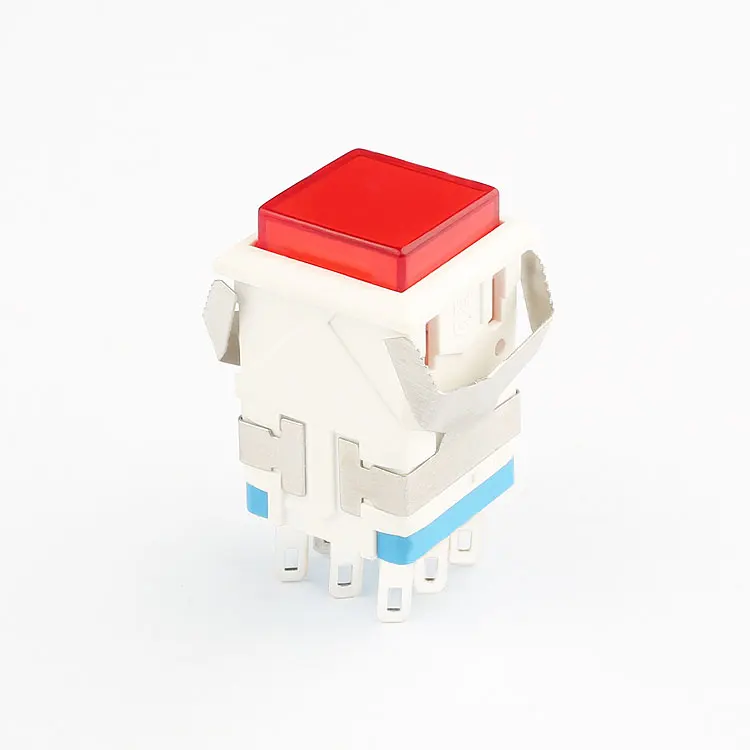

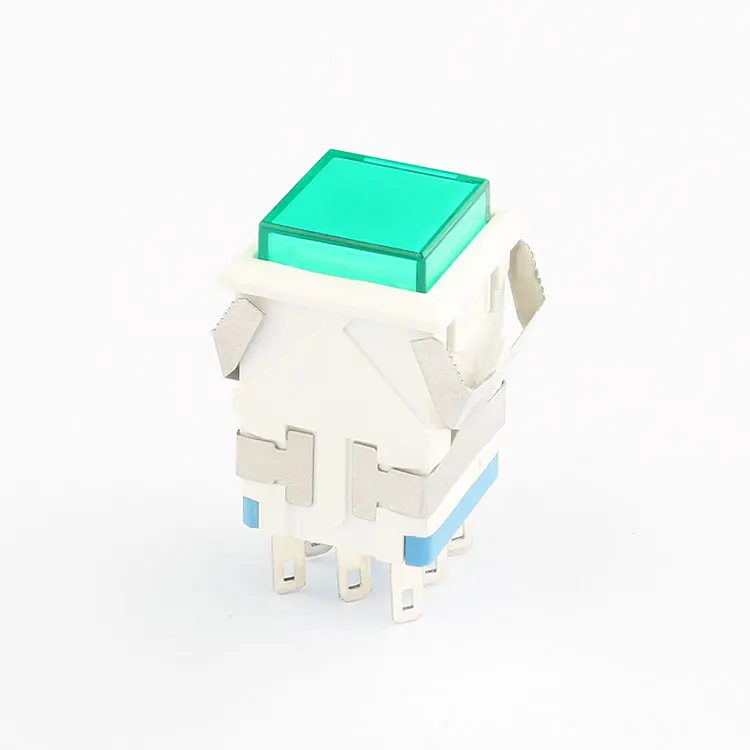

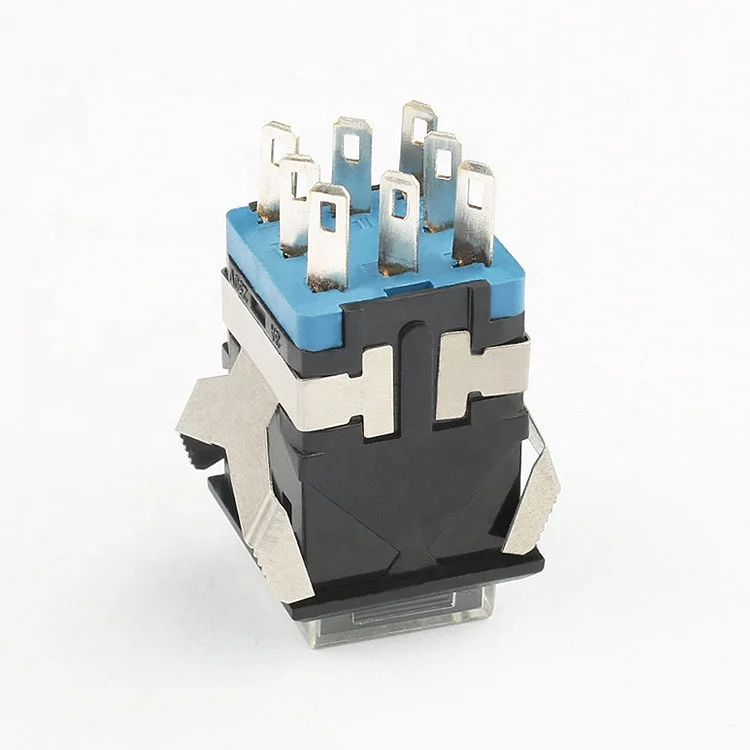

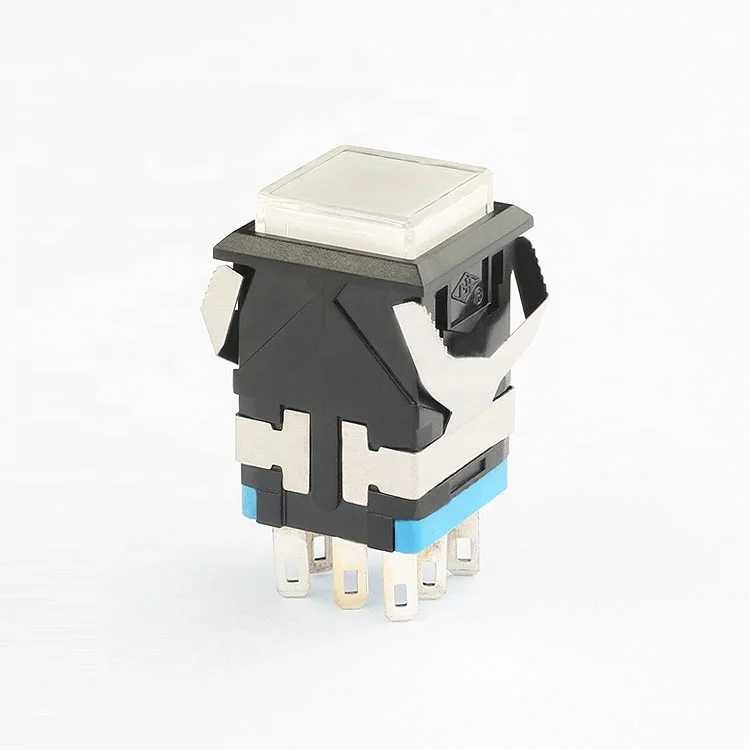

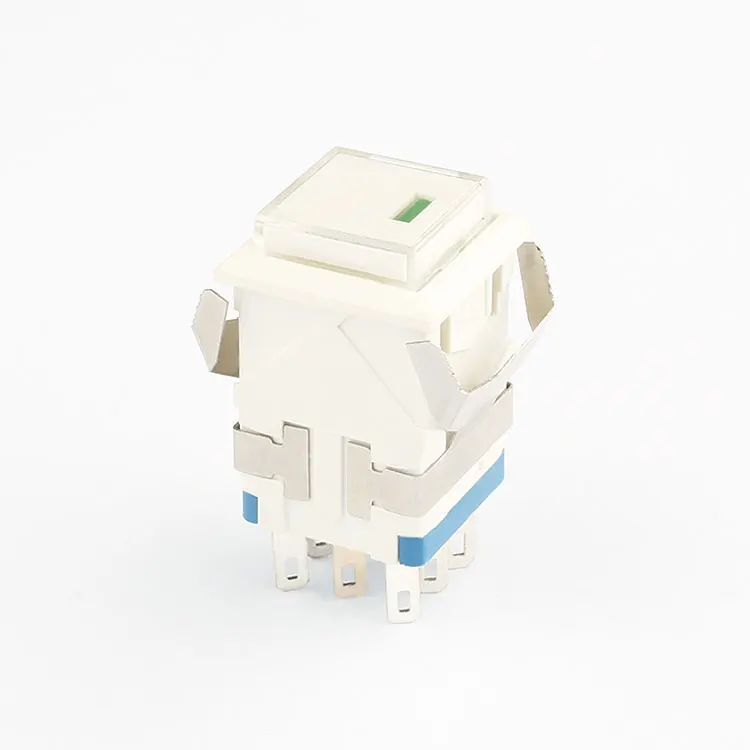

KD2 Factory Direct 12VDC 8-Pin Self-Latching LED Push Button Switch Supplier

Category: Tags: , , , ,
200 - 1,999  pieces
$0.78

2,000 - 4,999  pieces
$0.72

>= 5,000  pieces
$0.66
0 reviews

KD2 Factory Direct LED Push Button Switch Supplier, Wholesale & Reliable

Clean All

Description

Introducing our KD2 Self-Latching 12VDC 8-Pin LED Push Button Switch, a premium product from our factory in Shanghai, China. This switch is designed for durability and reliability, featuring a contact resistance of ≤50MΩ, insulation resistance of ≥100MΩ, and a dielectric strength of 1500V. With an electrical life of 10,000 cycles and a mechanical life of 50,000 cycles, it ensures long-lasting performance. The switch operates at a temperature range of 25°C to 55°C and boasts an IP40 protection level, making it suitable for various industrial applications. Our switch supports a maximum current of 3A and a maximum voltage of 250V AC, with a convenient 17×17 mm mounting hole size. The integrated white LED provides clear indication, enhancing usability. As a direct factory supplier, we offer competitive wholesale prices and excellent after-sales service. Choose our KD2 switch for its superior quality, reliability, and value.
contact resistance
≤50MΩ
electronic life（cycles）
10000
insulation resistance
≥100MΩ
mechanical life（cycles）
50000
dielectric strength
1500V
operating temperature
25T55
IP code
IP40
max.rating current & voltage
3A 250V AC

Electronic component for cross-border e-commerce


Why Choose Our KD2 LED Push Button Switch?

Our KD2 LED Push Button Switch stands out for its self-latching feature, ensuring stable operation even in harsh environments. The integrated LED provides clear visual feedback, making it ideal for industrial control and automation systems. With a high electrical and mechanical life, it offers long-lasting reliability, reducing maintenance costs.

What Are the Key Specifications?

The switch operates at 12VDC, featuring 8 pins with 2NO2NC configuration. It supports a maximum current of 3A and a maximum voltage of 250V AC, with a 17x17mm mounting hole size for easy installation. The IP40 protection level ensures dust resistance, making it suitable for various industrial applications.

Why Buy from Us?

As a direct factory supplier, we offer competitive wholesale prices without compromising on quality. Our KD2 switch is CQC CE certified, ensuring compliance with international standards. With excellent after-sales service, we provide technical support and warranty, giving you peace of mind with your purchase.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A
Max. Voltage

250V
Place of Origin

Shanghai, China
Brand Name

Yong Xing
Model Number

KD2-B21L
LED

Yes
Whether the smart

NO
IP level

IP40
Switch Combination

2NO2NC
Operation type

Self-locking
Function

2NO2NC
Mounting Hole Size

17×17 mm
LED color

White
Electrical Life

10,000 cycles
Certification

CQC CE
Protection Level

IP40
