Description
| Poles | SP (Single Poles) |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectronic Strength | 1500V |
| electronic life(cycles) | 50,000 |
| operating temperature | -25℃~+125℃ |
| Voltage |
5(1)A 250VAC 12V t105 u 5E4 3(3)A 250VAC 12V t105 u 5E4 |
| IP code |
IP40,IP65 |

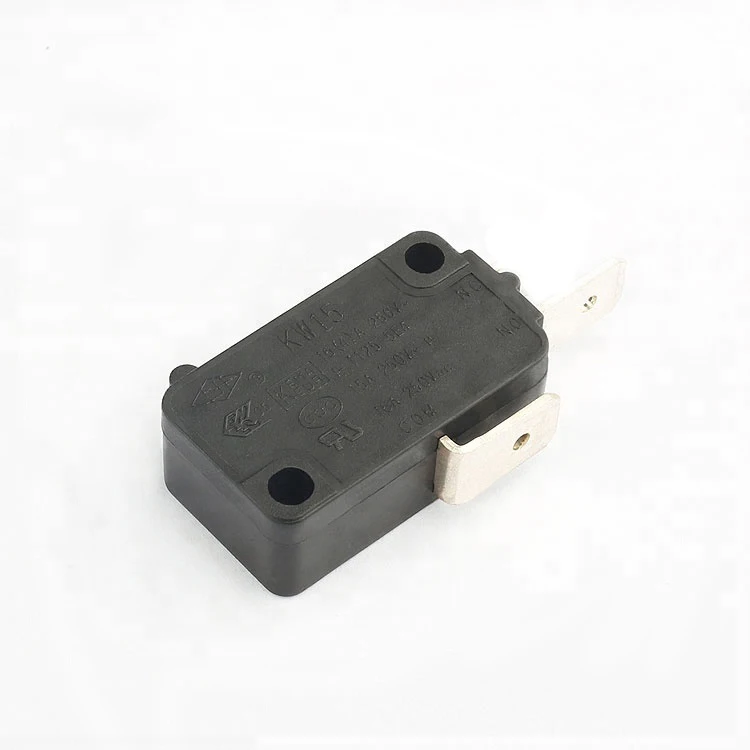

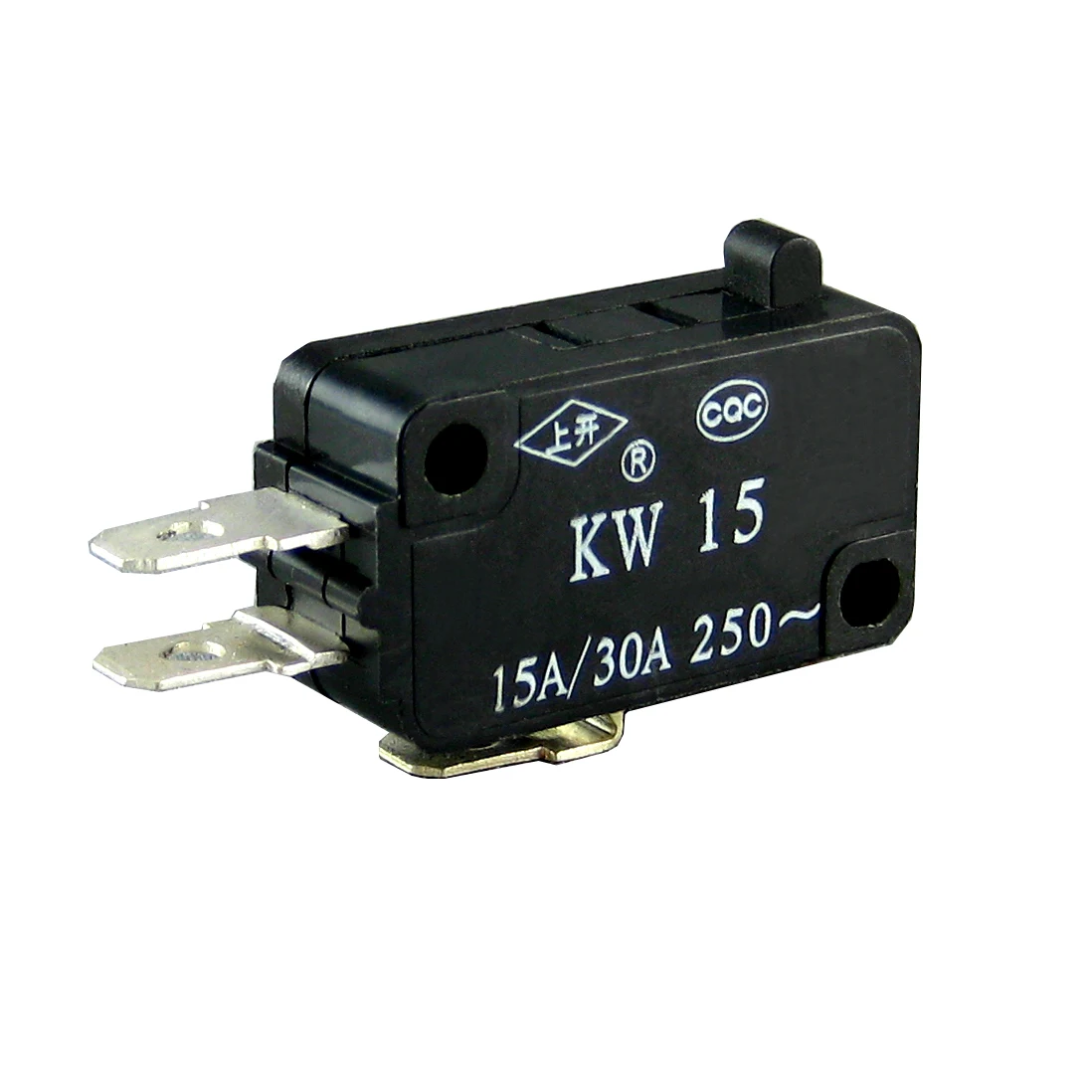

Why Choose Our KW15 16A Micro Switch?
Our KW15 16A Micro Switch stands out for its reliability, durability, and versatility. With a single-pole configuration and high dielectronic strength, it ensures stable performance in various applications. The wide operating temperature range makes it suitable for both indoor and outdoor use. As a factory supplier, we offer competitive wholesale prices and the option to customize switches for your specific needs.
What Are the Key Features?
Key features include a contact resistance of ≤50mΩ, an insulation resistance of ≥100mΩ, and an electronic life of 50,000 cycles. The switch is also available in white or black, with IP40 and IP65 protection levels, ensuring it can withstand harsh environments.
How Can We Help You?
As a direct factory supplier, we offer not only high-quality products but also excellent customer service. Whether you need a small quantity for testing or a large order for bulk production, we've got you covered. Contact us today to discuss your requirements and get a quote!
