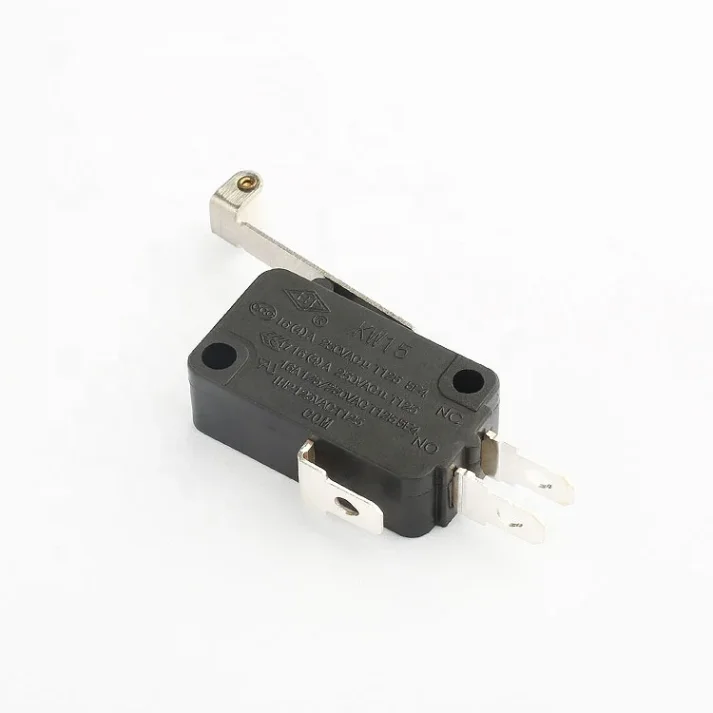

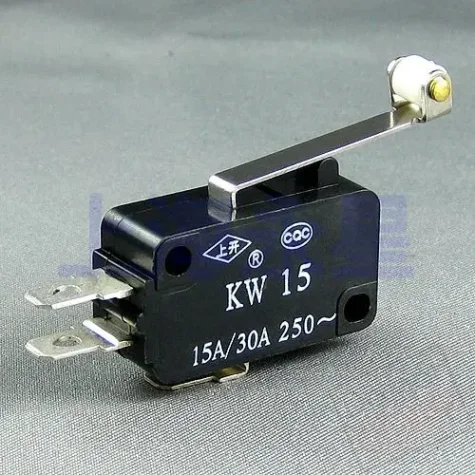

KW15 Micro Switch Roller Lever – Wholesale Supplier Factory

$0.35 - $0.50
0 reviews

KW15 Micro Switch Roller Lever – Wholesale from Factory Supplier

Description

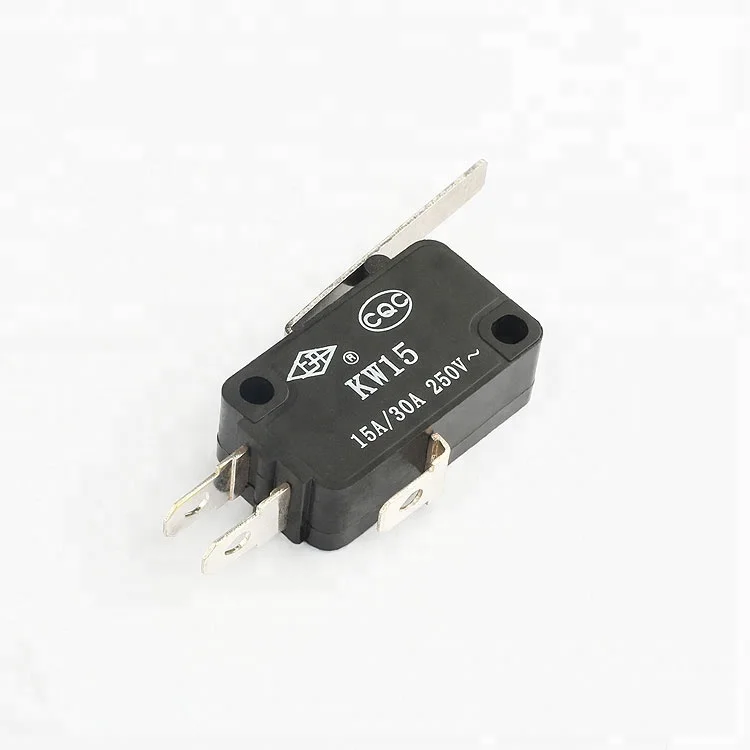

Introducing our KW15 Micro Switch Roller Lever, a high-quality product from Shanghai Yongxing, a leading factory and supplier based in Shanghai, China. This micro switch is designed with a 3-pin configuration, offering a maximum rating of 16A at 250VAC, making it suitable for a wide range of applications. Our switch features a single pole, single throw, normally open circuit, with an impressive electrical life of 50,000 cycles. The actuator and housing are both black, providing a sleek and professional look.

One of the key advantages of our KW15 Micro Switch is its customization capabilities. If you have a specific requirement, we can tailor the rocker switch to meet your needs. Our factory is equipped with independent plants, injection workshops, and advanced experimental equipment, ensuring the highest quality standards. With over 60 senior engineers and 5S, 5M management standards in all workshops, we are committed to delivering excellence.

Our micro switch is certified by CQC, CE, and ENEC17, guaranteeing its safety and reliability. It operates within a temperature range of -25℃ to +125℃, with an IP level of IP41, offering protection against dust and limited water ingress. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100mΩ, ensuring efficient and safe operation.

As a factory-direct supplier, we offer wholesale pricing and excellent after-sales service. Choose our KW15 Micro Switch Roller Lever for your next project and experience the difference in quality and service.

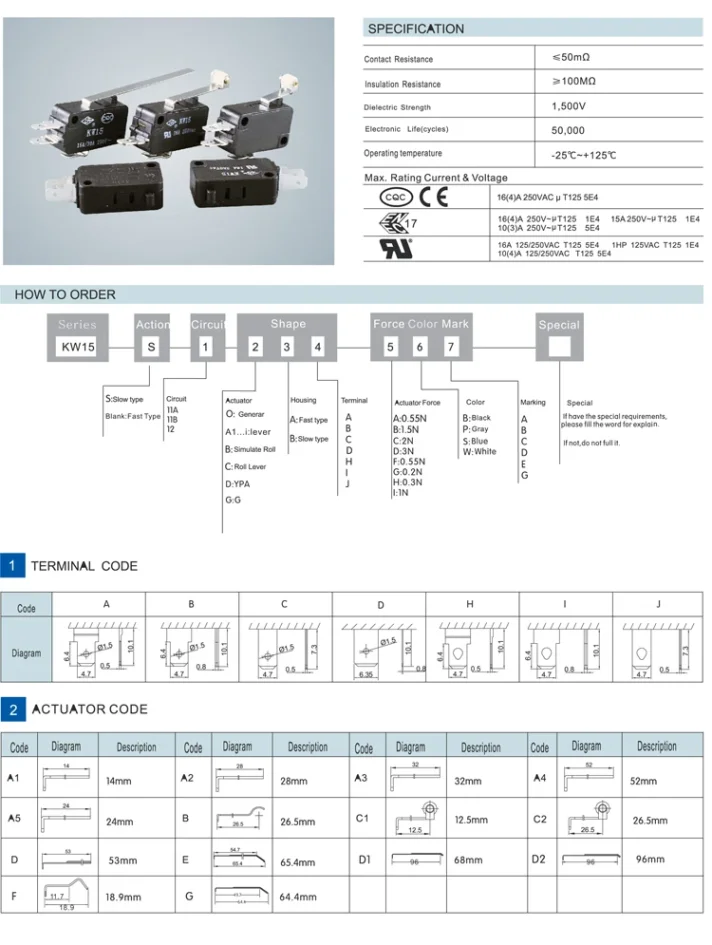

KW15-12-A2AA-BBB
Max.Rating Current&Voltage:
16A 250V
Circuit:
Single pole Single through Normally open
electronic life:
50000
Actuator color:
Black
Housing color:
Black

Electronic component high-quality image for cross-border e-commerceElectronic device part for cross-border e-commerce displayElectronic accessory image for cross-border e-commerceElectronic product high-quality image for e-commerceElectronic component image for cross-border e-commerceElectronic device image for cross-border e-commerce


What makes our KW15 Micro Switch Roller Lever stand out?

Our KW15 Micro Switch Roller Lever stands out due to its high-quality construction, customization capabilities, and competitive pricing. As a factory-direct supplier, we can offer wholesale rates and ensure that each switch meets the highest standards of quality and performance.

What are the key features of the KW15 Micro Switch?

The KW15 Micro Switch features a 3-pin configuration, a maximum rating of 16A at 250VAC, a single pole, single throw, normally open circuit, and an electrical life of 50,000 cycles. It also offers customization options to meet specific requirements.

What are the applications of the KW15 Micro Switch?

The KW15 Micro Switch is suitable for a wide range of applications, including industrial control, automotive applications, and home appliances. Its durability and reliability make it an ideal choice for various industries.

Company Information Company Information Company Information Company Information Company Information Company Information

Additional information

Whether the smart

NO

Max. Current

16A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Shanghai Yongxing

Model Number

KW15-12-AAA-ABA

Operating Temperature

-25 ~125

IP level

IP41

Color

Black

Certification

CQC,CE,ENEC17

Type

spdt

Electrical life

50000 Cycles

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

dielectronic strength

1,500V

operating temperature

-25℃~+125℃

IP

IP40 , IP65

Current

3A~16A
