Description

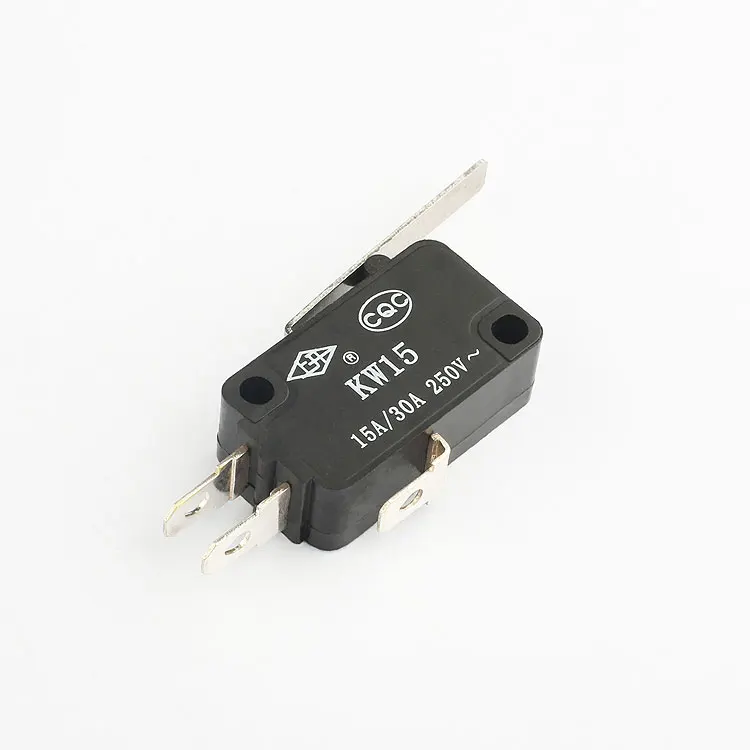

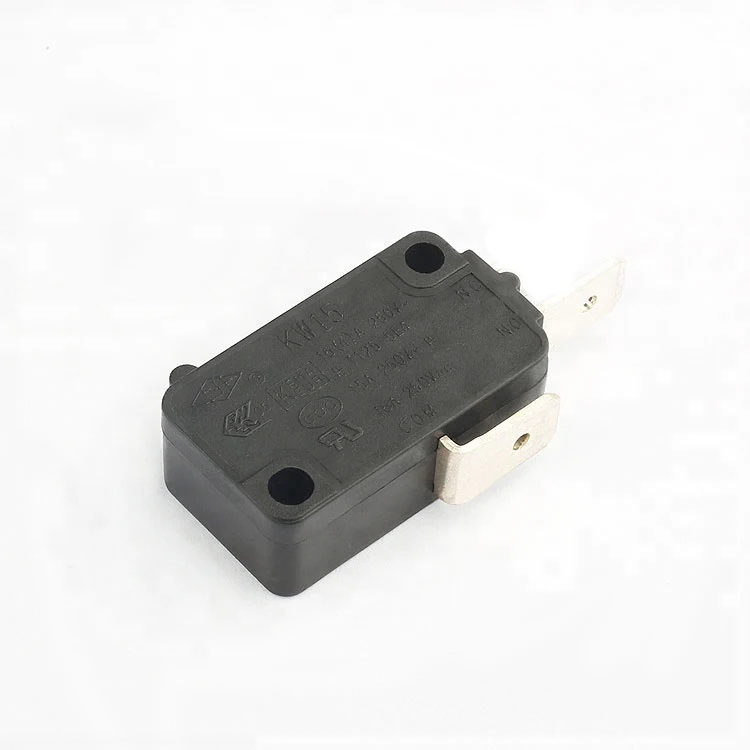

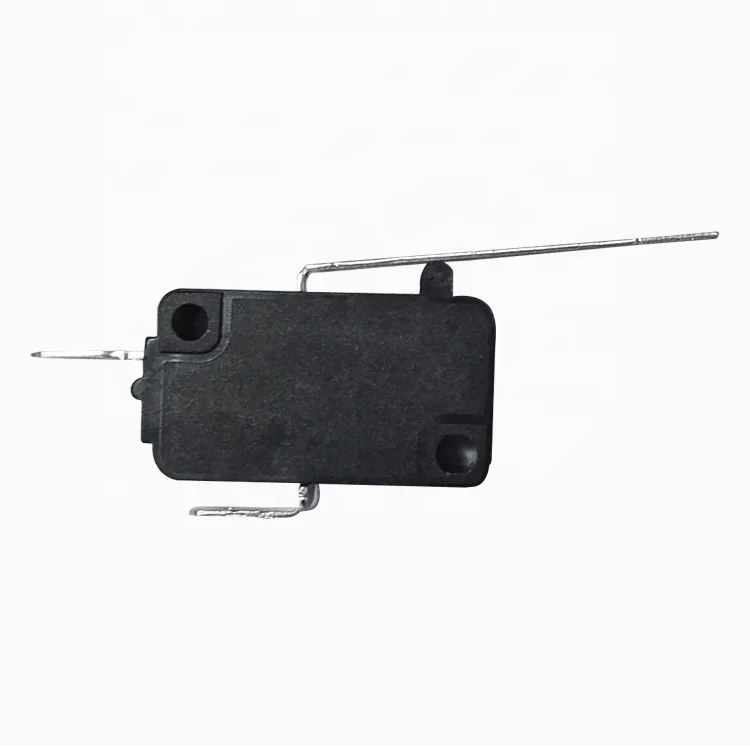

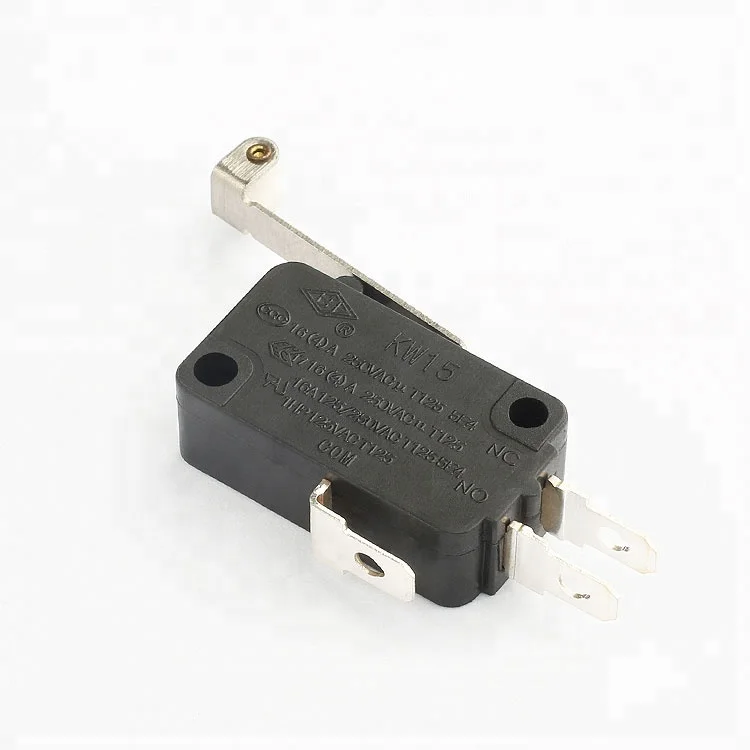

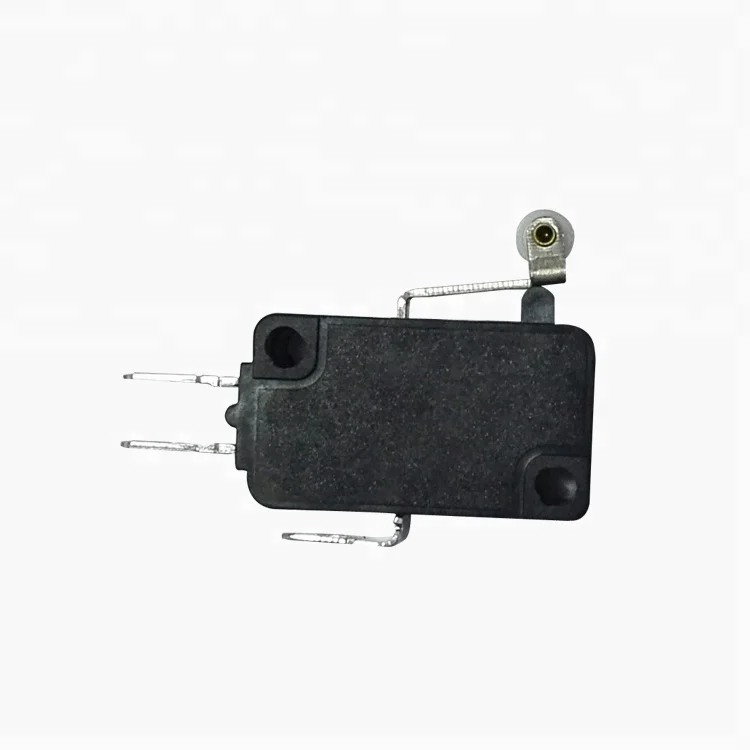

Top-Quality KW15 Microswitch from Shanghai Factory
As a leading microswitch supplier and factory based in Shanghai, China, we offer the KW15 microswitch, a versatile component ideal for home appliances, including air fryers. Our factory is equipped with an independent plant, injection molding workshop, and advanced experimental equipment, ensuring high-quality production. With over 60 senior engineers and 5S management implemented in all workshops, we guarantee precision and reliability.
Product Specifications:
- Model Number: KW15-12-A3AA-BBD
- Max. Current: 16A
- Max. Voltage: 250VAC
- Operating Temperature: -25℃~+125℃
- IP Level: IP41
- Color: Black
- Electrical Life: 50,000 cycles
- Function: SPDT 1NO
- Protection Level: IP40
Product Advantages:
- Customization: We can customize switches to meet your specific requirements.
- Quality Assurance: Rigorous quality control ensures each microswitch meets high standards.
- Factory Direct: As a factory, we offer competitive wholesale prices and direct supply.
- After-Sales Service: Dedicated support team to address any concerns or issues.
Our microswitches are designed for durability and performance, making them a preferred choice for manufacturers worldwide. Contact us today for a free sample and experience the difference of working with a reliable supplier and factory.
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectric Strength | 1,500V |
| Electronic Life | 50,000 cycles |
| Operating temperature | -25℃~+125℃ |
| Rating current&voltage | 16A/250VAC |
Why Choose Our KW15 Microswitch?
Our KW15 microswitch stands out for its high quality, durability, and customization options. As a factory supplier, we offer competitive wholesale prices and direct supply, ensuring you get the best value for your money.
What Are the Key Specifications?
The KW15 microswitch features a 16A current rating, 250VAC voltage, operates within a temperature range of -25℃ to +125℃, and has an IP41 protection level. It also offers 50,000 cycles of electrical life, making it suitable for a wide range of applications.

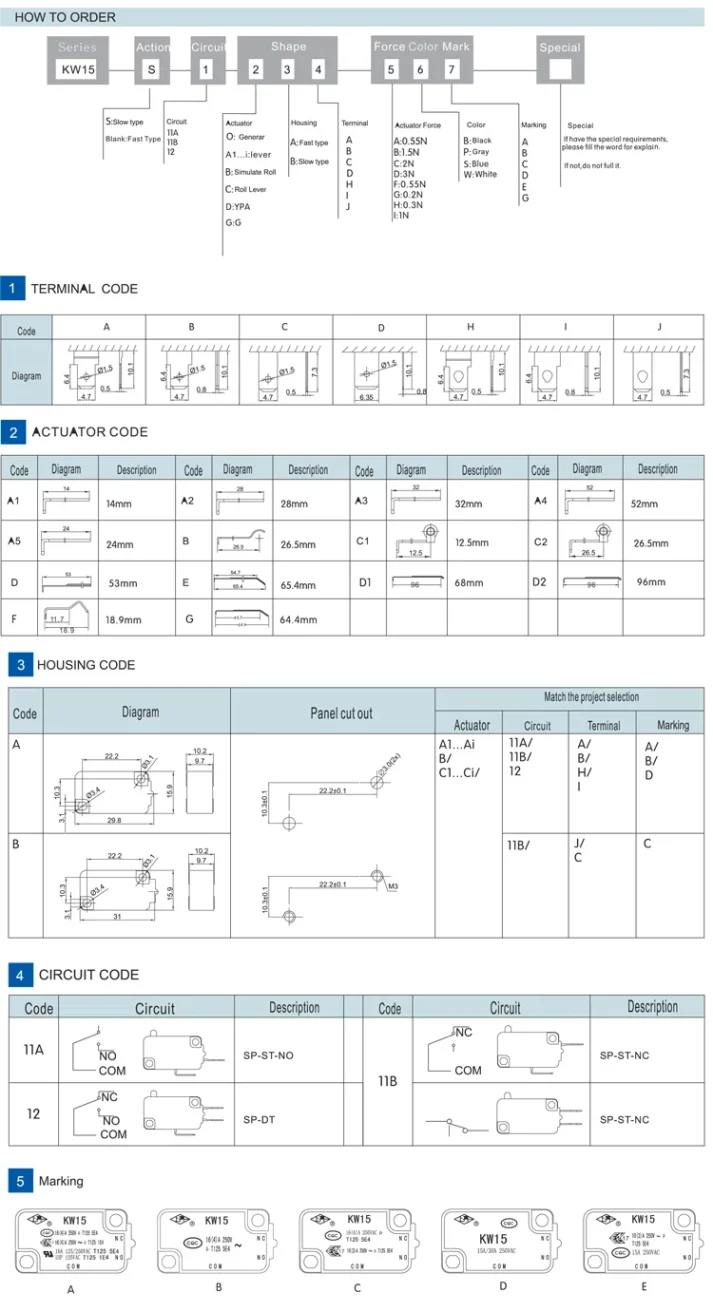

How Can We Customize It for You?
We understand that different applications may require specific switch configurations. That's why we offer customization services to tailor the KW15 microswitch to your exact needs, ensuring optimal performance and compatibility.
