Description

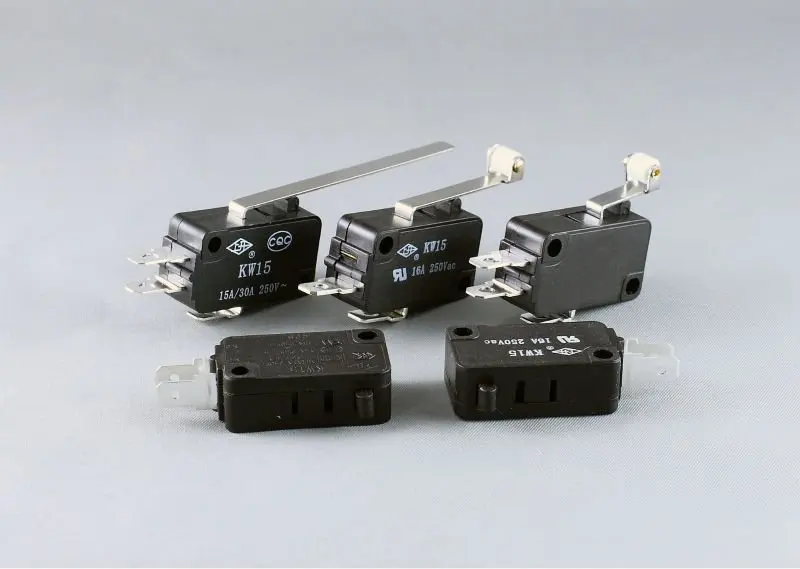

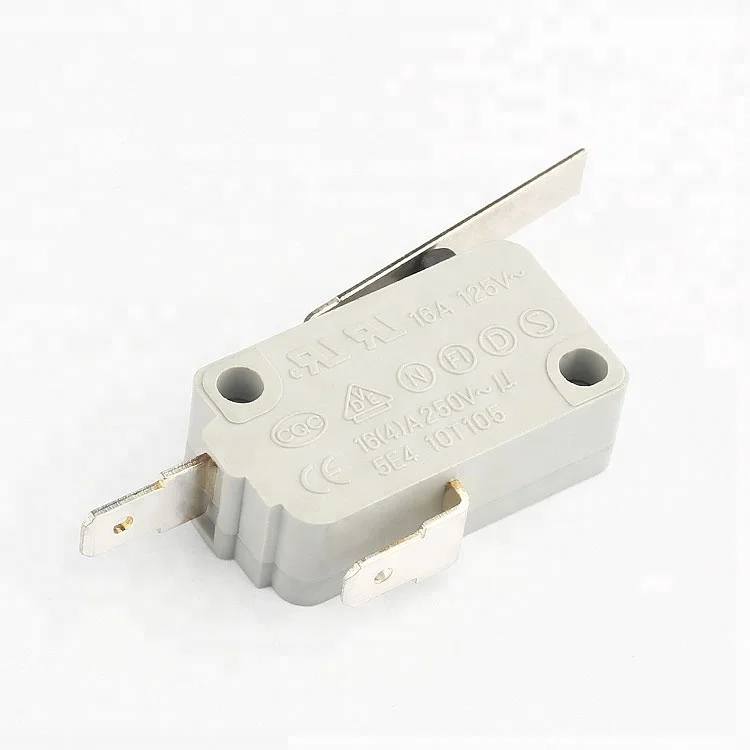

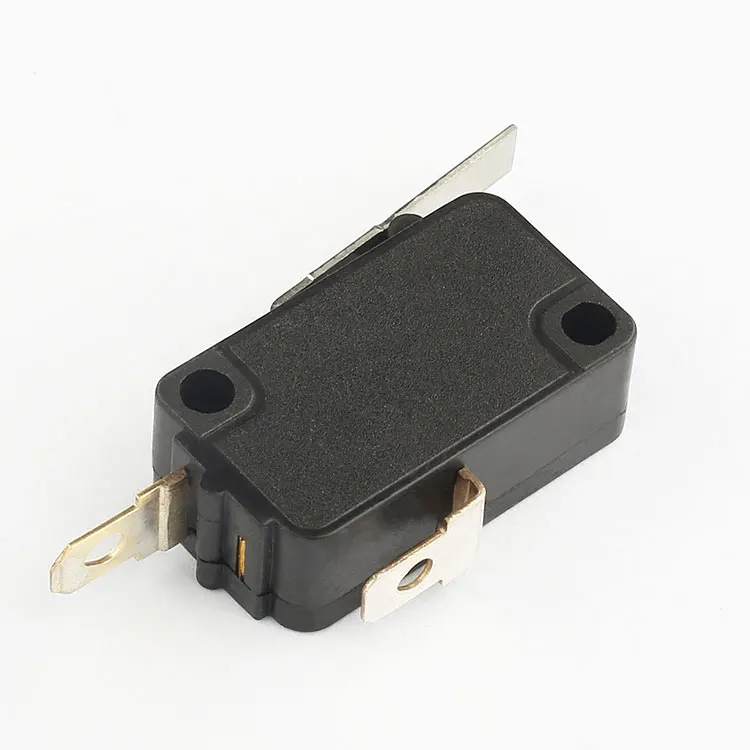

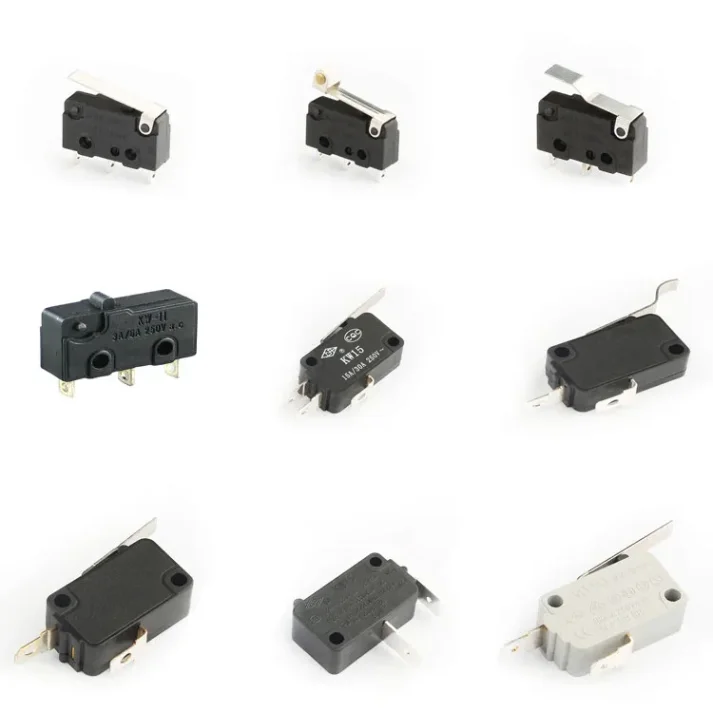

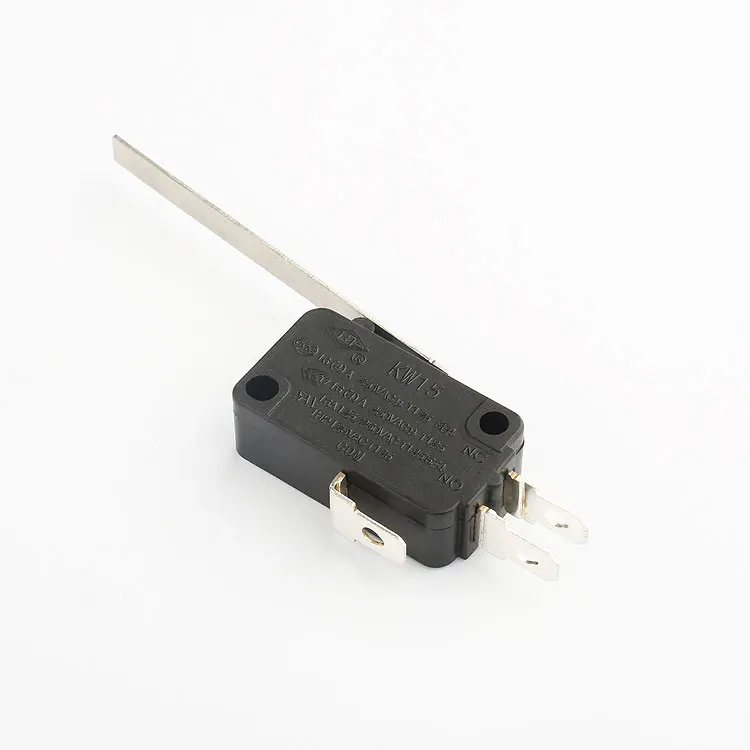

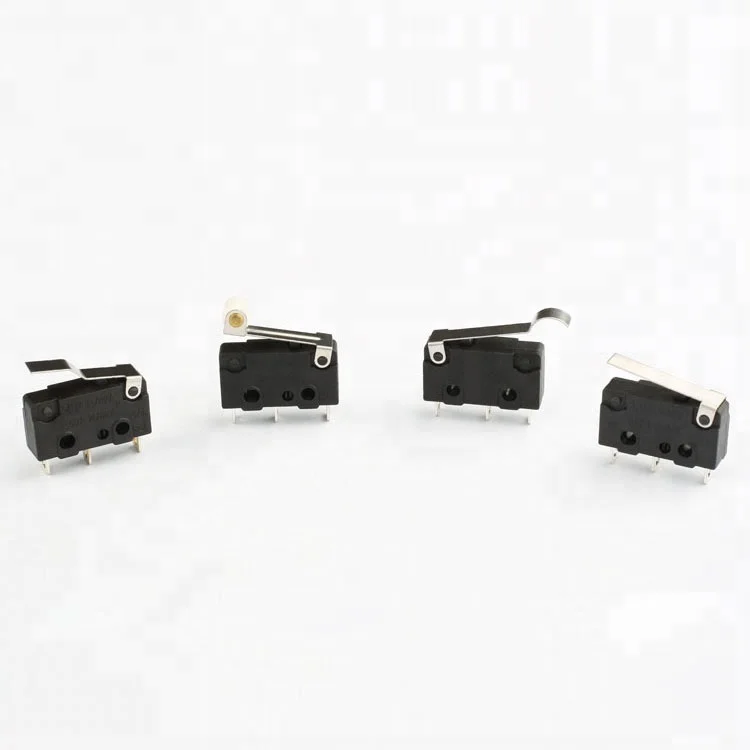

Looking for a reliable and high-quality micro switch? Our KW15 SP-DT 16A 3-Pin Waterproof Micro Switch is the perfect choice. As a factory supplier, we offer wholesale prices and ensure the best quality for our customers. This micro switch is designed with a waterproof feature, making it suitable for various environments. It has a maximum current of 16A and a maximum voltage of 250V AC, with an operating temperature range of -25℃ to +125℃. The switch has a single pole (SP) and double throw (DT) action, with a contact resistance of ≤50mΩ and an insulation resistance of ≥100mΩ. It also boasts a dielectronic strength of 1500V and an electronic life of 50,000 cycles. With IP40/IP65 protection levels, it offers excellent durability and reliability. Our factory is equipped with independent plants, injection workshops, and advanced experimental equipment, ensuring that we can meet your custom needs if you have a large enough purchase quantity. With 60 senior engineers and a perfect development process, all our workshops adhere to 5S and 5M management standards. Choose us for factory-direct pricing, excellent quality, and reliable after-sales service.
| Poles |
SP (Single Poles) |
| Contact Resistance |
≤50mΩ |
| Insulation Resistance |
≥100mΩ |
| Dielectronic Strength |
1500V |
| electronic life(cycles) |
50,000 |
| operating temperature |
-25℃~+125℃ |
| Voltage |
5(1)A 250VAC 12V t105 u 5E4
3(3)A 250VAC 12V t105 u 5E4
|
| IP code |
IP40,IP65
|
Product Features
Our KW15 SP-DT 16A 3-Pin Waterproof Micro Switch stands out with its waterproof design, high current and voltage handling capabilities, and long electronic life. It is perfect for industrial control, home appliances, and automotive applications.
Why Choose Us?
As a factory supplier, we offer wholesale prices and ensure the best quality. Our factory is equipped with advanced equipment and a professional team, allowing us to meet your custom needs and provide reliable after-sales service.
Differentiated Competitiveness
Our micro switch offers superior durability and reliability with IP40/IP65 protection levels. It has a long electronic life of 50,000 cycles, ensuring long-term performance. Choose us for factory-direct pricing and excellent quality.
