LA133 22mm 10A 250VAC Pushbutton Switch – Wholesale Supplier

500 - 1,999  pieces
$4.80

2,000 - 4,999  pieces
$4.50

>= 5,000  pieces
$4.10

0 reviews

LA133 22mm Pushbutton Switch – Wholesale Supplier, Durable & Reliable

Description

Introducing our LA133 Pushbutton Switch, a top-notch product designed for 22mm 10A 250VAC electric appliances. As a factory direct supplier and wholesaler, we ensure high quality and competitive pricing. This switch boasts an operating temperature range of -25°C to +55°C, making it suitable for various environments. With an installation group of III Class and a degree of pollution of Level 3, it guarantees reliability and durability. The switch also features an installation height of ≤2000m, vibration resistance of 10~200HZ.1mm.15g, and a relative humidity of ≤98%. Its protection degree options include IP40, IP65, or IP67, ensuring comprehensive protection against dust and water ingress. The rated insulation voltage is AC660V, with a rated thermal current of 10A and a max insulation voltage of 2500V/min. Usage categories cover AC-15 and DC-13, catering to diverse applications. The switch offers a long lifespan, with mushroom-head pushbutton and illuminated pushbutton actuators rated at 1 million operations, and rotary switch, key switches, and maintained action actuators at 0.3 million operations. Choose our LA133 Pushbutton Switch for its superior performance, reliability, and competitive pricing.

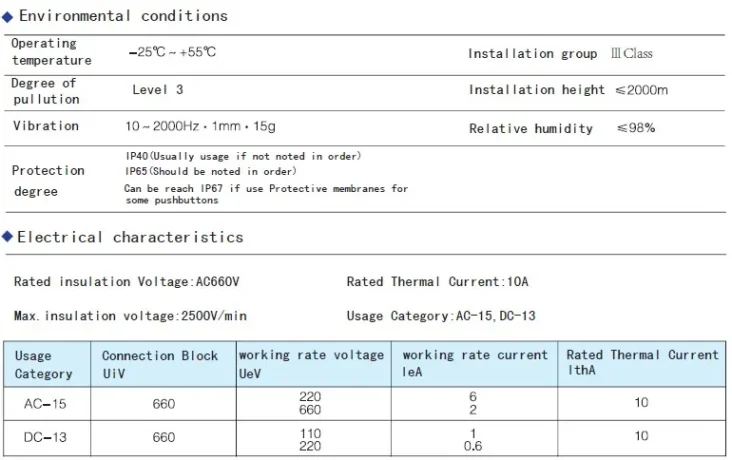

Operating temperature -25°c~+55°c
Installation group III Class
Degree of pollution Level 3
Installation height ≤2000m
Vibration 10~200HZ.1mm.15g
Relative humidity ≤98%
Protection degree IP40 or IP65 or IP67
Rated Insulation Voltage AC660V
Rated Thermal current 10A
Max insulation voltage 2500V/min
Usage Category AC-15 DC-13

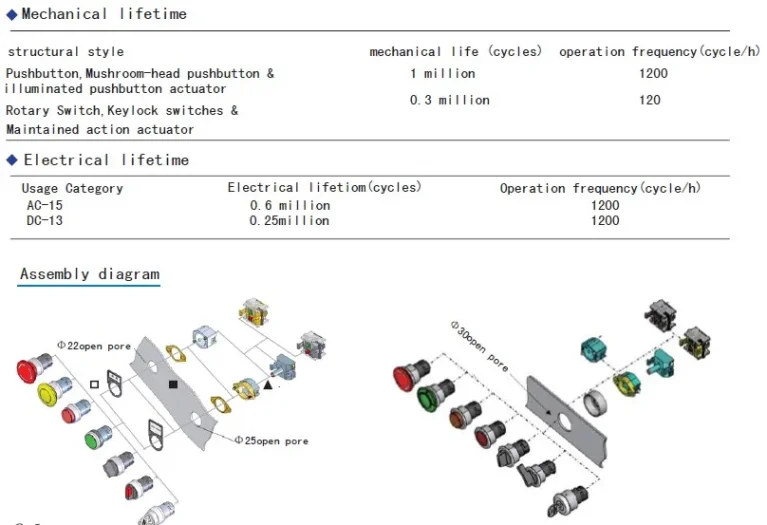

Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator 1 million

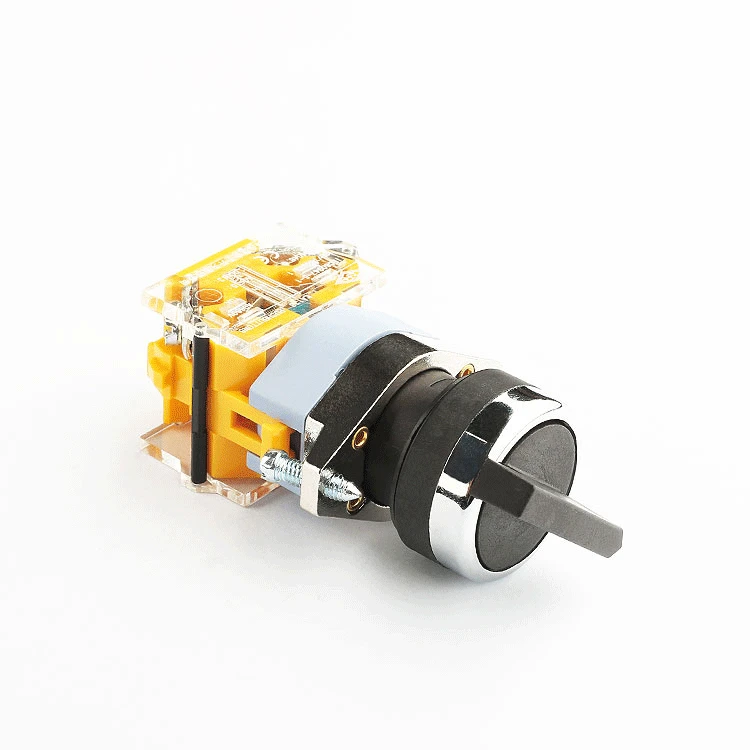

Rotary switch,Key switches&Maintained action actuator 0.3 million

Electronic component device for cross-border e-commerceElectronic gadget product for e-commerceElectronic device image for cross-border e-commerceElectronic product photo for e-commerce


Superior Performance

Our LA133 Pushbutton Switch is designed for superior performance in electric appliances and industrial control applications. With a rated thermal current of 10A and a max insulation voltage of 2500V/min, it ensures reliable operation under various conditions.

Durable and Reliable

Constructed with high-quality plastic materials, this switch offers durability and reliability. Its protection degree options of IP40, IP65, or IP67 provide comprehensive protection against dust and water ingress, making it suitable for use in harsh environments.

Competitive Pricing

As a factory direct supplier and wholesaler, we offer competitive pricing on our LA133 Pushbutton Switch. Choose us for quality, reliability, and affordability in your next purchase.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

10A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

LA133

LED

Other

Application

Electric, Industrial Control

Material

plastic

Structure

Electronic

Head Type

Round Head

Terminal Type

Plug Terminal

Whether the smart

NO

illuminated Type

full illuminated

IP level

IP40, ip65, ip67

Switch Combination

1NO

panel cutout

22mm

name

electrical key card switch

Protection Level

IP40
