Description

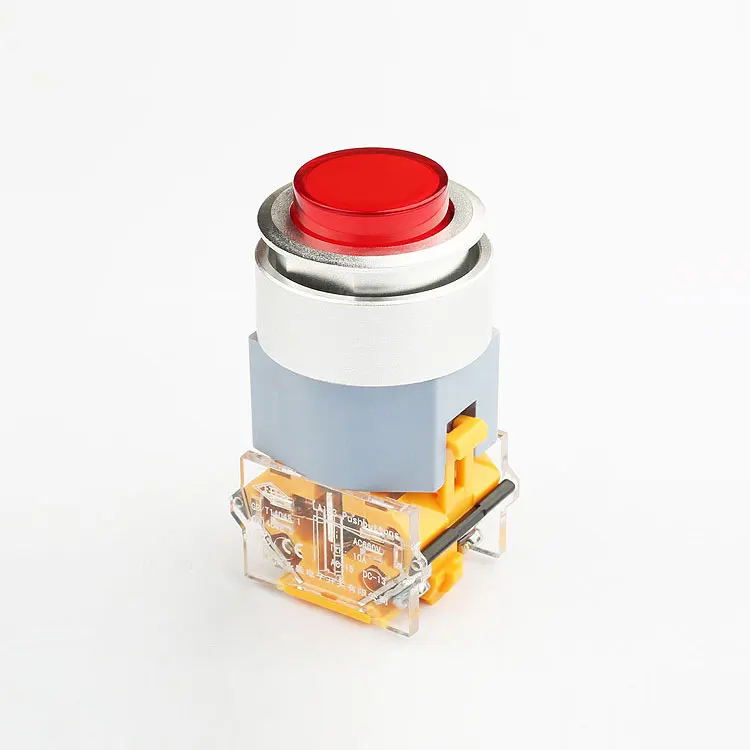

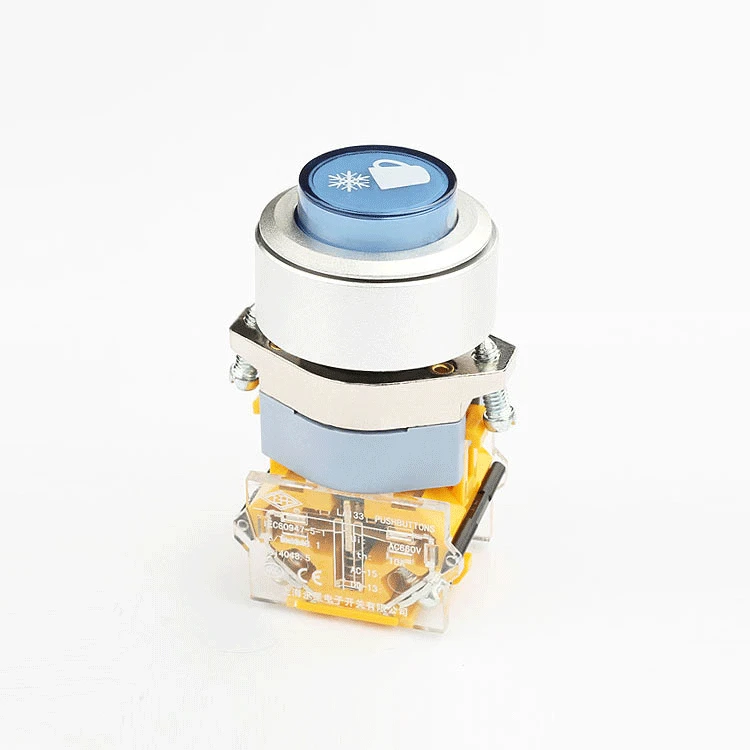

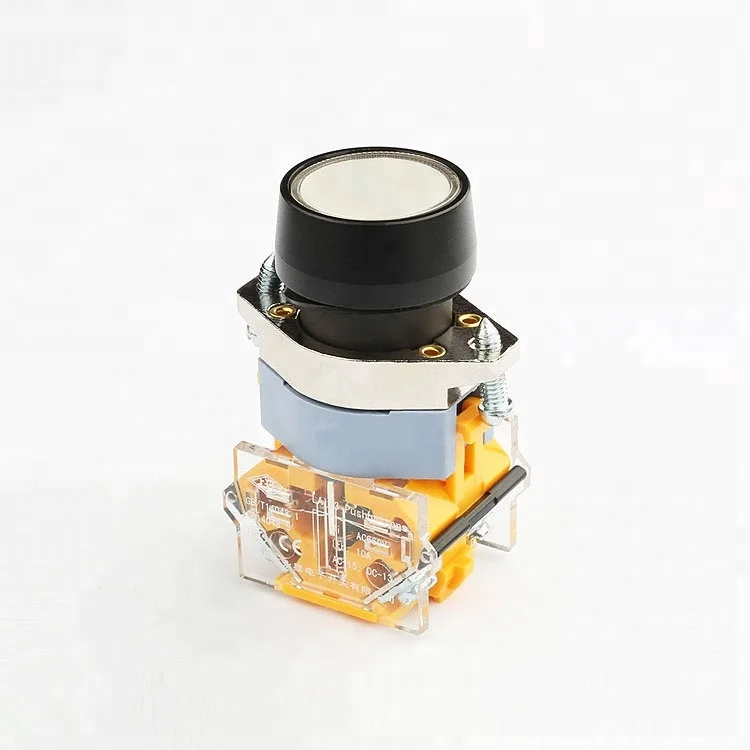

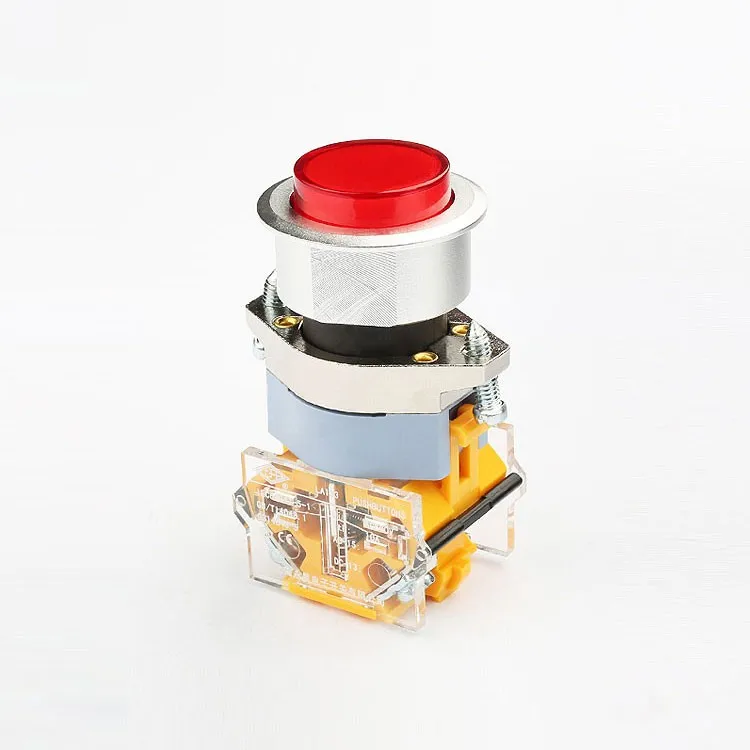

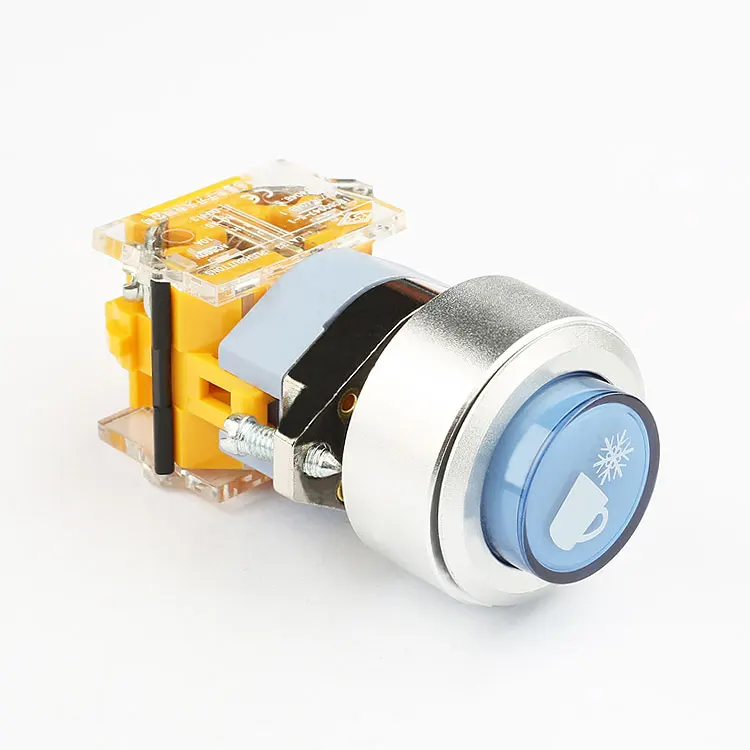

LA133 22mm 24V Ignition Start Push Button Switch
Introducing our high-quality LA133 22mm 24V Ignition Start Push Button Switch, a reliable and durable solution for your electrical needs. As a factory direct supplier and wholesaler, we offer competitive prices and excellent service.
Product Specifications:
- Max. Current: 10A
- Max. Voltage: 660V AC
- Rated Voltage: 12V, 220V, 24V, 36V, 6V
- Size: 22mm
- Material: Plastic
- Head Type: Round Head
- Operating Temperature: -25℃~+55℃
- Protection Degree: IP40, IP65, IP67
- Mechanical Life: 300,000 Cycles
- Electronic Life: 600,000 Cycles

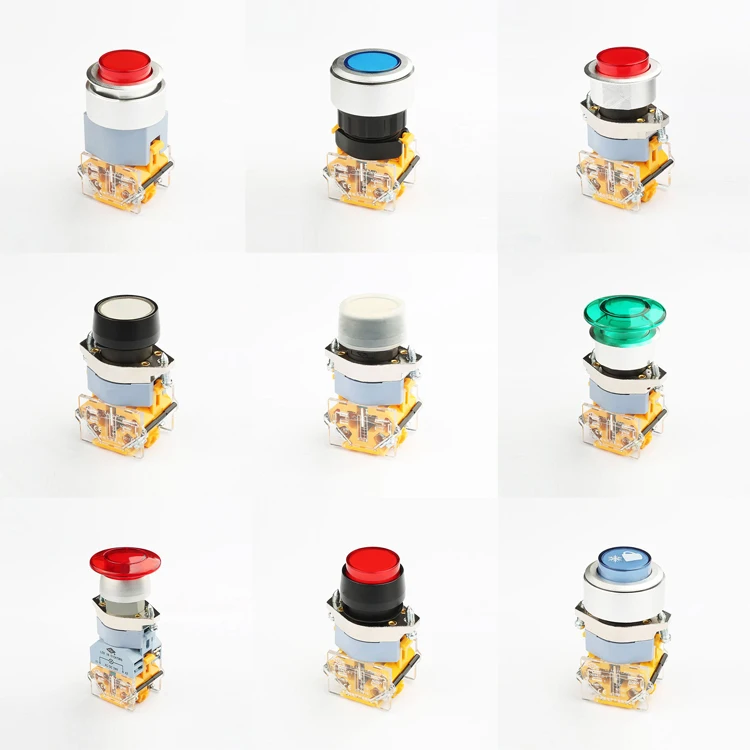

- Cap Colors: Red, Green, Yellow, Black
- Certifications: CQC, CE, RoHS
Product Advantages:
- Durable plastic construction ensures long-lasting use.
- Wide range of rated voltages for versatile applications.
- High protection degree (IP40, IP65, IP67) for dust and water resistance.
- Long mechanical and electronic life for cost-effective operation.
- Multiple cap colors available to match your design needs.
- Certified by CQC, CE, and RoHS for quality assurance.
Applications:
Ideal for electric, home appliance, industrial control, and latching applications.
After-Sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage, to ensure your satisfaction.
| Operating temperature | -25°c~+55°c |
| Installation group | III Class |
| Degree of pollution | Level 3 |
| Installation height | ≤2000m |
| Vibration | 10~200HZ.1mm.15g |
| Relative humidity | ≤98% |
| Protection degree | IP40 or IP65 or IP67 |
| Rated Insulation Voltage | AC660V |
| Rated Thermal current | 10A |
| Max insulation voltage | 2500V/min |
| Usage Category | AC-15 DC-13 |
| Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator | 1 million |

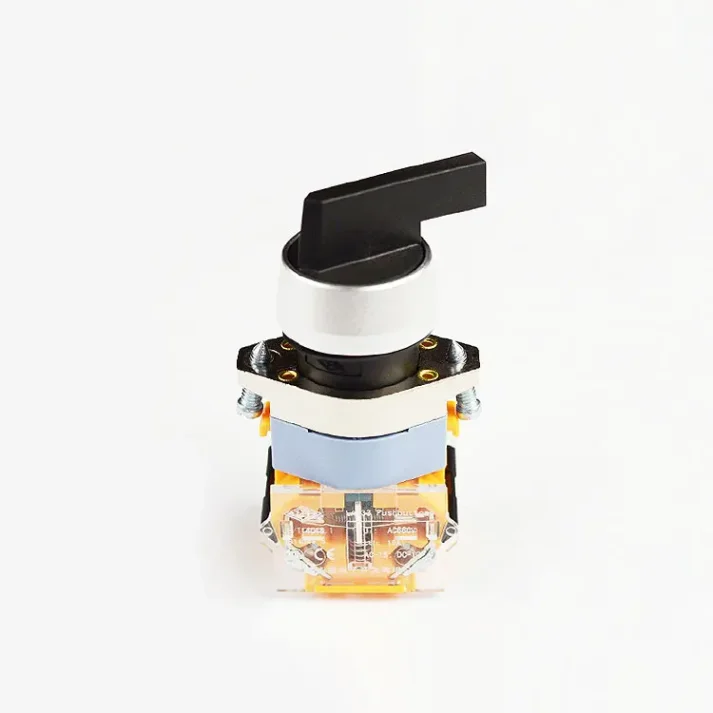

| Rotary switch,Key switches&Maintained action actuator | 0.3 million |
Why Choose Our LA133 22mm 24V Ignition Start Push Button Switch?
Our LA133 22mm 24V Ignition Start Push Button Switch is designed for durability and reliability, making it an ideal choice for electric, home appliance, and industrial control applications. With a wide range of rated voltages and a high protection degree, it ensures safe and efficient operation in various environments.
What Are the Key Features of Our Switch?
Key features include a durable plastic construction, long mechanical and electronic life, multiple cap colors, and certifications by CQC, CE, and RoHS. These features make our switch stand out from competitors and provide excellent value for money.
How Can We Assist You After Purchase?
As a factory direct supplier and wholesaler, we offer comprehensive after-sales service, including technical support and warranty coverage. Our dedicated team is always ready to assist you with any questions or concerns you may have, ensuring your complete satisfaction.
