Description
Key features include:
– Max Current: 10A
– Max Voltage: 660V AC
– Protection Level: IP40, IP65, IP67
– Electrical Life: 600,000 cycles for AC-15, 250,000 cycles for DC-13
– Mechanical Life: 1,000,000 cycles
– Operating Temperature: -25℃ to +55℃
Our switch stands out with its long mechanical and electrical life, ensuring reliable performance. We have independent plants, injection workshops, and advanced experimental equipment, with over 60 senior engineers to guarantee quality. All workshops adhere to 5S and 5M management standards. Contact us now for inquiries and bulk orders.
|

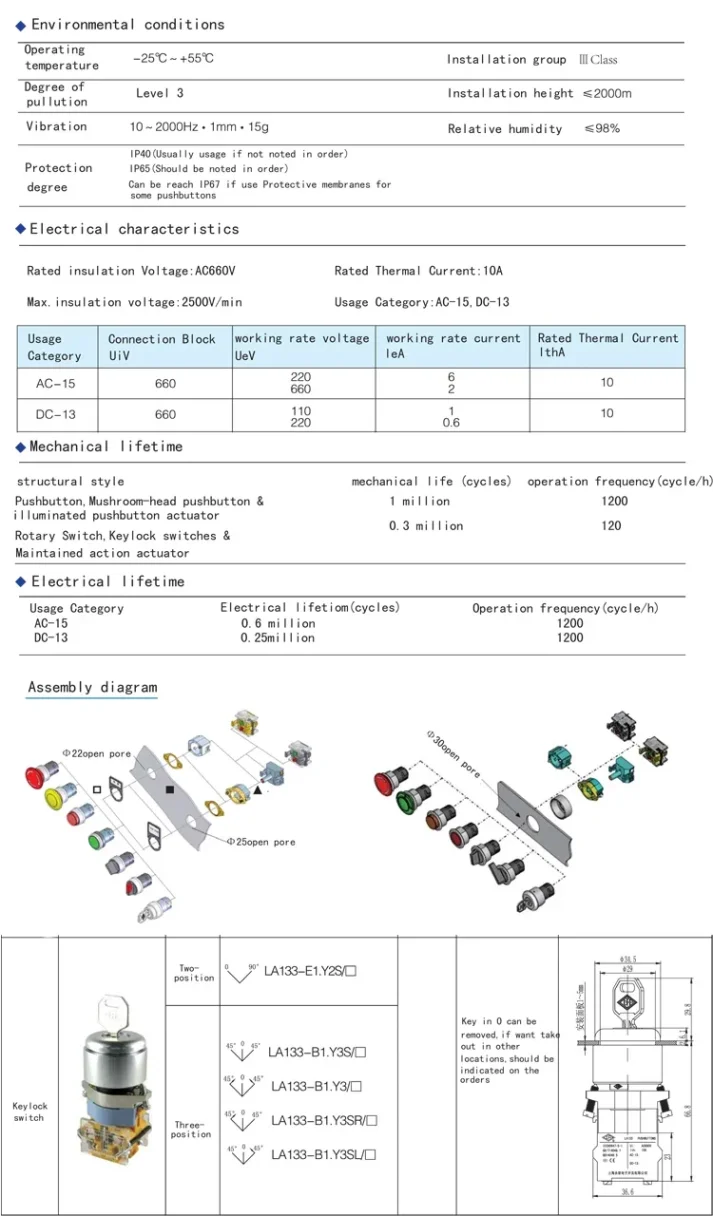

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Model Number
|
LA133-A1.Y2S-K20
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
Why Choose Our LA133 Rotary Switch?
Our LA133 Rotary Switch offers unmatched durability with a mechanical life of 1,000,000 cycles and electrical lives of 600,000 cycles for AC-15 and 250,000 cycles for DC-13. This ensures long-lasting performance in various applications.
What Are the Key Features?
Key features include a 22mm mounting hole diameter, max current of 10A, max voltage of 660V AC, and protection levels of IP40, IP65, and IP67. These specifications make it suitable for industrial control, home appliances, and electrical equipment.
Why Buy from Us?
As a factory direct supplier, we offer wholesale prices and exceptional customization services. With independent plants, advanced equipment, and over 60 senior engineers, we guarantee quality and reliability. All workshops adhere to strict management standards, ensuring consistent product excellence.
