LA133 22mm Wholesale Pushbutton Switch from Factory Supplier

500 - 1,999  pieces
$4.50

2,000 - 4,999  pieces
$4.30

>= 5,000  pieces
$4.10

0 reviews

Wholesale LA133 22mm Pushbutton Switch from Factory Supplier

Description

Our LA133 22mm Pushbutton Switch is a high-quality electric switch designed for industrial control applications. As a factory supplier, we offer wholesale pricing and customization options to meet your specific needs. With a maximum current of 10A and voltage of 660V AC, this switch is built to handle demanding electrical environments. It features a round head, plug terminal, and full illumination, making it both functional and visually appealing. Our switch has an IP40/IP65/IP67 protection level, ensuring durability in various conditions. The mechanical life is up to 300,000 cycles, with an operating temperature range of -25℃ to +55℃. We pride ourselves on our advanced manufacturing facilities, including an independent plant, injection workshop, and experimental equipment. With over 60 senior engineers, we ensure that all our products meet the highest quality standards. Choose our LA133 Pushbutton Switch for reliable performance and exceptional value.

Electronic component product image for cross-border e-commerceElectronic device product image for e-commerce optimizationElectronic gadget product image for SEO optimization


Why Choose Our LA133 Pushbutton Switch?

Our LA133 Pushbutton Switch stands out for its high-quality construction, reliable performance, and customization options. As a factory supplier, we offer wholesale pricing, making it an affordable choice for your industrial control needs.

What Are the Key Features?

Key features include a 22mm size, round head, plug terminal, full illumination, and an IP40/IP65/IP67 protection level. It can handle up to 10A current and 660V AC voltage, with a mechanical life of up to 300,000 cycles.

How Does It Benefit Your Business?

By choosing our LA133 Pushbutton Switch, you benefit from a durable, reliable product that meets the demands of industrial control applications. Our factory supplier status ensures competitive pricing and the ability to customize the switch to your specific requirements.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

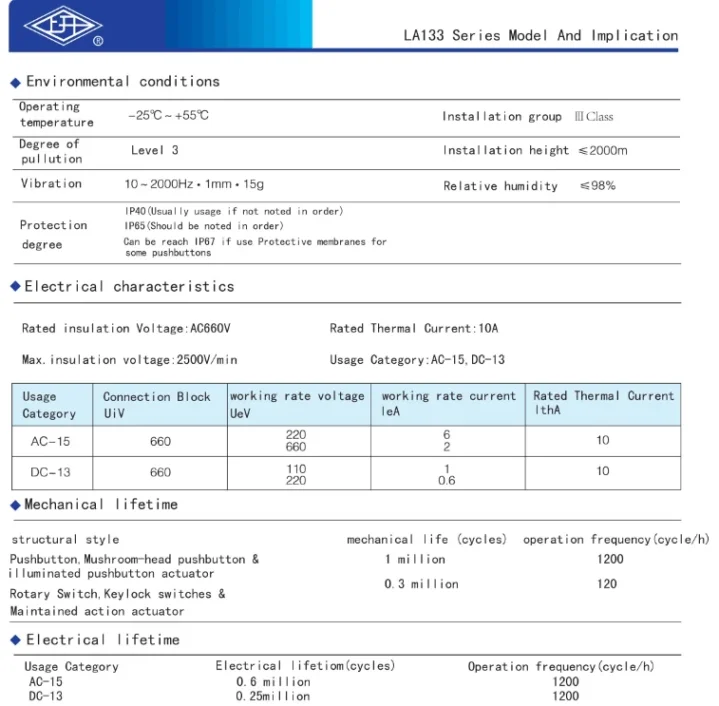

Additional information

Max. Current

10A

Max. Voltage

660V AC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

LA133

LED

Other

Application

Electric, Industrial Control

Material

plastic

Structure

Electronic

Head Type

Round Head

Terminal Type

Plug Terminal

Whether the smart

NO

illuminated Type

full illuminated

IP level

IP40, ip65, ip67

Switch Combination

1NO

Operating temperature

-25℃~+55℃

mechanical life

300000

operation frequency

120 cycle/h

rated insulation voltage

AC660V

max.insulation voltage

2500V/min

vibration

10~2000Hz.1mm.15g

installation height

≤2000m

relative humidity

≤98%

Name

22mm key electrical switch lock

Protection Level

IP40/IP65/IP67
