Description
With a maximum rating of 10A and a rated insulation voltage of AC660V, this switch is built to handle demanding electrical environments. It boasts a mechanical life of 0.3 million cycles and an electrical life of 0.25 million cycles, ensuring long-lasting performance. The operating temperature range of -25℃ to +55℃ makes it suitable for a wide range of climates.
Our switch stands out from competitors with its IP40/IP65 protection level, offering superior dust and water resistance. It also features indicator voltages ranging from 6V to 380V, accommodating various voltage requirements. Available in silver and black, it complements any control panel design.
As a factory supplier, we have independent plants, injection workshops, and advanced experimental equipment. Our team of over 60 senior engineers ensures that every switch meets our high standards. We welcome customization requests and are committed to providing excellent customer service. Contact us today to inquire about wholesale pricing and to place your order.
|

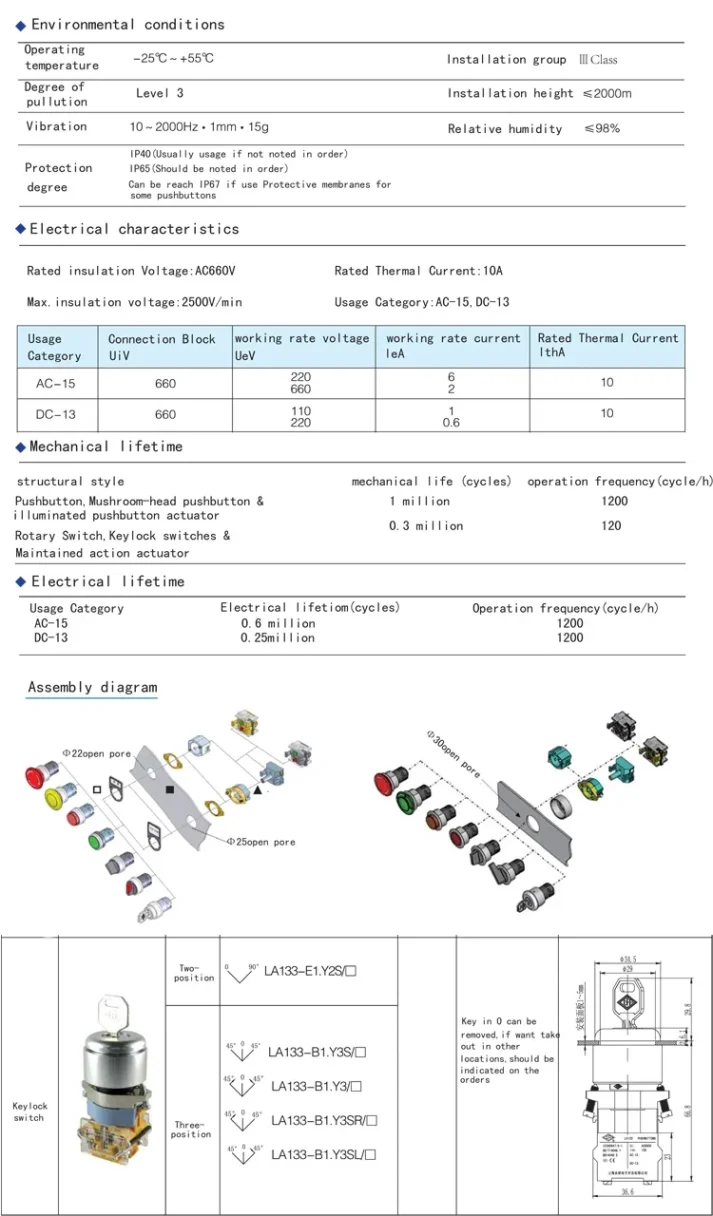

Max.rating cnrrent&voltage
|
10a
|
||
|
Rated insulation voltage
|
AC660V
|
||
|
Max.insulation voltage
|
2500V/min
|
||
|
Working rated voltage
|
220V-660V(AC-15);110-220V(DC-13)
|
||
|
Mechanical life
|
0.3 million cycles
|
||
|
Electrical life
|
0.25 million cycles
|
||
|
Operating temperature
|
-25℃ to +55℃
|
||
|
IP code
|
IP40/IP65
|
||
|
Indicator voltage
|
6V,12V,24V,36V,48V,110V,220V,380V
|
Why Choose Our LA133-E Series Rotary Switch?
Our LA133-E Series Rotary Switch is a top choice for industrial and commercial applications due to its durability, versatility, and customization options. As a factory supplier, we offer competitive wholesale pricing, ensuring you get the best value for your investment.
Key Features and Benefits
With a maximum current rating of 10A and a rated insulation voltage of AC660V, this switch is built to withstand demanding electrical conditions. Its mechanical and electrical life cycles ensure long-lasting performance, reducing the need for frequent replacements. The IP40/IP65 protection level offers superior dust and water resistance, making it suitable for harsh environments.
Customization and Support
We understand that every application is unique, which is why we offer customization options to meet your specific requirements. Our team of experienced engineers is ready to assist you in selecting the right switch for your needs. As a factory supplier, we provide excellent customer service and support, ensuring your satisfaction from purchase to installation.
