Description
Specifications:
- Model: LA133-A1.P-W
- Brand: SK (ShangKai)
- Protection Level: IP40/IP65/IP67
- Max. Current: 10A
- Max. Voltage: 660V
- Panel Cutout: 22mm, 25mm, 30mm
- Mechanical Life: 300,000 cycles
- Electronic Life: 250,000 cycles
- Operating Temperature: -25℃ to +55℃
- Max. Insulation Voltage: 2500V/min
- Installation Height: ≤2000m
Advantages:
- Durable construction ensures long-lasting performance.
- Wide range of protection levels for different environments.
- High mechanical and electronic life cycles for reliability.
- Versatile panel cutout sizes for easy installation.
- Factory-direct pricing and wholesale availability.
After-Sales Service: We offer comprehensive after-sales service, including technical support and warranty coverage, to ensure your satisfaction with our product.
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
SK(ShangKai)
|
|
Model Number
|
LA133-A1.P-W
|
|
Protection Level
|
IP40/IP65/IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660V
|
|
LED
|
NO
|
|
name
|
Push Button Switch Illuminated Alternate 12V Led Light
|
|
Color
|
Red, Yellow ,Green, Black Push Button Switch
|
|
Certification
|
CCC,CQC, CE,
|
|
Panel cutout
|
22mm 25mm 30mm
|
|
Mechanical life
|
300000 cycles Automatic Changeover Switch
|
|
Electronic Life
|
250000 cycles Big Dome Button
|
|
Operating temperature
|
-25℃~+55℃
|
|
Max.insulation voltage
|
2500v/min
|
|
Protection degree
|
IP40I, P65, IP67
|
|
Installation height
|
≤2000 m
|
Why Choose Our LA133 Push Button Switch?

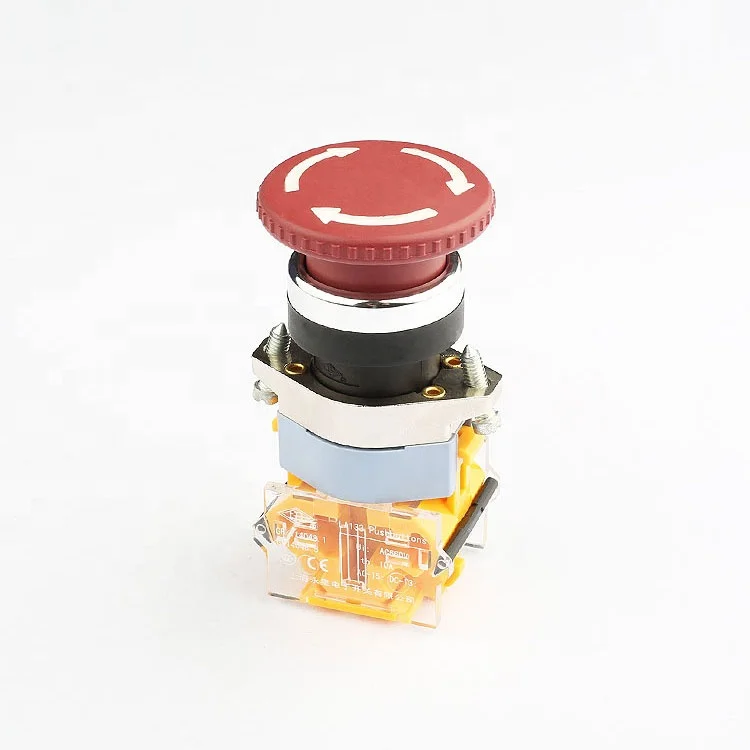

Our LA133 Push Button Switch stands out due to its high-quality construction, versatile specifications, and factory-direct pricing. With protection levels ranging from IP40 to IP67, it can withstand various environmental conditions, making it suitable for a wide range of applications. The emergency stop function adds an extra layer of safety, ensuring peace of mind in critical situations.
What Are the Key Features?
Key features include a max current of 10A and max voltage of 660V, along with a mechanical life of 300,000 cycles and an electronic life of 250,000 cycles. These specifications ensure reliable performance over an extended period. The switch is also available in multiple colors, allowing you to match it with your equipment's aesthetics.
How Does It Benefit Your Business?
As a factory-direct supplier, we offer wholesale pricing and bulk order options, making it cost-effective for your business. The switch's durability and reliability reduce maintenance costs and downtime, increasing productivity. Additionally, our comprehensive after-sales service ensures that you have support whenever you need it.
