Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CF1C-B-B-02/10A
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|

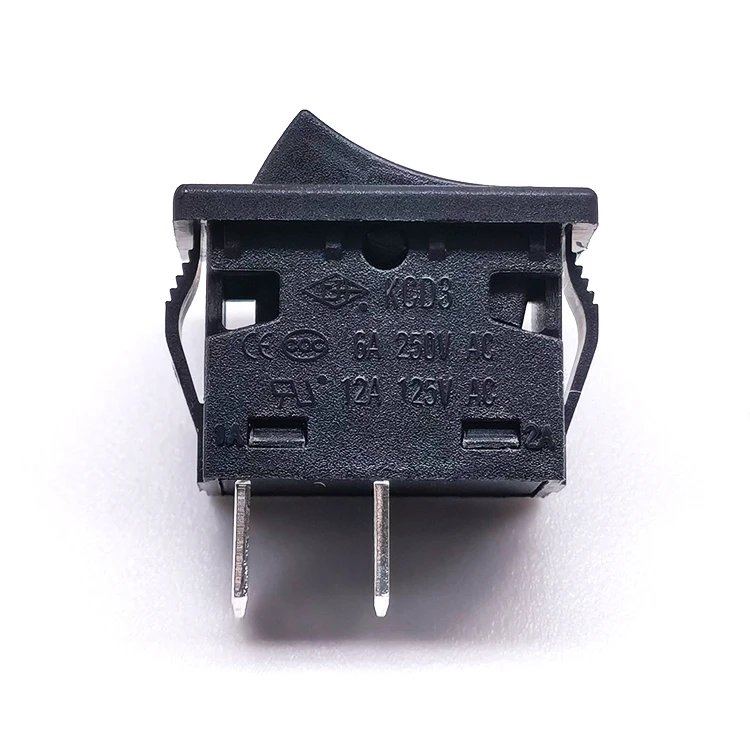

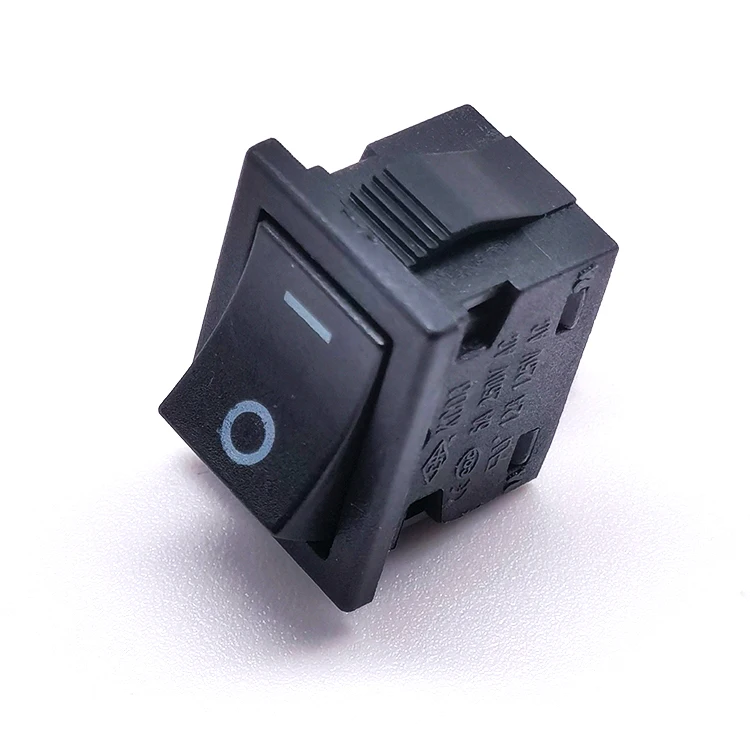

SPST 2 Pin On Off Rocker Switch
|
|
Dimension Code
|
F1, 19.3x13mm mounting hole size
|
|
Contact Piece Code
|
C, 4.8×0.8×7.2mm
|
|
Lamp voltage
|
No lamp
|
|
Function
|
On-Off SPST rocker switch
|
Why Choose Our Mini Waterproof Rocker Switch?
Our Mini Waterproof Rocker Switch stands out due to its compact size, waterproof design, and reliable performance. With a maximum current of 10A and a maximum voltage of 250VAC, it is suitable for a wide range of applications, from electrical appliances to industrial controls. The switch's long mechanical and electronic life ensures durability, reducing the need for frequent replacements. Additionally, its high insulation and dielectric strength provide excellent electrical safety.
What Are the Advantages of Buying from Our Factory?
As a direct factory supplier, we offer competitive pricing without compromising on quality. Our Mini Waterproof Rocker Switch is manufactured to the highest standards, ensuring reliability and performance. Buying from us means you get access to bulk pricing, making it ideal for wholesalers and businesses looking to stock up on high-quality switches.
How Does Our Switch Compare to Others on the Market?
Our Mini Waterproof Rocker Switch outperforms many competitors in terms of durability, performance, and safety. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it offers exceptional longevity. Additionally, its waterproof design makes it suitable for use in harsh environments, setting it apart from standard switches. Our commitment to quality and customer satisfaction ensures that you're getting a product that exceeds expectations.
