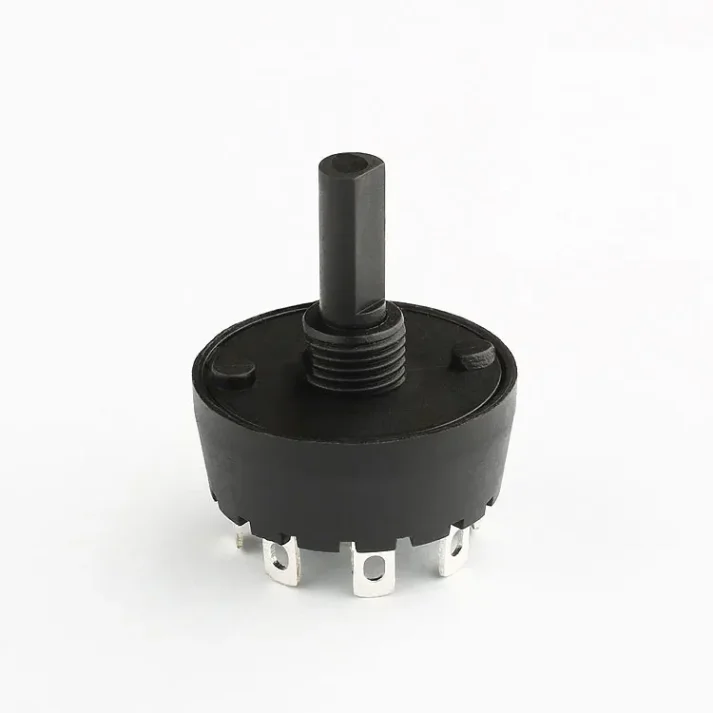

RS1 6A 250V Rotary Switch – Wholesale Supplier from Factory
Our RS1 6A 250V rotary switch is a top-quality product designed for various household appliances. As a factory-direct supplier, we offer competitive wholesale prices and can customize the switch to meet your specific requirements.
Product Specifications:
- Max. Current: 6A
- Max. Voltage: 250V AC
- Place of Origin: Shanghai, China
- Brand Name: Yongxing
- Model Number: RS1
- Mechanical Life: 100,000 cycles
- IP Level: IP40
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100mΩ
- Dielectric Resistance: 1500V
- Operating Temperature: T125
- Color: Black
- Number of Poles: Single-pole
- Electronic Life: 10,000 cycles
- Position: 1~8 Positions
Product Advantages:
Our rotary switch stands out in the market due to its high quality, durability, and reliability. With over 60 senior engineers and advanced experimental equipment, we ensure that every switch meets the highest standards. Our factory adheres to 5S and 5M management standards, guaranteeing consistent quality and efficiency.
After-Sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage. Our dedicated team is always ready to assist you with any questions or concerns you may have.
|
max.rating cnrrent&voltage
|
6a 250vac
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>100mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
electronic life
|
10000
|
||
|
operating temperature
|
T125
|
||
|
CQC,ENEC
|
Why Choose Our RS1 6A 250V Rotary Switch?
Our RS1 6A 250V rotary switch is designed to meet the diverse needs of household appliances and industrial applications. With its high current and voltage ratings, it ensures stable and reliable performance. As a factory-direct supplier, we offer competitive wholesale prices and can customize the switch to your specific requirements, making it a cost-effective and flexible solution.
Key Features and Benefits
The RS1 rotary switch boasts a long mechanical life of 100,000 cycles, ensuring durability and reliability. Its IP40 rating provides protection against dust and moisture, making it suitable for various environments. Additionally, our switch has a low contact resistance and high insulation resistance, ensuring efficient and safe operation.
After-Sales Support and Customization
We are committed to providing excellent after-sales service, including technical support and warranty coverage. Our experienced team is always available to assist you with any questions or concerns. Furthermore, as a factory with advanced equipment and a skilled workforce, we can customize the rotary switch to meet your unique specifications, ensuring a perfect fit for your application.
