Shanghai Yongxing Factory 12mm 1NO1NC/2NO2NC Push Button Switch Wholesale

>= 300  pieces
$0.85

0 reviews

Factory wholesale 12mm push button switch, durable & reliable for industrial control.

Description

Welcome to our Shanghai Yongxing factory, a leading supplier of high-quality push button switches. Our AD12 Series 12mm 1NO1NC/2NO2NC momentary push button switch is designed for industrial control applications, offering exceptional performance and reliability. With a maximum rating current of 3A and voltage of 250V AC, this switch is suitable for a wide range of uses. It features a contact resistance of ≤50mΩ, insulation resistance of ≥1000 MΩ, dielectric strength of 1500V, and an impressive electronic life of 50,000 cycles and mechanical life of 200,000 cycles. Operating within a temperature range of -5°C to +75°C and with an IP40 rating, it ensures durability and safety. Our switch is made of high-quality plastic material, with options for round or square head types and pin terminals. It is fully illuminated, enhancing visibility in low-light conditions. As a factory direct supplier, we offer wholesale pricing and customization options to meet your specific requirements. With over 60 senior engineers and state-of-the-art facilities, we implement 5S management across all workshops, ensuring top-notch quality and service. Choose our push button switch for superior performance and unbeatable value.

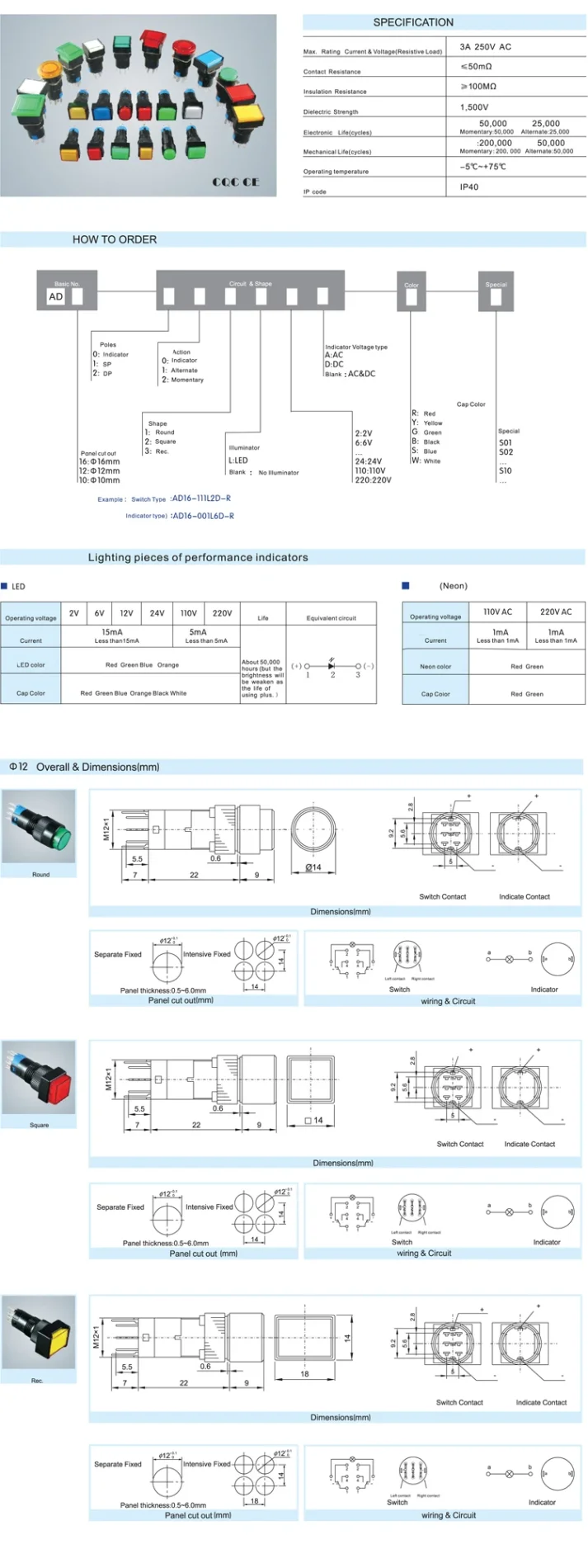

Max.Rating Current & Voltage(Resistive Load) 3A/250V AC
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000 MΩ
Dielectric Strength 1500V
Electronic Life(cycles) 50000
Mechanical Life(cycles) 200000
Operating temperature -5°c~+75°c
IP code IP40

Electronic component device image for cross-border e-commerceElectronic parts product image for cross-border e-commerceElectronic device component image for cross-border e-commerceElectronic gadget product image for cross-border e-commerce


Why Choose Our Push Button Switch?

Our push button switch stands out due to its exceptional quality, durability, and customization options. As a factory direct supplier, we offer competitive pricing and the ability to tailor the switch to your specific needs. With a long electronic and mechanical life, it ensures reliable performance in demanding industrial environments.

Key Features and Benefits

Featuring a 12mm size, 3A/250V AC rating, and IP40 protection, our switch is designed for durability and safety. The fully illuminated design enhances visibility, making it ideal for low-light conditions. With options for 1NO1NC or 2NO2NC contact configurations, it offers flexibility in circuit design.

Our Commitment to Quality

At Shanghai Yongxing, we are committed to delivering the highest quality products. With over 60 senior engineers and advanced facilities, we implement strict quality control measures and 5S management across all workshops. Choose us for reliable, high-performance push button switches that meet your industrial control needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Zhejiang, China

Brand Name

SK

Model Number

AD12-221L12

LED

Yes

Application

Industrial Control

Material

plastic

Structure

Mechanical

Head Type

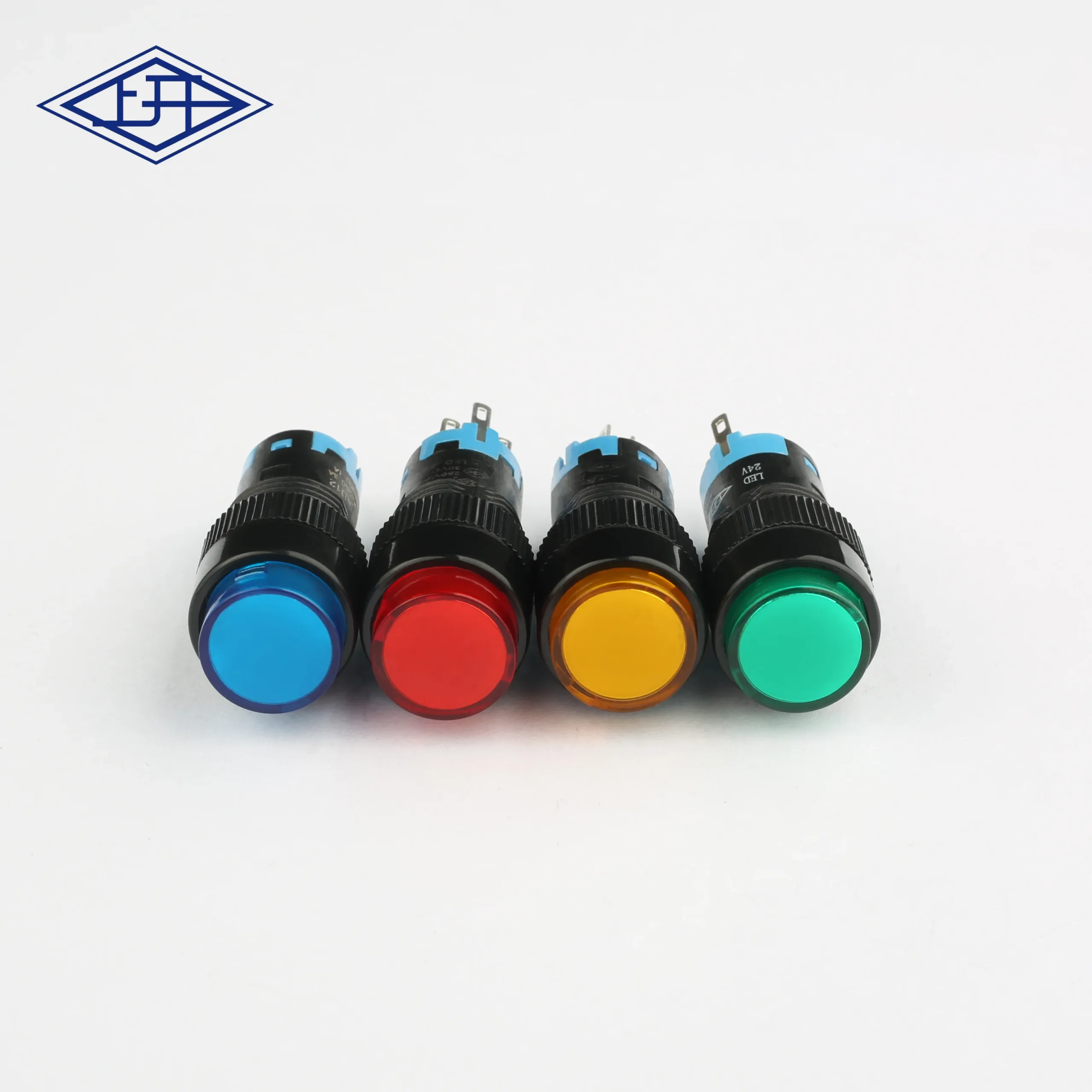

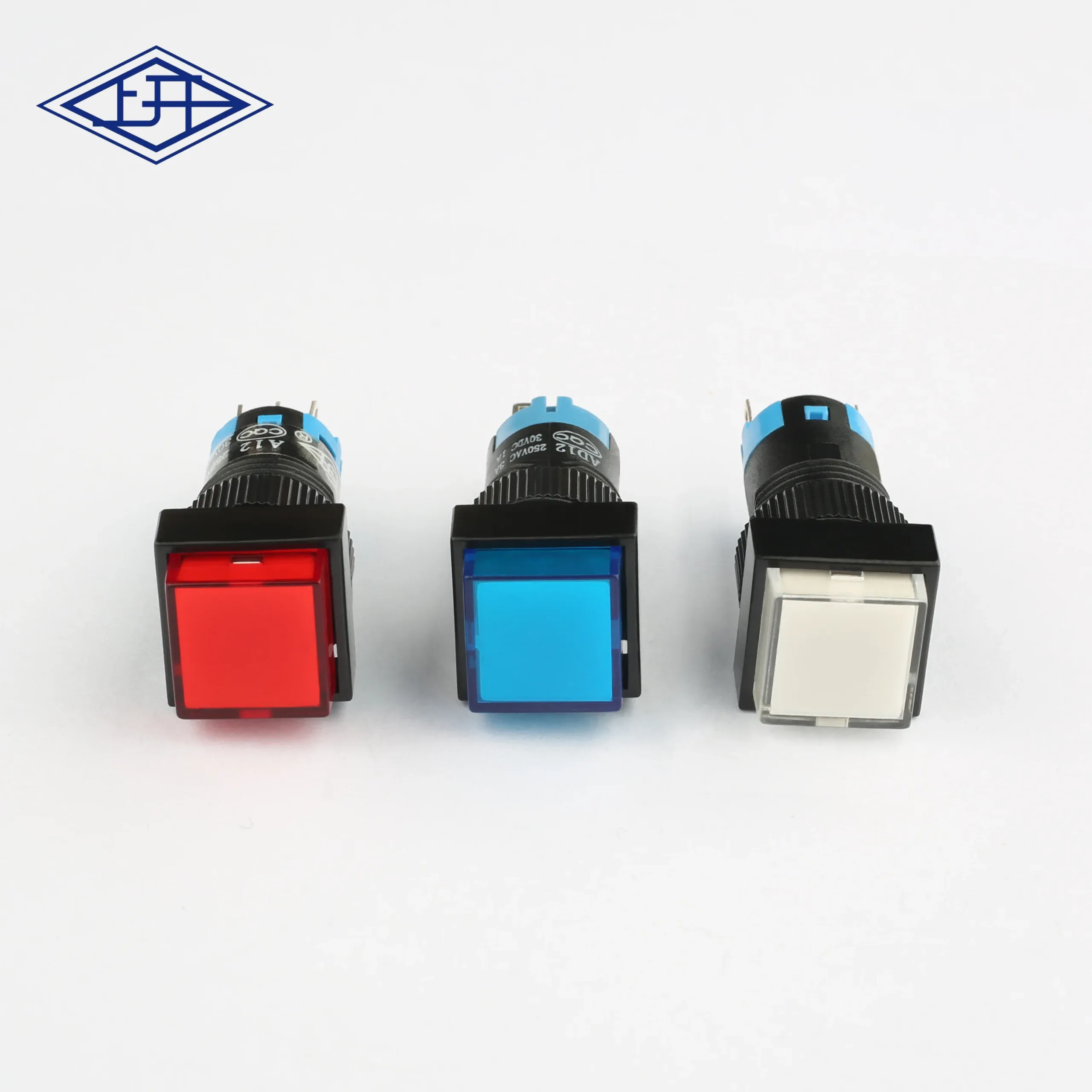

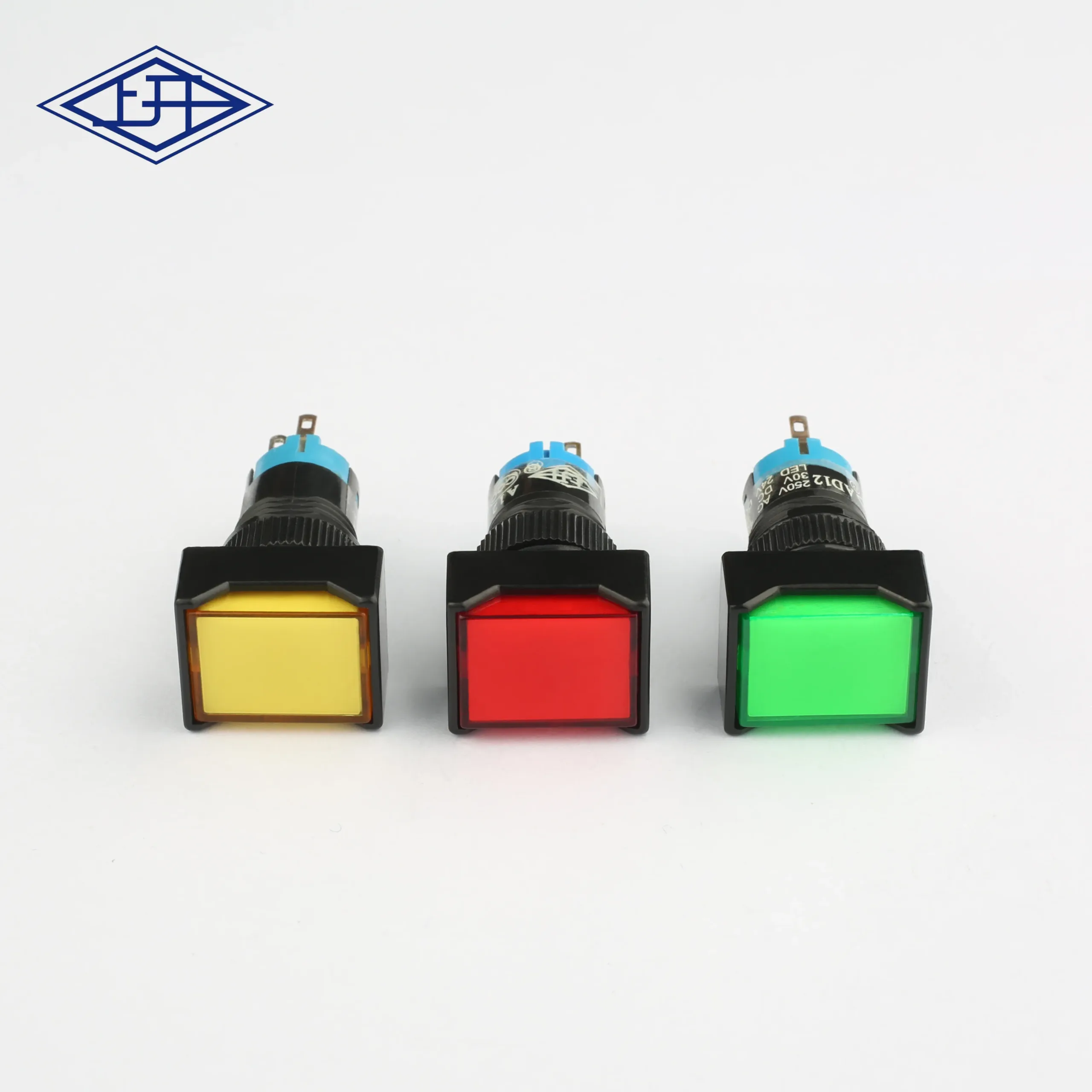

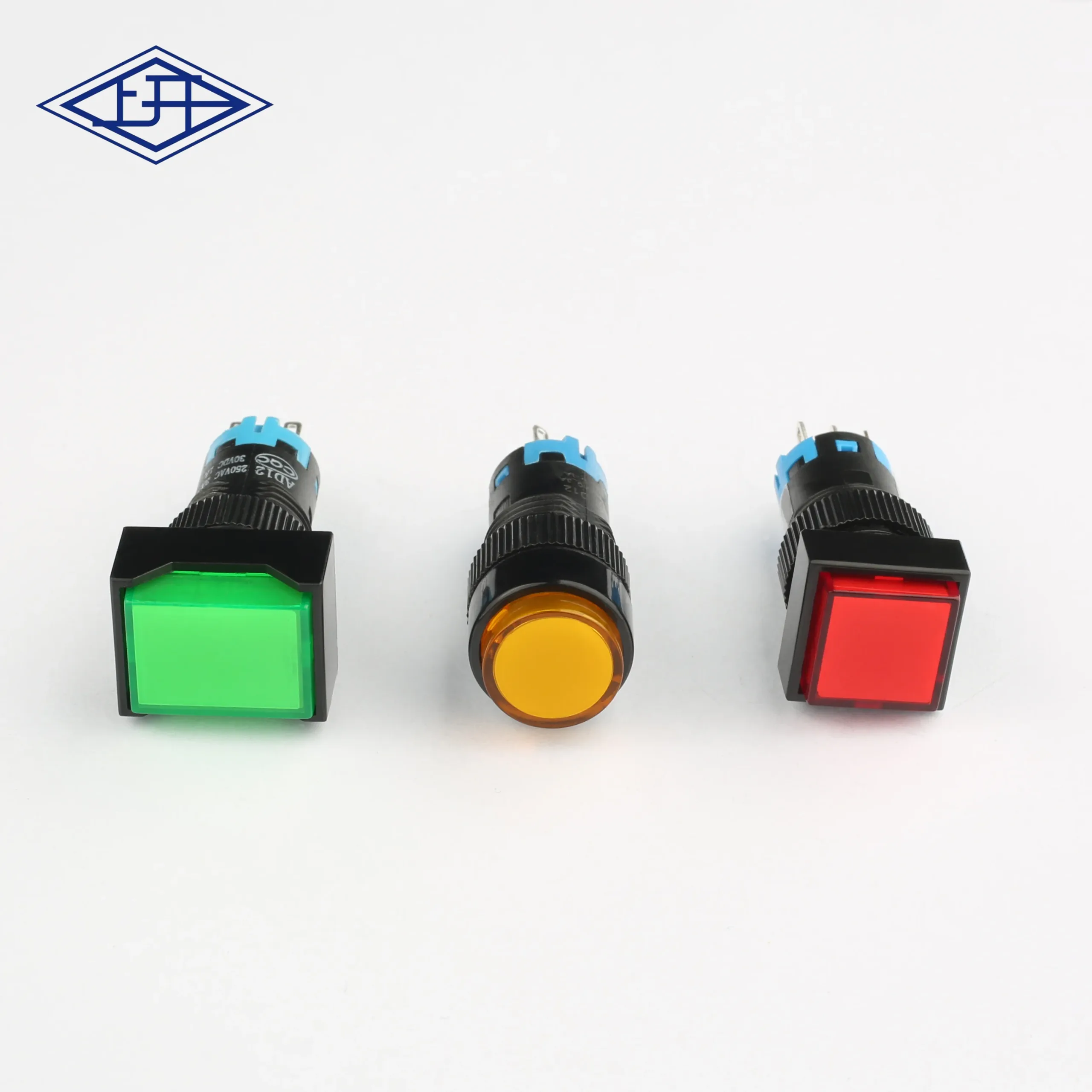

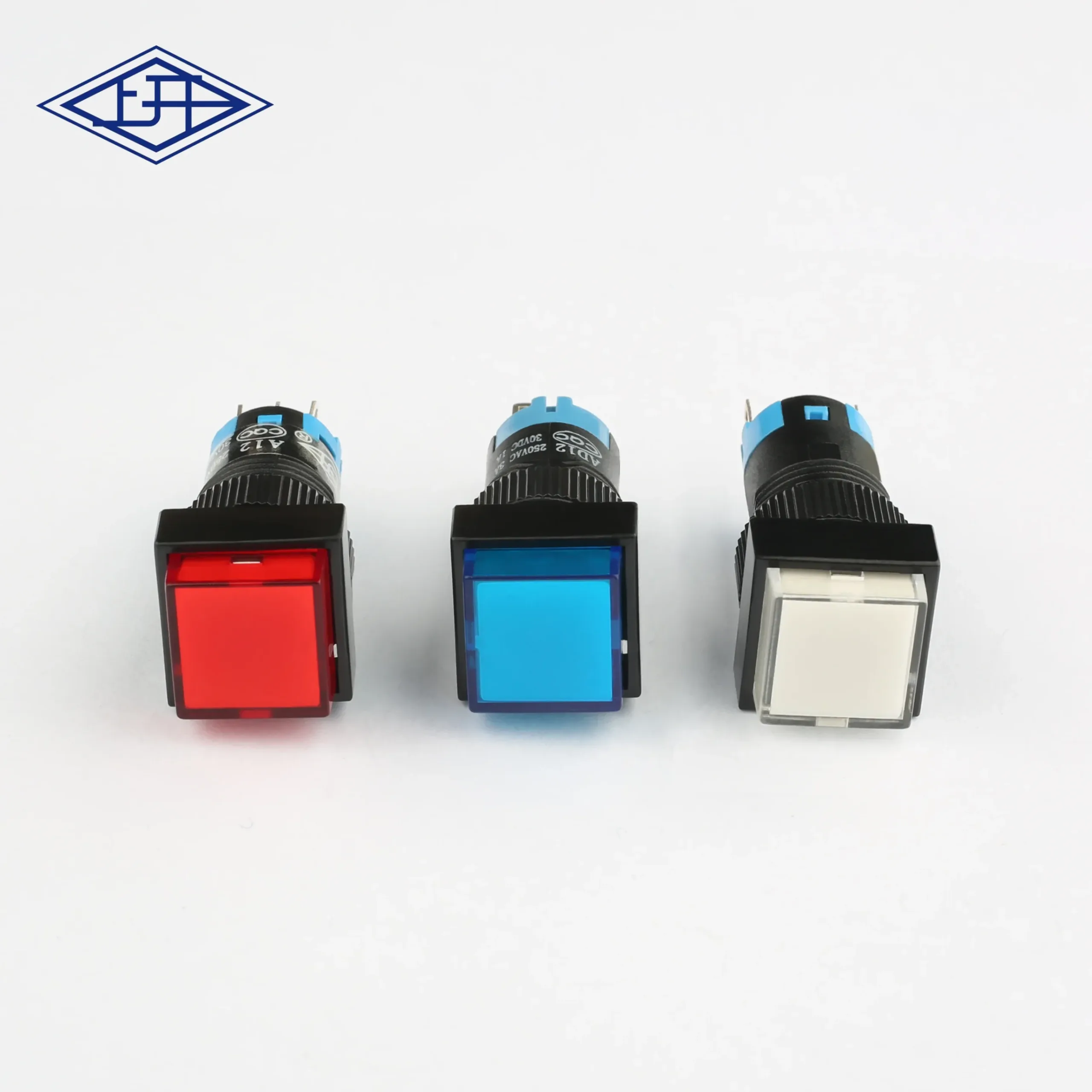

Round Head, Square Head

Terminal Type

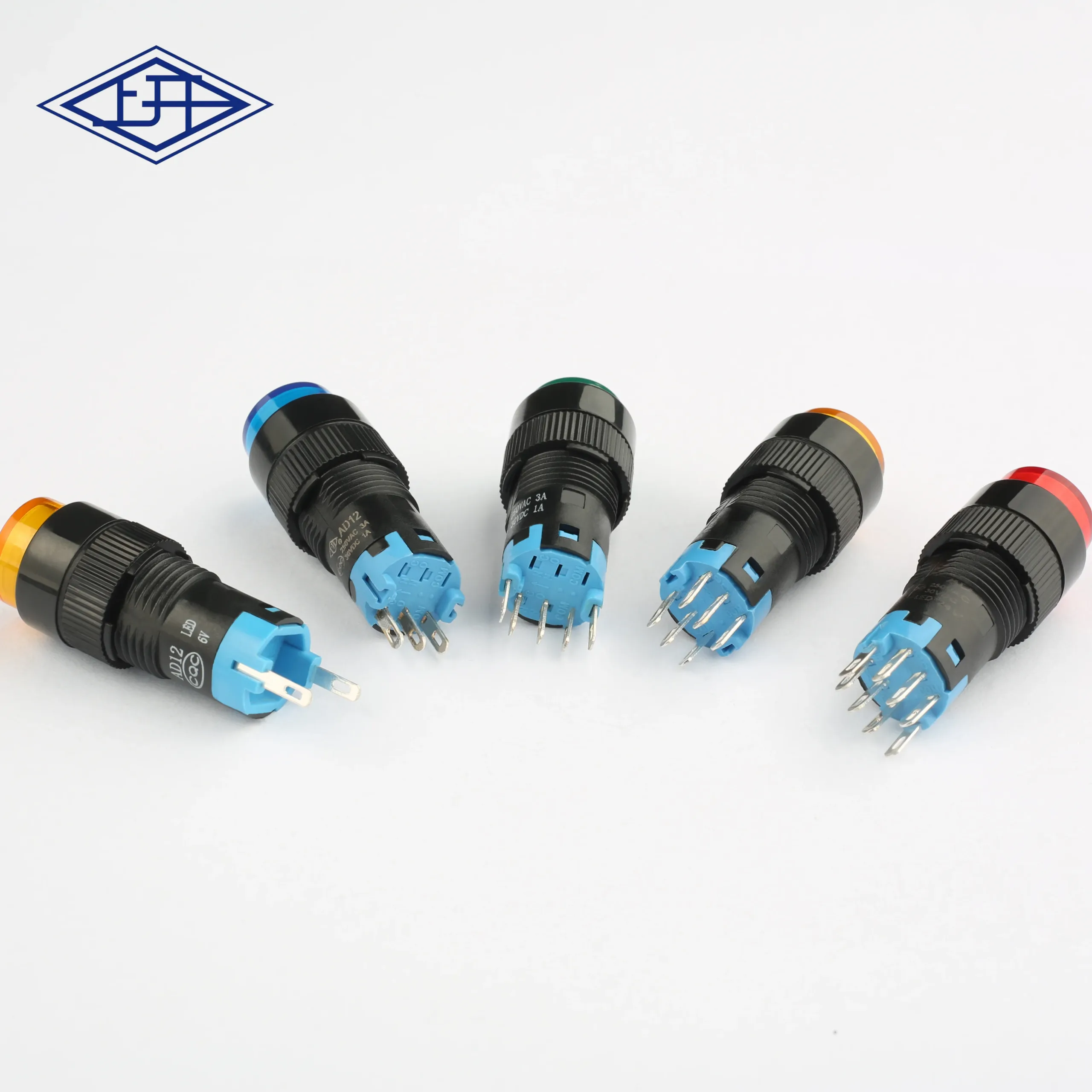

Pin terminal

Whether the smart

NO

illuminated Type

full illuminated

IP level

IP40

Switch Combination

1NO1NC, 2NO2NC
