Description
What sets our switch apart is its optional LED lamp feature, which can be added for enhanced visibility and functionality. With an IP40 protection level, it ensures reliable performance in various environments. The switch also boasts a long electrical life of 10,000 times, low contact resistance (≤50mΩ), and high insulation resistance (≥100mΩ), ensuring safety and durability.
Our switch is CQC, CB, ROHS, and ISO9001 certified, guaranteeing its quality and compliance with international standards. It comes in a variety of colors, including black, blue, green, red, white, and yellow, to match your specific needs. The mounting hole size is 20*13.4 mm, and it is suitable for panel thicknesses ranging from 1.2-2.5mm.
As a factory supplier, we offer wholesale pricing and excellent customer service. Our team is dedicated to providing you with the best products and support. Order now and experience the difference in quality and performance!
|

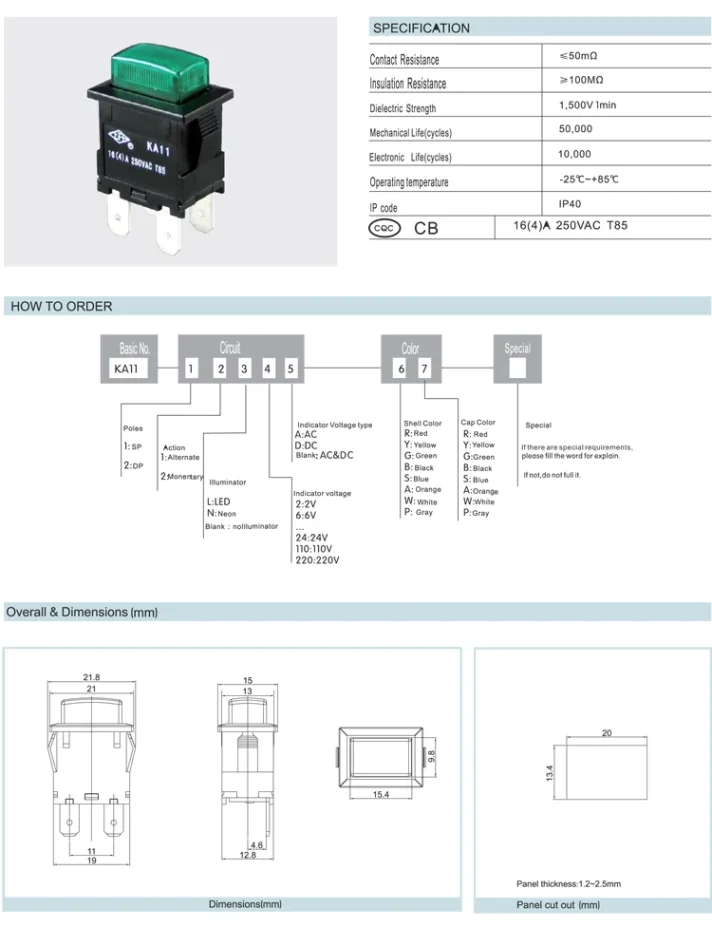

item
|
value
|
|
Place of Origin
|
Shanghai(China)
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA11-11-BG
|
|
Protection Level
|
IP40
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V 1min
|
|
Electrical Life
|
10000times
|
|
Operating temperature
|
-25℃~+85℃
|
|
Certificate
|
CQC CB ROHS ISO9001
|
|

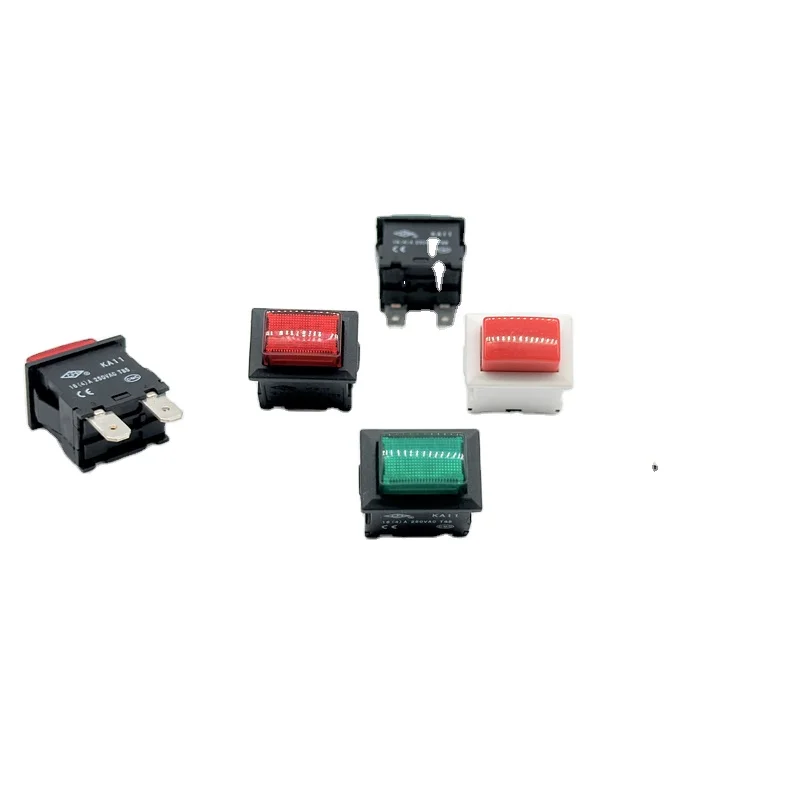

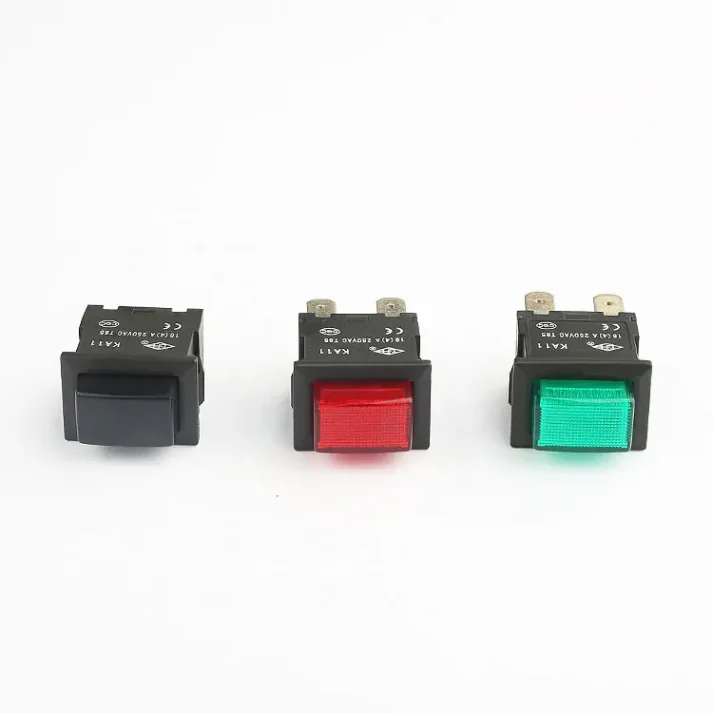

Color
|

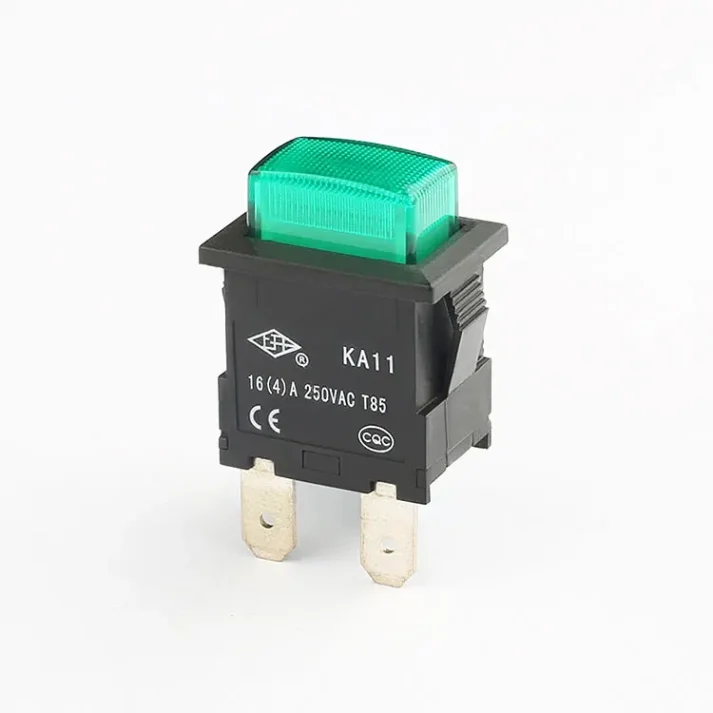

black housing,green button
|
|
Mounting Hole Size
|
20*13.4 mm
|
|
Panel Thickness
|
1.2-2.5mm
|
Why Choose Our 3A 250V AC LED Push Button Switch?
Our 3A 250V AC LED push button switch is designed for industrial control applications, offering reliable performance and durability. With an optional LED lamp, it enhances visibility and functionality, making it ideal for use in various industrial settings.
What Makes Our Switch Stand Out?
Our switch stands out due to its high-quality construction, long electrical life, and low contact resistance. It is also CQC, CB, ROHS, and ISO9001 certified, ensuring its quality and compliance with international standards. Additionally, we offer wholesale pricing and excellent customer service as a factory supplier.
What Are the Key Features of Our Switch?
Key features include a maximum current of 3A, a maximum voltage of 250V AC, an IP40 protection level, and a square head design with pin terminals. The switch also offers a variety of color options and is suitable for panel thicknesses ranging from 1.2-2.5mm. Order now and experience the difference in quality and performance!
