Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AX16-112-2
|
|
Protection Level
|
IP40
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
25000
|
|
Mechanical Life
|
50000
|
|
Panel cut out
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
Position
|
2 Positions,1NO+1NC
|

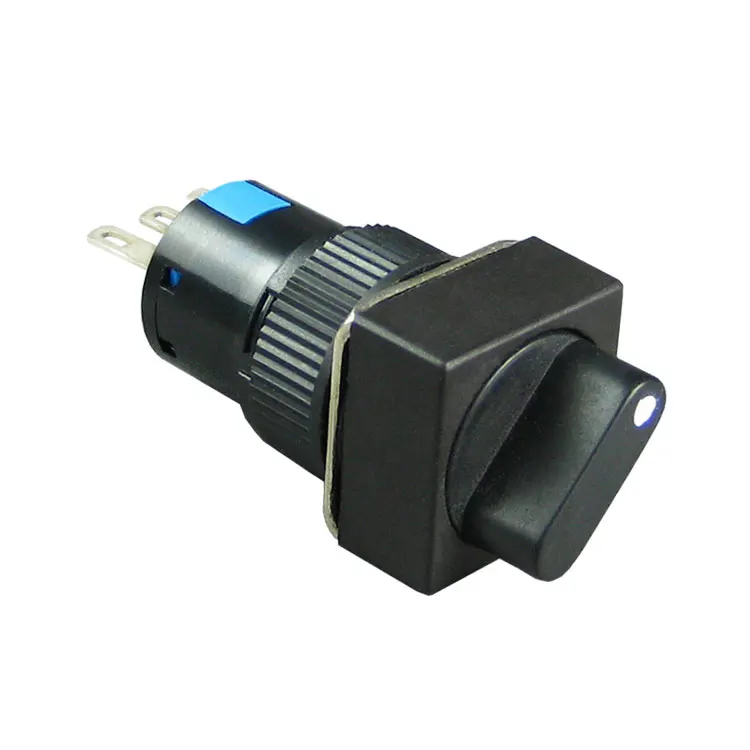

Why Choose Our Rotary Switch?
Our 16mm IP40 2-Position Rotary Switch stands out for its durability, reliability, and versatility. With a maximum current of 3A and a maximum voltage of 250V AC, it's suitable for a wide range of industrial applications. The self-locking feature ensures secure operation, while the IP40 protection level provides resistance to dust and moisture.
What Makes Our Product Unique?
Our switch offers exceptional longevity with an electrical life of 25,000 cycles and a mechanical life of 50,000 cycles. It's designed to fit a 16mm panel cut-out and accommodate panel thicknesses from 0.5mm to 6.0mm, providing flexibility in installation. The 2-position, 1NO+1NC configuration offers versatile switching options, making it an ideal choice for control panels and electrical equipment.
Why Buy from SK Factory?
As a trusted factory and supplier, SK (Shangkai) offers factory-direct pricing and wholesale availability, ensuring you get the best value for your money. Our commitment to quality, reliability, and customer satisfaction makes us the preferred choice for bulk purchases. Trust SK for all your rotary switch needs.
