Description

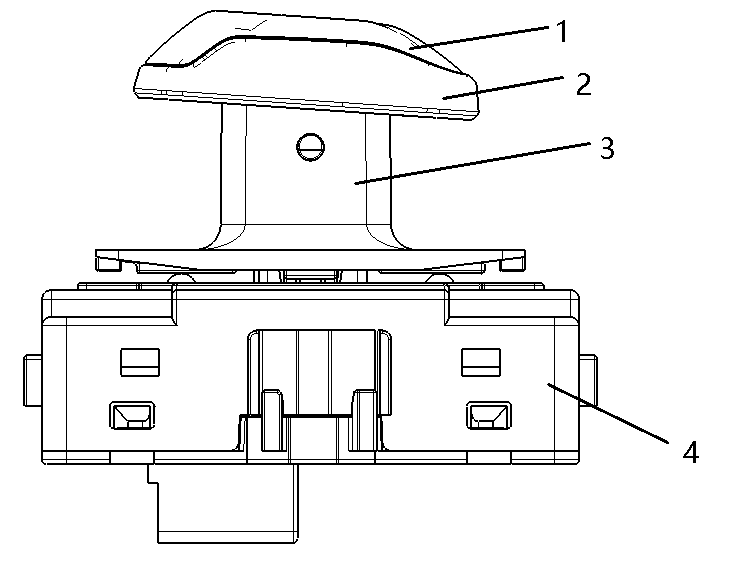

Structurally, the sunroof switch designed and developed by our company is compact and logically refined:
1.The housing contains a sliding block, connected on both front and rear sides to sliding position push rods, with sliding position springs between the push rods and the sliding block.
2.The housing is correspondingly equipped with first and second motion grooves, which precisely engage with the sliding position push rods.
3.The upper part of the sliding block is rotationally connected to a button assembly, while the lower part of the housing is fitted with a rear cover. The transmission blocks on both left and right sides of the rear cover interact with the button assembly.
Through the left and right rotation of the button assembly and the sliding of the block, the device easily achieves six levels of adjustment. Whether opening, closing, tilting, or controlling different degrees of openness, the switch responds with precision. More importantly, the carefully designed positional relationships of each component effectively prevent accidental touches during operation, ensuring every adjustment is accurate.
With technological advancements and rising living standards, consumers have become increasingly demanding regarding automotive switches. They now seek not only multi-functional integration but also aesthetic appeal and tactile operation. However, most sunroof switches on the market are integrated into the front dome light assembly, requiring multiple single-function switches or a combination of single-function and multi-function switches based on feature configurations. This approach not only increases the number of switches and results in a monotonous operational feel but also leads to higher manufacturing costs, greater assembly complexity, and a more intricate dome light assembly layout. Additionally, it significantly increases the demand for interior space, contradicting the modern trend of “simplification and integration” in automotive interiors.

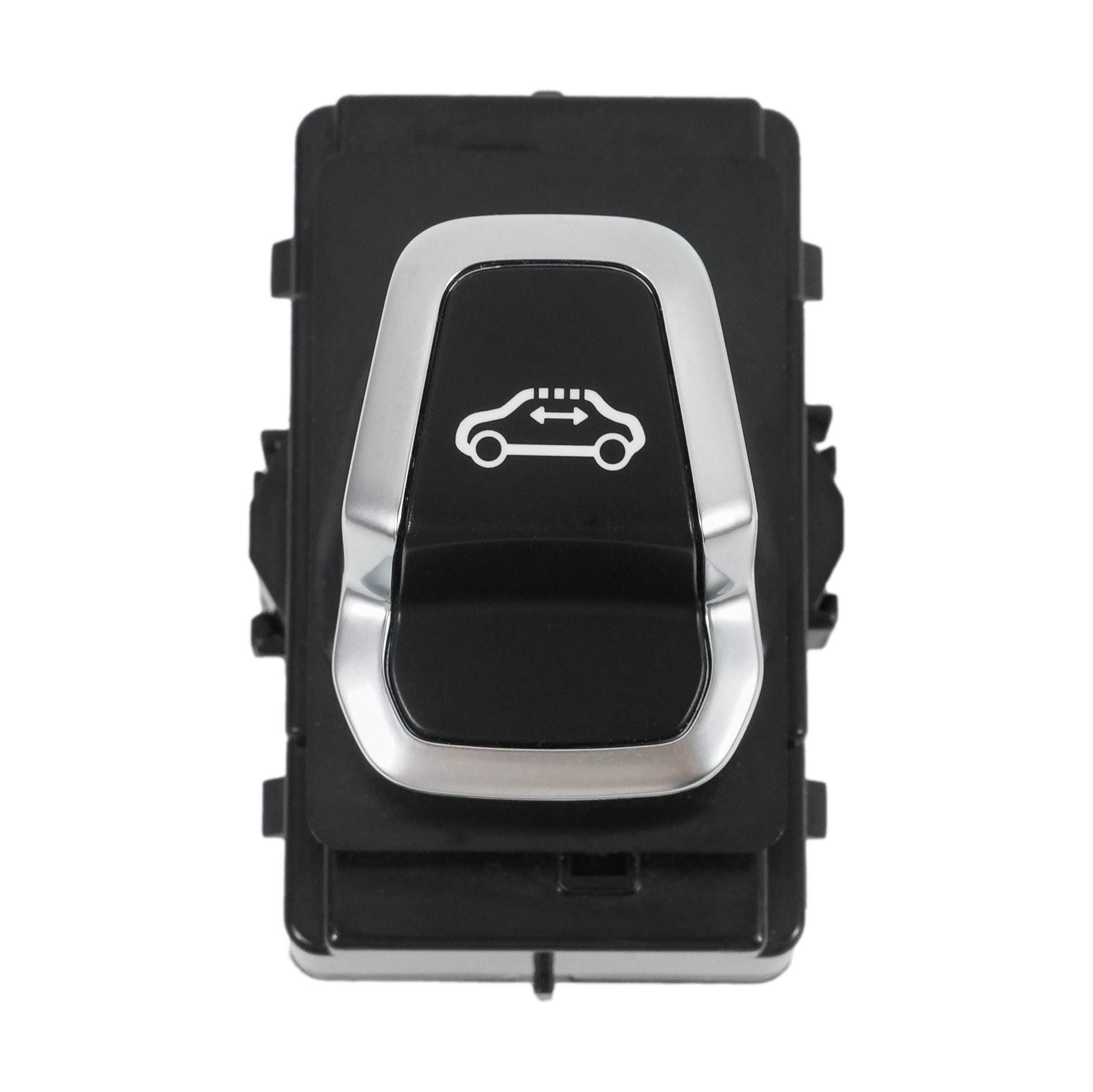

In contrast, this sunroof switch adopts a monolithic multi-position design that integrates rich functionalities into a single switch, eliminating the need for multiple switches or integration into the dome light assembly. This not only simplifies the interior layout and saves space but also reduces manufacturing costs and assembly difficulty. Its smooth operation and refined exterior design further align with consumers’ demands for “high quality and high aesthetics” in automotive switches, making it an ideal choice for enhancing the automotive interior experience.
Whether adjusting the sunroof for ventilation and lighting during daily commutes or creating a comfortable driving environment on long journeys, this sunroof switch delivers precise, convenient, and efficient control, adding ease and pleasure to every trip.
