Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
RS1-14F-AEH-CBA
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
10000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Resistance
|
1500V
|
|
Electronic Life
|
10,000 cycles
|
|
Operating Temperature
|
T125
|
|
Scope of Application
|
Home appliances,electronics, electrical instrumentation
|
|
Circuit
|
SP4T 4 momentary position
|

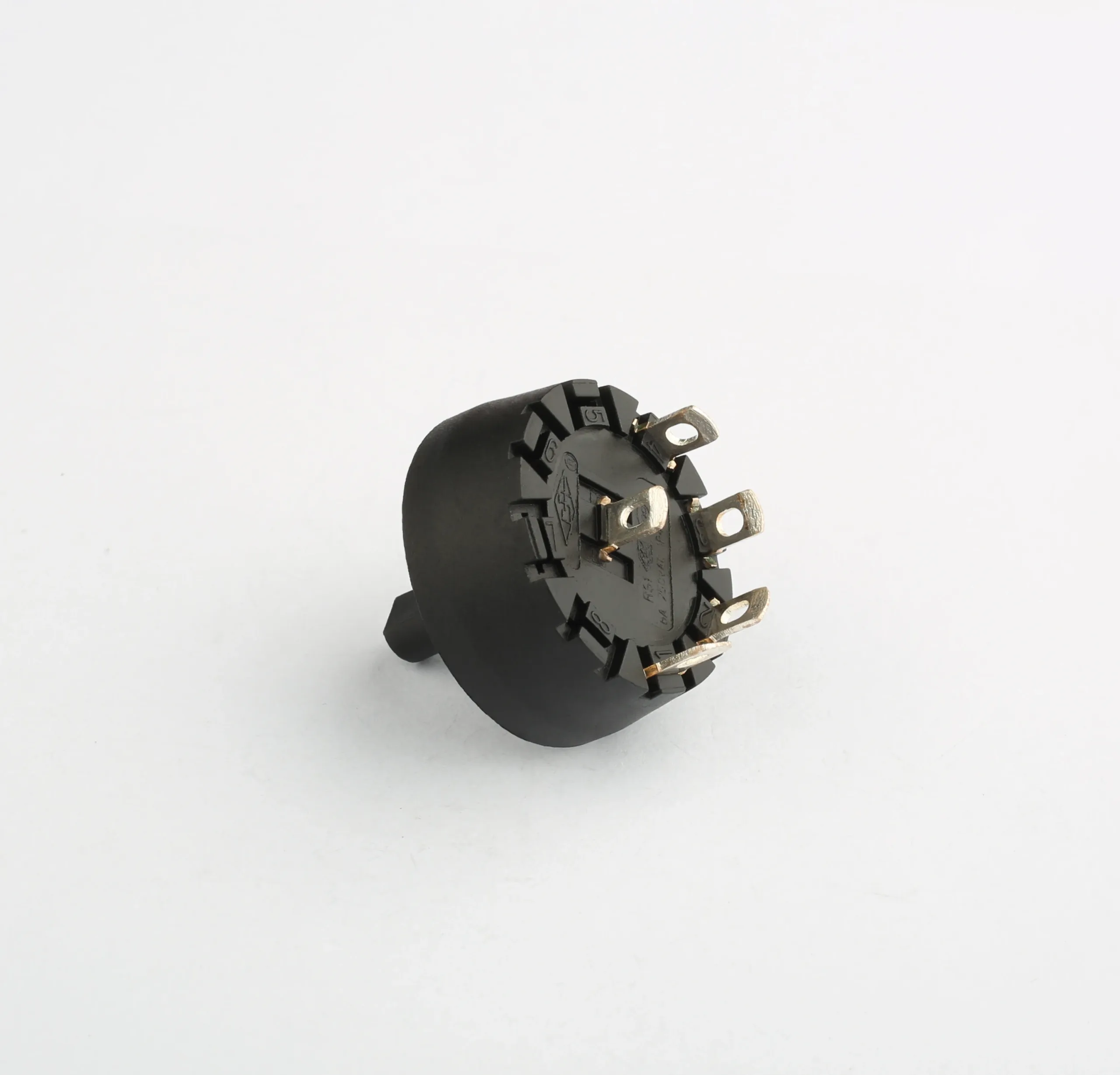

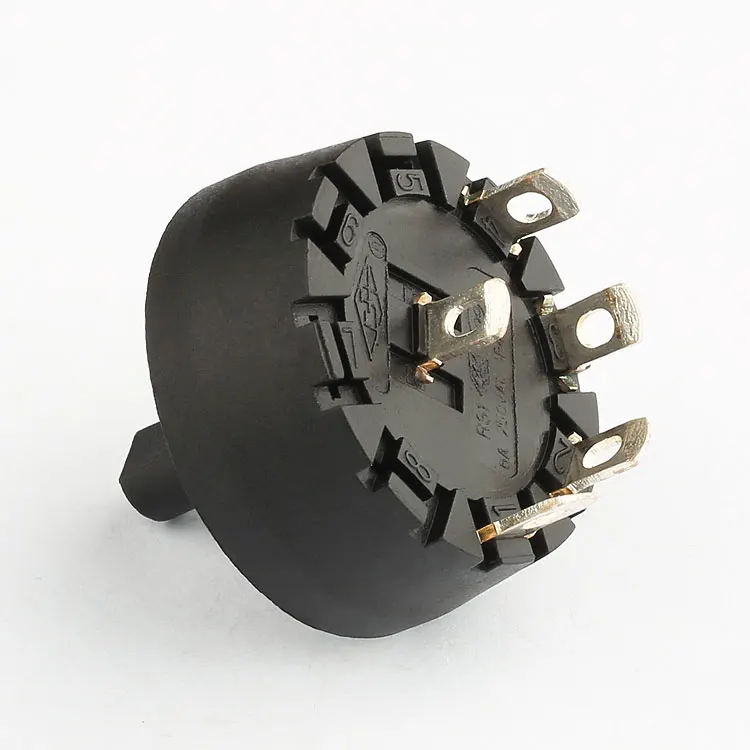

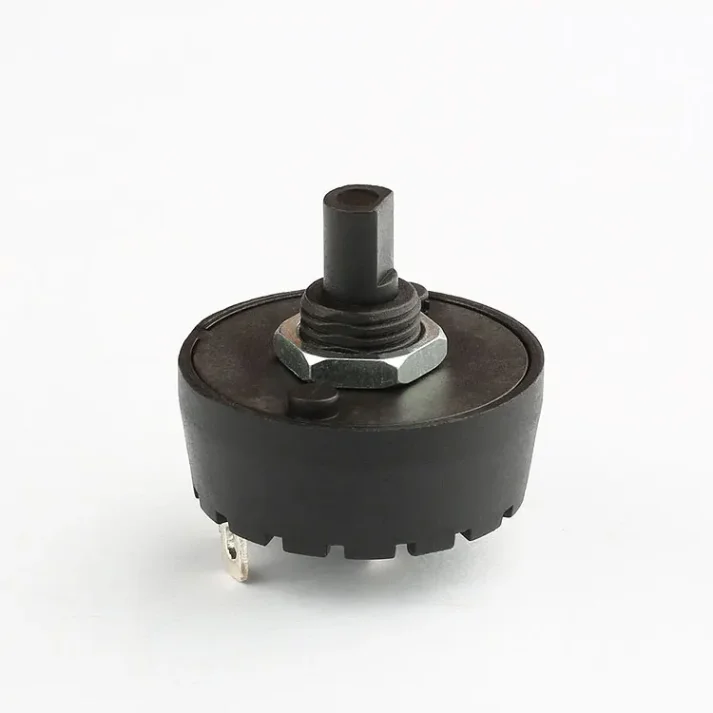

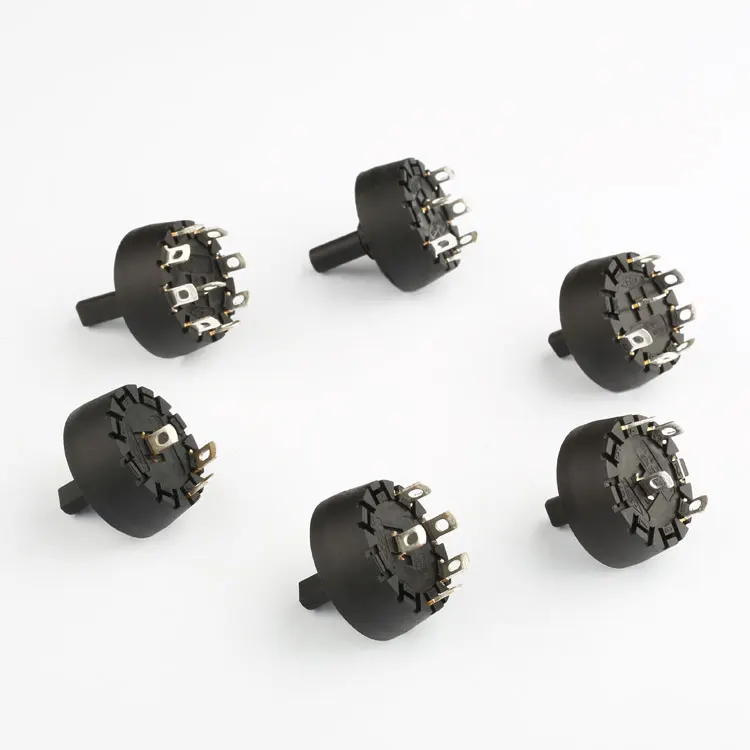

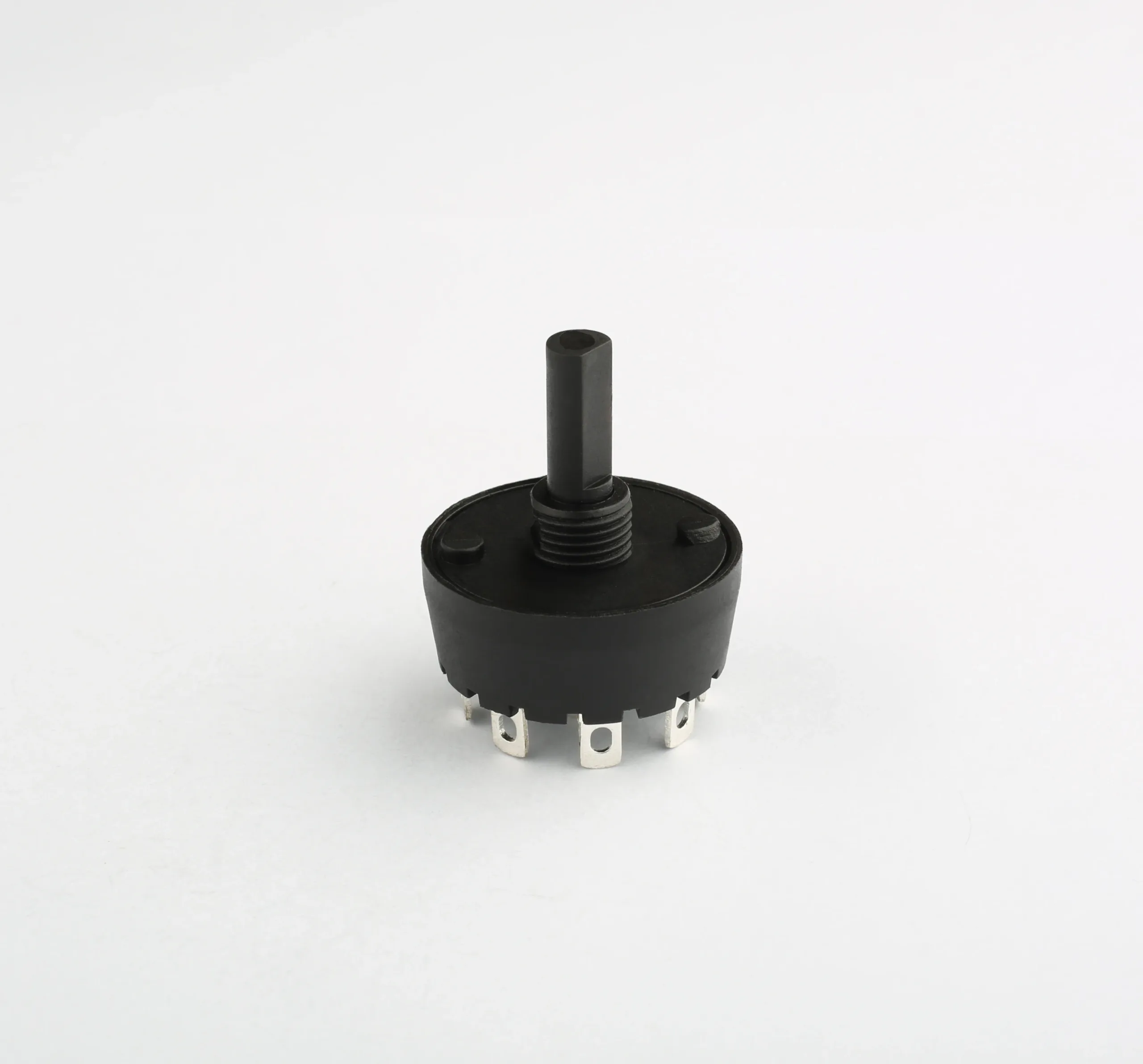

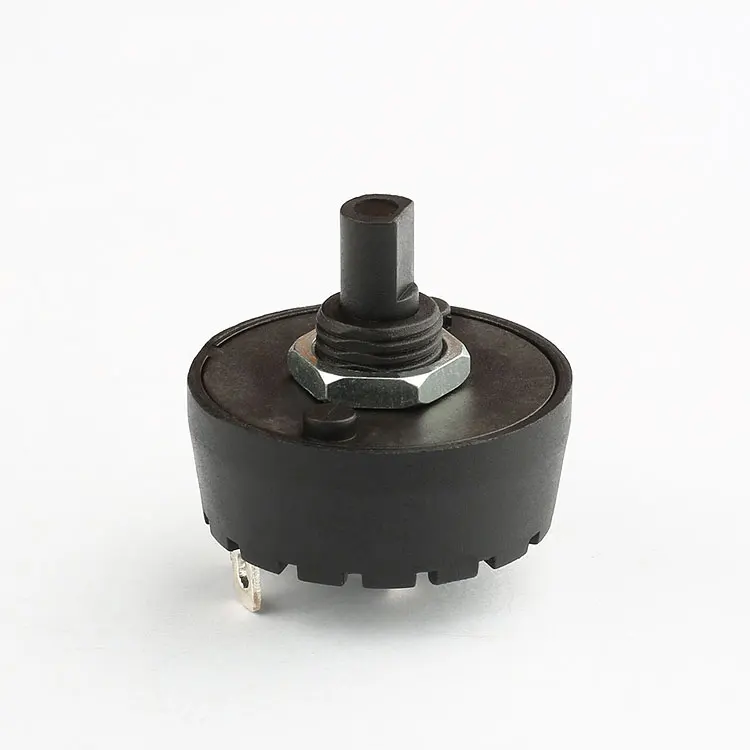

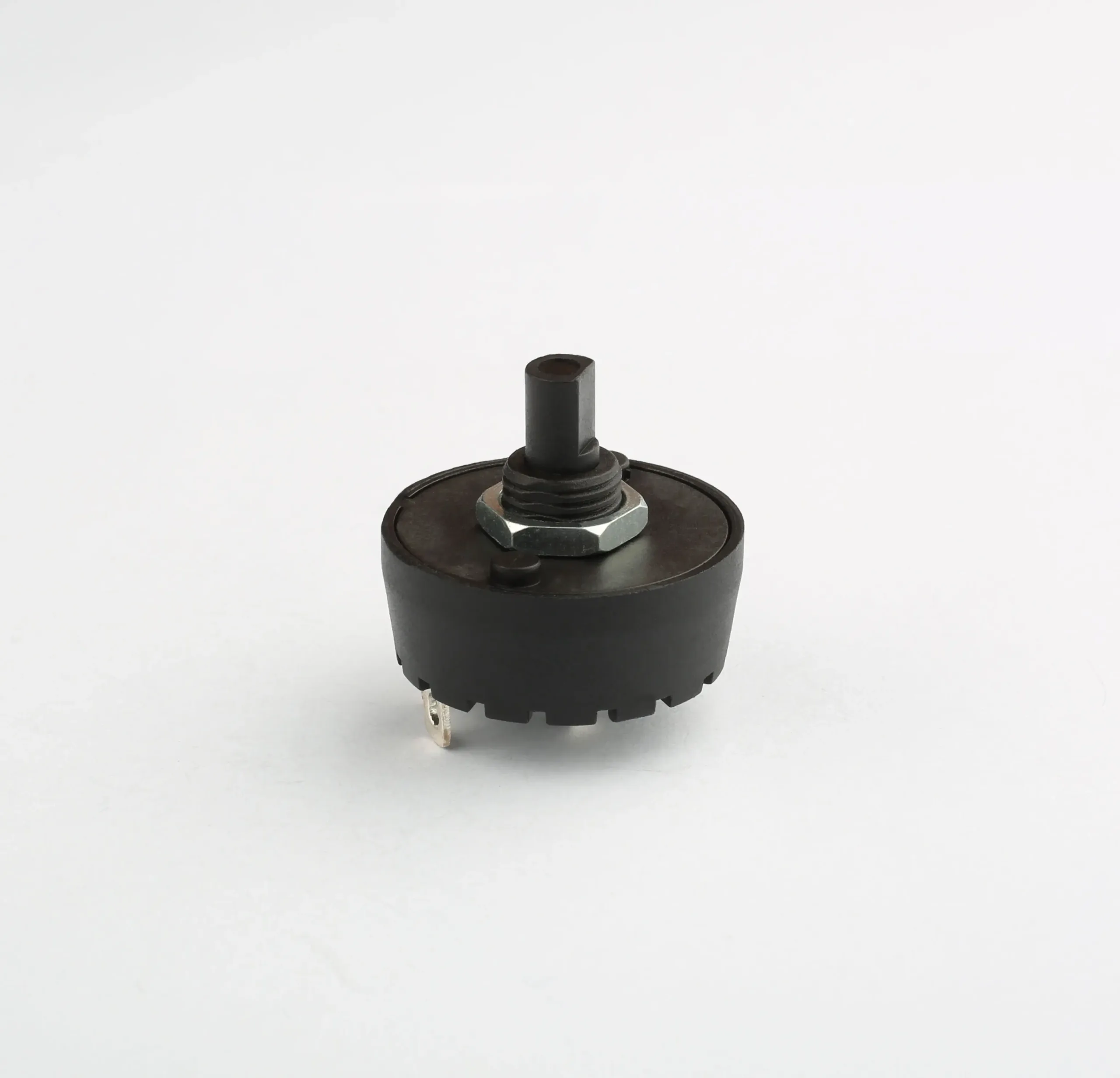

Why Choose Our T125 Rotary Switch?
Our T125 6A 250V Rotary Switch stands out for its durability, precision, and versatility. With a mechanical life of 10,000 cycles and an electronic life matching that, it ensures long-lasting performance. The SP4T 4 momentary position circuit design allows for precise control, making it ideal for various applications.
Key Features and Benefits
This switch offers a maximum current of 6A and a maximum voltage of 250V AC, ensuring reliable operation. Its low contact resistance (≤50mΩ) and high insulation resistance (≥100mΩ) provide excellent electrical properties. The dielectric resistance of 1500V ensures safety and reliability in all conditions. Operating at T125 temperature, it is suitable for a wide range of environments.
Factory Direct Pricing and Support
As a direct factory supplier, we offer wholesale pricing without compromising on quality. Our team provides excellent after-sales service, ensuring your satisfaction. Choose us for reliable, high-quality rotary switches that meet your needs and exceed your expectations.
