Description

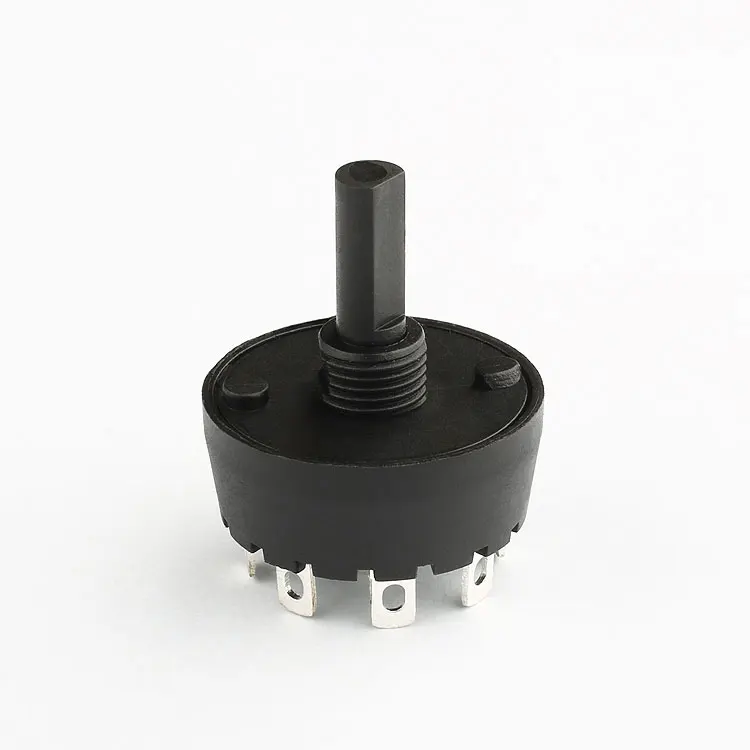

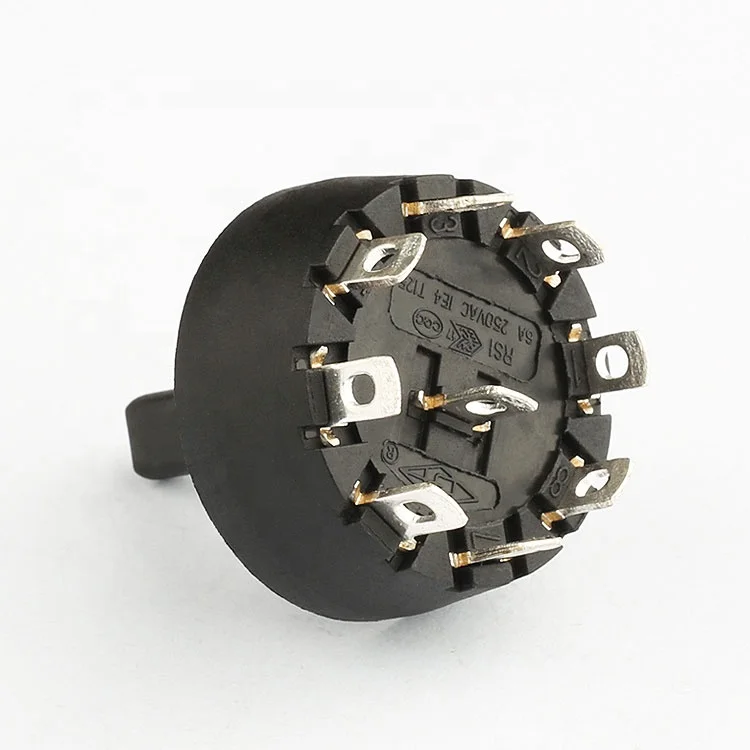

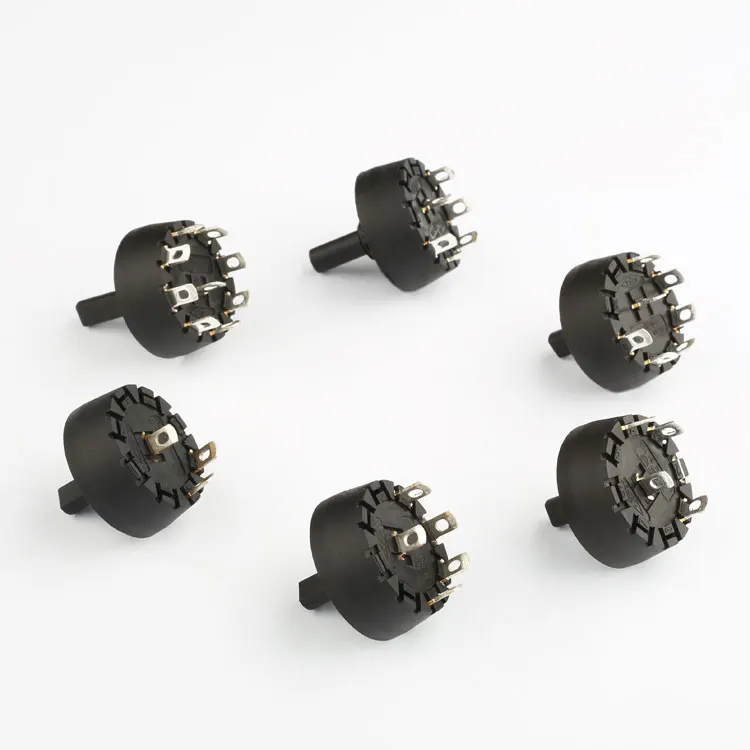

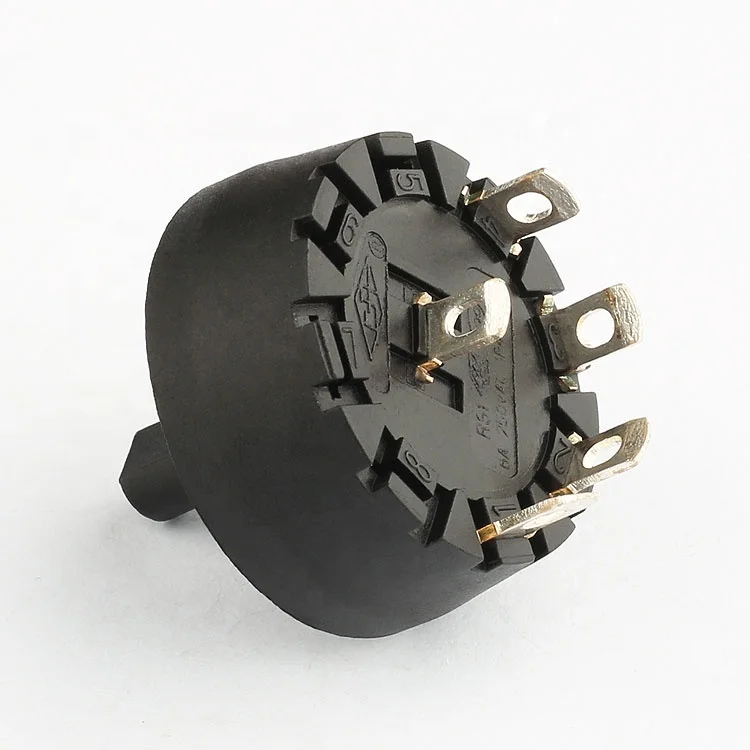

Introducing our T125 8-Position Rotary Switch, a high-quality component designed for use in home appliances, electronics, and electrical instrumentation. As a factory direct supplier, we offer wholesale pricing and reliable service. This switch features a 6A maximum current and 250V AC maximum voltage, ensuring safe and efficient operation. With a mechanical life of 10,000 cycles and an electronic life of the same duration, it offers exceptional durability. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100mΩ, providing excellent electrical performance. Additionally, it boasts a dielectric resistance of 1500V and operates at a temperature range of T125. The switch comes in a sleek black housing, adding a touch of style to your devices. Choose our factory-direct rotary switch for superior quality, competitive pricing, and reliable service.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
RS1-18S-BCH-BBA
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
10000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Resistance
|
1500V
|
|
Electronic Life
|
10,000 cycles
|
|
Operating Temperature
|
T125
|
|
Scope of Application
|
Home appliances,electronics, electrical instrumentation
|
|
Circuit
|
SP8T 8 position
|
Key Features
Our T125 8-Position Rotary Switch stands out with its high durability, low contact resistance, and excellent insulation properties. It is designed to withstand 10,000 mechanical and electronic cycles, ensuring long-lasting performance.
Applications
This switch is ideal for use in home appliances, electronics, and electrical instrumentation. Its versatility and reliability make it a preferred choice for manufacturers seeking quality components.
Why Choose Us?
As a factory direct supplier, we offer competitive wholesale pricing and reliable service. Our switches are manufactured to the highest standards, ensuring superior quality and performance. Choose us for your rotary switch needs and experience the difference.
