Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
RS3-13
|
|
Max. Current
|
6.5A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50,000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Resistance
|
1500V
|
|
Electronic Life
|
10,000 cycles
|
|
Operating Temperature
|
T150
|
|
Scope of Application
|
Home appliances,electronics, electrical instrumentation
|
|
Certification
|
CQC
|

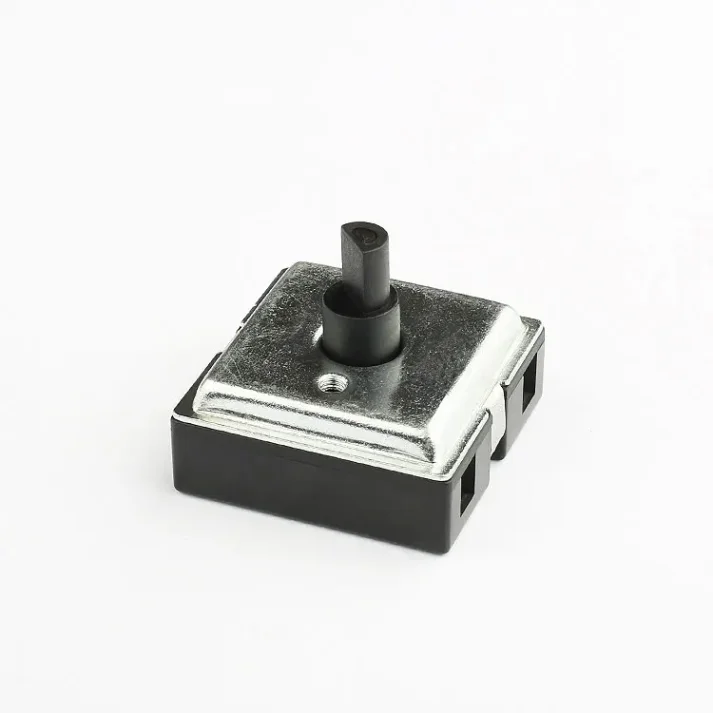

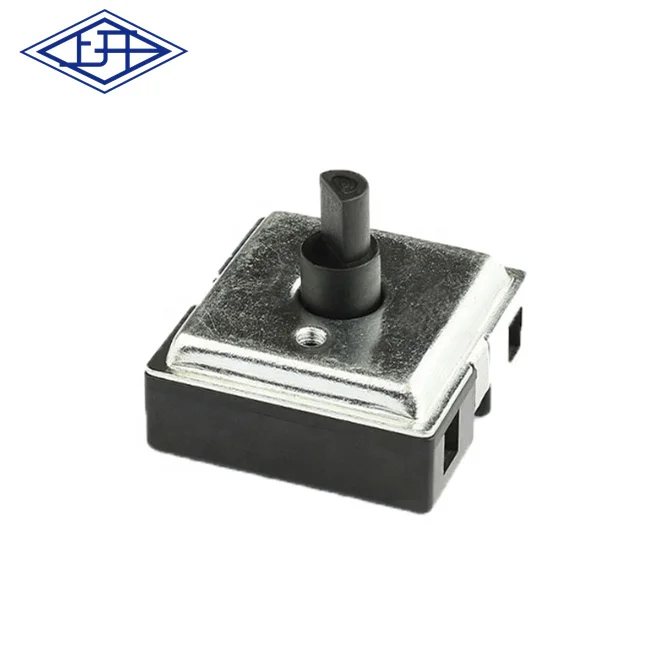

Why Choose Our T150 3-Position Rotary Switch?
Our T150 3-Position Rotary Switch stands out for its exceptional durability and reliability. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance in demanding applications. The switch's low contact resistance and high insulation resistance contribute to safe and efficient operation, making it ideal for use in home appliances, electronics, and electrical instrumentation.
What Are the Key Features of Our Switch?
Our switch features a 6.5A maximum current rating and 250V AC maximum voltage, providing ample power for various applications. It is rated for T150 operating temperatures and has a dielectric resistance of 1500V, ensuring robust performance in harsh environments. Additionally, our product is CQC certified, guaranteeing its quality and compliance with industry standards.
Why Buy from Us as a Factory Direct Supplier?
As a factory direct supplier, we offer wholesale pricing on our T150 3-Position Rotary Switch, allowing you to save on costs without compromising on quality. We provide excellent after-sales service and technical support to ensure your satisfaction. Choose us for reliable, high-quality electrical components at competitive prices.
