Description
Our switch boasts a maximum rating current of 3A and voltage of 250VAC (resistive load), making it suitable for a wide range of applications. With a contact resistance of ≤50mΩ and dielectric strength of 1500V, it ensures reliable performance and longevity. The switch is rated for 50,000 cycles in momentary mode and 25,000 cycles in latching mode, providing exceptional durability.
Constructed from durable ABS plastic, this switch is built to last. It has an operating temperature range of -5°C to +75°C and an IP40 protection level, ensuring it can withstand various environmental conditions. The panel mounting hole is 12mm, and it comes with soldering pin terminals for easy installation.

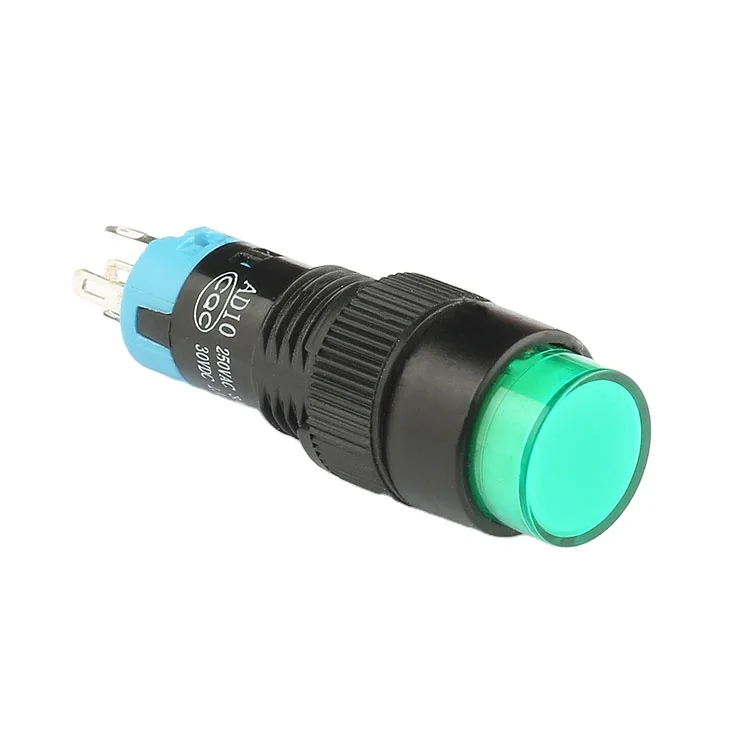

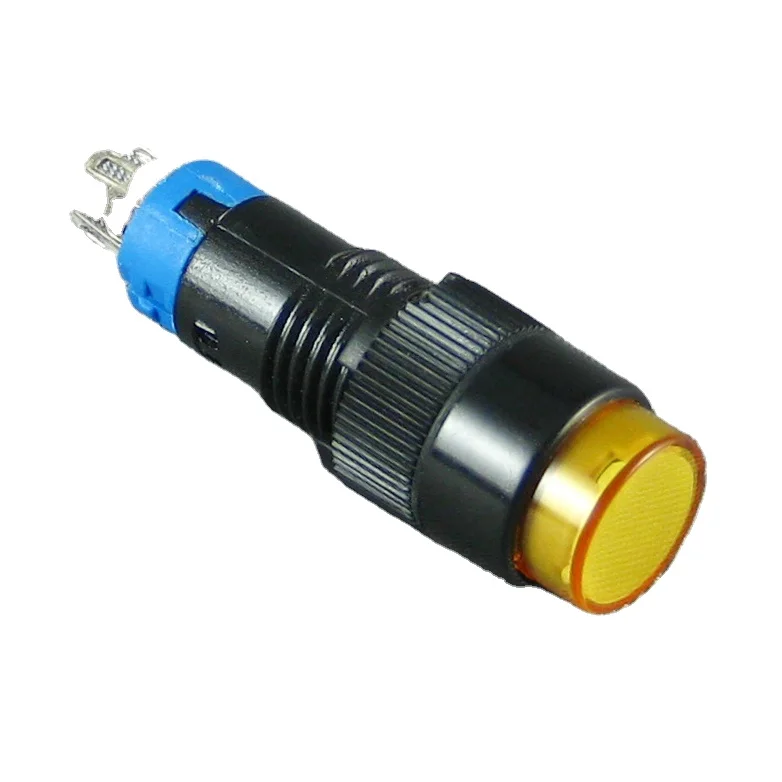

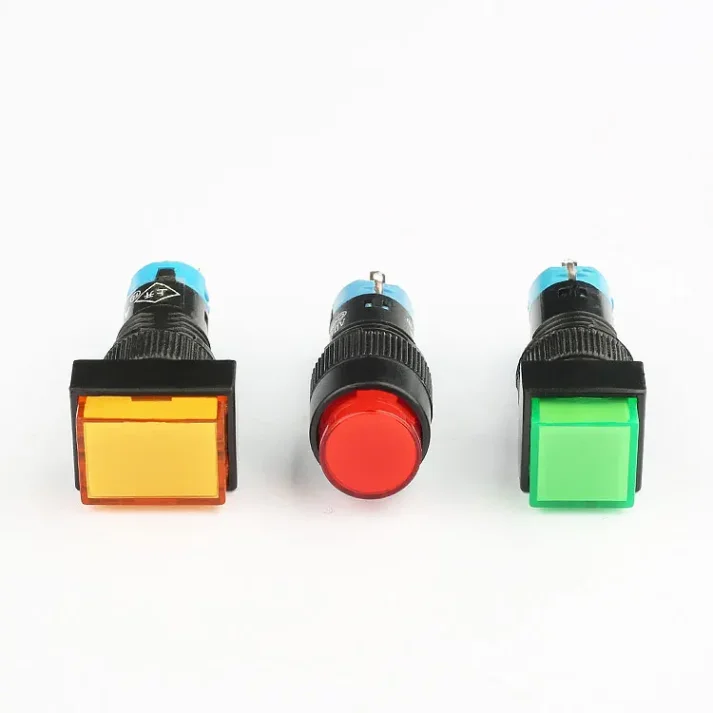

Choose from green, red, or yellow LED colors to match your project’s aesthetics. As a trusted supplier, we offer competitive prices, excellent customer service, and fast shipping. Contact us today to discuss your wholesale needs and take advantage of our factory-direct pricing.

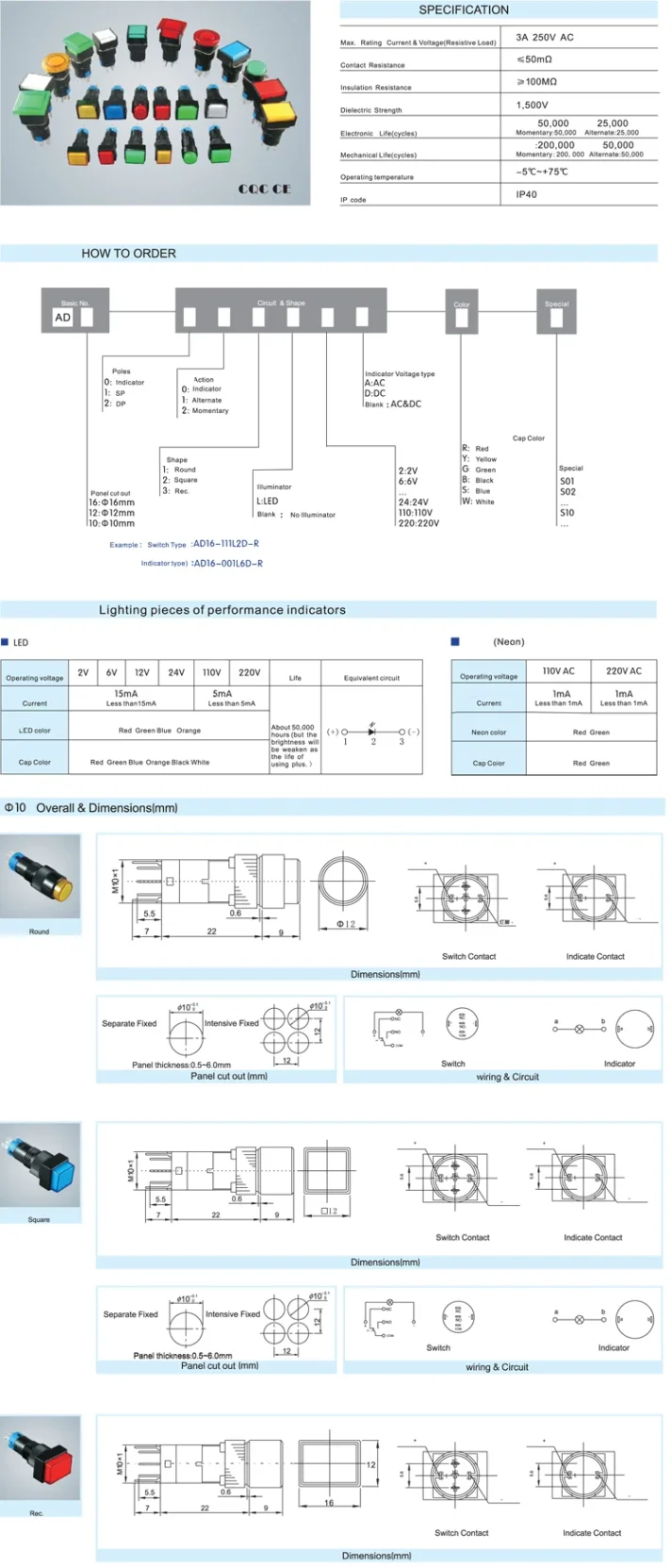

| Max.Rating Current & Voltage(Resistive Load) | 3A/6V |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Life | 30000 hours |
| Operating temperature | -5°c~+75°c |
| IP code | IP40 |
Key Features

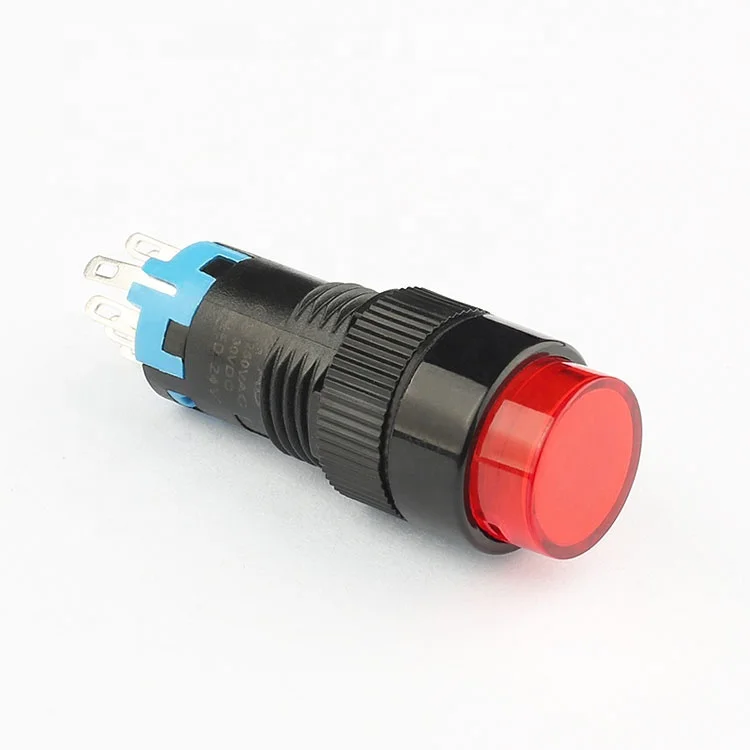

Our 10mm Push Button Switch stands out with its durable ABS plastic construction, high current and voltage ratings, and long cycle life. The red LED indicator adds a visual element, making it ideal for various applications.
Why Choose Us?
As a factory direct supplier, we offer competitive wholesale prices and customization options. Our switches are built to last, with rigorous quality control and excellent customer service.
Applications
This switch is perfect for electronic control systems, industrial equipment, and home automation projects. Its versatility and reliability make it a top choice for professionals and hobbyists alike.
