Description

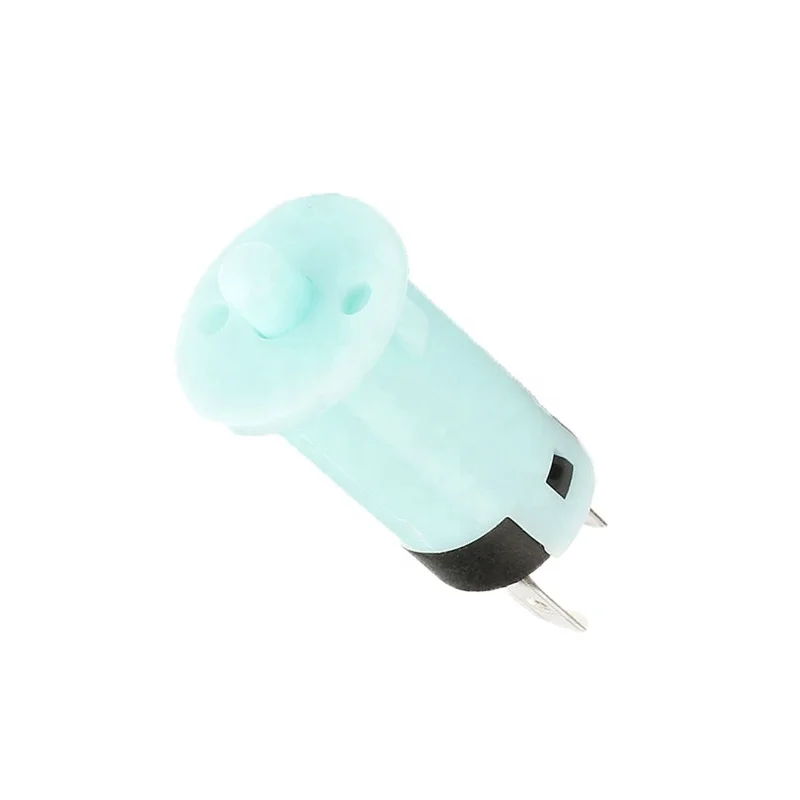

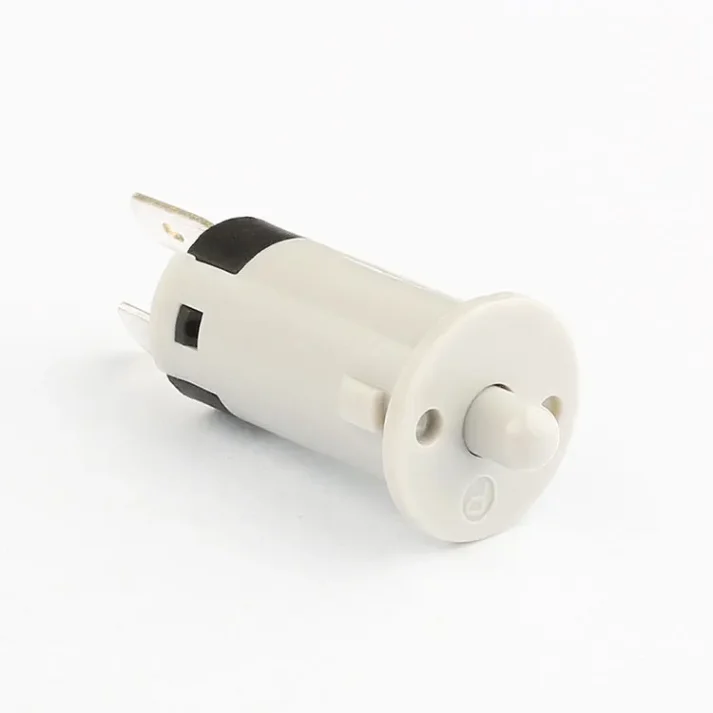

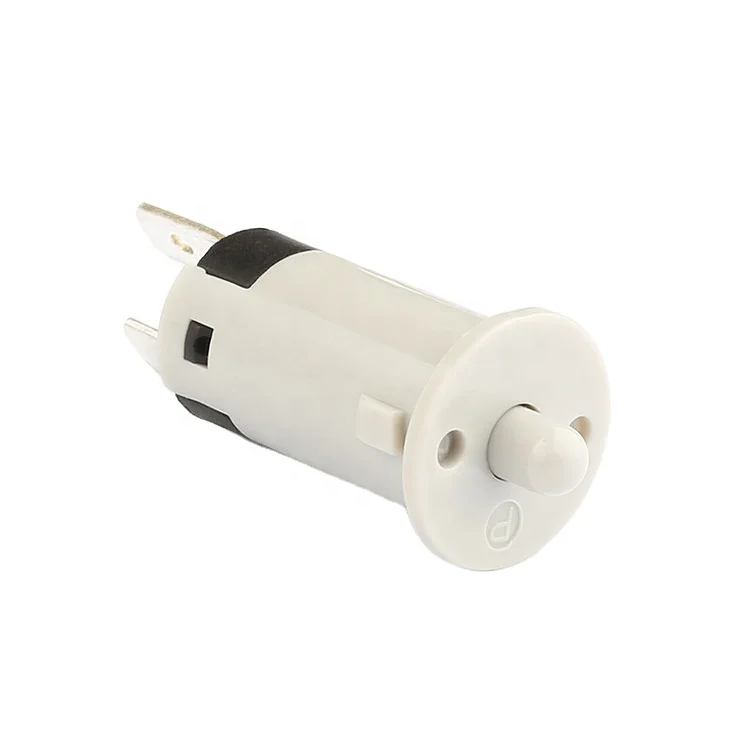

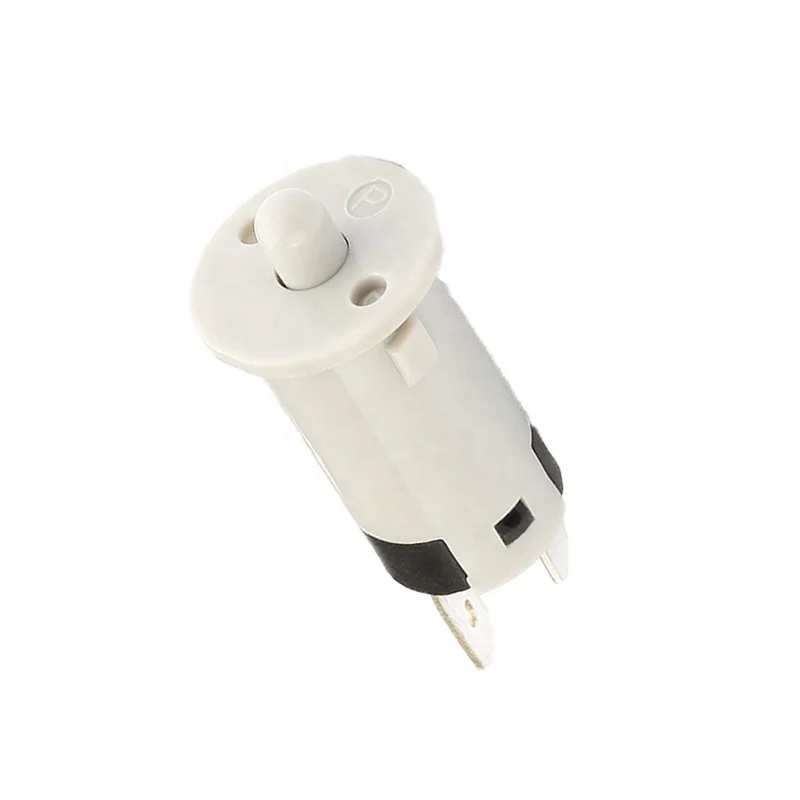

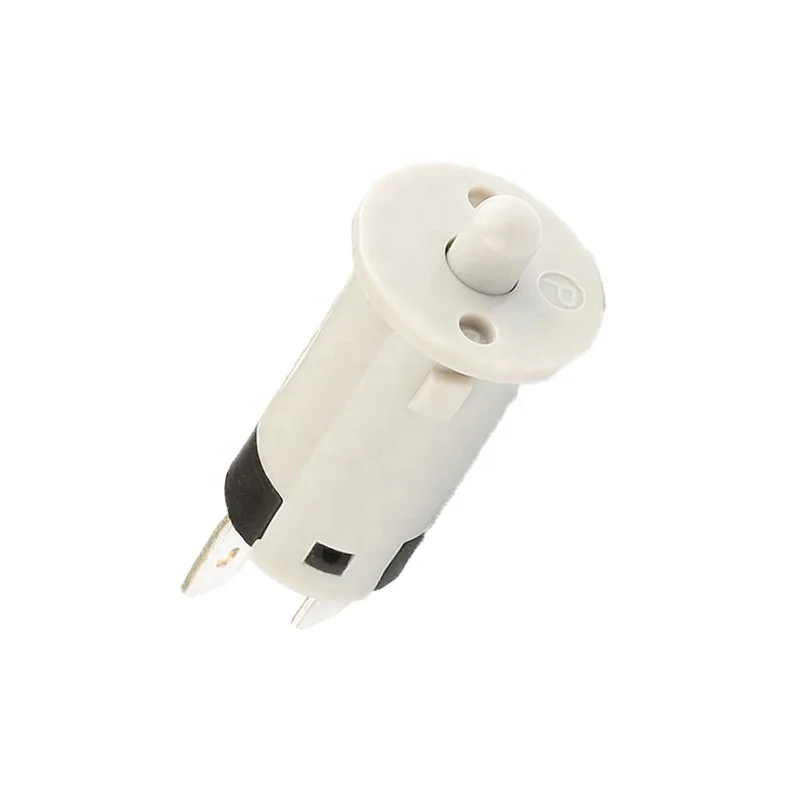

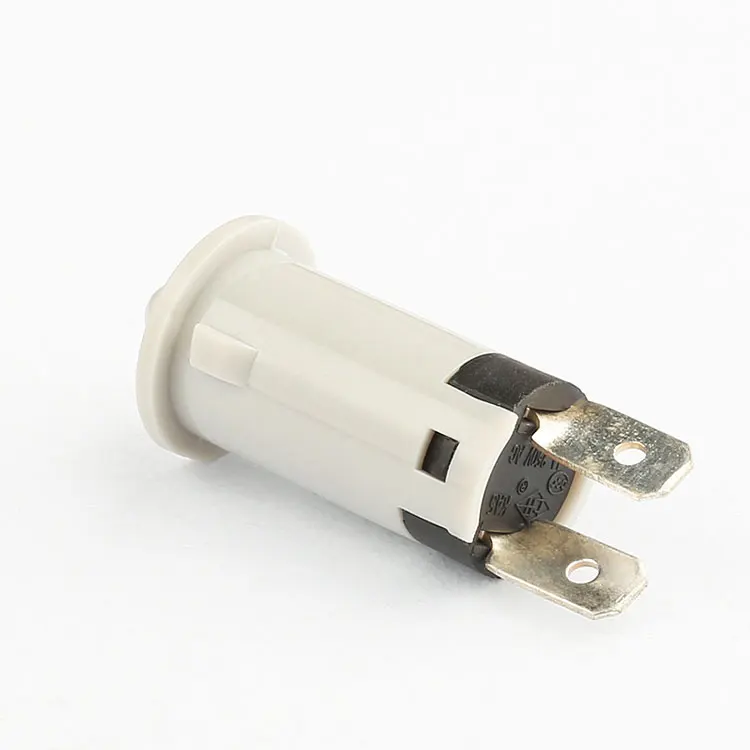

Our 12mm 1A 250VAC Mini Plastic Push Button Switch is a high-quality, durable switch designed specifically for refrigerator doors. As a factory direct supplier, we offer wholesale pricing on this essential component. This switch features a normally closed (NC) function, ensuring reliable operation. With a maximum current of 1A and a maximum voltage of 250V AC, it’s suitable for a wide range of applications. The switch is made from durable plastic, offering excellent insulation and resistance to wear and tear. It has a contact resistance of 50mΩ Max. and an insulation resistance of 100MΩ Min., ensuring safety and efficiency. With a dielectric strength of 1500V and a mechanical life of 50,000 times, this switch is built to last. It also has an electrical life of 100,000 times, providing long-term reliability. The operating temperature range is -25℃ to +55℃, making it suitable for various environments. The switch is easy to install with a 12mm mounting hole size and can accommodate panel thicknesses of 0.4-0.6mm, 0.8-2.4mm, or 1.4-1.6mm. Choose our switch for its superior quality, competitive pricing, and reliable performance. We offer excellent after-sales service and support.
|

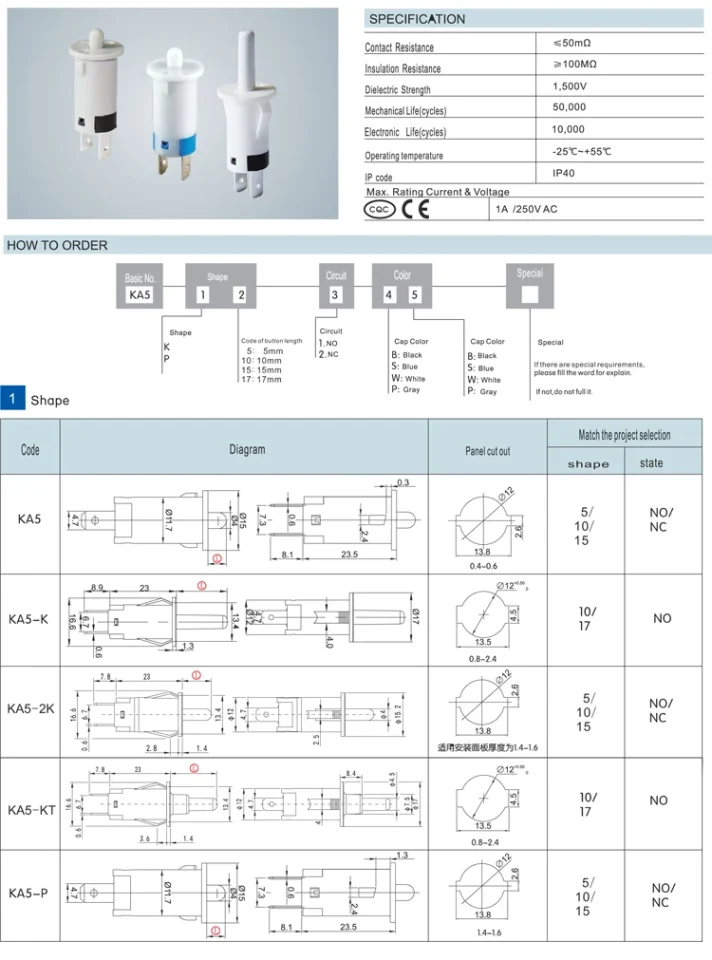

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-P5-NC-WW
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NC,NO
|
|
Panel Thickness
|
0.4-0.6, 0.8-2.4, 1.4-1.6
|
Why Choose Our Push Button Switch?
Our push button switch is designed for durability and reliability, making it an ideal choice for refrigerator doors and other electrical appliances. With a normally closed (NC) function, it ensures consistent operation and peace of mind.
What Are the Key Features?
Key features include a 12mm mounting hole size, 1A maximum current, 250V AC maximum voltage, and IP40 protection level. It also offers excellent contact and insulation resistance, ensuring safety and efficiency.
How Does It Compare to Other Switches?
Our switch stands out with its superior quality, competitive pricing, and long mechanical and electrical life. It's built to withstand harsh conditions and offers reliable performance over time, making it a cost-effective choice for your needs.
