Description
Specifications:
– **Place of Origin**: Shanghai, China
– **Brand Name**: SK (Shangkai)
– **Model Number**: KA5-5-NC-BB
– **Protection Level**: IP40
– **Max. Current**: 1A
– **Max. Voltage**: 250V AC
– **Contact Resistance**: 50mΩ Max.
– **Insulation Resistance**: 100MΩ Min.
– **Dielectric Strength**: 1500V
– **Mechanical Life**: 50,000 Times
– **Electrical Life**: 100,000 Times
– **Operating Temperature**: -25°C to +55°C
– **Mounting Hole Size**: 12mm
– **Function**: NC (also available with NO option)
– **Panel Thickness Compatibility**: 0.4-0.6mm, 0.8-2.4mm, 1.4-1.6mm
Advantages:
– **Durable Construction**: Made from high-quality plastic, ensuring long-lasting performance.
– **High Reliability**: Precise engineering guarantees stable operation under various conditions.
– **Versatile Application**: Suitable for refrigerators, control panels, and more.
– **Competitive Pricing**: Direct factory pricing means you get the best value for your money.
– **Excellent After-Sales Service**: We stand behind our products with reliable support and warranty.
Choose us as your trusted supplier for all your push button switch needs.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-5-NC-BB
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NC,NO
|
|
Panel Thickness
|
0.4-0.6, 0.8-2.4, 1.4-1.6
|
Why Choose Our Push Button Switch?

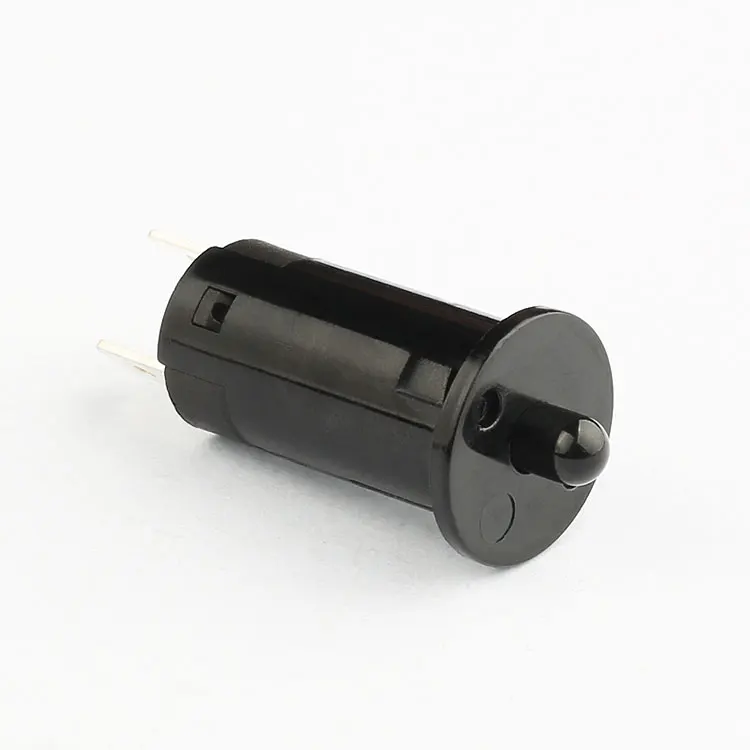

Our 12mm 1A 250VAC Normally Closed Push Button Switch is designed with precision and durability in mind. It's perfect for refrigerator doors and other applications where reliable switching is essential. The plastic body ensures longevity, while the precise specifications guarantee stable operation under various conditions.
Key Features and Benefits
- **Durable Construction**: Made from high-quality plastic, our switch can withstand daily use and harsh environments.
- **High Reliability**: With a contact resistance of 50mΩ Max. and insulation resistance of 100MΩ Min., you can trust our switch to perform consistently.
- **Versatile Application**: Whether it's for a refrigerator, control panel, or industrial equipment, our switch fits the bill.
Why Buy from Us?
As a direct factory supplier, we offer competitive wholesale prices without compromising on quality. We also provide excellent after-sales service, ensuring you're satisfied with your purchase. Choose us for all your push button switch needs and experience the difference.
