Description
|
contact resistance
|
≤50MΩ
|
mechanical life（cycles）
|
50000
|
|
insulation resistance
|
≥100MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
1A 250V AC
|

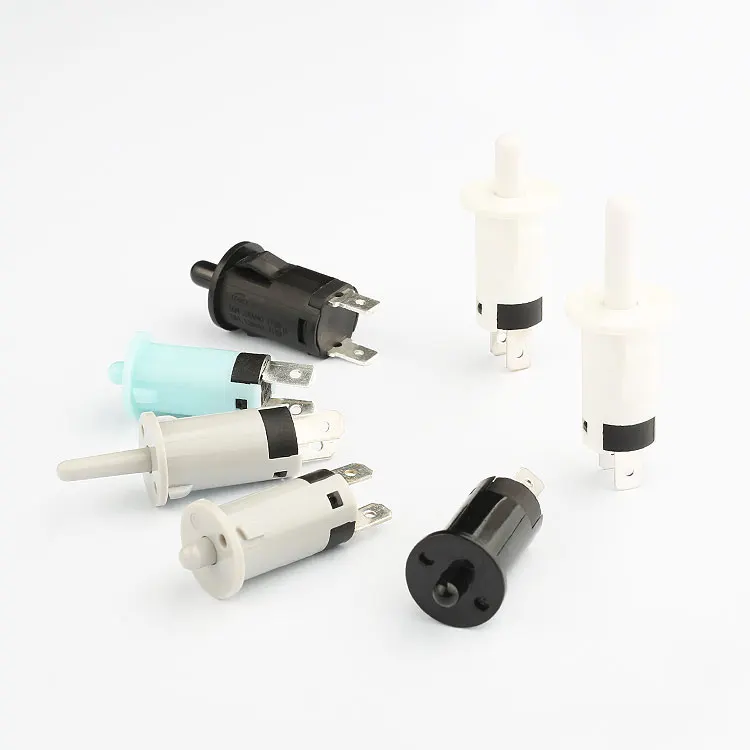

Why Choose Our 12mm 2-Pin Momentary Push Button Door Switch?
Our 12mm 2-Pin Momentary Push Button Door Switch stands out for its durability, reliability, and competitive pricing. As a factory supplier, we offer wholesale prices, making it an affordable choice for businesses and individuals alike. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance, reducing the need for frequent replacements.
What Are the Key Features of This Switch?
This switch boasts a contact resistance of ≤50MΩ, insulation resistance of ≥100MΩ, and a dielectric strength of 1500V, ensuring safe and efficient operation. It supports a maximum rating of 1A 250V AC and operates within a temperature range of 25°C to 55°C. Available in multiple cap colors, it fits seamlessly into various applications, providing both functionality and aesthetics.
Where Can This Switch Be Used?
Our switch is perfect for refrigerators, cabinets, and other door mechanisms where a momentary on/off function is required. Its IP40 rating provides protection against dust and water splashes, making it suitable for a wide range of environments. Trust our factory for quality, reliability, and competitive pricing on all your electrical switch needs.
