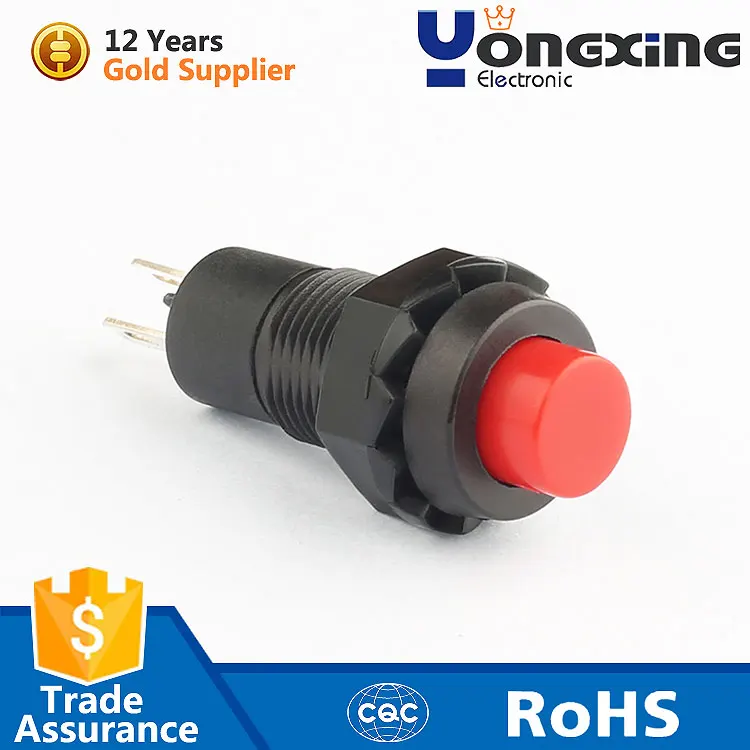

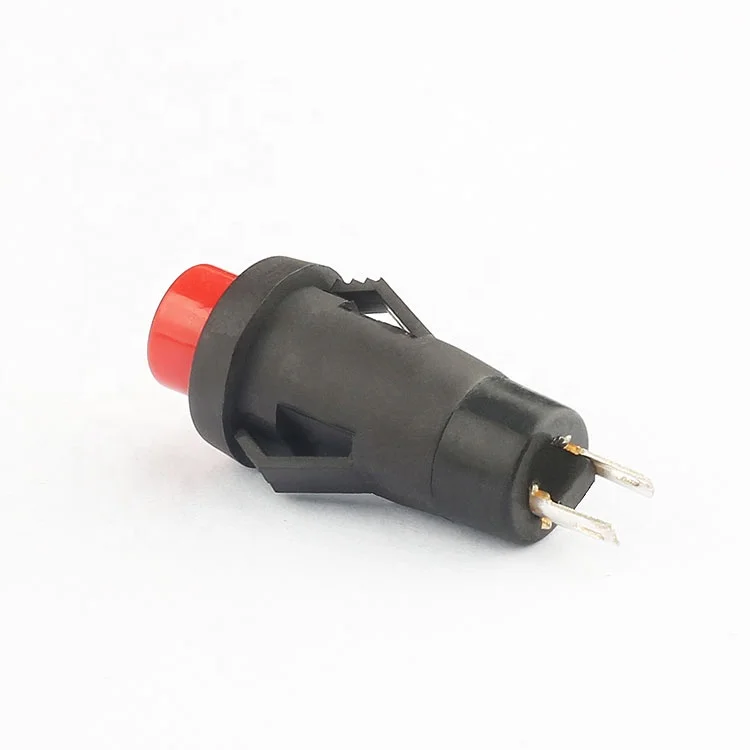

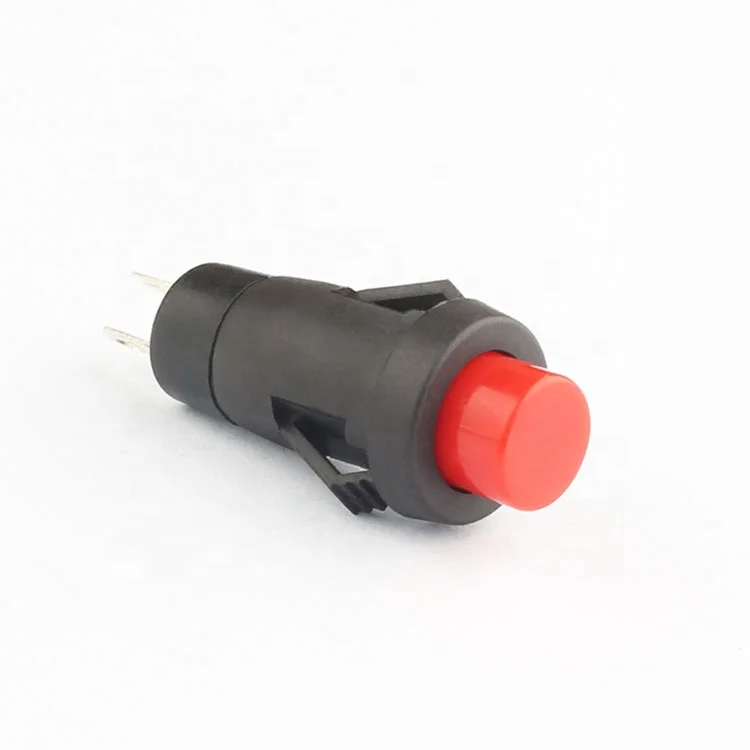

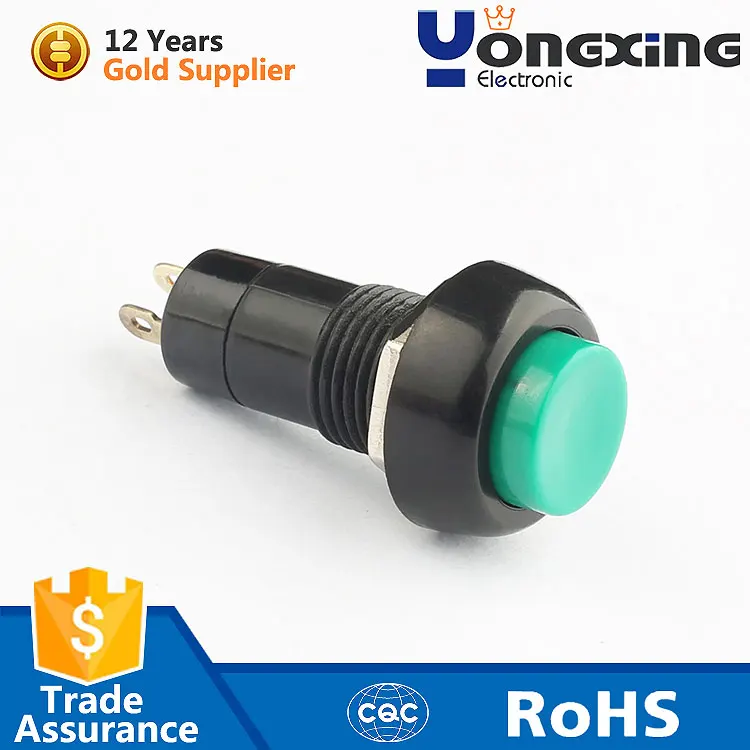

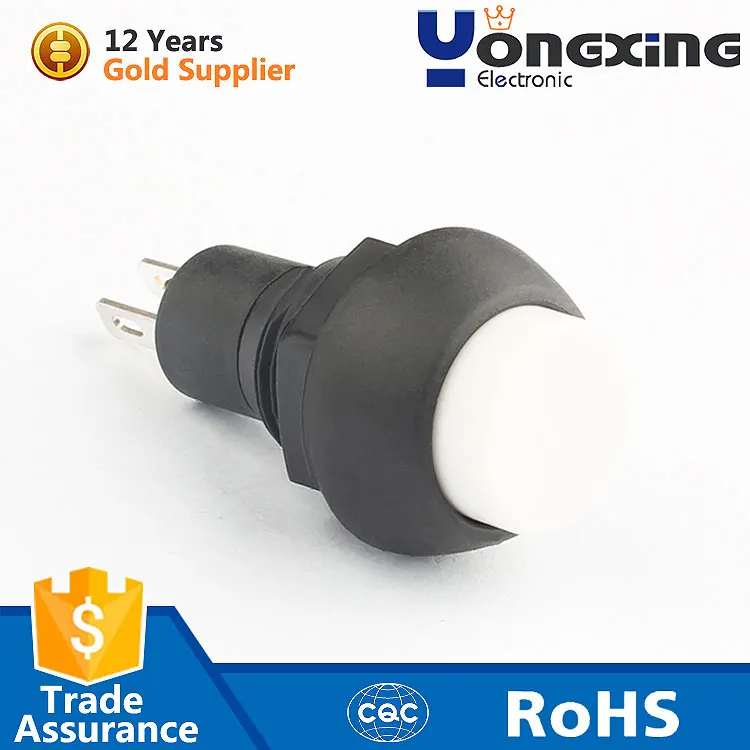

Wholesale 12mm Mini Latching Push Button Switch | Factory Supplier

Category: Tags: , ,
500 - 1,999  pieces
$0.28

2,000 - 4,999  pieces
$0.26

>= 5,000  pieces
$0.24
0 reviews

Wholesale 12mm Mini Push Button Switch. Factory supplier. High quality, durable, cost-effective.

Clean All

Description

Introducing our high-quality 12mm Mini Latching Push Button Switch, a top choice for various electronic applications. As a factory supplier, we offer wholesale pricing and ensure product excellence. This switch features a maximum rating of 1A 250V AC, with a dielectric strength of 1500V and an electronic life of 10,000 cycles. It boasts a contact resistance of ≤50MΩ and an insulation resistance of ≥100MΩ, ensuring reliable performance. With an operating temperature range of 5°C to 55°C and an IP40 protection level, it’s suitable for diverse environments. Our switch stands out with its compact size, durability, and cost-effectiveness. We provide excellent after-sales service, ensuring your satisfaction. Choose us for wholesale purchases and experience the difference!
max.rating current & voltage
1A 250V AC
dielectric strength
1500V
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥100MΩ
operating temperature
5T55

Electronic component for cross-border e-commerce


Why Choose Our 12mm Mini Latching Push Button Switch?

Our 12mm Mini Latching Push Button Switch is designed for durability and reliability. With a maximum rating of 1A 250V AC and an electronic life of 10,000 cycles, it ensures long-lasting performance. The compact size and IP40 protection level make it suitable for various applications, from electronic devices to industrial equipment.

What Are the Key Features of Our Switch?

Key features include a dielectric strength of 1500V, contact resistance of ≤50MΩ, and insulation resistance of ≥100MΩ. These specifications guarantee safe and efficient operation. Additionally, our switch is easy to install and maintain, providing a hassle-free experience for users.

Why Buy from Us as a Factory Supplier?

As a factory supplier, we offer wholesale pricing and ensure product quality. Our switches are manufactured under strict quality control measures, guaranteeing consistent performance. We also provide excellent after-sales service, ensuring your satisfaction. Choose us for reliable, cost-effective solutions.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

1A
Max. Voltage

250V
Place of Origin

Shanghai, China
Brand Name

Yong Xing
Model Number

KA1B-11
LED

NO
Whether the smart

NO
IP level

IP40
Switch Combination

1NO1NC, 1NO, 1NC
contact resistance

≤50MΩ
insulation resistance

≥100MΩ
dielectric strength

1500V
electronic life(cycles)

10000
operating temperature

5T55
IP code

IP 40
max.rating current & voltage

1A 250V AC
Protection Level

IP40
