Description
Our switch stands out with its IP40 protection level, ensuring resistance to dust and water splashes. It boasts a mechanical life of 50,000 times and an electrical life of 100,000 times, making it highly reliable and long-lasting. The contact resistance is a low 50mΩ Max., and the insulation resistance is a high 100MΩ Min., ensuring excellent electrical performance.
The switch is designed to fit mounting holes of 12mm and is suitable for panel thicknesses ranging from 0.4-0.6mm, 0.8-2.4mm, and 1.4-1.6mm. Its operating temperature range is -25℃ to +55℃, making it suitable for various environments. We offer competitive wholesale prices and excellent after-sales service, ensuring your satisfaction. Choose our factory-direct push button switch for a reliable, cost-effective solution.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-15-NO-WW
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NC,NO
|
|
Panel Thickness
|
0.4-0.6, 0.8-2.4, 1.4-1.6
|
Why Choose Our 12mm Mini Plastic Push Button Switch?

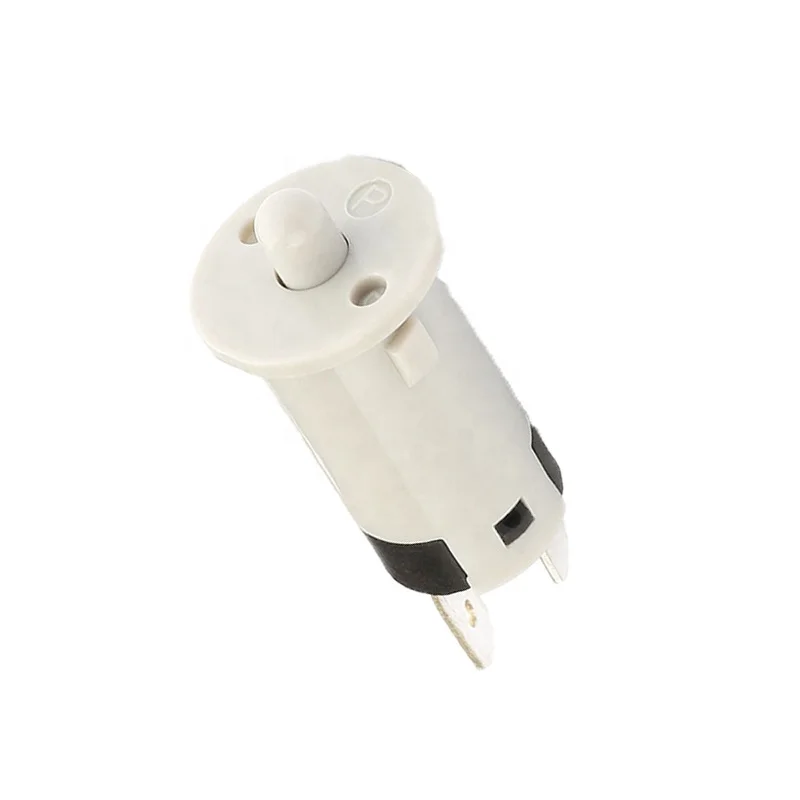

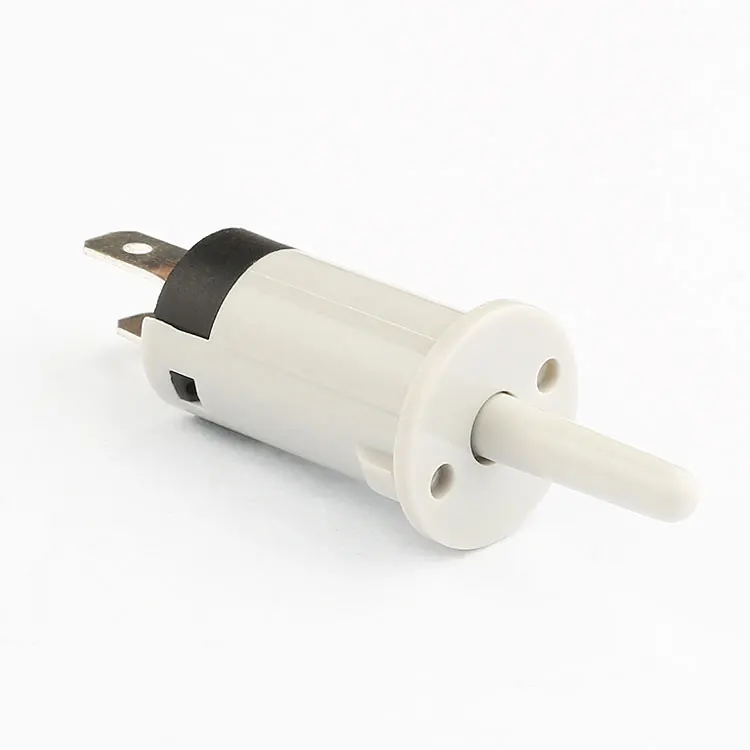

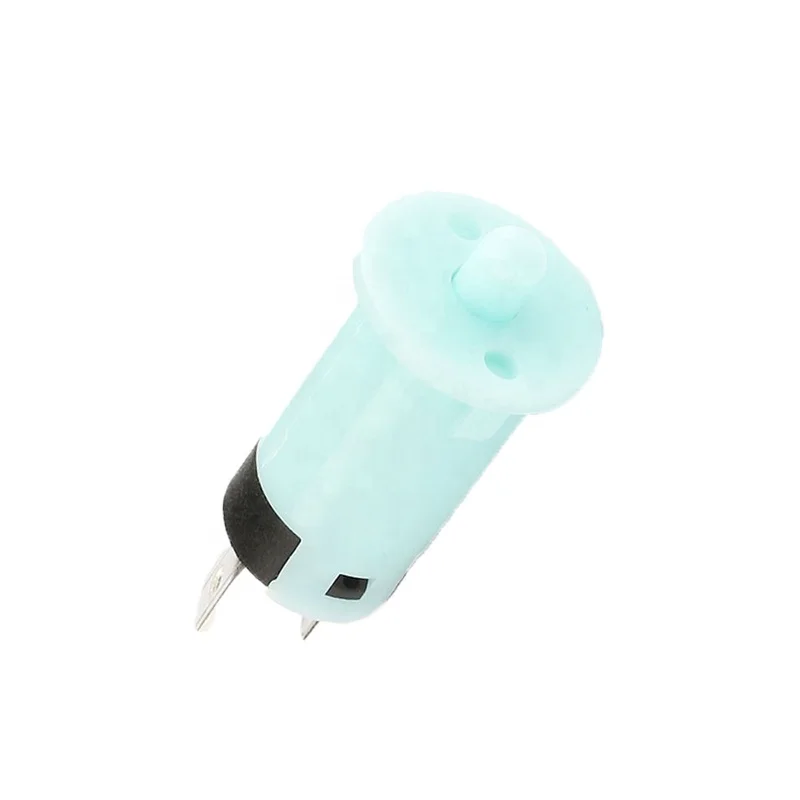

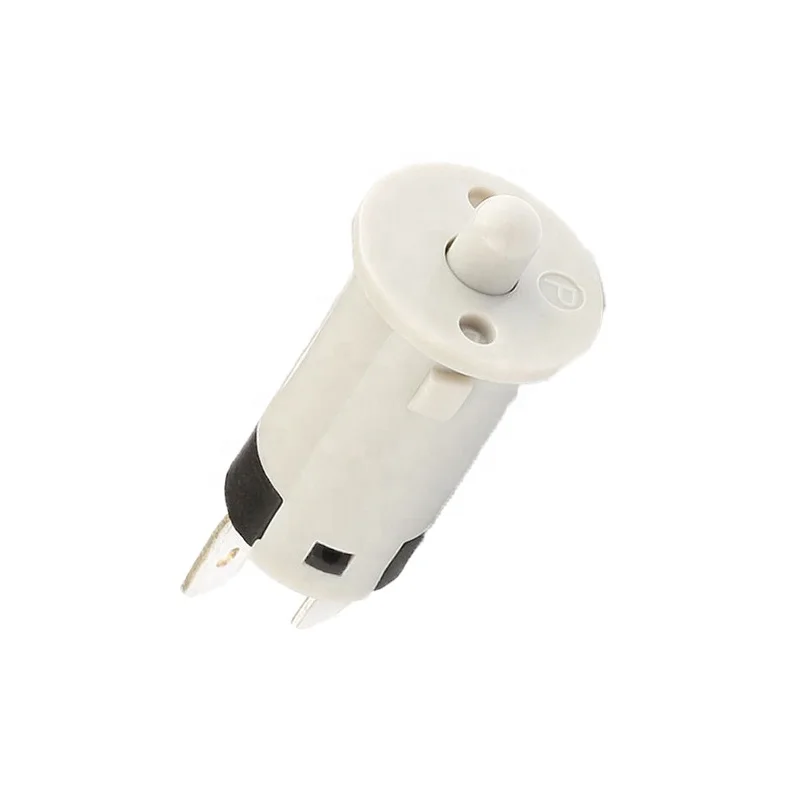

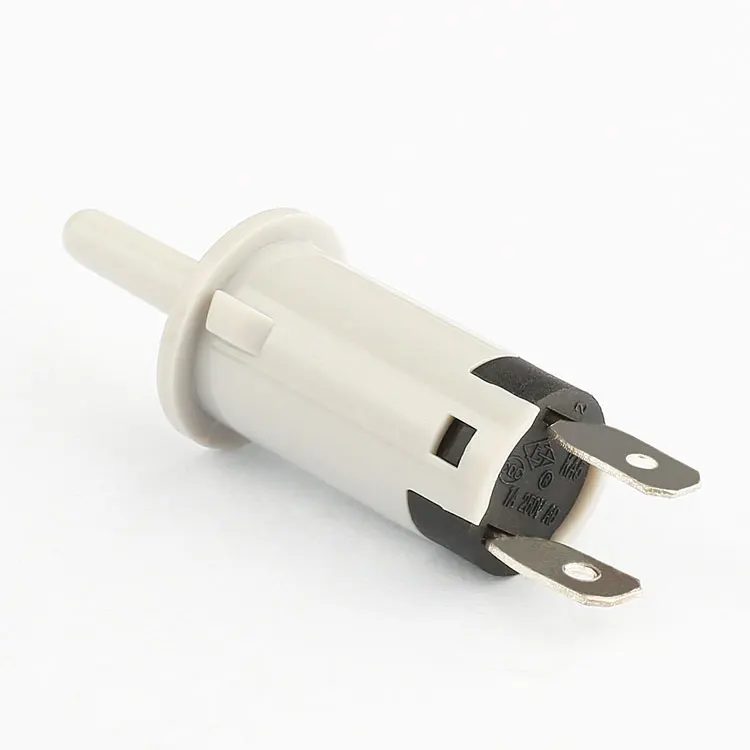

Our 12mm mini plastic push button switch is designed specifically for refrigerator doors, offering a compact, durable, and reliable solution for controlling electrical components. With a normally open (NO) function, it ensures safe and efficient operation, making it ideal for home appliances and industrial use.
What Are the Key Features of Our Switch?
Our switch features a 2-pin, 1A, 250VAC configuration, IP40 protection level, and a long mechanical and electrical life. It's designed to fit mounting holes of 12mm and is suitable for various panel thicknesses. The low contact resistance and high insulation resistance ensure excellent electrical performance.
Why Buy from Our Factory as a Supplier?
As a direct factory supplier, we offer competitive wholesale prices and excellent after-sales service. Our switches are manufactured to the highest standards, ensuring reliability and durability. Choose us for a cost-effective, high-quality solution for your electrical needs.
