Wholesale 12mm Plastic Push Button Switch | Factory Direct Supplier

100 - 5,999  pieces
$0.19

6,000 - 18,999  pieces
$0.18

>= 19,000  pieces
$0.16

0 reviews

Wholesale 12mm Plastic Push Button Switch – Factory Direct Supplier

Description

Introducing our high-quality 12mm plastic push button switch, a must-have for industrial control applications. As a factory direct supplier, we offer wholesale pricing on this reliable and durable switch. With a round head design and pin terminal, it’s easy to install and use. The switch features a normal open (NO) function, ensuring seamless operation. Our switch boasts a max current of 1A and a max voltage of 250V AC, making it suitable for a wide range of industrial settings. It also has an IP40 protection level, ensuring resistance to dust and water splashes. The mechanical life is an impressive 50,000 times, and the electrical life is 100,000 times, guaranteeing long-lasting performance. The operating temperature range is -25℃ to +55℃, making it suitable for various environments. Additionally, our switch comes with 400mm wires and HX01 terminals, providing flexibility in installation. As a trusted supplier, we offer competitive pricing and excellent after-sales service. Choose our 12mm plastic push button switch for your industrial control needs and experience the difference in quality and reliability.
item
value
Place of Origin
Shanghai,China
Brand Name
SK(Shangkai)
Model Number
KA5-K10-NO-WW
Protection Level
IP40
Max. Current
1A
Max. Voltage
250V AC
Contact Resistance
50mΩ Max.
Insulation Resistance
100MΩ Min.
Dielectric Strength
1500V
Mechanical Life
50000 Times
Electrical Life
100000 Times
Operating temperature
-25℃~+55℃
Protection Class
IP40
Mounting Hole Size
12mm
Function
NC,NO
Panel Thickness
0.4-0.6, 0.8-2.4, 1.4-1.6

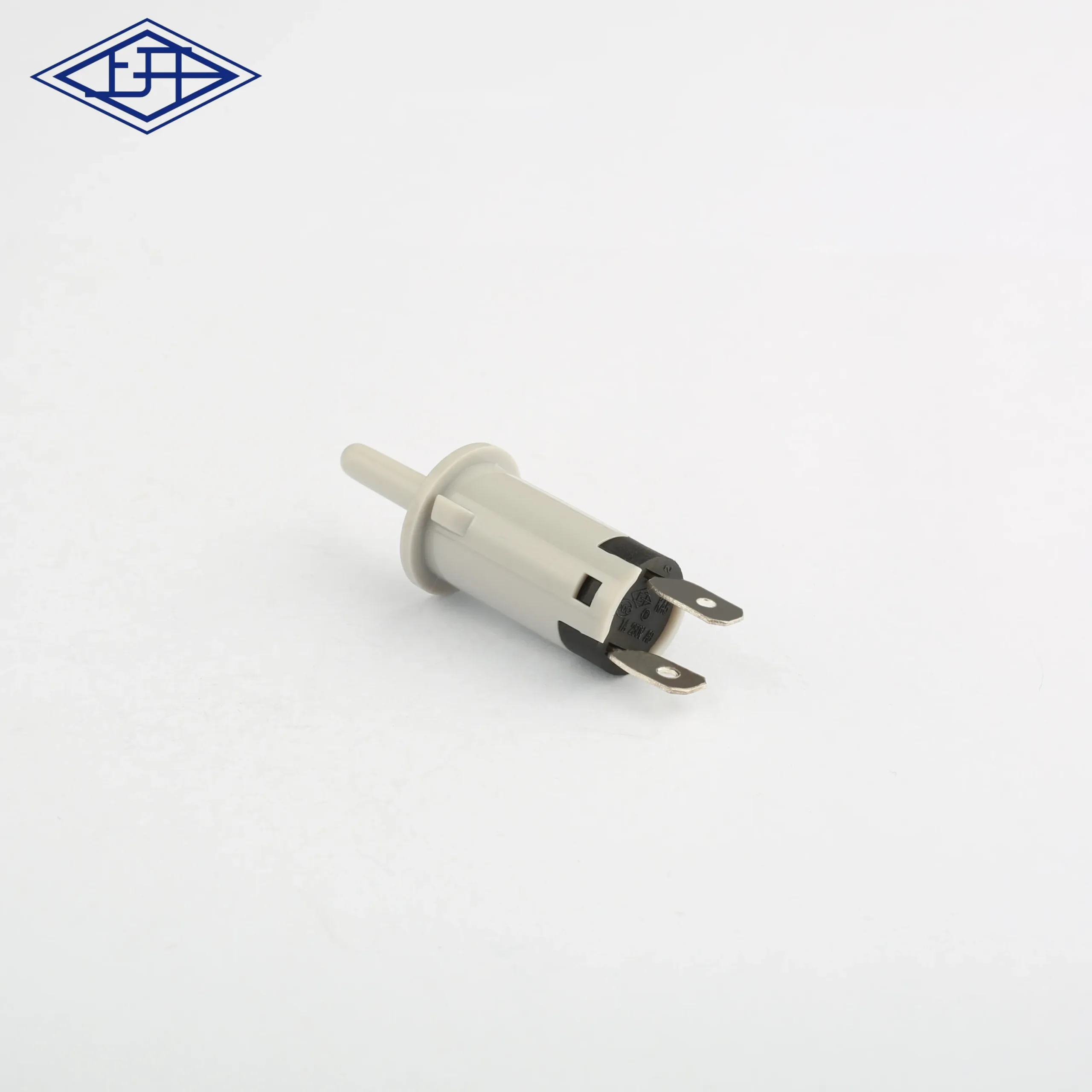

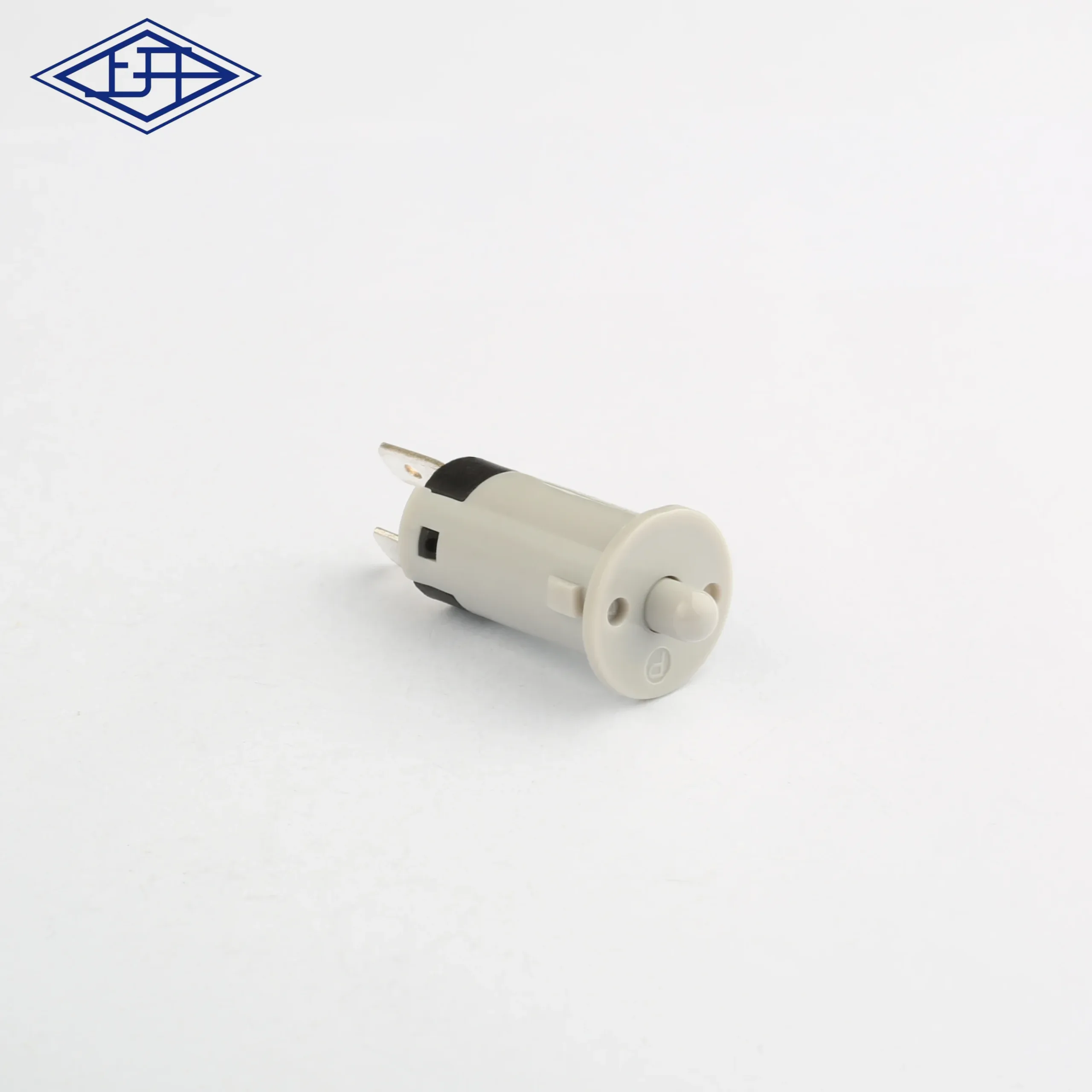

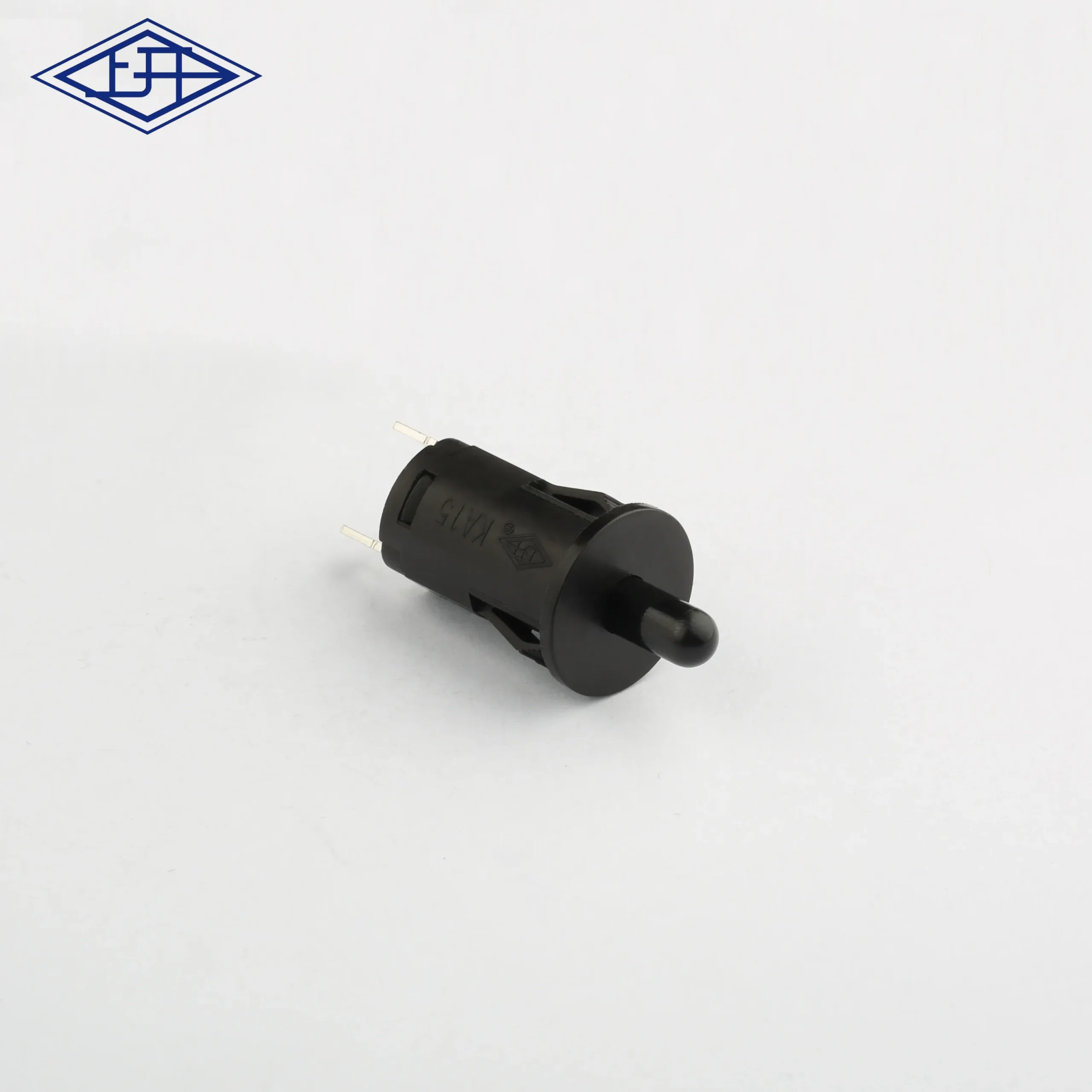

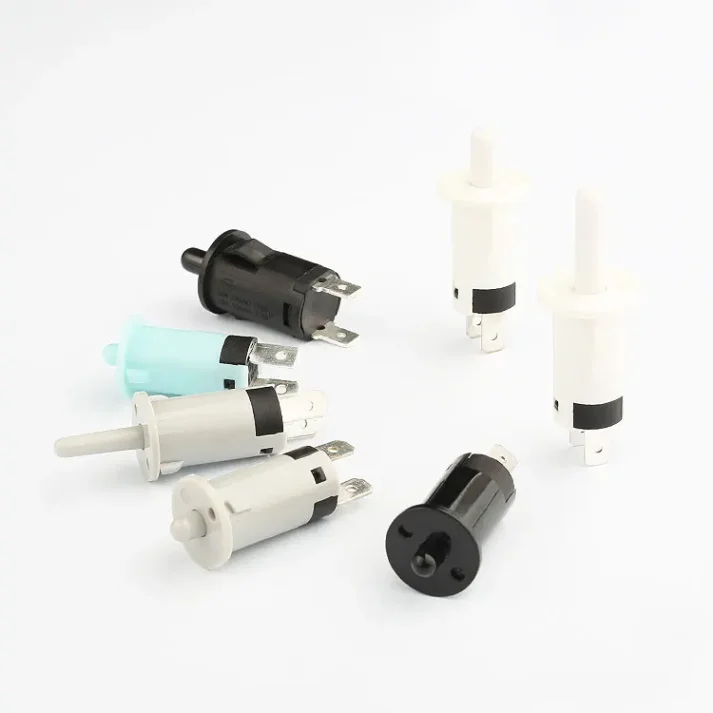

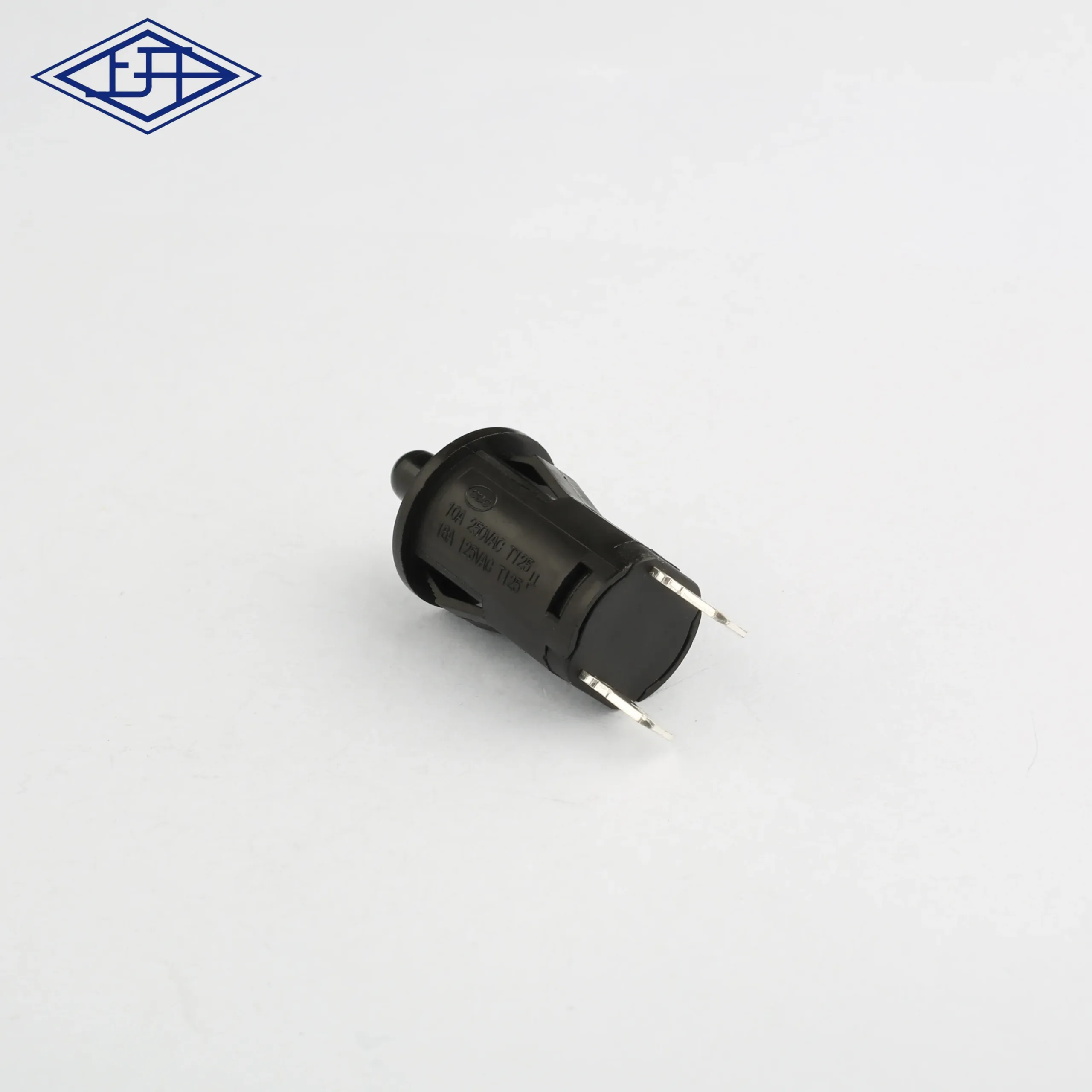

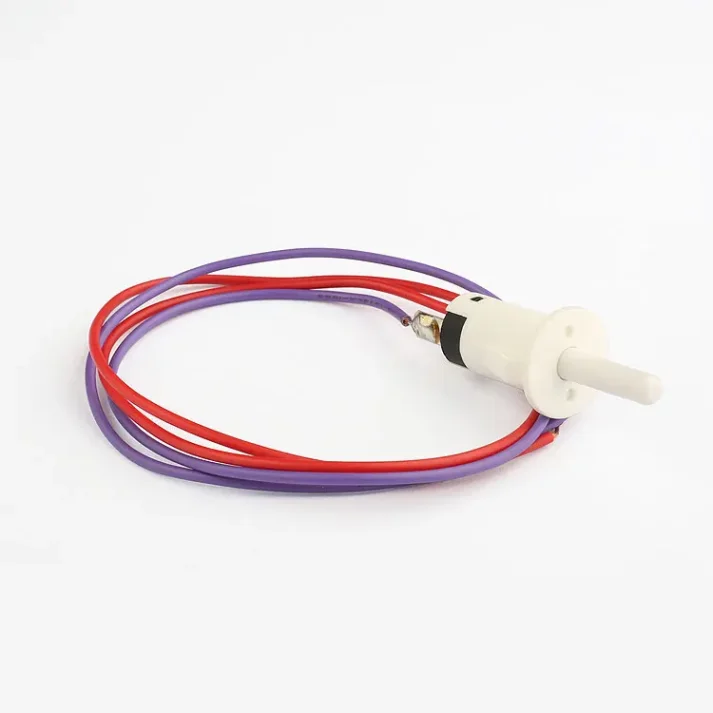

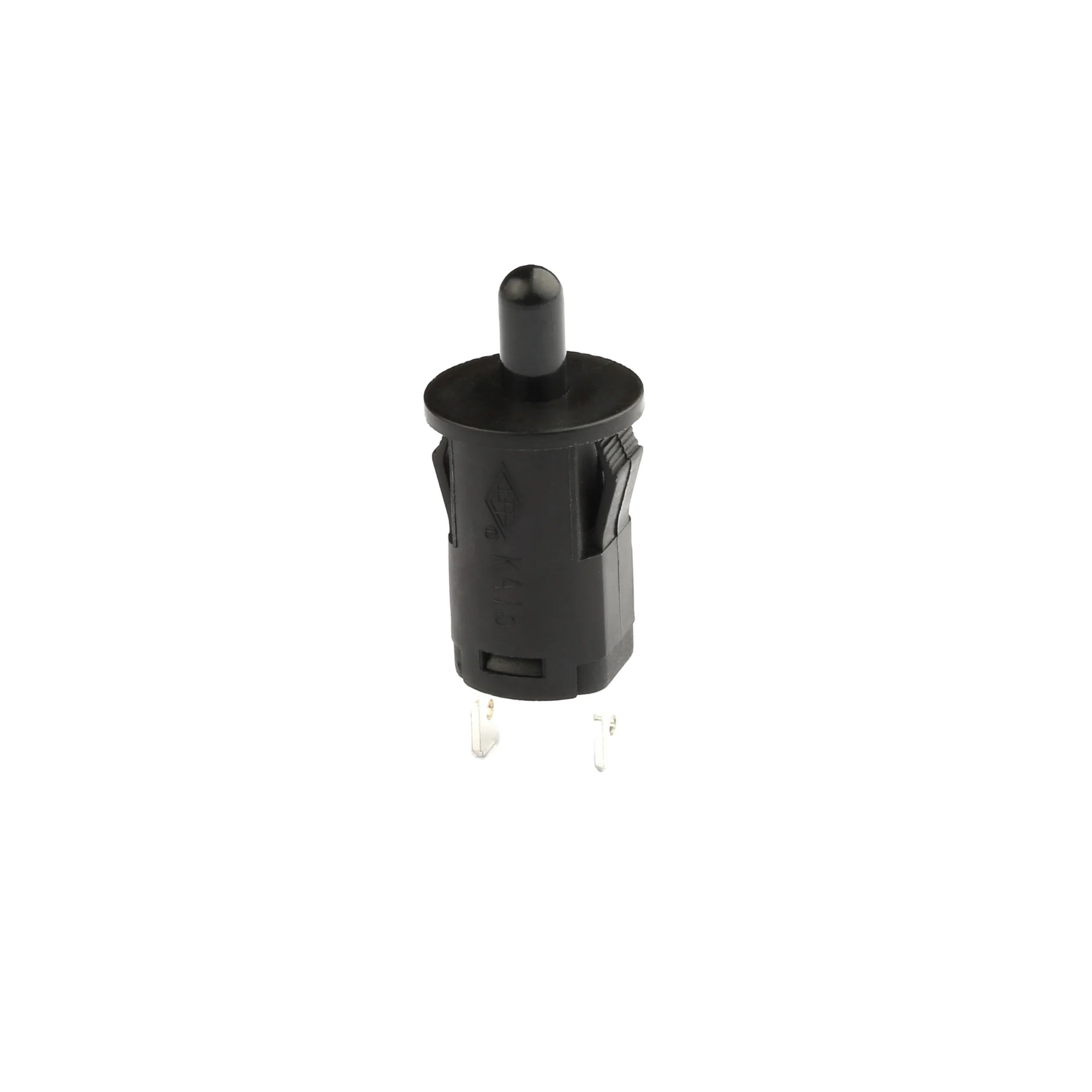

Electronic component device on white backgroundElectronic gadget product display imageElectronic accessory close-up viewFront view of electronic device productScaled image of electronic product


Key Features and Advantages

Our 12mm plastic push button switch stands out with its durable plastic construction and mechanical structure, ensuring longevity and reliability. The normal open (NO) function provides seamless operation, while the IP40 protection level offers resistance to dust and water splashes, making it ideal for industrial environments.

Why Choose Our Switch?

As a factory direct supplier, we offer wholesale pricing without compromising on quality. Our switch boasts an impressive mechanical life of 50,000 times and an electrical life of 100,000 times, ensuring long-lasting performance. Additionally, it comes with 400mm wires and HX01 terminals, providing flexibility in installation.

Application and Compatibility

Perfect for industrial control applications, our switch is designed for panel installation and machine operation. Its 12mm size and round head design make it easy to integrate into various systems. Choose our switch for its reliability, durability, and competitive pricing.

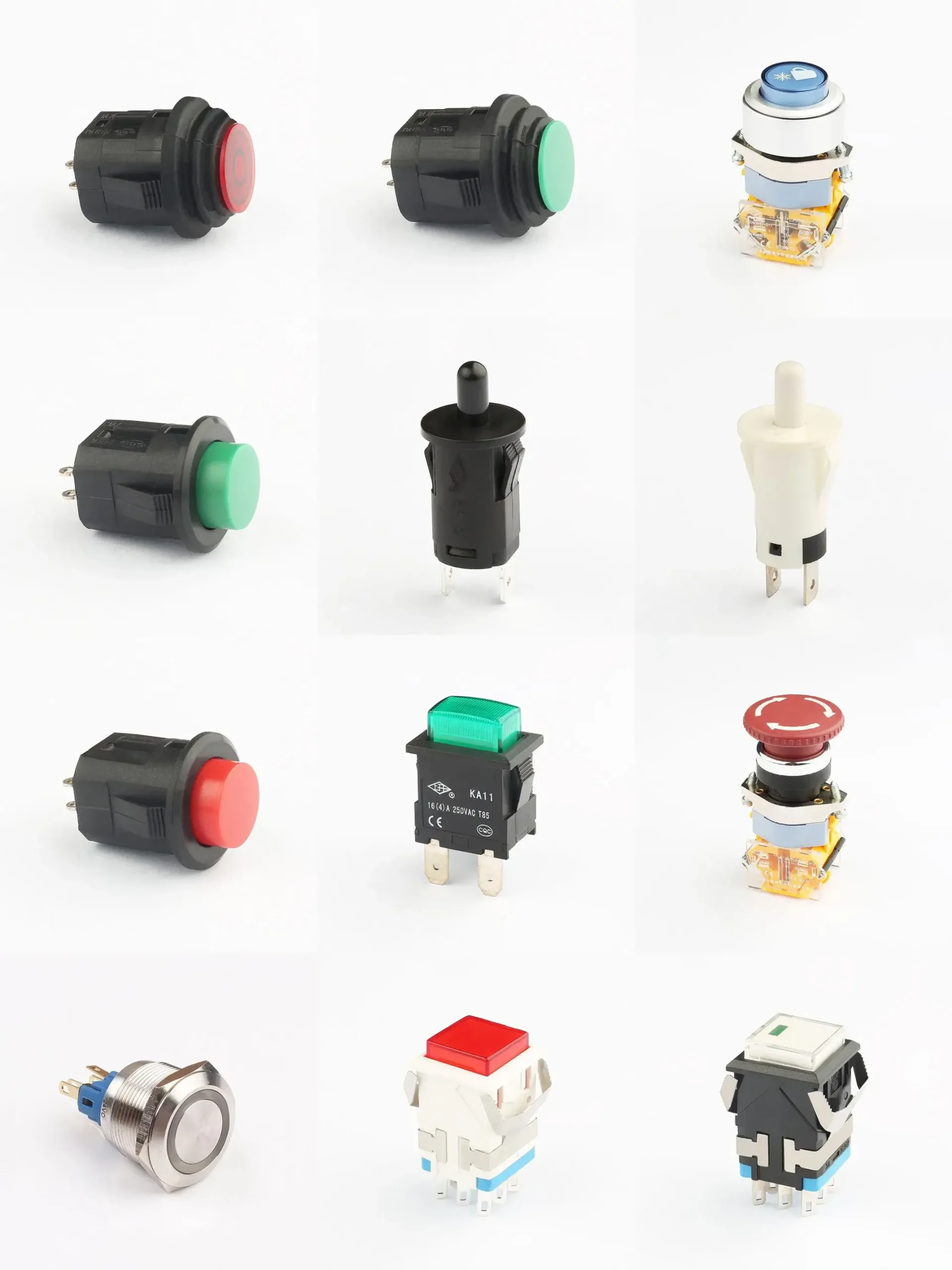

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

1A

Max. Voltage

250V AC

Place of Origin

Shanghai,China

Brand Name

SK(Shangkai)

Model Number

KA5-K17-NO-WW/HX01-750/400mm wires HX01 terminal1

LED

Other

Application

Industrial Control

Material

plastic

Structure

Mechanical

Head Type

Round Head

Terminal Type

Pin terminal

Whether the smart

NO

IP level

IP41, IP65

Switch Combination

1NO1NC, 1NO

Contact Resistance

50mΩ Max.

Insulation Resistance

100MΩ Min.

Dielectric Strength

1500V

Mechanical Life

50000 times

Operating temperature

-25℃~+55℃

Protection Class

IP40

Mounting Hole Size

12mm

Button length

17mm

Wires

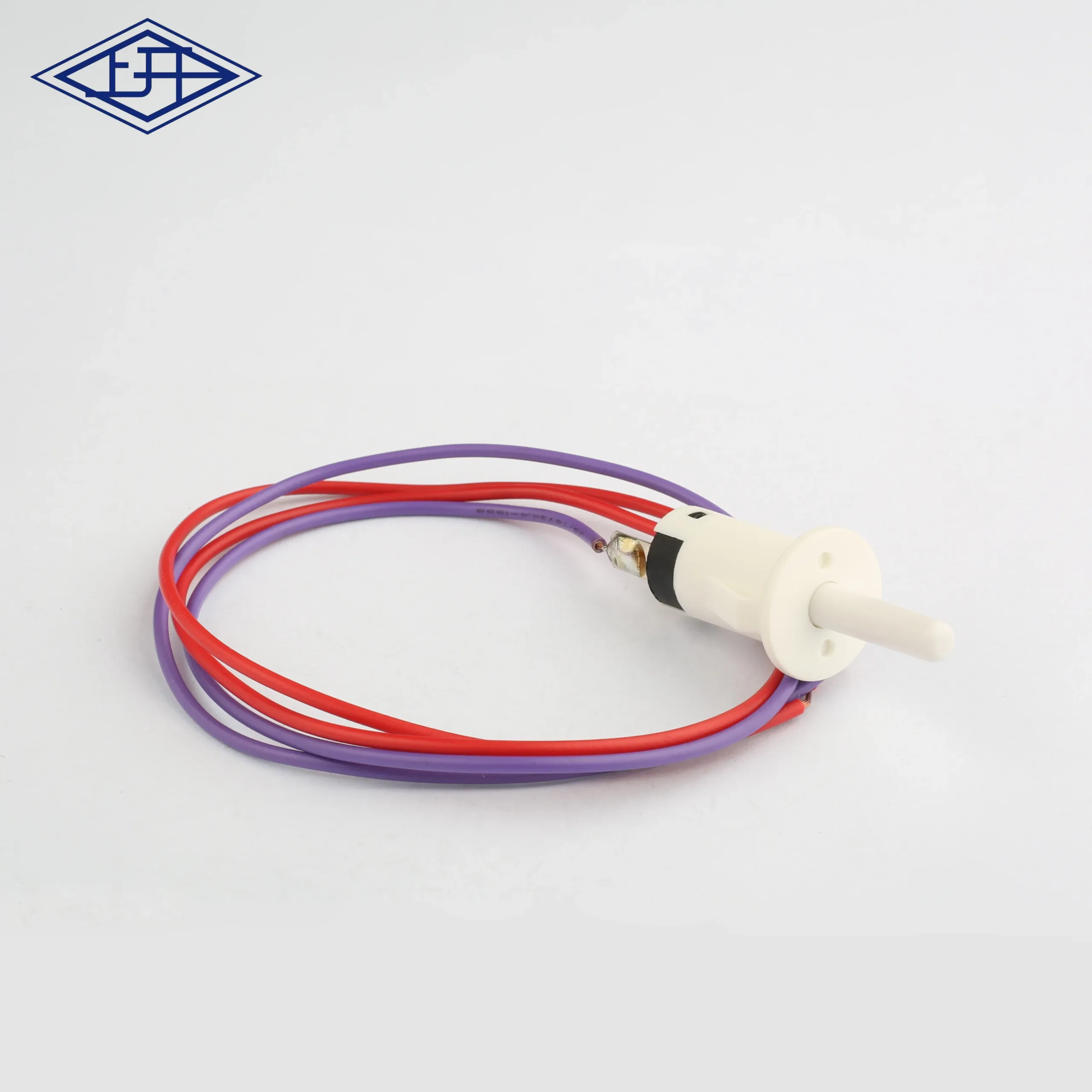

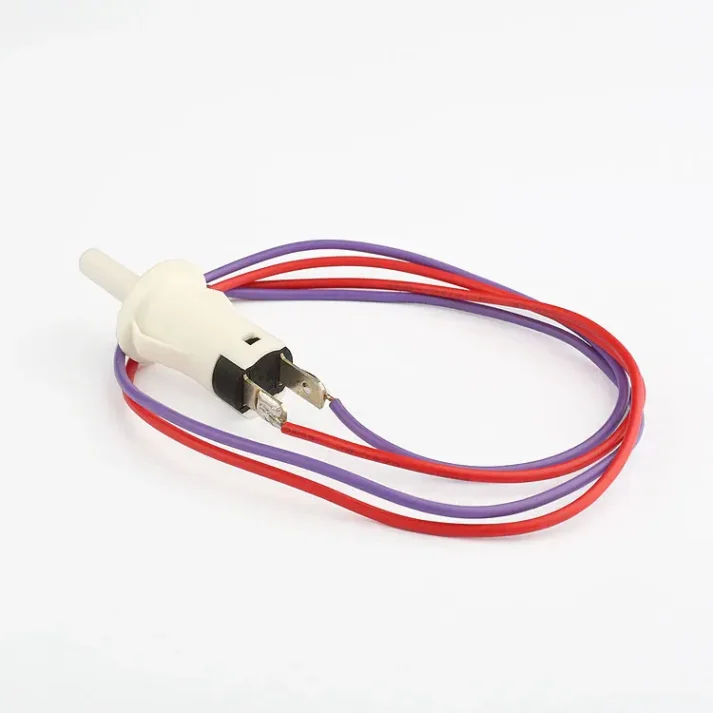

400mm wires HX01 terminal

Protection Level

IP40
