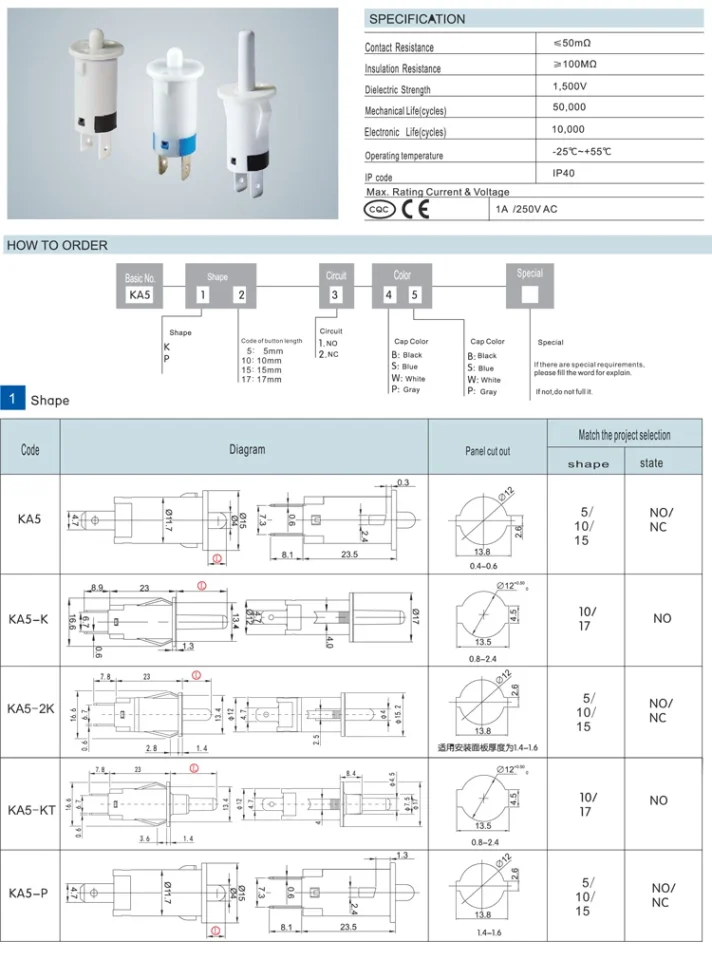

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-KT17-NO-WW
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NO
|
|
Panel Thickness
|
0.8-2.4
|

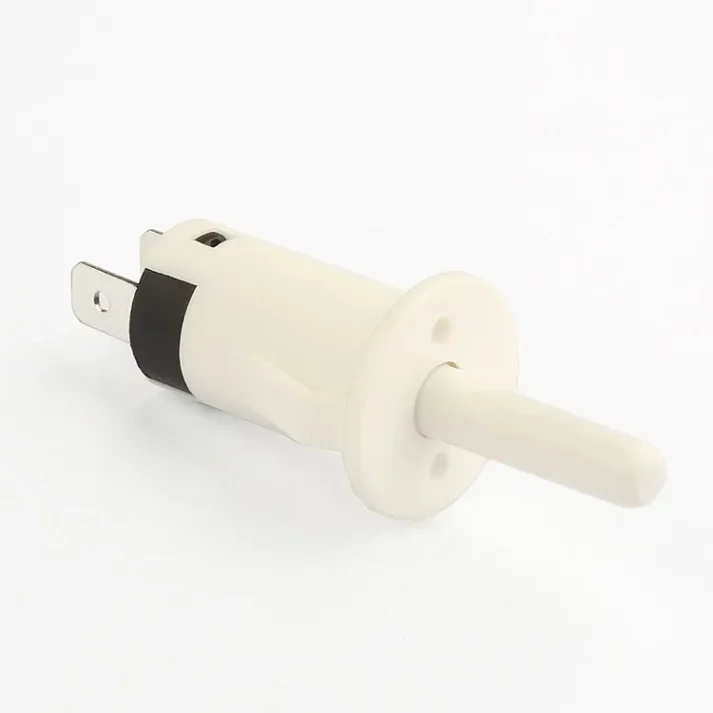

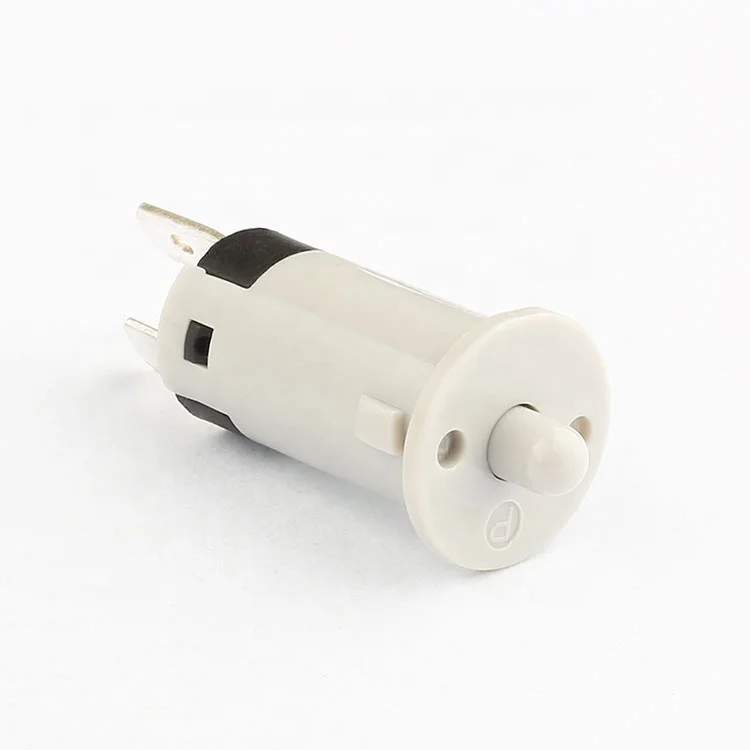

Why Choose Our 12mm White NO Push Button Switch?
Our 12mm White Normally Open Push Button Switch is the perfect choice for those seeking a reliable, durable, and cost-effective solution. As a factory supplier, we offer wholesale pricing, ensuring you get the best value for your money. This switch is designed to withstand demanding electrical tasks, with a rating of up to 1A current and 250V AC. Its IP40 protection level provides adequate defense against dust and splashing water, making it suitable for a wide range of environments. The long mechanical and electrical life ensure that this switch will perform reliably over time, reducing the need for frequent replacements.
What Are the Key Features of Our Push Button Switch?
Our switch stands out with its low contact resistance (50mΩ Max.) and high insulation resistance (100MΩ Min.), offering superior electrical performance. The 12mm mounting hole size and compatibility with panel thicknesses of 0.8-2.4mm make installation straightforward. Additionally, its wide operating temperature range of -25℃ to +55℃ adds to its versatility, allowing it to be used in various applications without concern for environmental conditions.
How Can Our Switch Benefit Your Business?
By choosing our factory-direct push button switch, you can benefit from unbeatable quality, price, and service. Our wholesale pricing allows you to stock up on this essential component without breaking the bank. The switch's durability and reliability ensure that it will perform consistently, reducing downtime and maintenance costs. Whether you're using it in electrical control systems, industrial machinery, home appliances, or automation systems, our push button switch is the ideal choice for your needs.
