Description
Product Specifications:
- Size: 12mm
- Color: Yellow
- LED: Yes
- Max. Current: 3A
- Max. Voltage: 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100mΩ
- Dielectric Strength: 1500V
- Electronic Life: Momentary: 50,000 cycles, Alternate: 25,000 cycles
- Mechanical Life: Momentary: 200,000 cycles, Alternate: 50,000 cycles
- Certification: CQC, CE
- Protection Level: IP40
Product Advantages:
- Durable construction ensures long-lasting performance.
- Bright LED indicator for easy visibility in low-light conditions.
- 1NO1NC configuration provides versatile switching options.
- High electrical and mechanical life for reliable operation.
- Factory-direct wholesale pricing for cost savings.
Applications:
- Industrial control systems
- Automation equipment
- Security systems
- Home appliances
After-Sales Service:
We offer comprehensive after-sales service, including technical support and warranty coverage, to ensure your satisfaction with our products.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ momentary push button switch |
| Dielectric Resistance | 1,500V 3 pin push button switch |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |

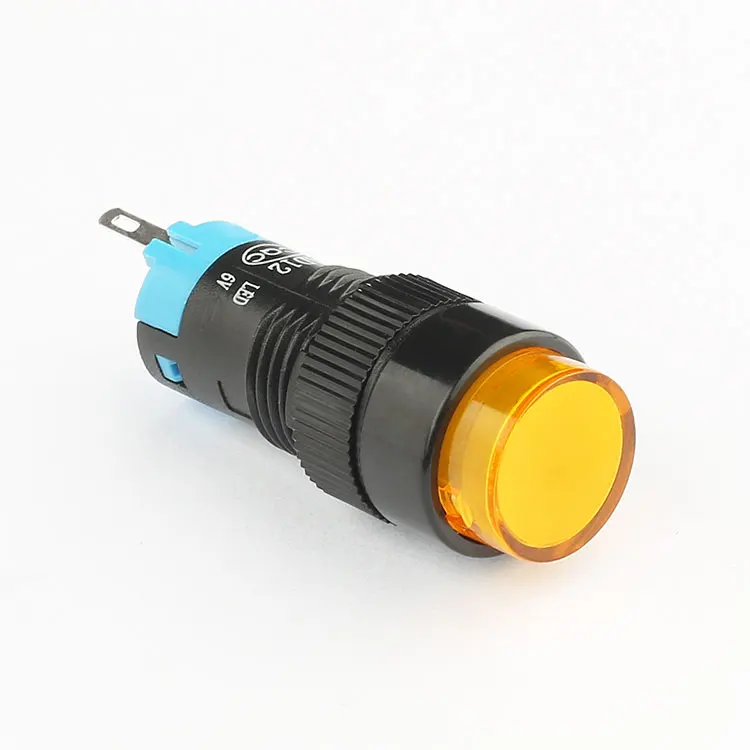

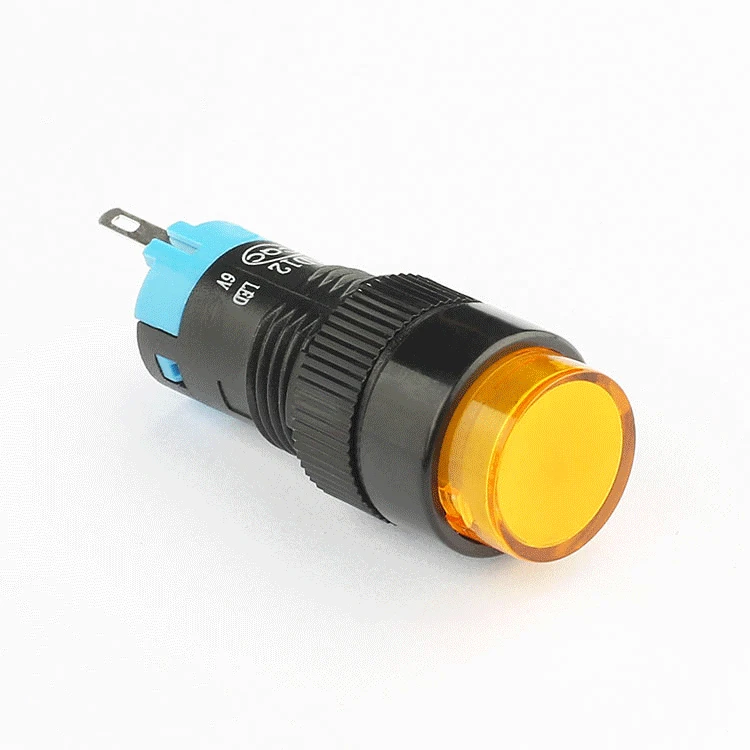

Why Choose Our 12mm Yellow LED Push Button Switch?
Our 12mm Yellow LED Push Button Switch stands out for its durability, bright LED indicator, and versatile 1NO1NC configuration. It's perfect for industrial control systems, automation equipment, security systems, and home appliances.
What Are the Key Features of This Switch?
Key features include a 12mm size, yellow color, 3A max current, 250V max voltage, IP40 protection level, and a long mechanical life of up to 200,000 cycles (momentary). It also comes with a bright LED indicator for easy visibility.
Why Buy from Us as a Factory Supplier?
As a factory supplier, we offer wholesale pricing directly from the source, ensuring cost savings for our customers. We also provide comprehensive after-sales service, including technical support and warranty coverage, to guarantee your satisfaction.
