Wholesale 12V/24V Illuminated Double Push Button Switch – Factory Supplier

>= 200  pieces
$0.93

0 reviews

Wholesale 12V/24V Illuminated Double Push Button Switch – Factory Supplier

Description

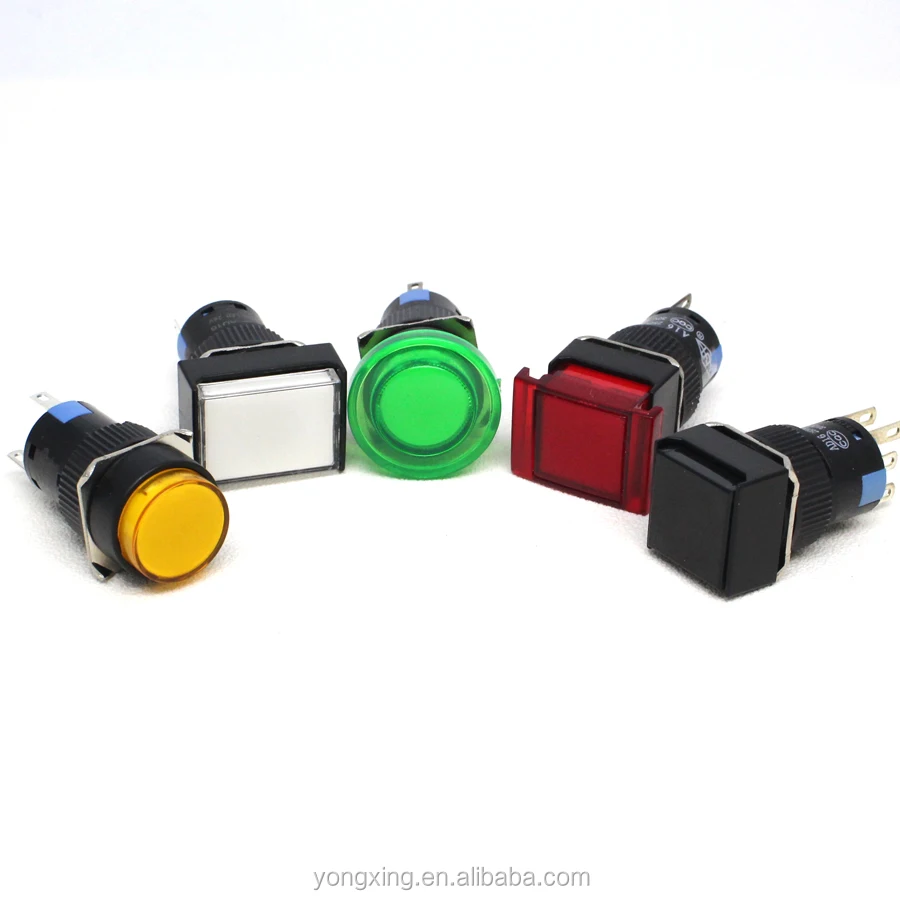

Our 12V/24V Illuminated Double Push Button Switch is a high-quality product designed for durability and performance. As a factory supplier, we offer wholesale pricing on this versatile switch, perfect for a wide range of applications.

Product Specifications:
– Max. Current: 3A
– Max. Voltage: 250V AC
– LED: Yes
– Switch Combination: 1NO1NC, 2NO2NC
– Color Options: Red, Green, Yellow, Blue, Orange, White
– Indicator Voltage: 2V, 6V, 12V, 24V, 110V, 220V
– Operating Temperature: -5℃~+75℃
– Contact Resistance: ≤50mΩ
– Mechanical Life: 50,000-200,000 cycles
– Insulation Resistance: ≥100mΩ
– Certification: CQC CE
– Protection Level: IP40

Product Advantages:
Our switch stands out with its illuminated design, making it easy to locate and operate in low-light conditions. The double push button feature provides flexibility in control, and the wide range of indicator voltages ensures compatibility with various systems. As a factory supplier, we guarantee the best quality at competitive prices.

After-Sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage. Our team is always ready to assist you with any questions or concerns you may have.

Why Choose Us?
With over 30 years of experience as a switch manufacturer in China, we have the expertise and resources to deliver high-quality products. Our factory is equipped with 20 workshops and 80 injection molding machines, ensuring efficient production and strict quality control. Choose us as your supplier for reliable, wholesale pricing on illuminated push button switches.

Electronic component high-quality imageElectronic device close-up shotCircuit board with detailed componentsElectronic part in focusElectronic module with connectorsElectronic chip with tiny componentsElectronic connector with wiresElectronic display showing textElectronic sensor with wiresElectronic circuit with componentsElectronic component for cross-border e-commerce


Illuminated Design for Easy Operation

Our 12V/24V Illuminated Double Push Button Switch features an illuminated design, making it easy to locate and operate in low-light conditions. This is especially useful in applications where visibility is limited, ensuring that the switch can be easily found and used when needed.

Double Push Button for Flexible Control

The double push button feature of our switch provides flexibility in control. Whether you need to switch between two different circuits or have a redundant system for added safety, our switch can meet your needs. This makes it ideal for a wide range of applications, from industrial equipment to home automation.

Factory Supplier for Wholesale Pricing

As a factory supplier, we offer wholesale pricing on our 12V/24V Illuminated Double Push Button Switch. This means that you can get high-quality products at competitive prices, making it a cost-effective solution for your needs. Choose us as your supplier for reliable, wholesale pricing on illuminated push button switches.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

SK(Shangkai)

Model Number

AD

LED

Yes

Whether the smart

NO

Switch Combination

1NO1NC, 2NO2NC

Color

Red,Green,Yellow,Blue,Orange,White

Light

Led, Illuminated, Neon

indicator voltage

2V, 6V, 12V, 24V, 110V, 220V

Operating temperature

-5℃~+75℃

name

led indicator light

Contact Resistance

≤50mΩ

Mechanical life

50000-200000

Insulation resistance

≥100mΩ

Certification

CQC CE

Protection Level

IP40
