Wholesale 15x21mm IP65 Waterproof DPST Rocker Switch Supplier

Category: Tags: , ,
>= 1,000  pieces
$0.64
0 reviews

Wholesale DPST Rocker Switch Supplier – IP65 Waterproof, High Quality, Customizable.

Clean All

Description

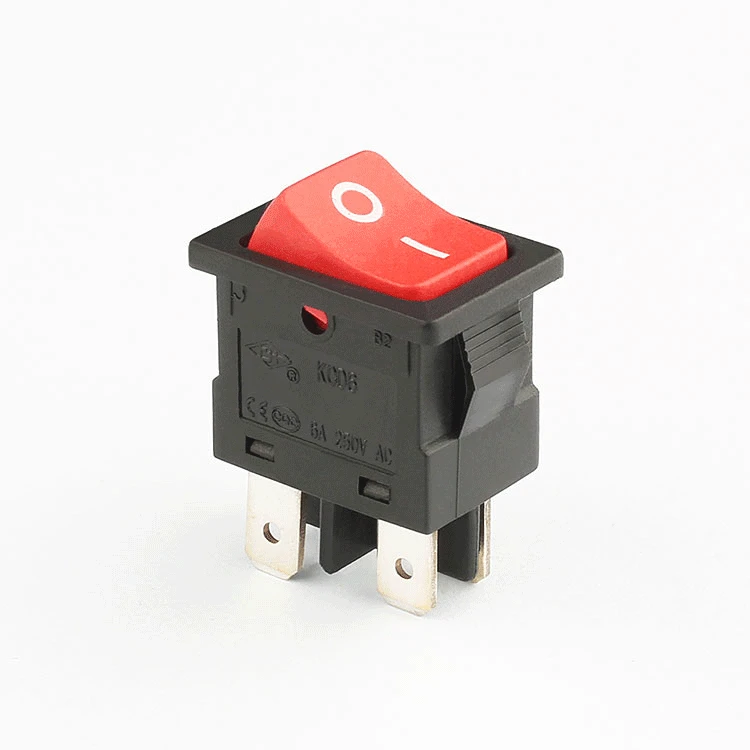

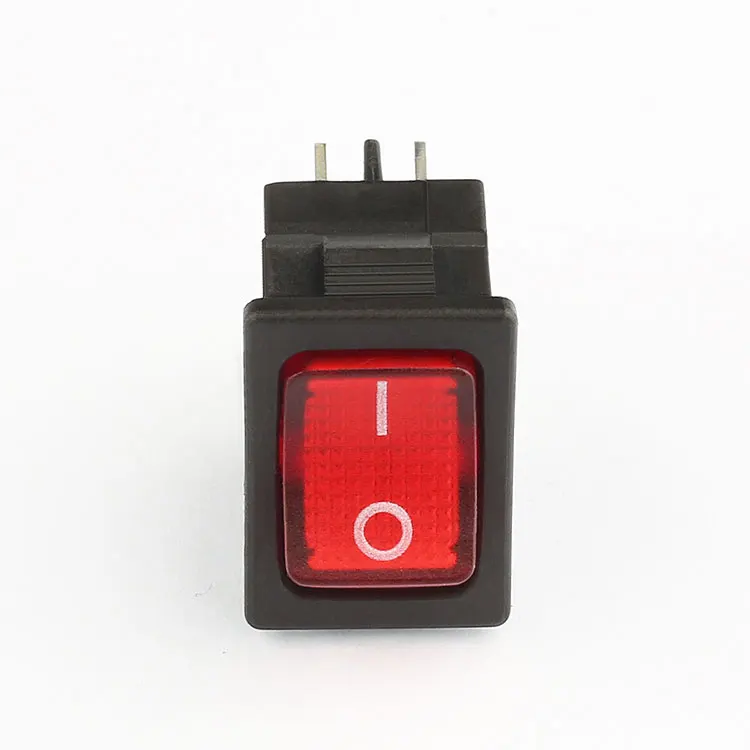

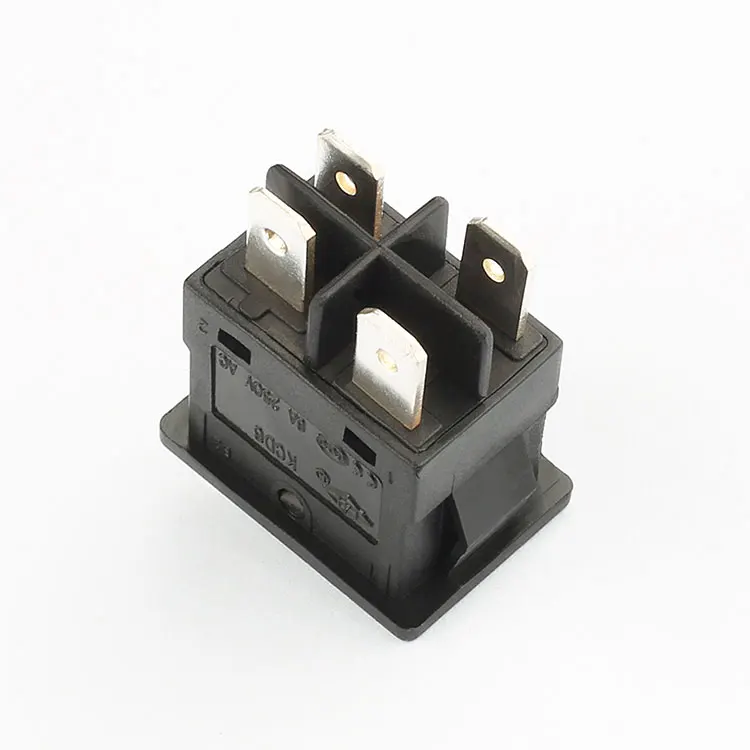

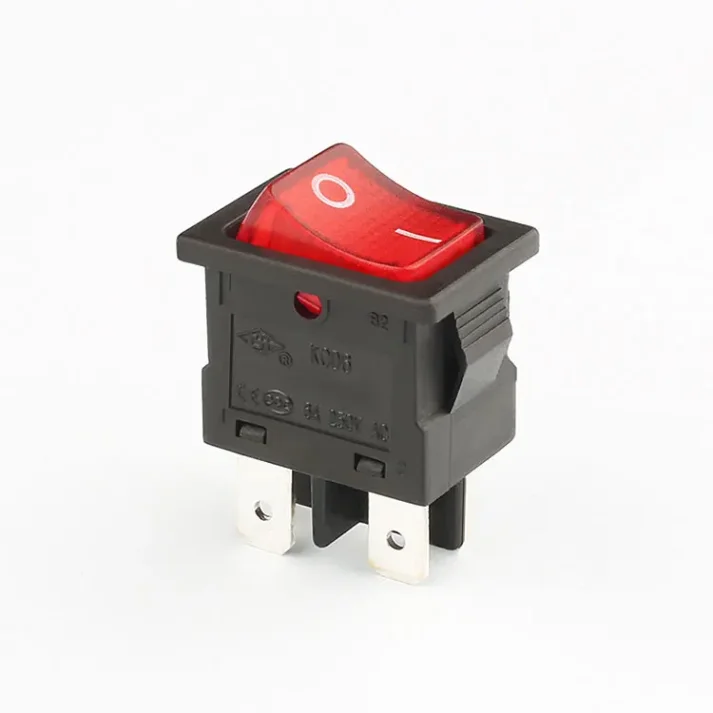

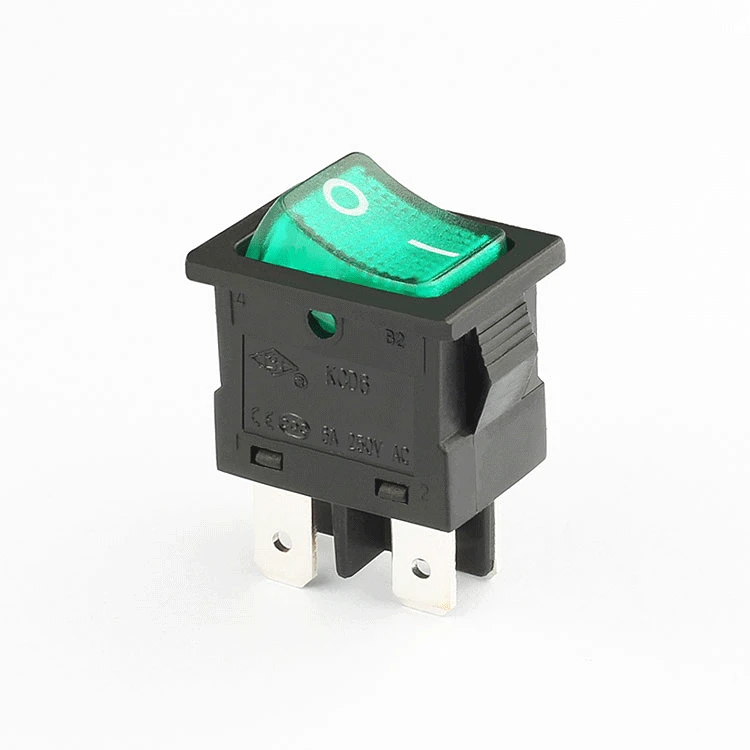

Our KCD6-21N-CB1B-B-R-01 DPST on-off 4-pin illuminated rocker switch, a premium product from our Shanghai factory, is designed to meet your diverse needs. With a compact 15x21mm size, it offers an IP65 waterproof rating, ensuring reliable performance in various environments. This switch boasts a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric resistance of 1500V AC for 1 minute, guaranteeing safety and durability. It supports a maximum current of 6A and voltage of 250VAC, with certifications including CQC and CE. Available in black/red, it’s not only functional but also aesthetically pleasing. As a direct factory supplier, we offer competitive wholesale prices and the flexibility to customize switches according to your requirements. Our advanced production facilities, including an independent plant and injection molding workshop, ensure high-quality standards. With over 60 senior engineers and 5S management implemented across all workshops, we guarantee top-notch products and excellent after-sales service. Choose us for reliable, high-quality rocker switches at unbeatable prices.
Contact Resistance ≤50m Ω
Insulation Resistance ≥1,000MΩ
Dielectric Resistance 1,500V AC , 1 min
Electronic life(cycles) 10,000 cycles momentary rocker switch on off on
Certification

CQC , CE , UL , ENEC , CB
Max. Rating Current & Voltage (CQC , CE)

16(4)A 250V AC T85
Max. Rating Current & Voltage (UL)

16R(4)A 250V AC , 16R(4)A 125V AC

1HP 125V AC
Max. Rating Current & Voltage (CB , ENEC)

16~4A 250V AC T125,10(4)A 250V AC T125

16(4)A 250V AC T85,16A 250V AC

Electronic component product image for cross-border e-commerceElectronic device product image for cross-border e-commerce


Why Choose Our DPST Rocker Switch?

Our DPST rocker switch stands out with its compact 15x21mm size, IP65 waterproof rating, and high contact resistance, ensuring reliable performance in various applications. As a factory supplier, we offer competitive wholesale prices and customization options.

What Are the Key Features?

Key features include a 4-pin design, illuminated option, and support for 6A 250VAC. It also boasts a long mechanical life of 100,000 cycles, making it ideal for heavy-duty use.

How Can It Benefit Your Business?

By choosing our DPST rocker switch, you benefit from high-quality products at unbeatable prices. Our factory direct supply ensures quick delivery and excellent after-sales service, helping you meet customer demands efficiently.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

6A
Max. Voltage

250VAC
Place of Origin

Shanghai, China
Brand Name

SK
Model Number

KCD6-21N-CB1B-B-R-01
Whether the smart

NO
Mechanical Life

100000
IP level

IP65
Color

Black/red
Certificate

CQC,CE
Function

DPST
Contact Resistance:

≤50mΩ
Insulation resistance:

≥100MΩ
Dielectric Resistance:

1500V AC 1min
Operating temperature:

T55
Electronic life (cycles) :

10000
Max.Rating Current&Voltage:

6A 250V AC
