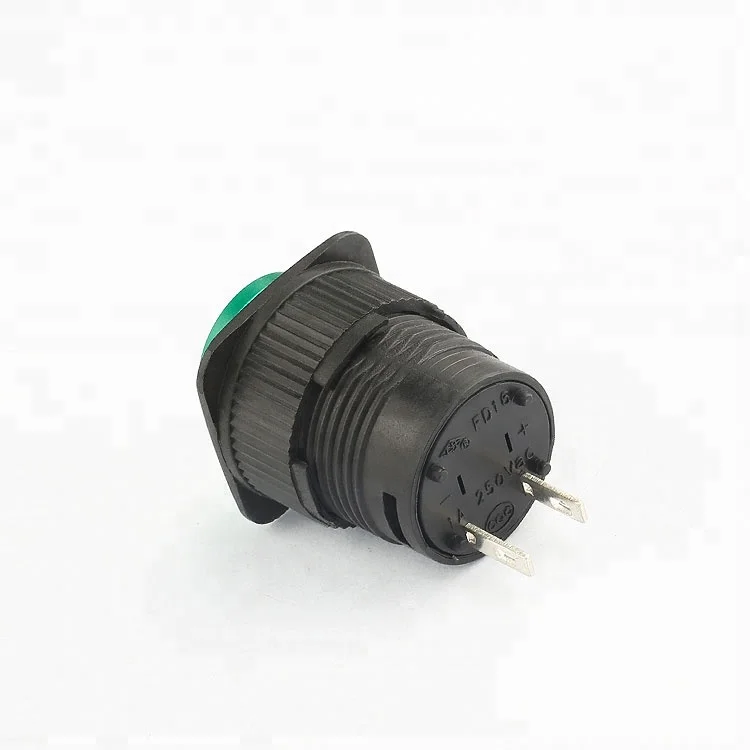

Description
Product Features:
• Voltage Options: 2V, 6V, 12V, 24V, 110V, 220V LED compatibility.

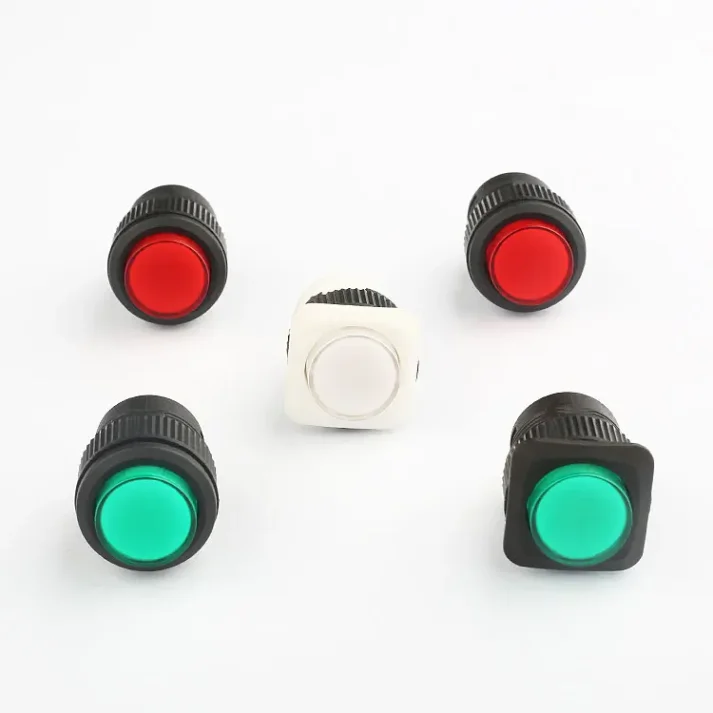

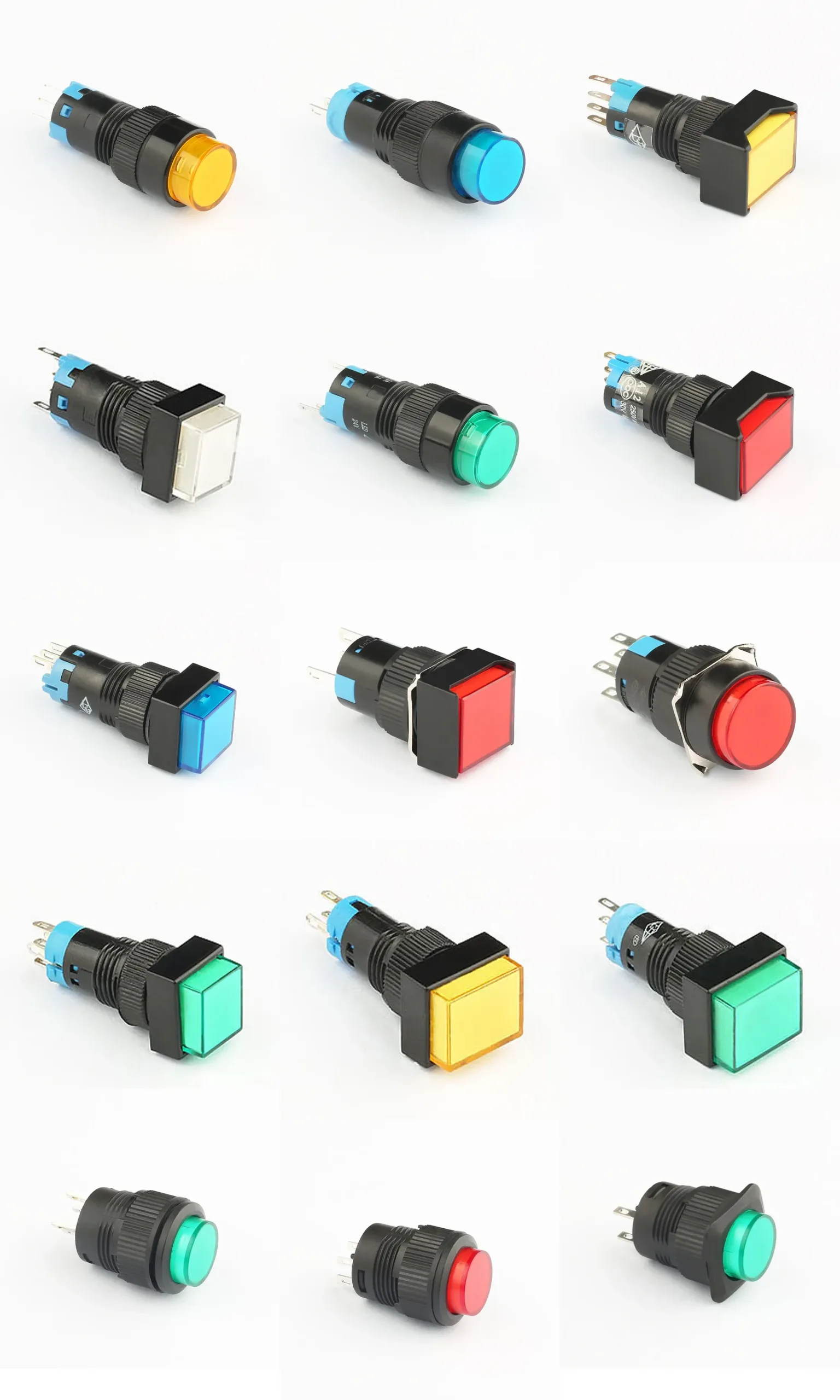

• Color Variety: Red, Green, Blue, Yellow, White cap colors to match your design.
• Robust Specifications: IP40 protection level, 1A max current, 250V AC max voltage.
• Durable Construction: ≤50mΩ contact resistance, ≥100MΩ insulation resistance.
• Long Lifespan: 5000 electrical cycles and 10000 mechanical cycles.
• Easy Installation: 16mm panel cut-out size, suitable for 0.5-6.0mm panel thickness.
Our push button switch stands out with its customizable LED voltage options and wide color range, making it ideal for industrial controls, automotive applications, and more. As a trusted factory supplier, we ensure competitive pricing and reliable delivery. Choose us for your wholesale needs and experience the difference in quality and service.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai)
|
|
Model Number
|
FD16-111L24D-R
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
5000
|
|
Mechanical Life
|
10000
|
|
Panel cut-out size
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
LED Voltage
|
24V DC
|
|
Cap color
|
Red
|
Why Choose Our 16mm Push Button Switch?
Our 16mm Push Button Switch offers unmatched versatility with customizable LED voltage options and a wide range of cap colors. Whether you need a self-locking or momentary switch, our product meets your requirements with robust specifications and long lifespan.
How Does Our Switch Compare to Others?
Unlike competitors, our switch is factory-direct, ensuring competitive pricing without compromising on quality. With IP40 protection, ≤50mΩ contact resistance, and ≥100MΩ insulation resistance, it's built to last in demanding environments.
What Applications Are Suitable for This Switch?
Ideal for industrial controls, automotive applications, home appliances, and machinery equipment, our switch provides reliable performance and easy installation. Choose from various LED voltages and cap colors to match your specific needs.
