Description
Key Features:
– **Material**: Made from high-quality plastic, ensuring durability and longevity.
– **Specifications**: 3A Max. Current, 250V Max. Voltage, IP44 rating for dust and water resistance.
– **Mechanical Life**: Boasts an impressive 50,000 cycles, demonstrating its robustness.
– **Electrical Performance**: Contact resistance ≤50MΩ, insulation resistance ≥100MΩ, and dielectric strength of 1500V.
– **Rotation Range**: Adjustable to 90°, 180°, 270°, or 360°, providing flexibility in use.
– **Operating Temperature**: Works efficiently in temperatures ranging from -5℃ to +75℃.
As a factory supplier, we offer wholesale prices and ensure high-quality standards. Our switches are competitively priced without compromising on quality, making them an excellent choice for bulk purchases.
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
25000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
IP code
|
IP44
|

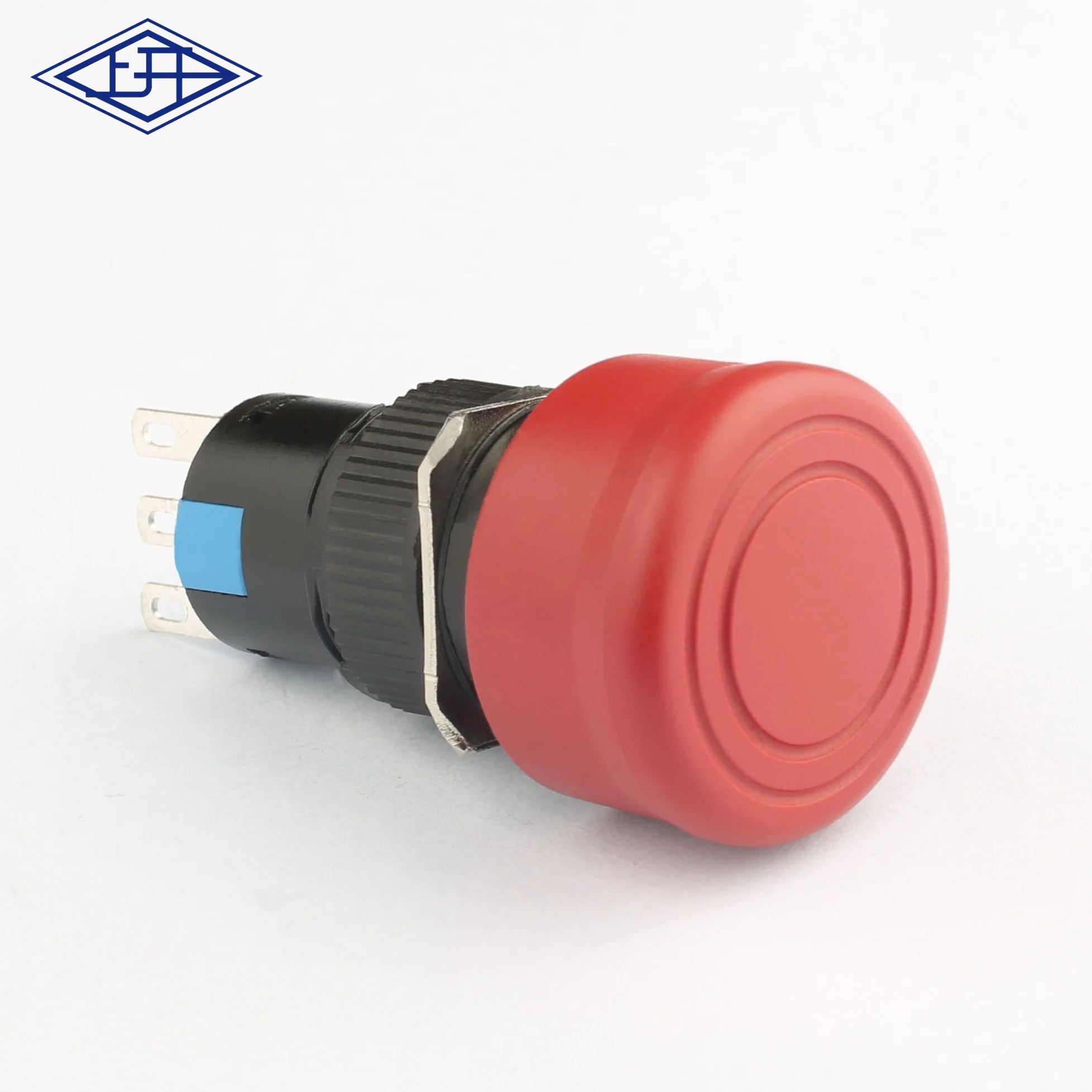

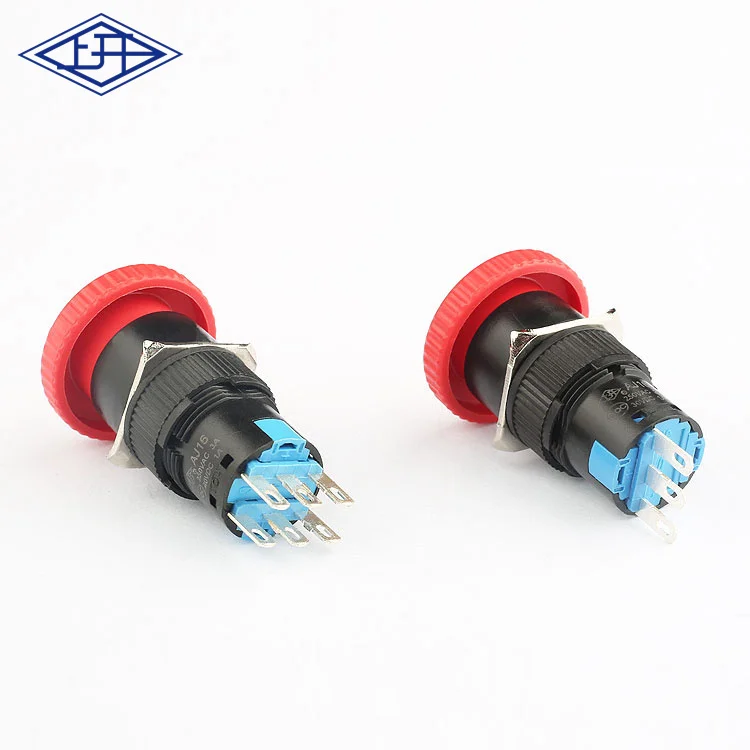

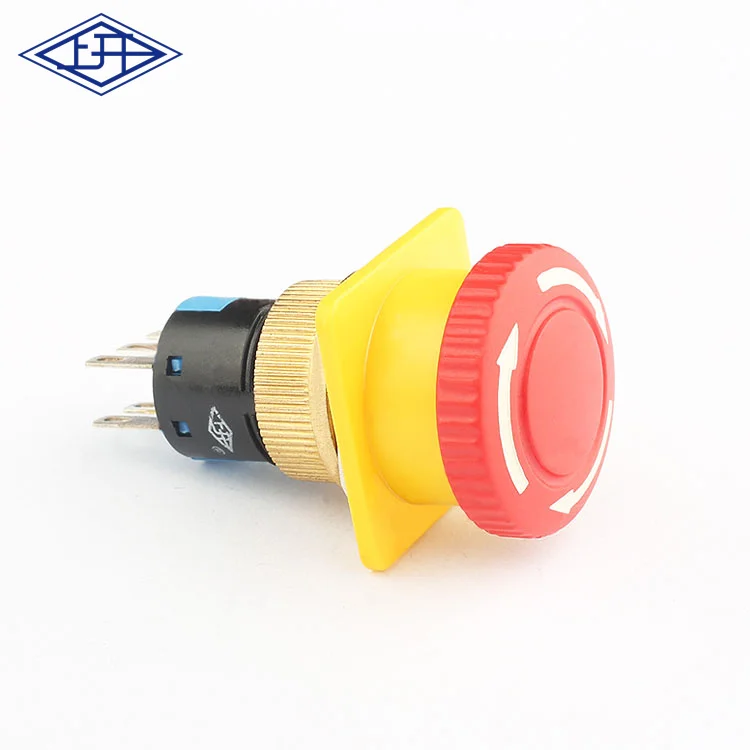

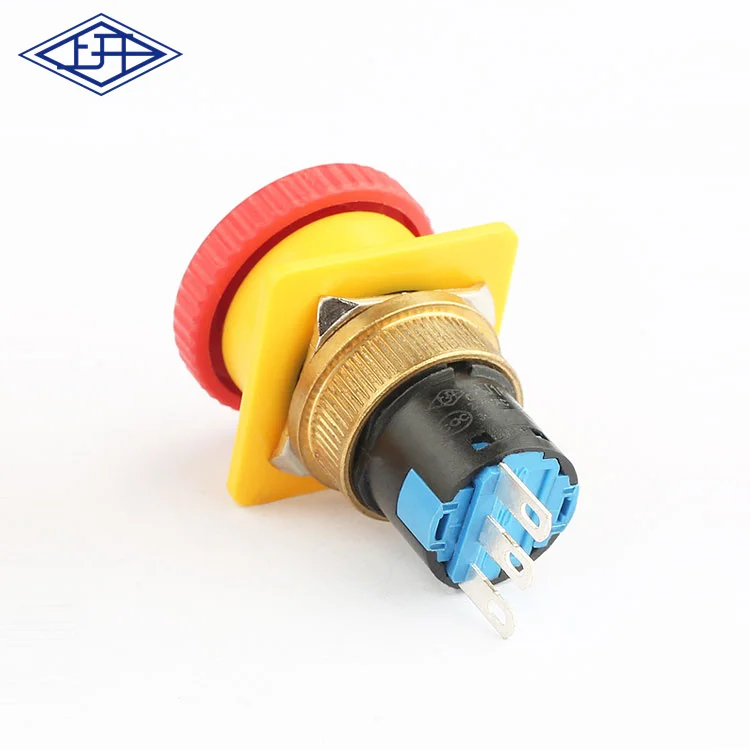

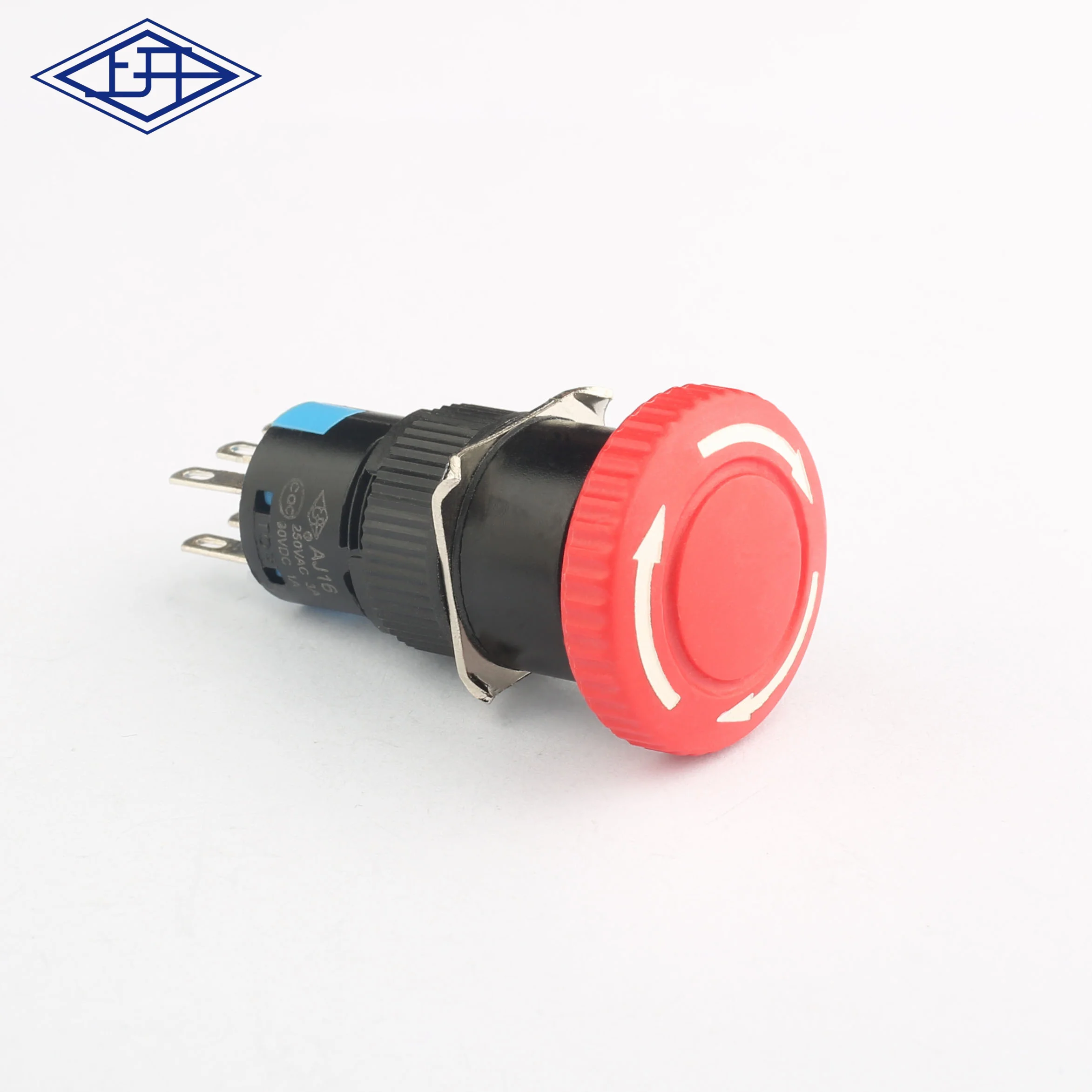

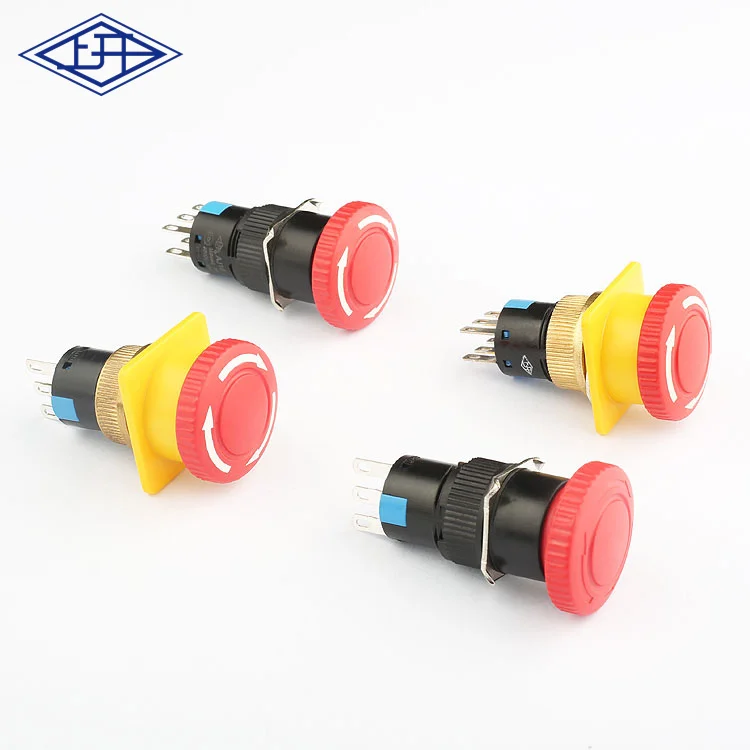

Why Choose Our 16mm Self-locking Emergency Stop Rotary Switch?
Our switch stands out with its self-locking mechanism, ensuring safety and reliability in emergency situations. Made from high-quality plastic, it offers durability and longevity, making it ideal for a wide range of applications.
What Are the Key Specifications?
With a 3A Max. Current, 250V Max. Voltage, and an IP44 rating, our switch is designed to withstand harsh environments. It also boasts an impressive mechanical life of 50,000 cycles, ensuring long-term reliability.
How Does It Compare to Other Products?
Unlike many competitors, our switch offers adjustable rotation ranges and excellent electrical performance at a competitive price. As a factory supplier, we ensure high-quality standards and offer wholesale prices, making it an unbeatable choice for bulk purchases.
