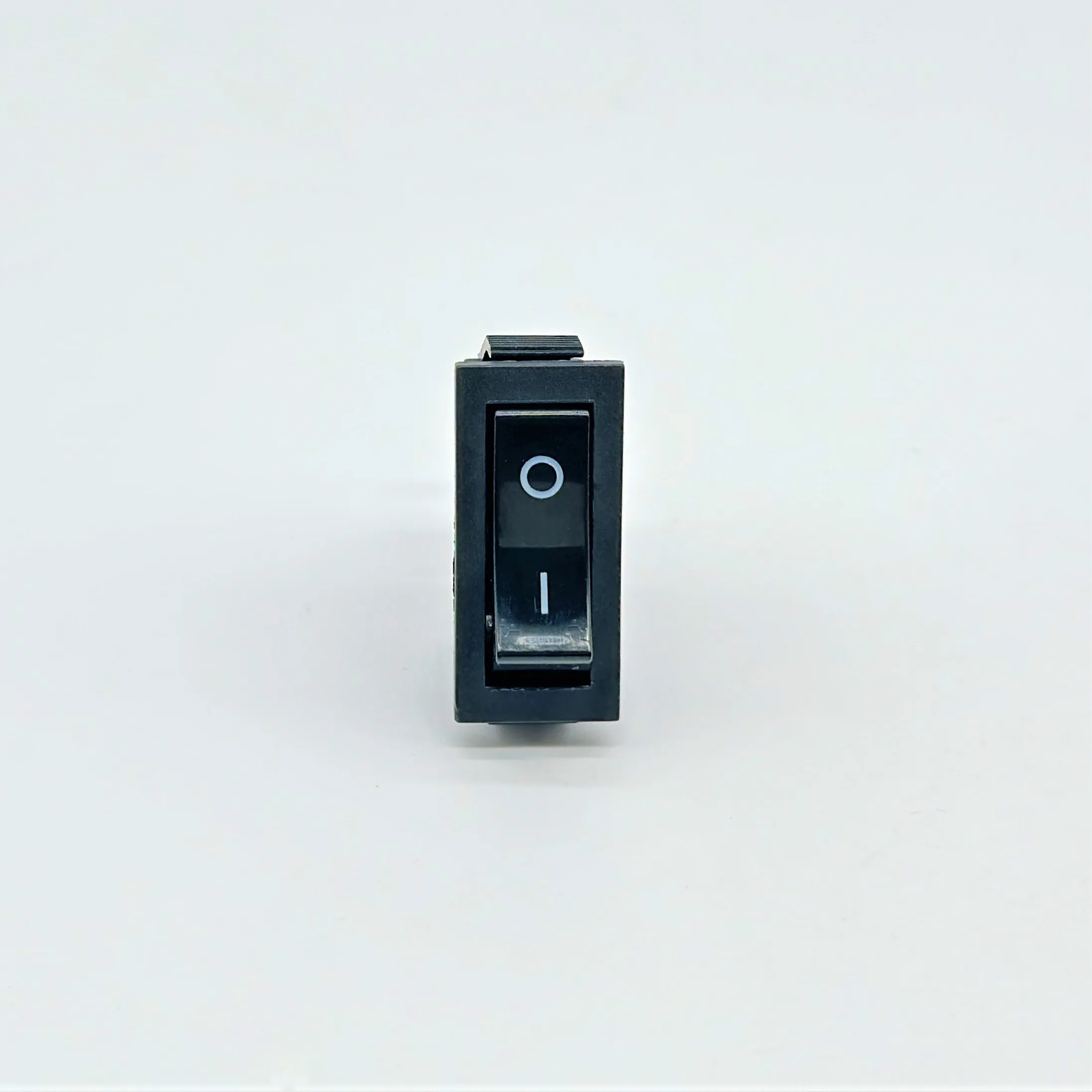

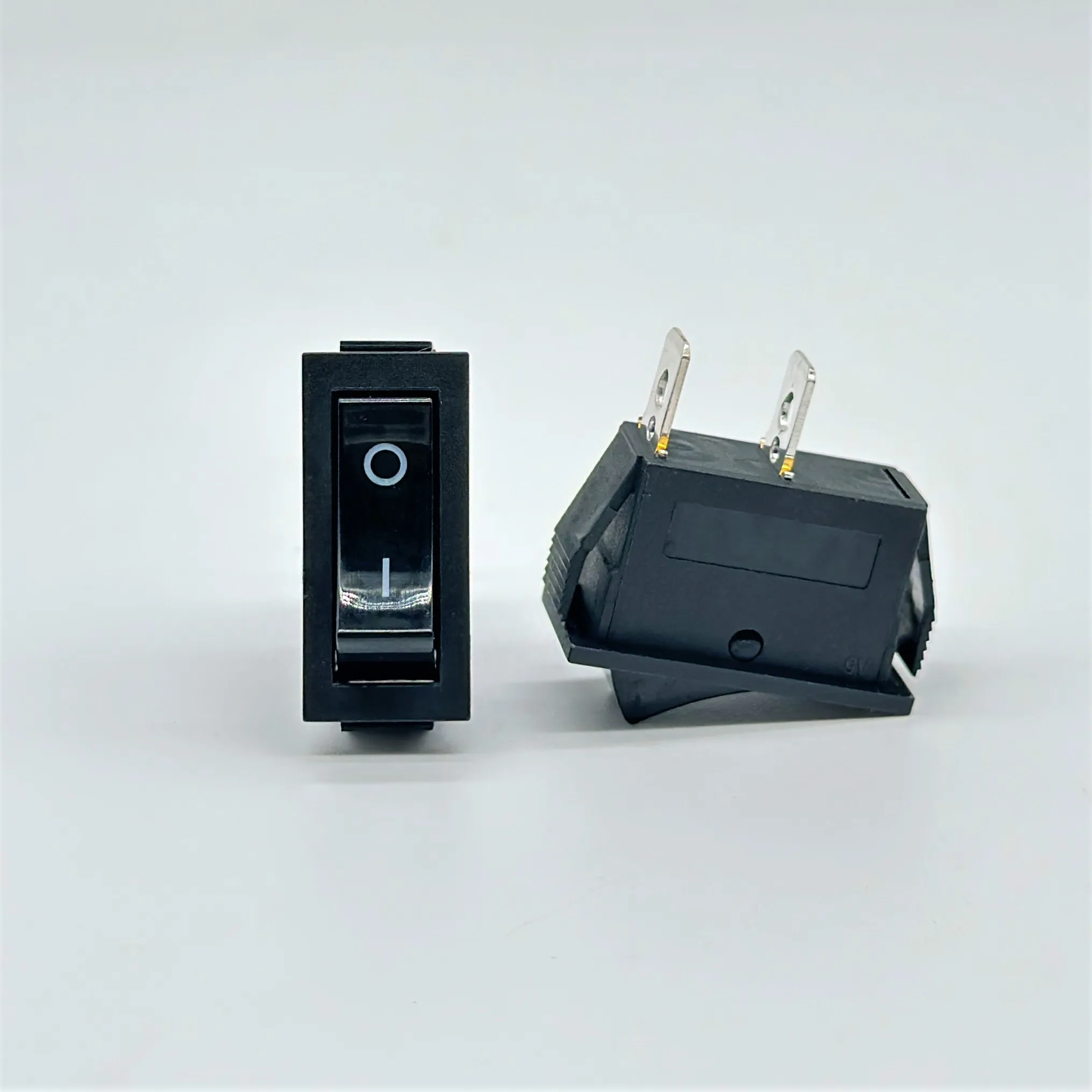

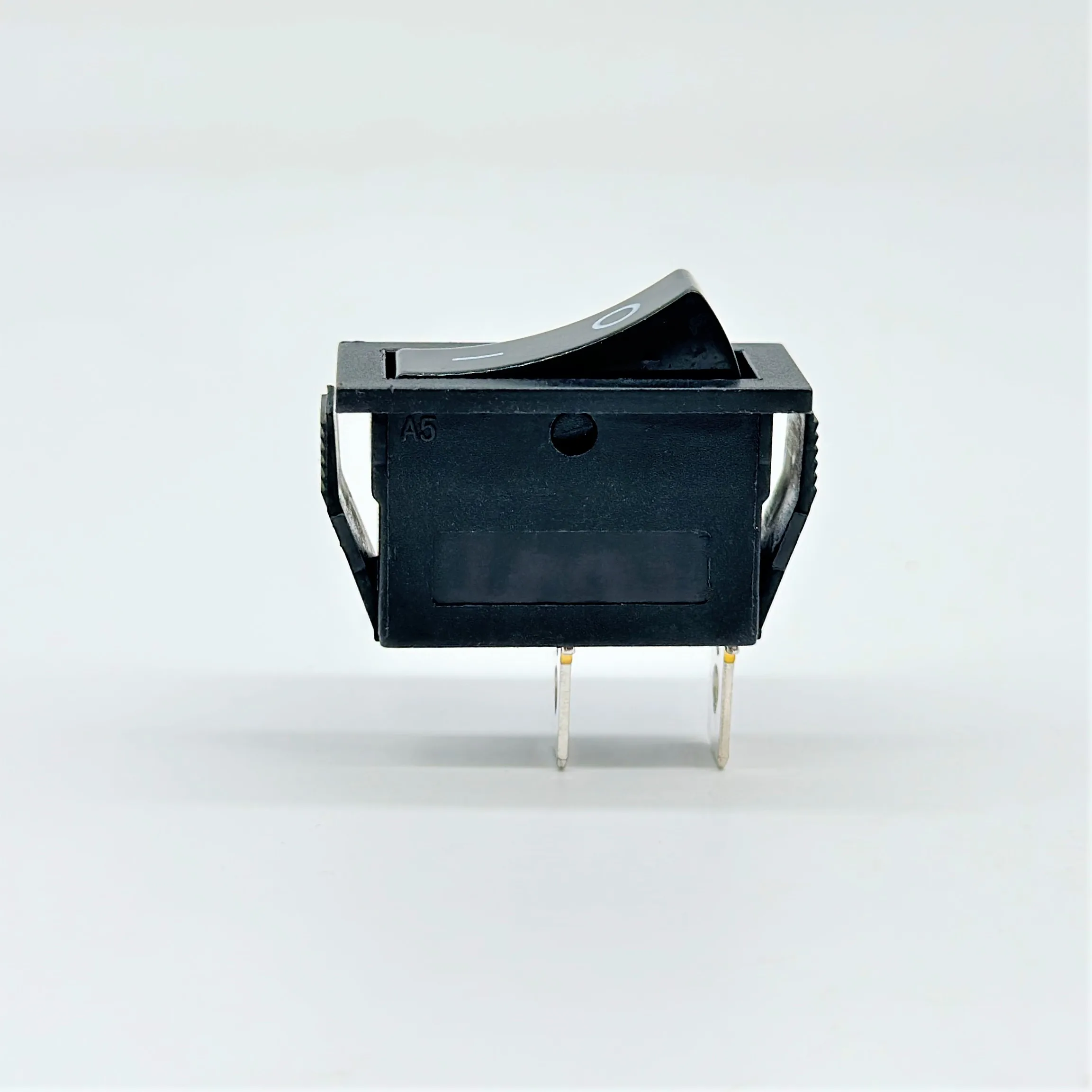

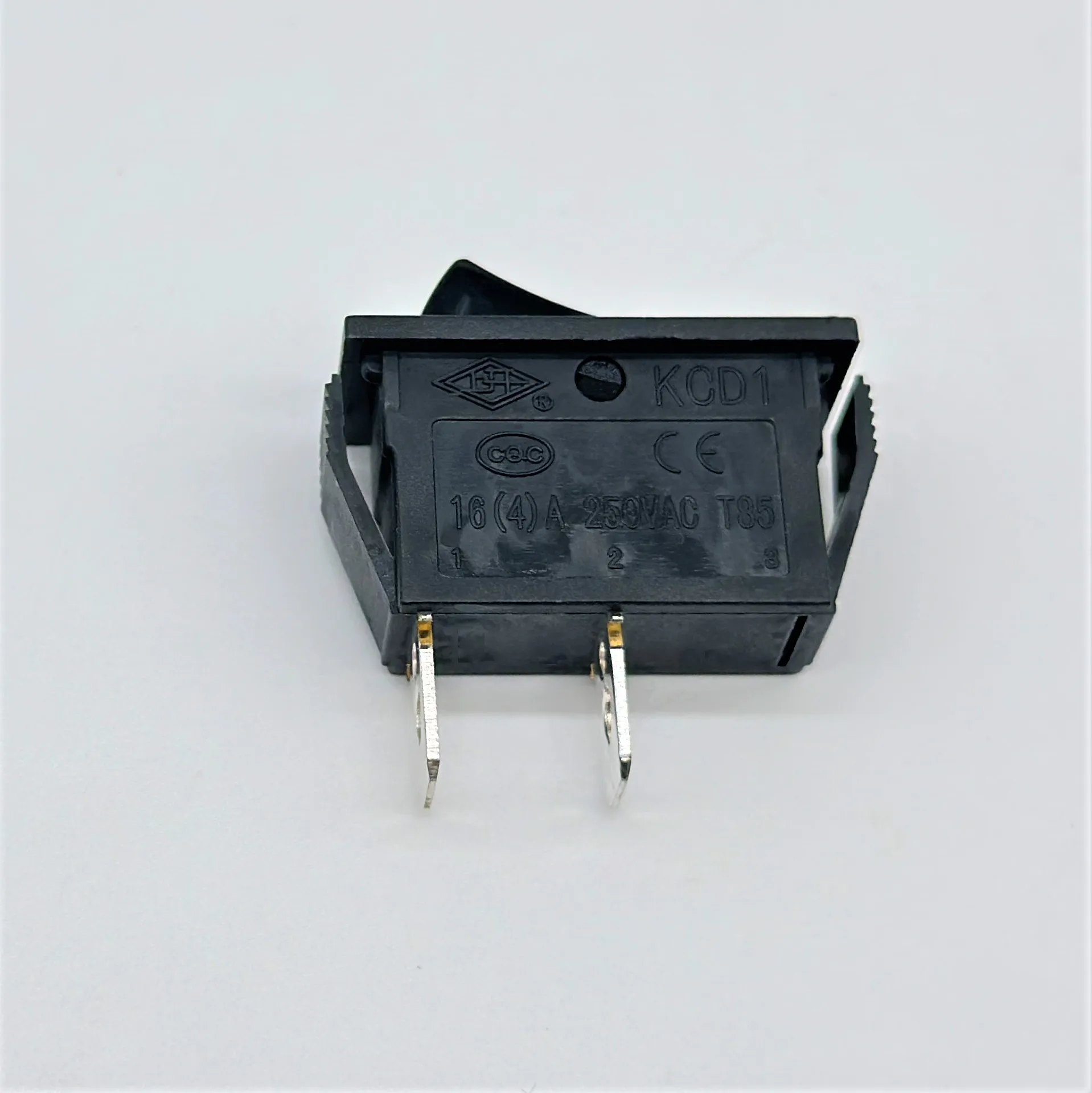

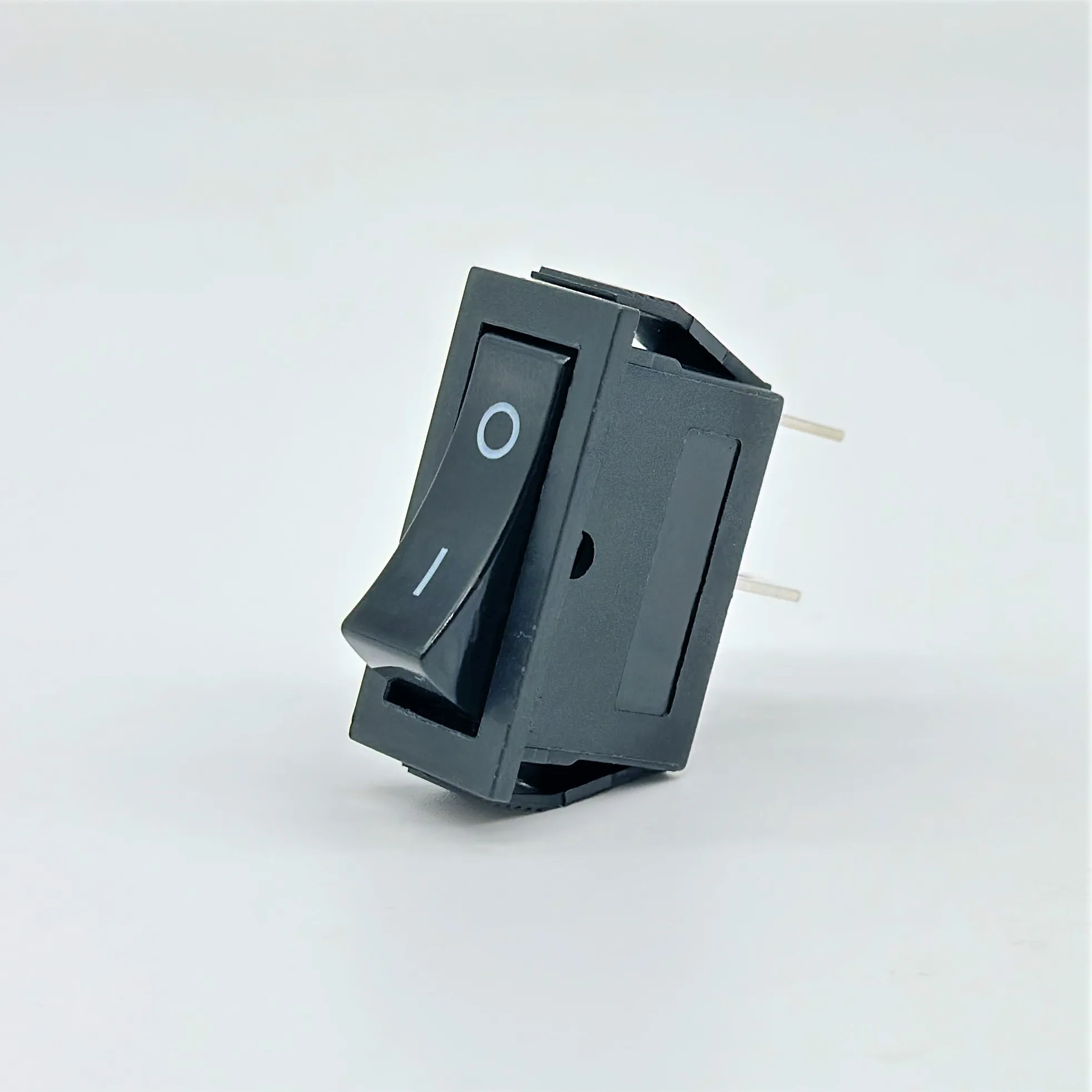

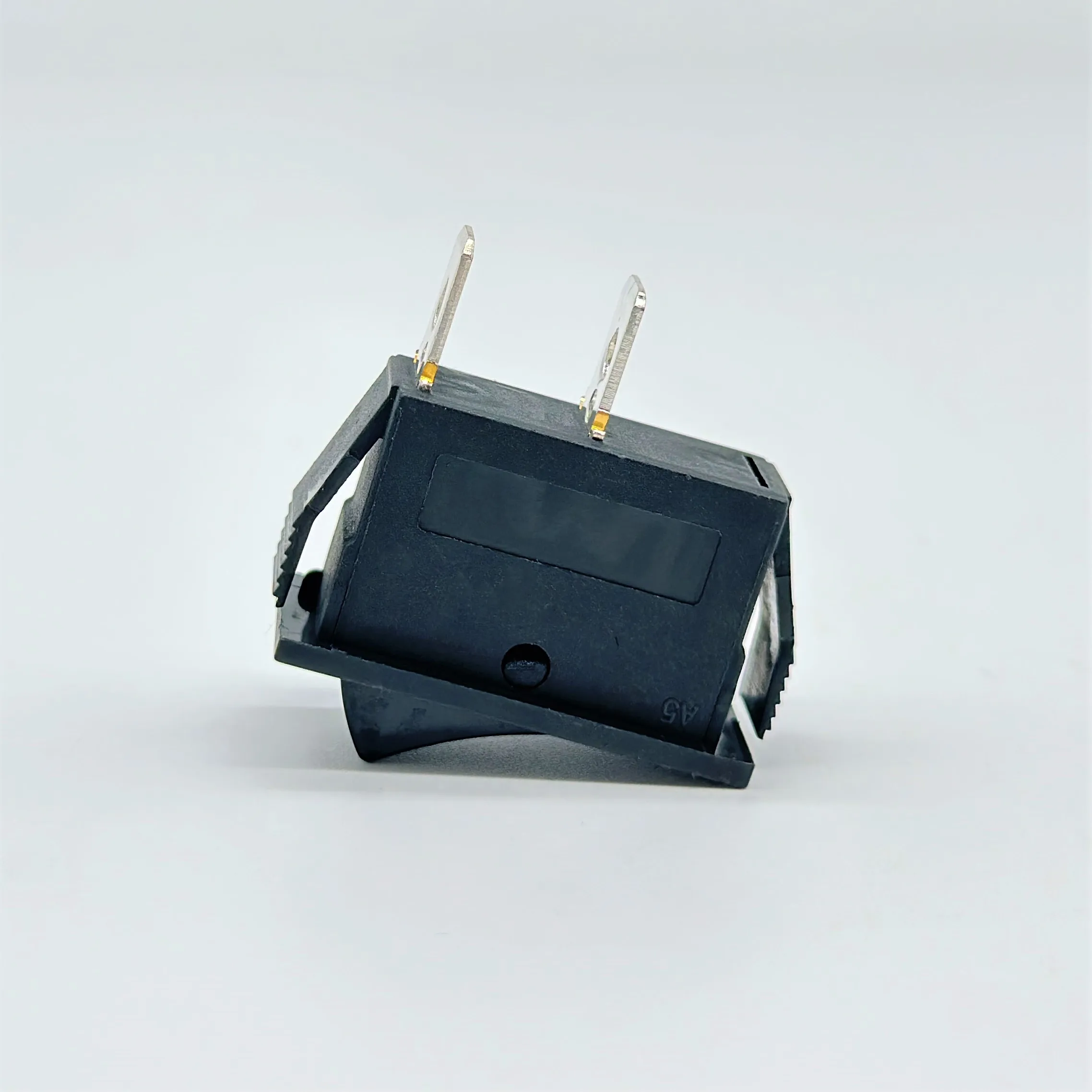

Yongxing KCD1 16A 250V 2-Pin SPST Rocker Switch – Wholesale Supplier
Looking for a reliable and durable rocker switch for your motorcycle or other applications? Look no further! Our Yongxing KCD1 16A 250V 2-Pin SPST rocker switch is the perfect choice. As a factory supplier, we offer wholesale prices and ensure high-quality products.
Product Specifications:
- Max. Current: 16A
- Max. Voltage: 250VAC
- Place of Origin: Shanghai, China
- Brand Name: Shanghai Yongxing
- Model Number: KCD1-11-FA1A-B-B-01
- Mechanical Life: 100,000 cycles
- IP Level: IP41

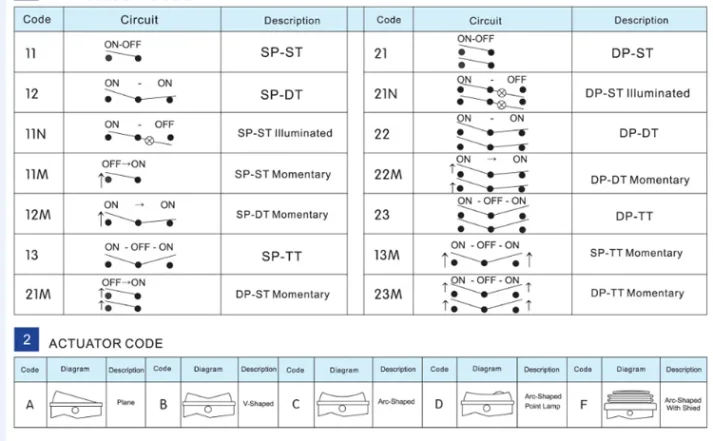

- Function: SPST
- Pins: 2
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000MΩ
- Dielectric Strength: 1500V AC, 1min
- Electronic Life: 10,000 cycles
- Operating Temperature: T55, T85, T125
Product Advantages:
- High-quality materials ensure durability and longevity.
- Waterproof design suitable for various environments.
- Customizable to meet your specific requirements (large quantities required).
- Factory-direct prices, saving you costs.
- 60 senior engineers, advanced injection molding workshop, and independent plant guarantee product quality.
After-sales Service:
We offer comprehensive after-sales service, including technical support and warranty coverage. Our dedicated team is always ready to assist you with any issues or concerns.
| rated current/votage | 16a/250v ac |
| electronic life | 10000cycles |
| dielectric strength | 1500v |
| certifications | UL ENEC CB CE CQC |
| contact resistance | ≥1000MΩ |
Why Choose Our Rocker Switch?
Our rocker switch stands out with its high-quality materials, ensuring durability and longevity. The waterproof design makes it suitable for various environments, especially for motorcycle accessories. As a factory supplier, we offer customization options to meet your specific needs, and our wholesale prices save you costs.
Key Features
With a rated current of 16A and a rated voltage of 250VAC, this switch is powerful and reliable. The IP41 rating provides basic protection against dust and water, and the long mechanical life of 100,000 cycles ensures consistent performance over time.
After-sales Support
We pride ourselves on providing excellent after-sales service. Our technical support team is available to assist you with any questions or issues, and our warranty coverage gives you peace of mind.
