Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11N-FB1A-B-R-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|

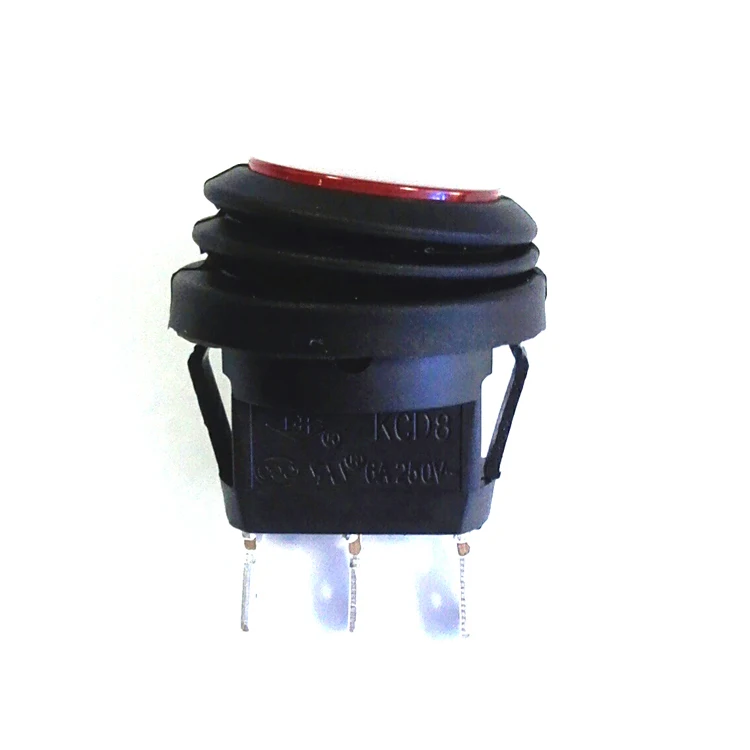

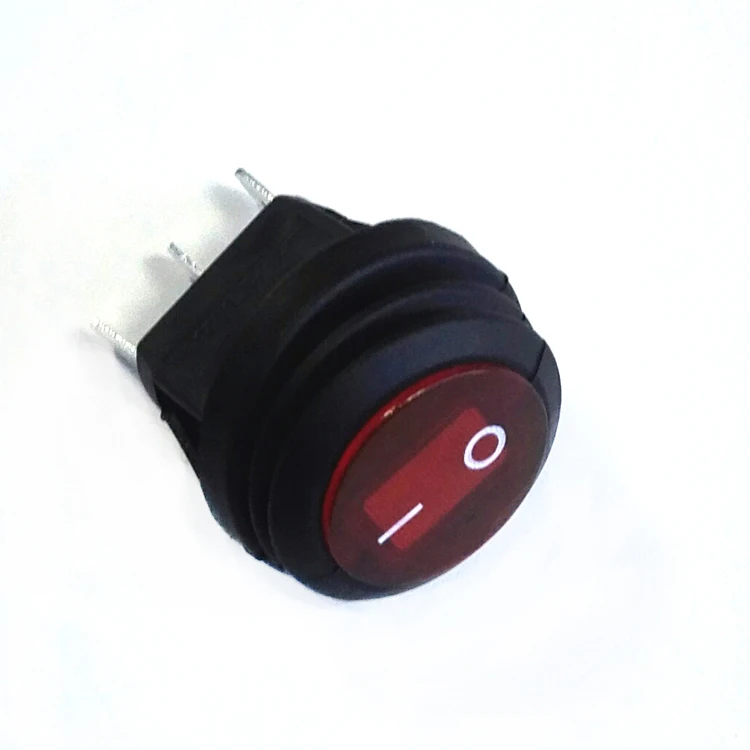

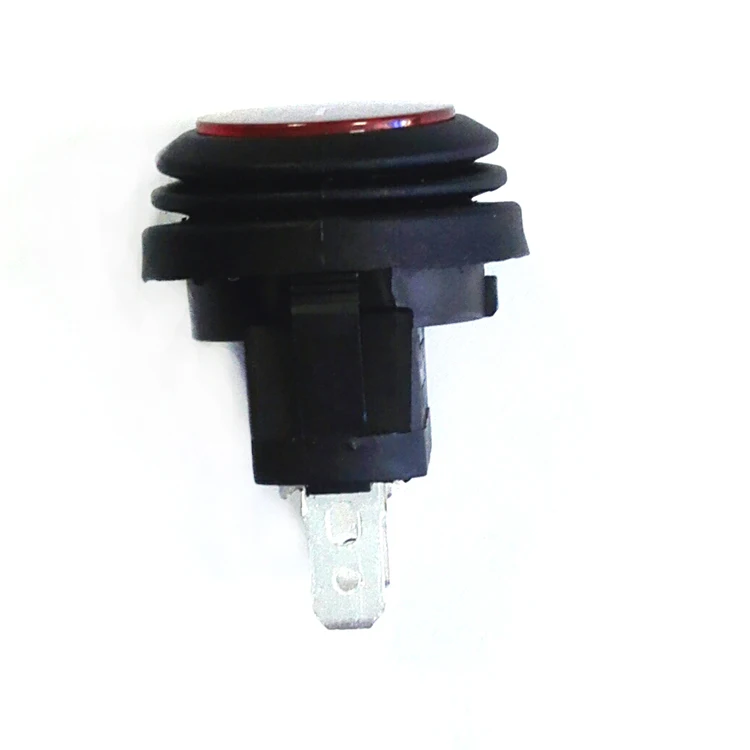

Why Choose Our 20mm IP65 LED Rocker Switch?
Our 20mm IP65 LED rocker switch is designed for durability and versatility, making it ideal for industrial and electric equipment. With a 6A current rating and 250V AC voltage, it handles demanding applications with ease. The waterproof (IP65) and LED-illuminated features enhance functionality and visibility, even in low-light conditions.
What Makes Our Switch Stand Out?
Our switch offers a 50,000-cycle mechanical life, ensuring long-term reliability. The ≤50mΩ contact resistance and ≥1000MΩ insulation resistance guarantee optimal performance. With options for 6V, 12V, 24V, 110V, or 220V lamp voltages, it adapts to various electrical systems. Available in multiple colors, it meets aesthetic and functional needs.
Why Buy from Our Factory?
As a factory supplier, we offer wholesale pricing and direct access to high-quality products. Our switches are manufactured to strict standards, ensuring consistency and performance. With competitive pricing and reliable service, we're your trusted partner for industrial switch solutions.
