Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-FB1B-B-B-01
|
|
Current Rating
|
6A/10A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 (21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Switch Function
|
On Off Waterproof IP65
|
Why Choose Our Waterproof Rocker Switch?

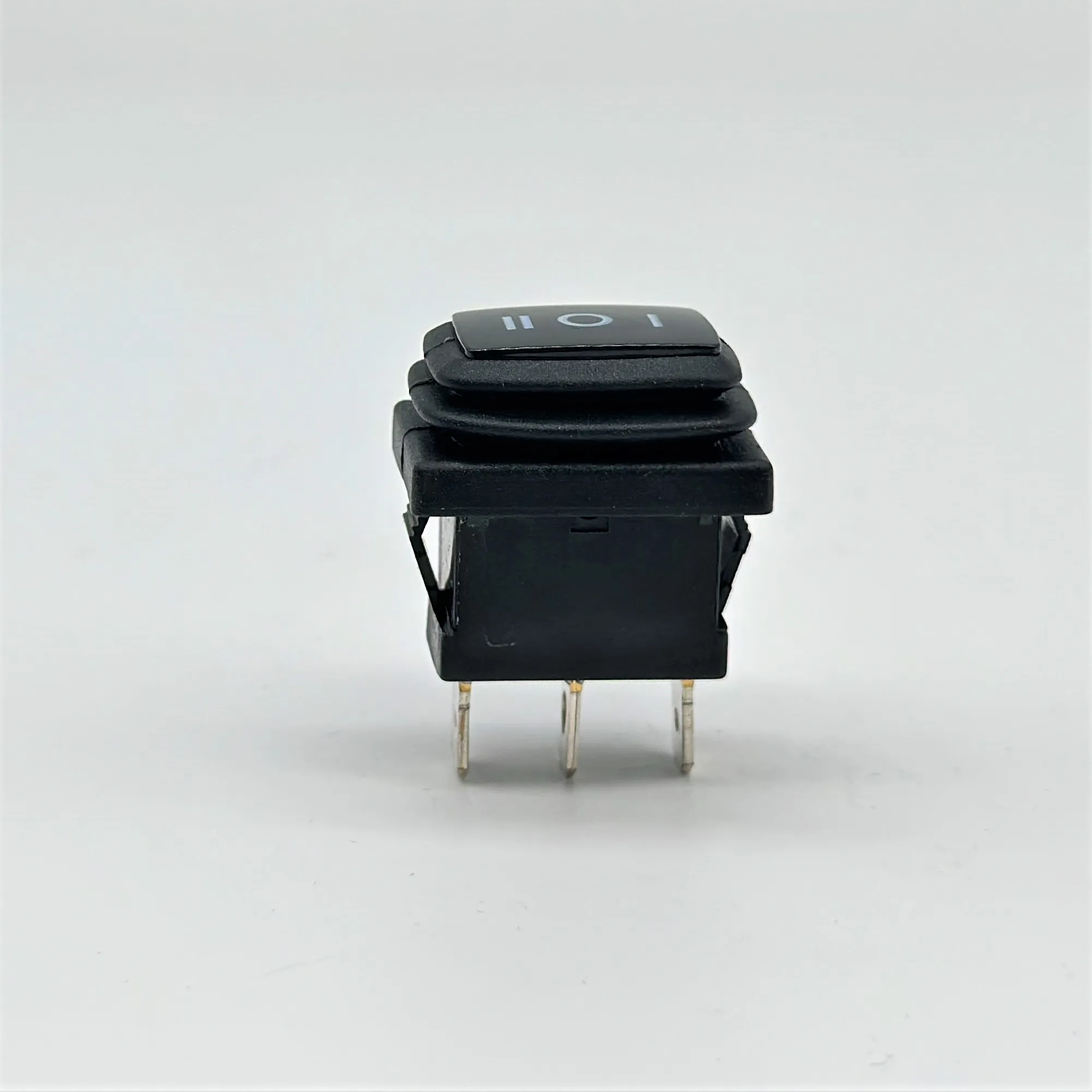

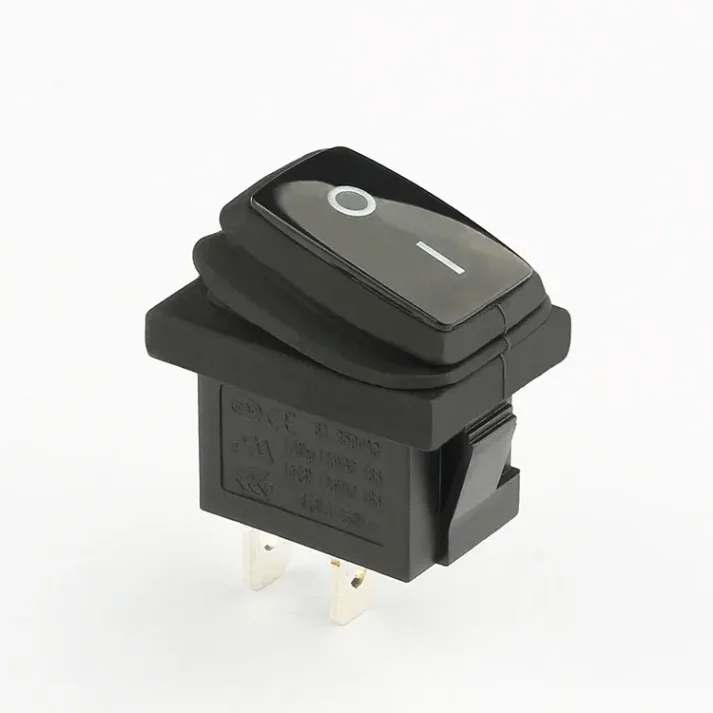

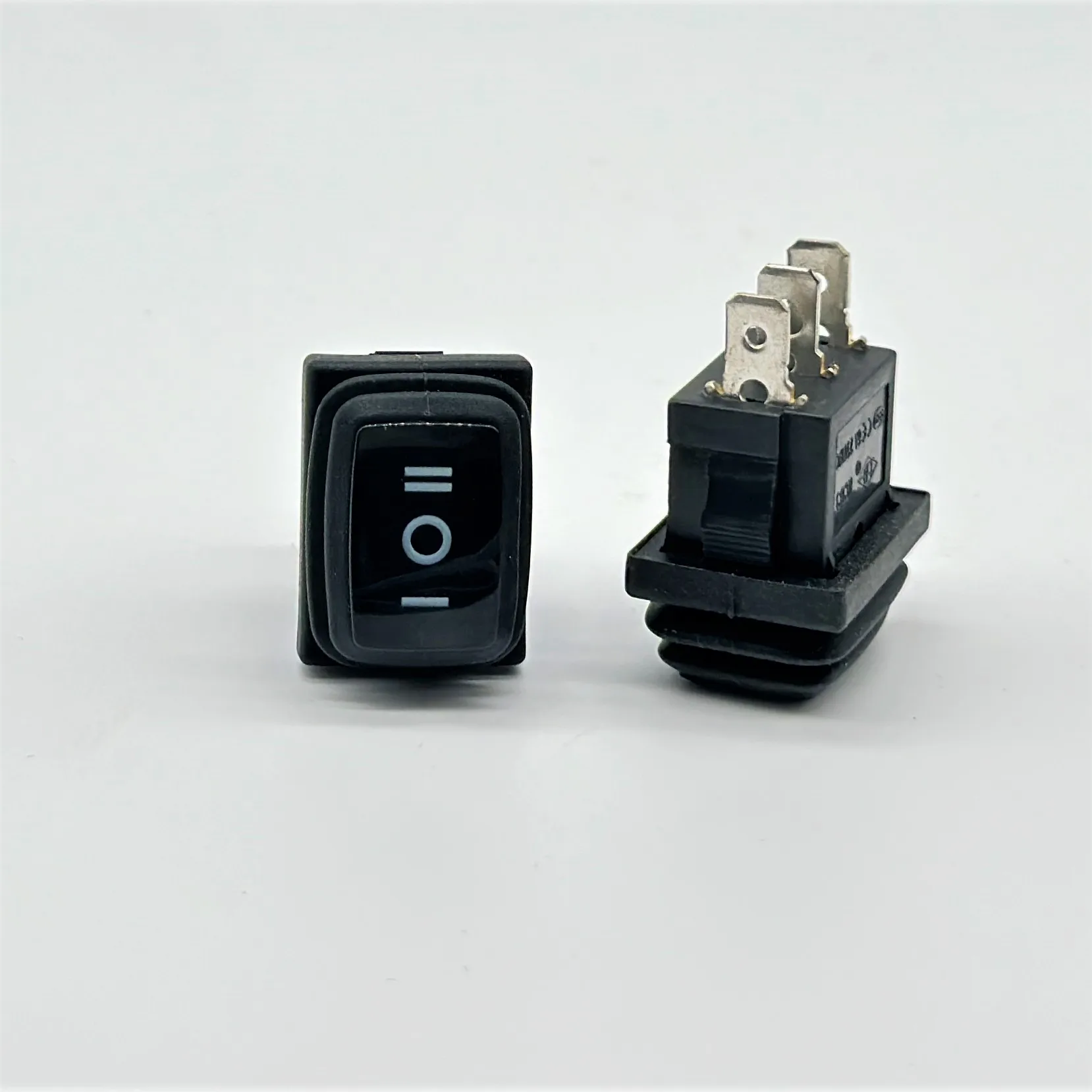

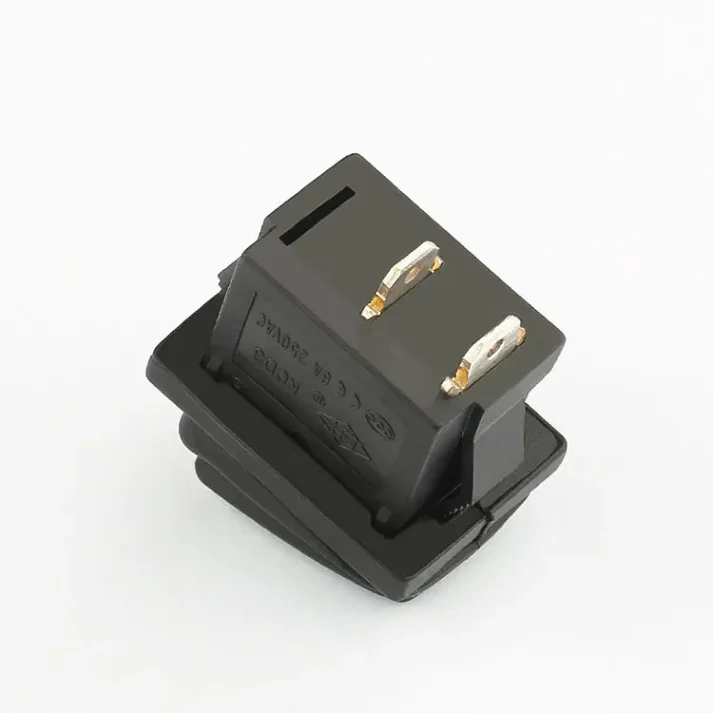

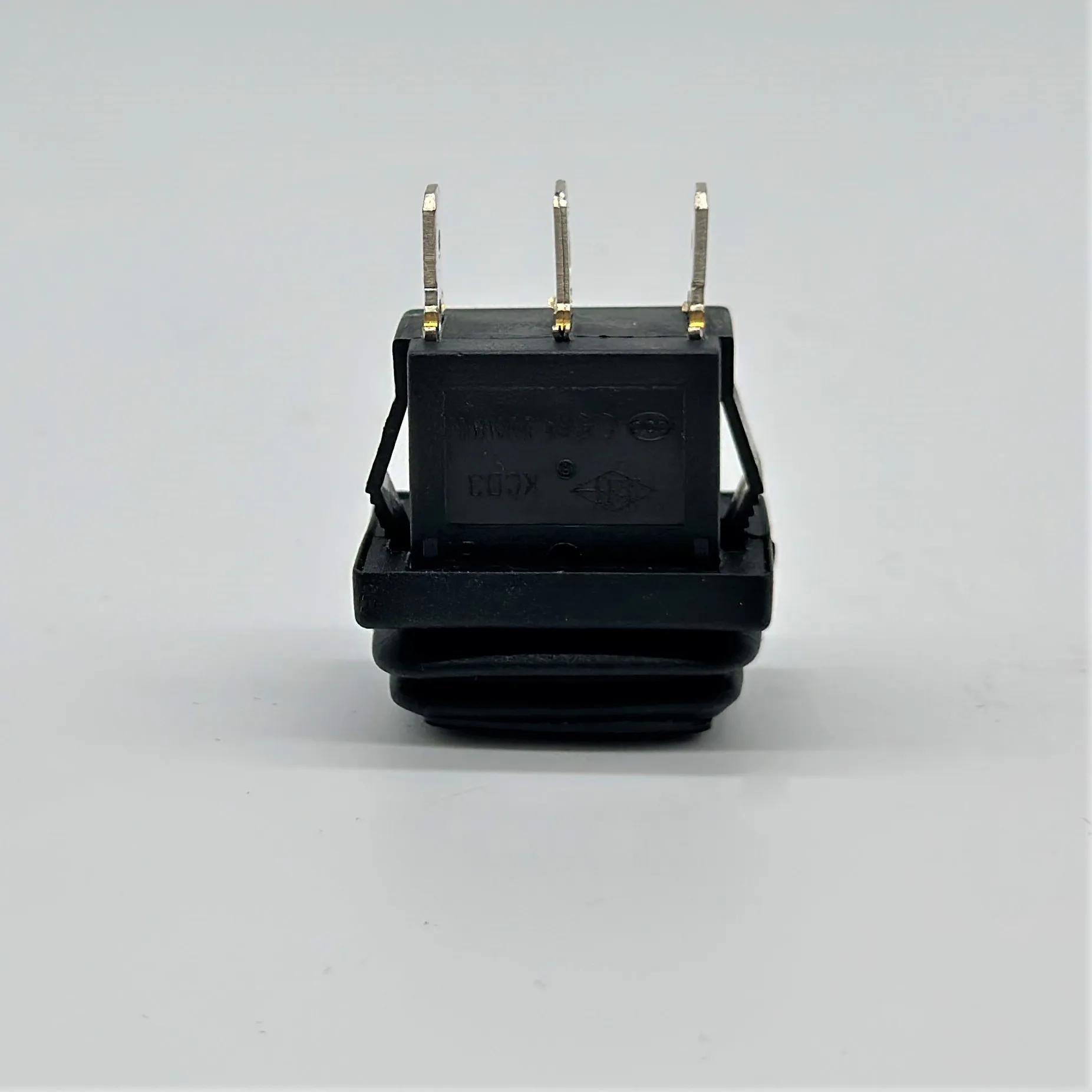

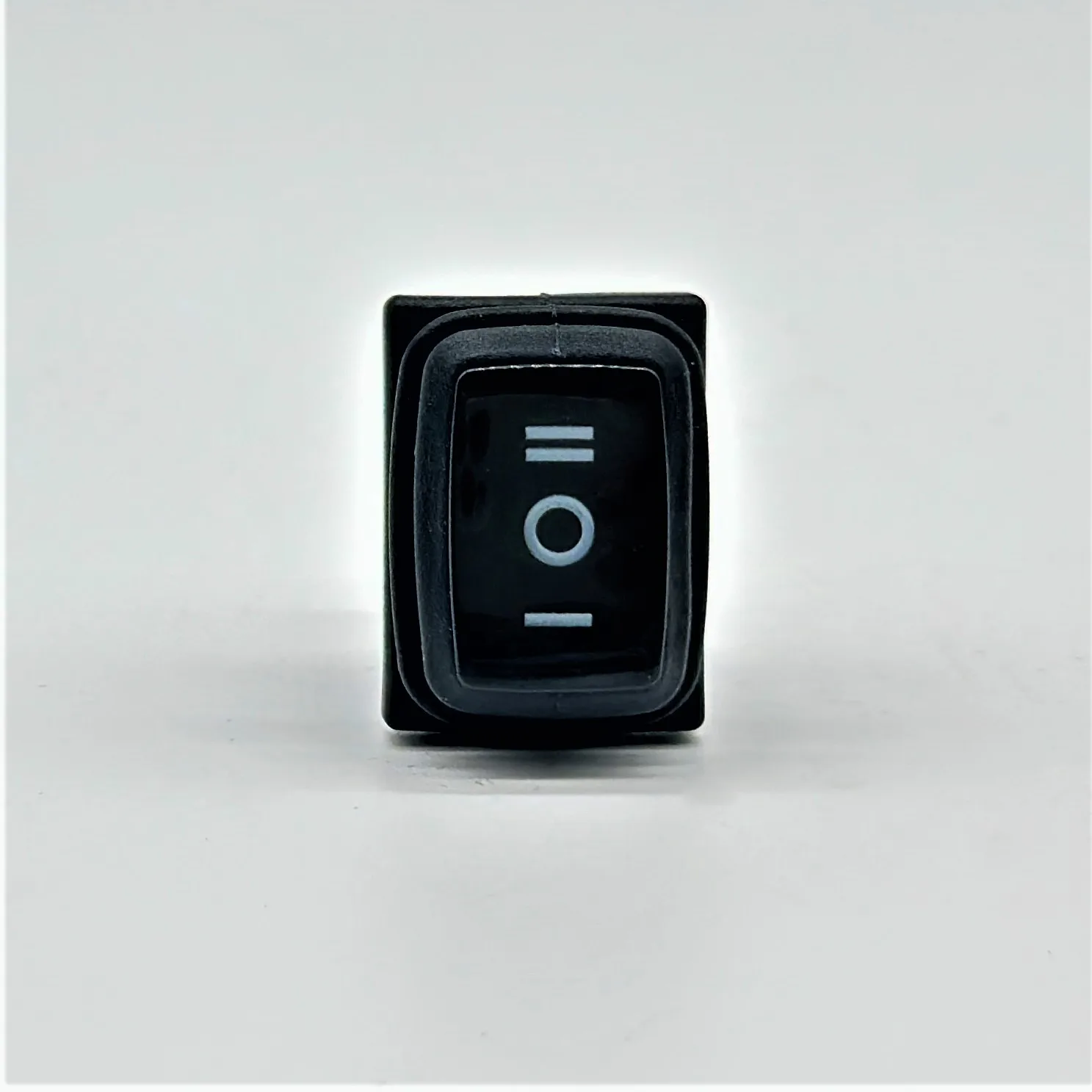

Our 21x15mm IP65 Waterproof Rocker Switch stands out for its durability, safety, and versatility. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it's built to last. The IP65 rating ensures it can withstand wet conditions, making it perfect for outdoor and marine use. As a factory supplier, we offer wholesale pricing, ensuring you get the best deal.
What Makes Our Switch Different?
Unlike other switches on the market, ours comes with multiple certifications including CQC, CE, UL, CB, ENEC17, and ROHS, guaranteeing its safety and compliance. The wide range of color options allows for customization to fit your design needs. Plus, with a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, it ensures efficient and safe operation.
Where Can You Use This Switch?
This switch is ideal for a variety of applications including outdoor lighting, marine equipment, industrial machinery, and any electrical control system where moisture is a concern. Its compact size and reliable performance make it a popular choice among professionals and DIY enthusiasts alike.
