Description
|
Certification
|
CQC CE
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
SK(shangkai)
|
|
Model Number
|
LA133 Series
|
|
Protection Level
|
IP40/IP65/IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660v
|
|
LED
|
Other
|
|
Name
|

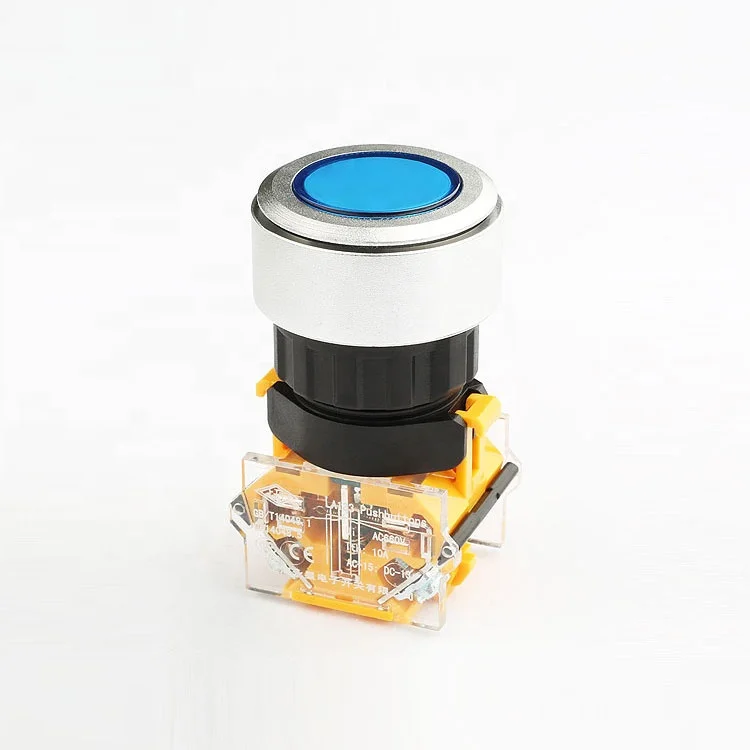

10a 660v 22mm plastic led push button switch
|
|
Protection degree
|
IP40I, P65, IP67
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
2,500V
|
|
Electronic Life (cycles)
|
300,000
|
|
Mechanical Life (cycles)
|
250000
|
|
Operating temperature
|
-25℃~+55℃
|
|
Max.Rating Current&Voltage
|
10A 660V AC
|
Why Choose Our 22mm LED Push Button Switch?
Our 22mm LED Push Button Switch is designed for durability and reliability. With its multi-color illuminated feature, it's easy to identify in any lighting condition. The switch is built to handle high currents and voltages, making it suitable for a wide range of applications. As a factory supplier, we offer wholesale pricing and direct-from-the-factory quality.
What Are the Key Features of Our Switch?
Our switch boasts a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 2,500V. It has an electronic life of 300,000 cycles and a mechanical life of 250,000 cycles, ensuring long-lasting performance. The switch is also certified with CQC, CE, and CCC, guaranteeing safety and reliability.
Where Can Our Switch Be Used?
Our 22mm LED Push Button Switch is perfect for appliances, control panels, and industrial equipment. Its IP40/IP65/IP67 protection levels make it suitable for various environments, from indoor to outdoor. The switch's high current and voltage ratings make it ideal for demanding applications.
