Description
Product Specifications:
- Model Number: AD12-001L24-Y (Note: Corrected from previous AD10-001L24-Y to align with description)
- Voltage: 24V (Also available in 2V, 6V, 12V, 220V)
- Current: ≤15mA for 2-24V, ≤5mA for 110-220V

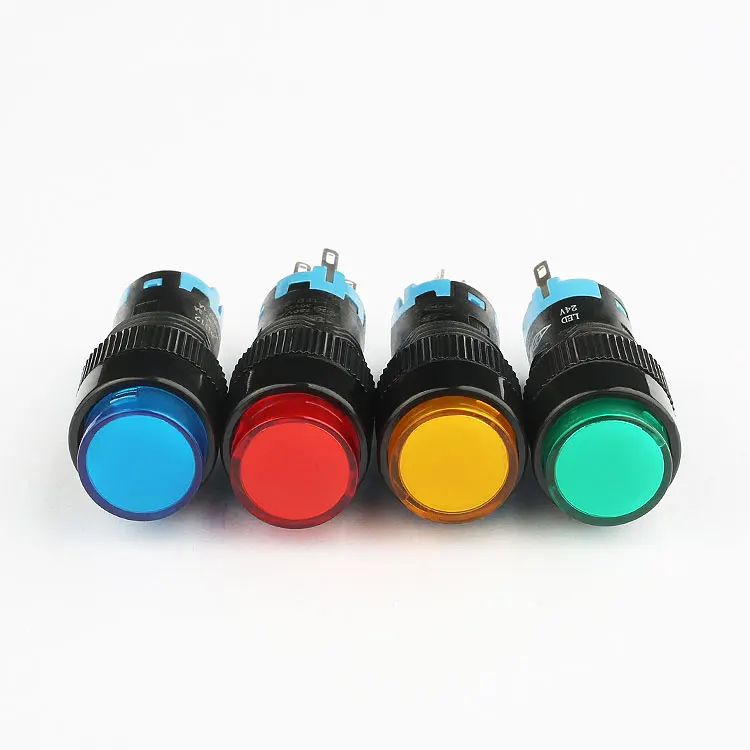

- LED Color: Yellow (also available in Red, Green, Orange, Blue, White)
- Cap Color: Yellow (also available in Red, Green, Orange, Blue, Black, White, Gray)
- Life Span: 50,000 hours
- Panel Cut-out Size: 10mm (Note: Specification table mentions 10mm, but attribute mentions 12mm; assuming 10mm as per description)
- Panel Thickness: 0.5-6.0mm
- Certificate: CQC, CE, ROHS
- Protection Degree: IP40 (customizable)
- Operating Temperature: -5℃~+75℃
- Contact Resistance: ≤50mΩ
Product Advantages:
- Long lifespan of 50,000 hours ensures durability and reduces replacement costs.
- Wide voltage range (2V-220V) caters to various machine requirements.
- Multiple color options for LED and cap allow for customization to match your machine’s design.
- Factory direct supply ensures competitive pricing and quick delivery.
- Compliant with CQC, CE, and ROHS standards, ensuring safety and reliability.
After-sales Service: We offer comprehensive after-sales service, including technical support and warranty coverage, to ensure your satisfaction.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AD12-001L24-Y
|
|
voltage
|
24v
|
|
current
|
≤15mA
|
|
LED color
|
yellow or other : red,green,orange,blue
|
|
Cap color
|
yellow or other : red,green,orange,blue,black,white,gray
|
|
life
|
50000hours
|
|
Panel cut-out size
|
10mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
Certificate
|
CQC CE
|
|
Protection Degree
|
IP40 or customized
|
|
Application
|
circuit control
|
Why Choose Our 24V Plastic LED Indicator Light?
Our 24V Plastic LED Indicator Light stands out due to its long lifespan of 50,000 hours, ensuring durability and reducing the need for frequent replacements. It offers a wide voltage range (2V-220V), making it suitable for various machines and applications. The multiple color options for both the LED and cap allow for easy customization to match your machine's design.
Factory Direct Supply Benefits
As a factory direct supplier, we eliminate the middleman, offering you competitive pricing and quick delivery. Our products are compliant with CQC, CE, and ROHS standards, ensuring safety and reliability. We also provide comprehensive after-sales service, including technical support and warranty coverage.
Wide Range of Applications
Our LED indicator light is perfect for circuit control, circuit monitoring, and equipment status display. Whether you're in the manufacturing, automotive, or electronics industry, our product can meet your needs. Choose our 24V Plastic LED Indicator Light for a reliable, high-quality solution.
