Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-B-G-01
|
|
Current Rating
|
10A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 ( 21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Switch Function
|
On Off
|

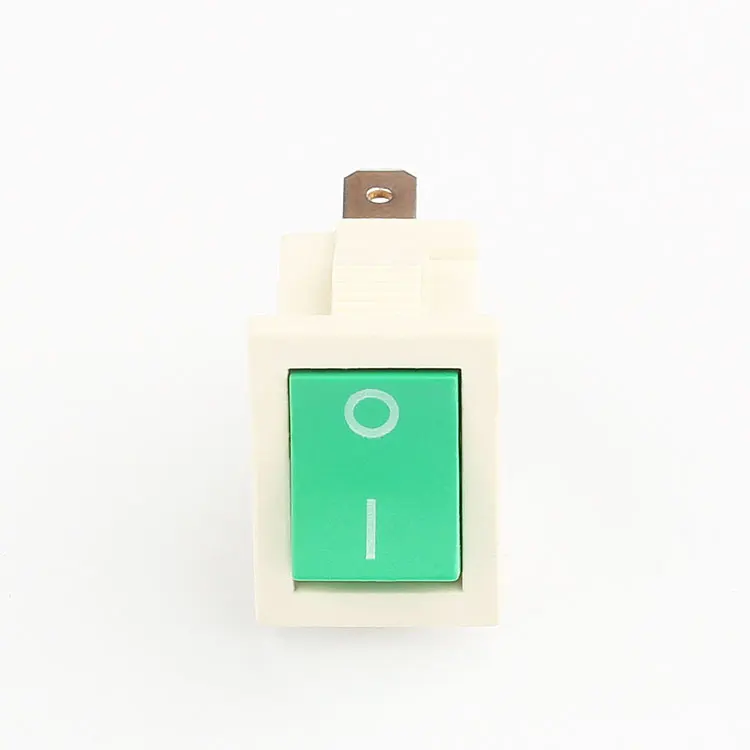

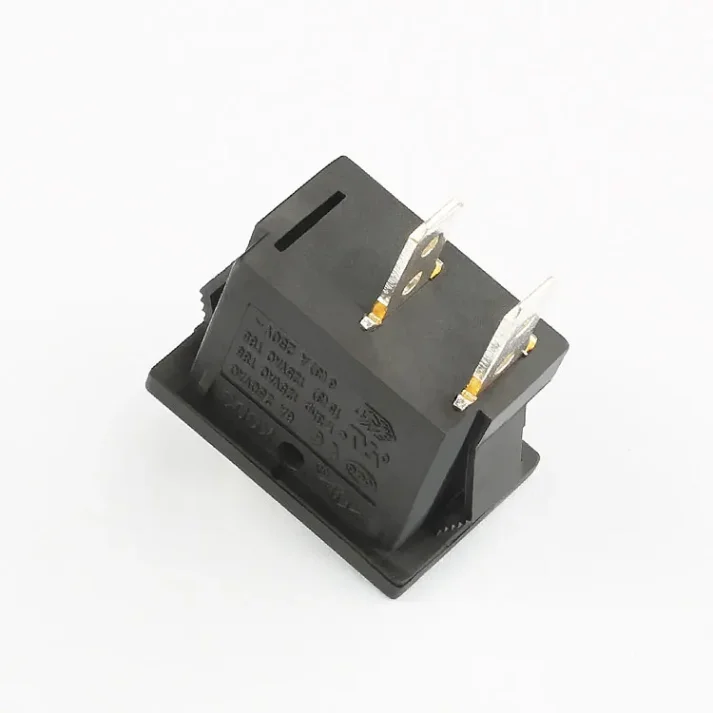

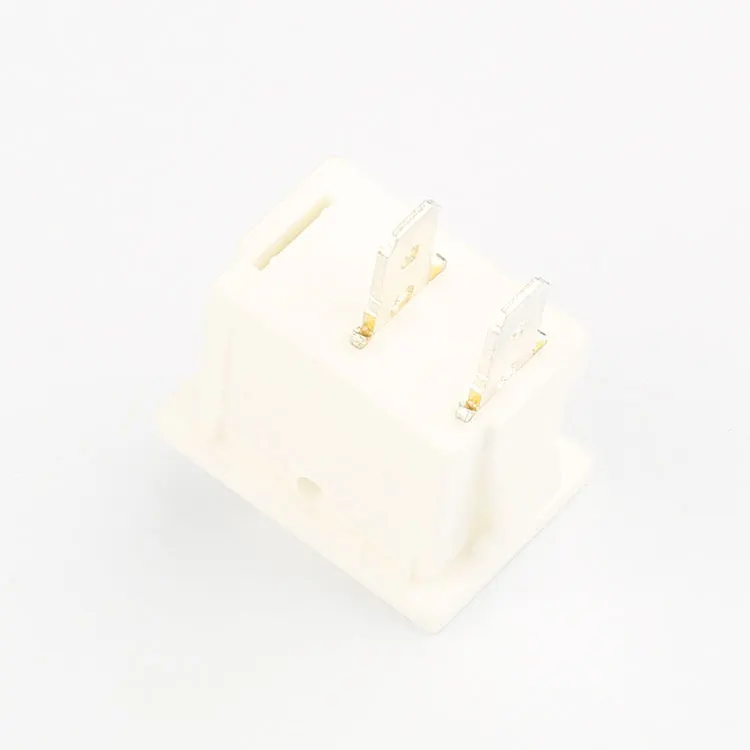

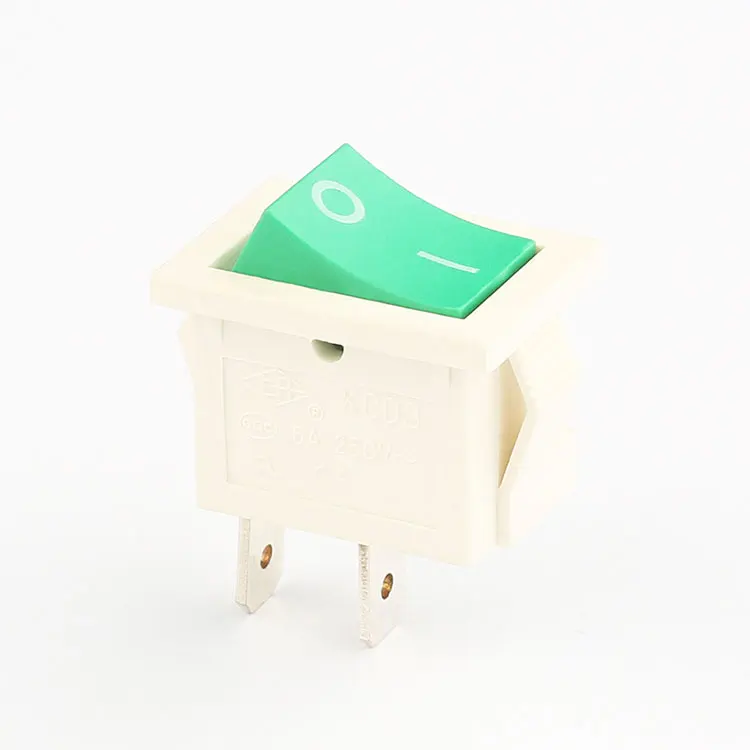

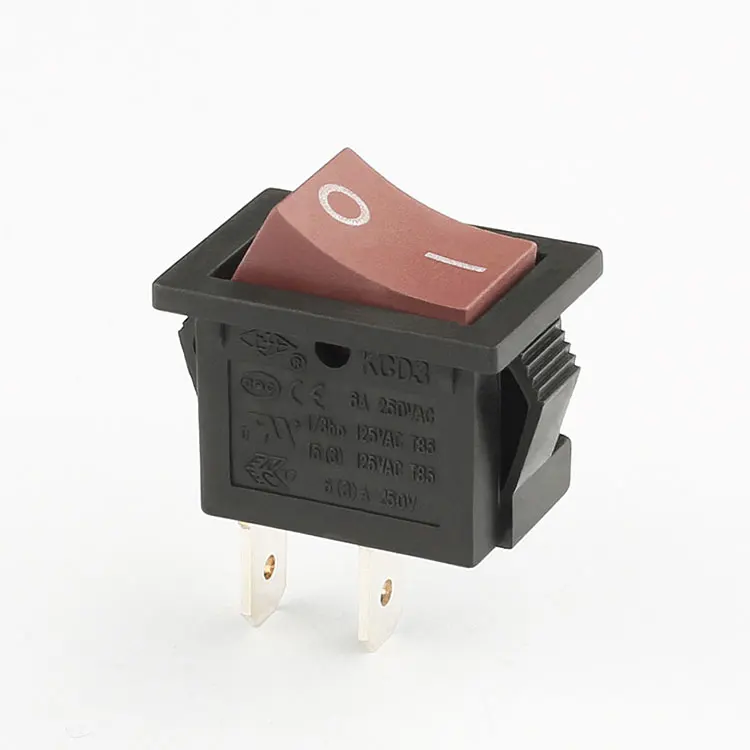

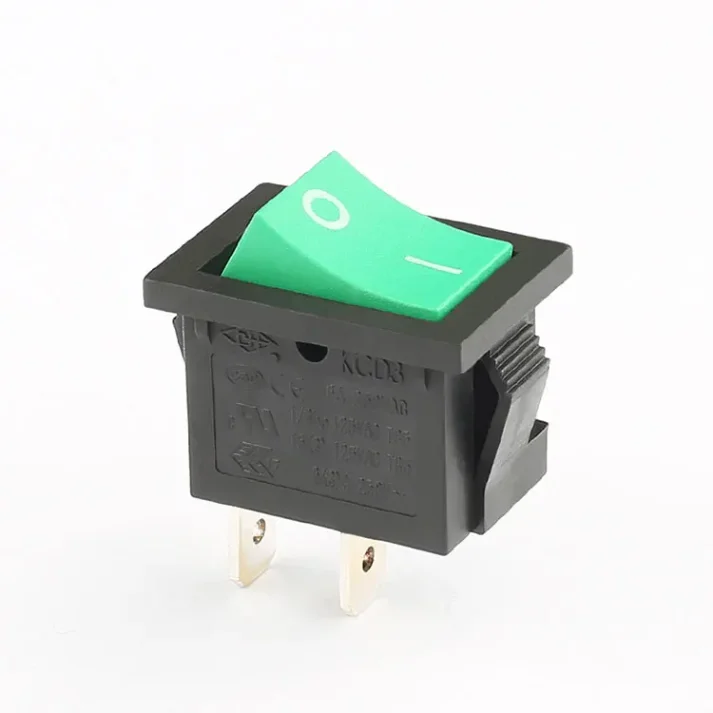

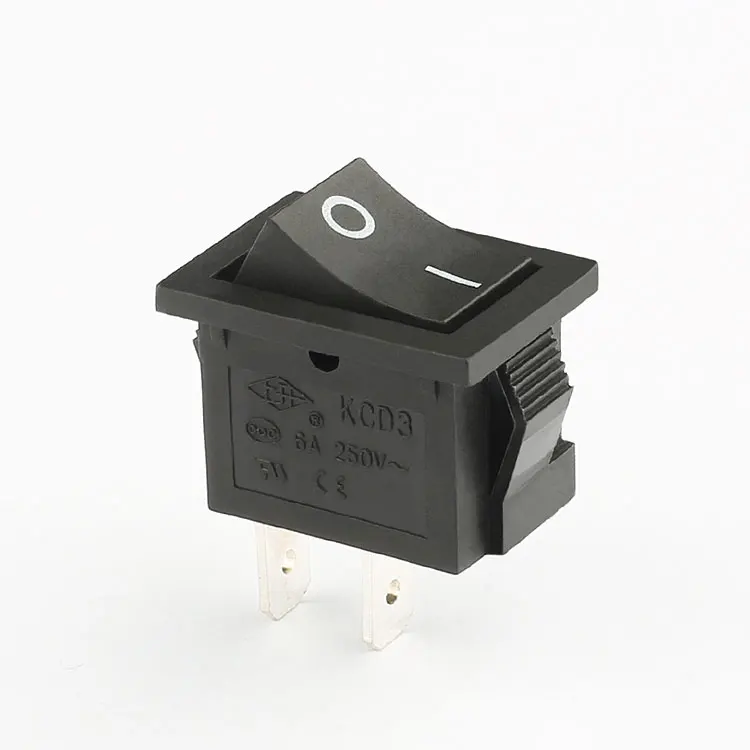

Why Choose Our 250V AC Rocker Switch?
Our 250V AC Rocker Switch stands out with its high current and voltage ratings, ensuring reliable performance in demanding applications. The SPST On/Off function simplifies operation, while the long mechanical and electronic life guarantees durability. With multiple actuator color options, it's easy to find the perfect match for your design.
What Makes Our Switch Different?
Unlike many competitors, our switch is certified with CB ENEC17 ROHS, ensuring compliance with international safety standards. The high insulation resistance and dielectric strength provide added safety, making it ideal for use in electrical controls, appliances, and industrial equipment.
Why Buy From Us, the Factory Supplier?
As a factory supplier, we offer wholesale prices on high-quality rocker switches. Our commitment to quality and customer satisfaction means you can trust us for all your electrical switch needs. Whether you're looking for a single switch or bulk purchases, we've got you covered.
