Description
|
Pitch:
|
3.5mm; 3.81mm
|
|
Poles:
|
2~24
|
|
Rated voltage:
|
300V
|
|
Rated current:
|
16A
|
|
Operation temperature :
|
-40-150
|
|
Short-time temoerature:
|
250 for 5 sec
|

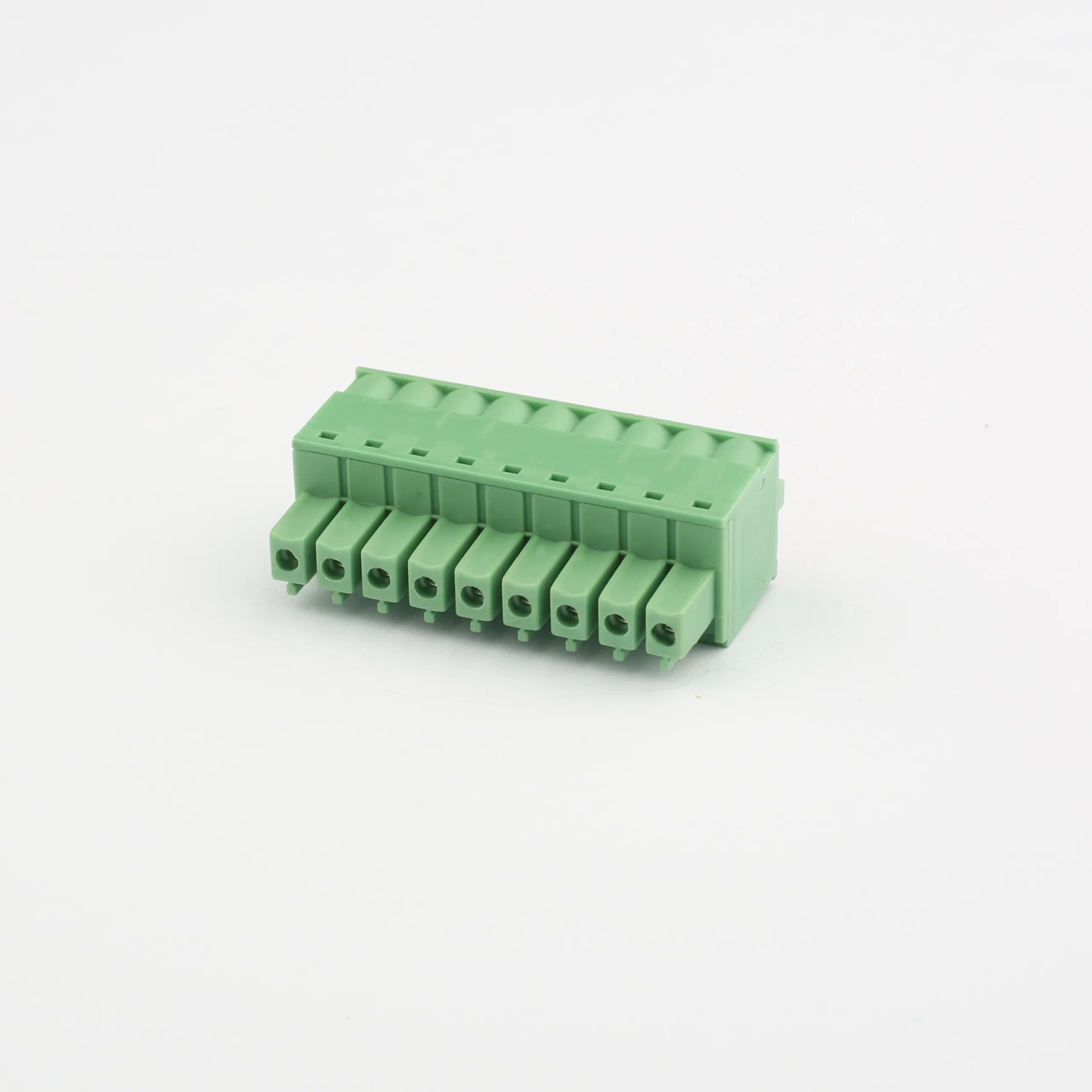

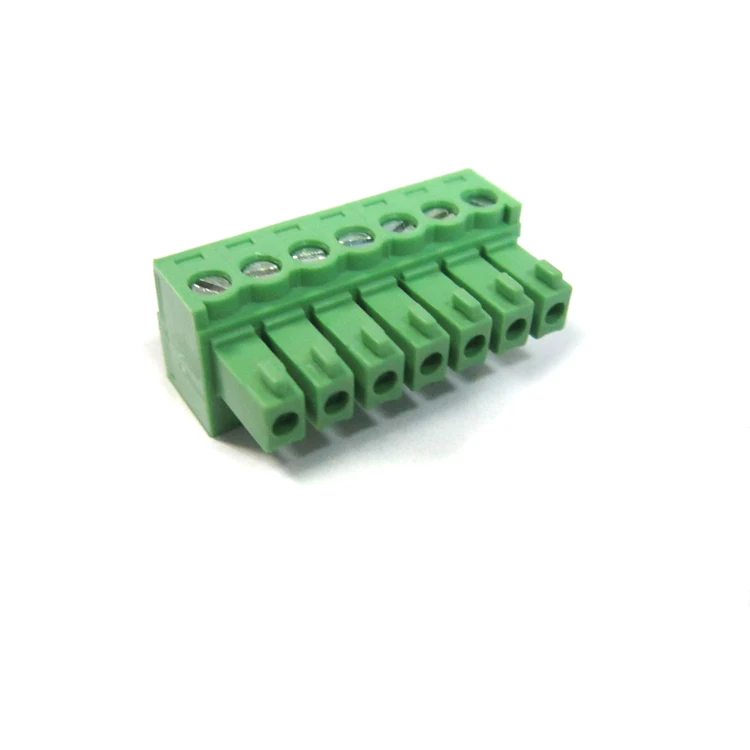

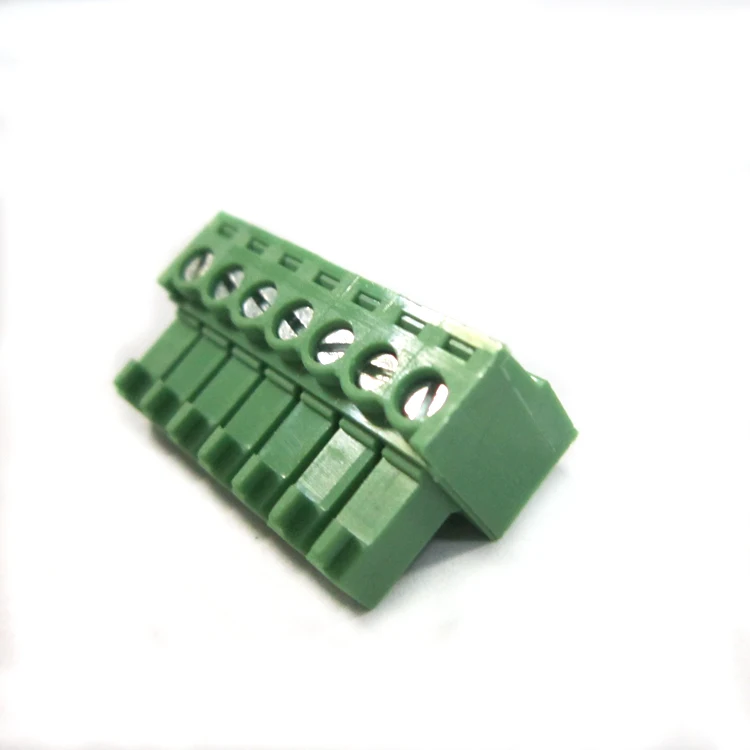

Why Choose Our PCB Terminal Block?
Our PCB Terminal Block stands out for its superior quality and performance. With a pitch of 3.81mm and support for 2 to 24 poles, it offers flexibility in design and application. The brass contacts with tin plating ensure excellent conductivity and corrosion resistance, making it ideal for long-term use in harsh environments. Additionally, our terminal block is UL and CE certified, guaranteeing safety and compliance with international standards.
Key Features and Benefits
Our terminal block is rated for 300V and 16A, providing reliable electrical connections for a wide range of applications. It can withstand temperatures ranging from -40°C to +150°C, with a short-time temperature tolerance of 250°C for 5 seconds. The insulation resistance exceeds 5000MΩ at DC500V, and it can withstand AC2000V/1min without breakdown, ensuring safe and stable operation.
Factory Direct Pricing and Support
As a direct factory supplier and wholesaler, we offer competitive pricing on our PCB Terminal Blocks. We pride ourselves on providing excellent customer service and technical support, ensuring that our customers receive the best possible experience. Choose our factory-direct terminal blocks for cost-effective, high-performance solutions that meet your electrical connection needs.
