Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YC420-381-7P
|
|
Type
|
Plug inTerminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
10A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Contact
|
Brass,Tin plated
|
|
Poles
|
2~24poles
|
|
Certificate
|
CQC
|
Why Choose Our 3.81mm Screwless Pluggable PCB Terminal Block?
Our terminal block stands out for its screwless pluggable design, enabling quick and easy installation without the need for tools. This feature significantly reduces assembly time and increases efficiency. The high insulation resistance and withstand voltage ensure safety and reliability in electrical connections, even under challenging conditions.

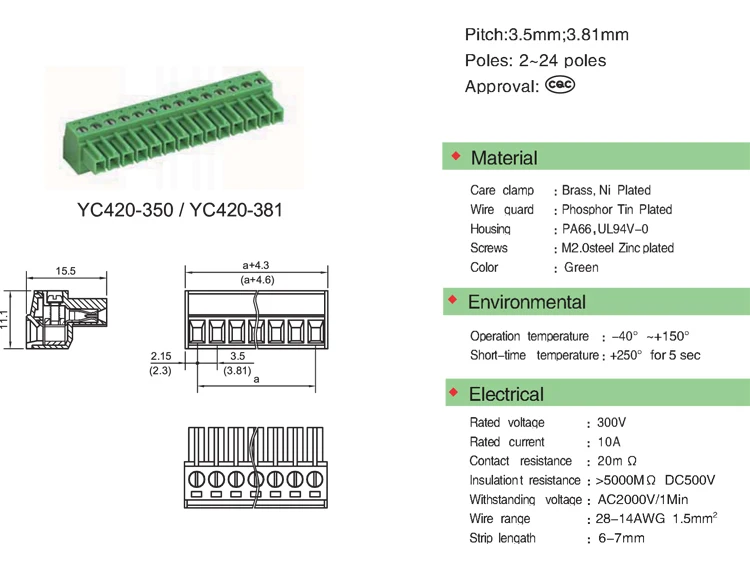

What Are the Key Specifications of Our Terminal Block?
With a rated voltage of 300V and a rated current of 10A, our terminal block is suitable for a wide range of applications. The contact resistance of 20mΩ minimizes power loss, while the insulation resistance of over 5000MΩ at DC500V provides excellent electrical isolation. It operates in temperatures ranging from -40℃ to +150℃, making it ideal for harsh environments.
How Does Our Factory Supplier Advantage Benefit You?
As a factory supplier, we offer competitive wholesale pricing and direct access to our manufacturing capabilities. This means you get high-quality products at lower costs, with the assurance of reliable supply. Our CQC certification guarantees the quality and safety of our terminal blocks, giving you peace of mind in your purchases.
