Description
Our terminal block stands out with its exceptional contact resistance of 20mΩ and insulation resistance exceeding 5000MΩ at DC500V, providing superior electrical isolation. It can withstand voltages up to AC2000V/Min, ensuring safety and durability. The wire range accommodates 24-12AWG with a 2.5mm quadratic cross-section, and the strip length is 6-7mm, offering flexibility in wiring.
Operating within a temperature range of -40℃ to +150℃, our terminal block is suitable for harsh environments. The M2.5 steel screws are zinc-plated for corrosion resistance, and the contacts are made of brass, tin-plated for excellent conductivity.
Choose our factory-direct terminal blocks for cost-effective, high-quality solutions. We offer competitive wholesale prices and reliable after-sales service, making us your trusted supplier for all your electrical connection needs.

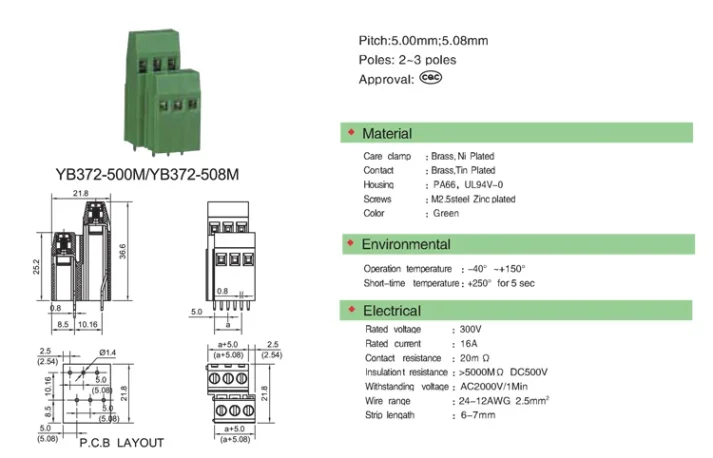

item
|
value
|
Place of Origin
|
Shanghai,China
|
Brand Name
|
Sk(Shangkai), yongxing
|
Model Number
|
YB372-500M-3P
|
Type
|
Screw Terminal
|
Rated voltage
|
300V
|
Rated Current
|
16A
|
Contact Resistance
|
20mΩ
|
Insulation Resistance
|
>5000MΩ DC500V
|
Withstand Voltage
|
AC2000V/Min
|
Wire range
|
24-12AWG 2.5mm(quadratic)
|
Strip Length
|
6-7mm
|
Operating Temperature
|
-40℃~+150℃
|
Screw
|
M2.5steel Zinc plated
|
Contact
|
Brass,Tin plated
|
Key Features and Benefits

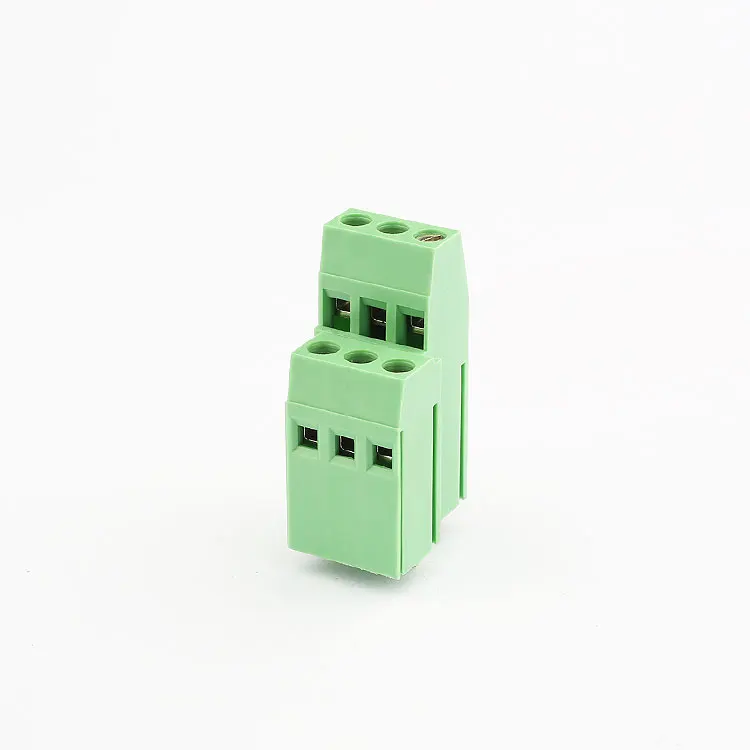

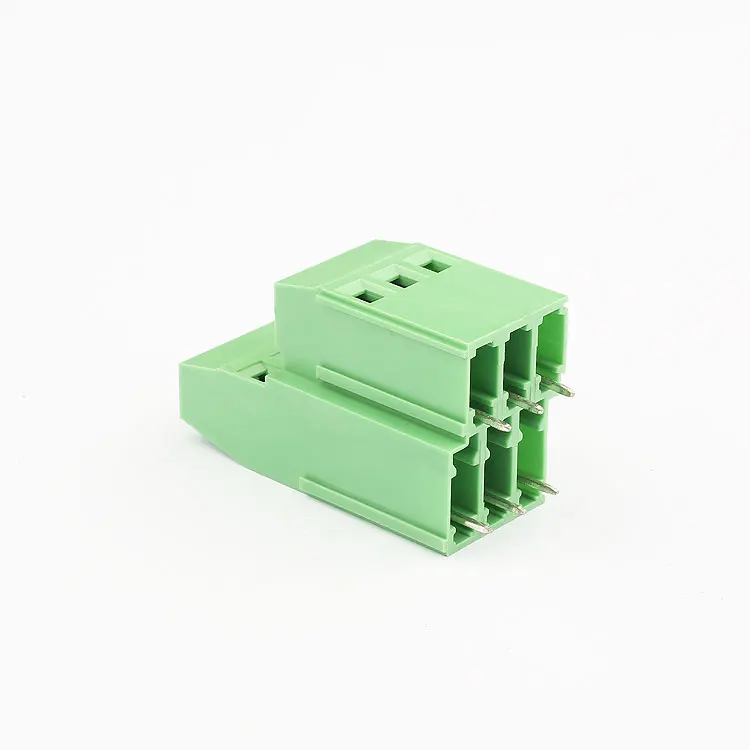

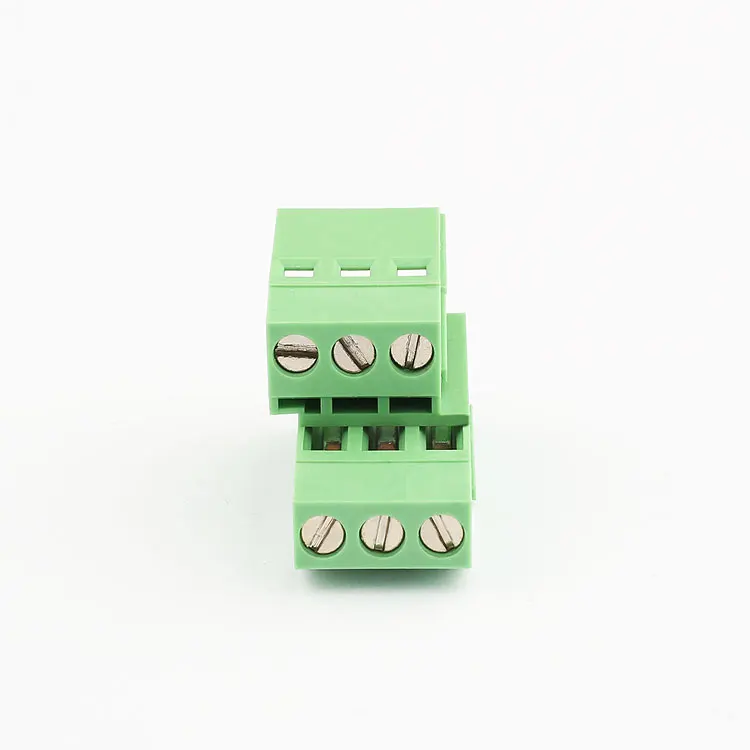

Our 3 Pin 5.00mm PCB Terminal Block offers high conductivity with brass, tin-plated contacts, ensuring efficient electrical connections. The zinc-plated M2.5 steel screws provide corrosion resistance, enhancing durability in various environments. These features make it ideal for industrial applications and home appliances.
Why Choose Our Terminal Block?
As a factory supplier, we offer competitive wholesale prices without compromising on quality. Our terminal block's reliable performance, with a rated voltage of 300V and a rated current of 16A, ensures safety and efficiency in electrical connections. The wide wire range and flexible strip length add to its versatility.
After-Sales Service and Support
We are committed to providing excellent after-sales service. Our team is ready to assist with any queries or issues, ensuring a smooth purchasing experience. Choose us for your electrical connection needs and enjoy peace of mind with our reliable products and support.
