Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YB432-508M-3P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Wire range
|
24-12AWG 2.5mm(quadratic)
|
|
Strip Length
|
6-7mm
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Screw
|
M2.5steel Zinc plated
|
|
Contact
|
Brass,Tin plated
|
Key Features and Advantages

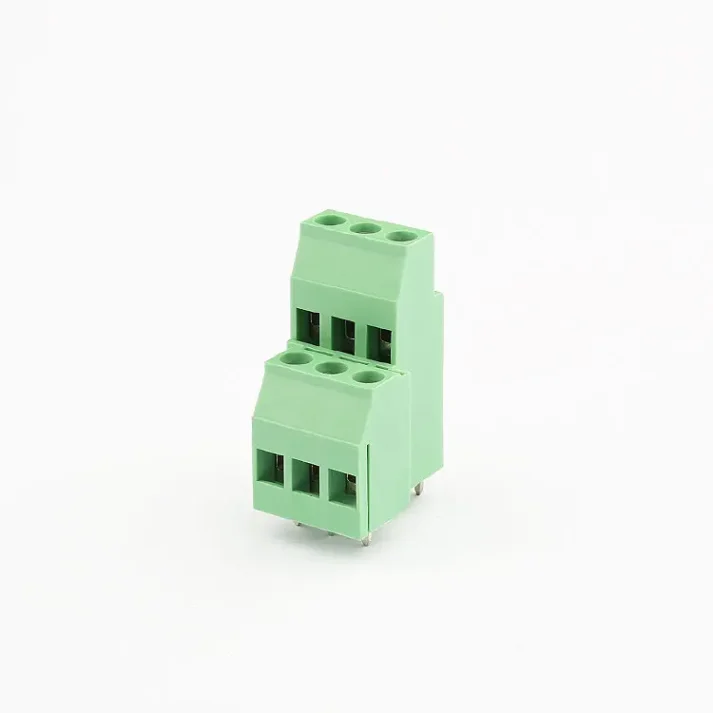

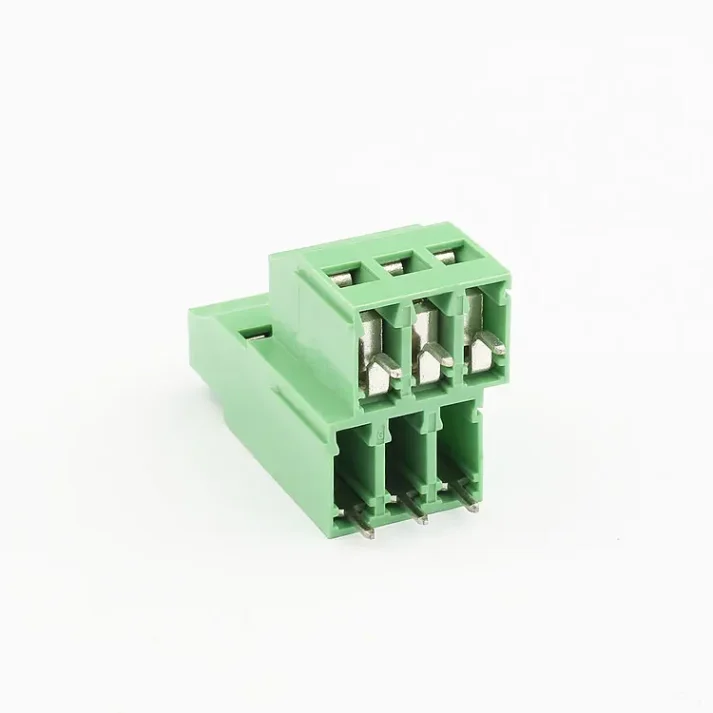

Our 3 Pin 5.08mm PCB Screw Terminal Block stands out with its high conductivity, durability, and excellent insulation properties. The brass contacts with tin plating ensure reliable electrical connections, while the M2.5 steel screws with zinc plating provide a secure and long-lasting fit. With a rated voltage of 300V and a rated current of 16A, it's suitable for a wide range of applications.
Why Choose Our Terminal Blocks?
As a factory supplier, we offer competitive wholesale pricing without compromising on quality. Our terminal blocks are designed to withstand high voltages and operate efficiently in extreme temperatures, making them ideal for industrial equipment, automotive applications, and home appliances. The wide wire range and adjustable strip length further enhance their versatility.
