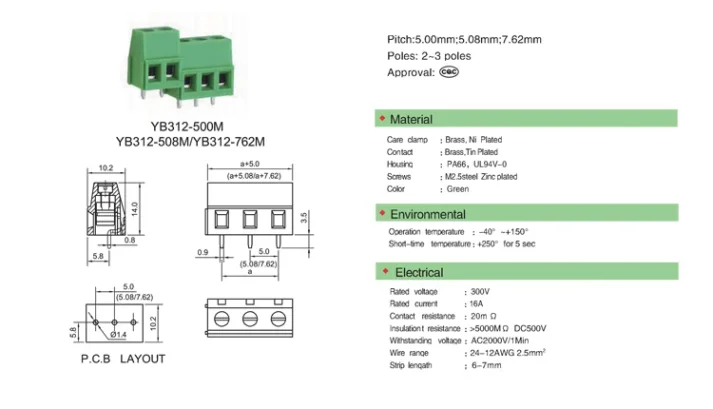

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YB312-508-3P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Wire range
|
24-12AWG 2.5mm(quadratic)
|
|
Strip Length
|
6-7mm
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Screw
|
M2.5steel Zinc plated
|
|
Contact
|
Brass,Tin plated
|

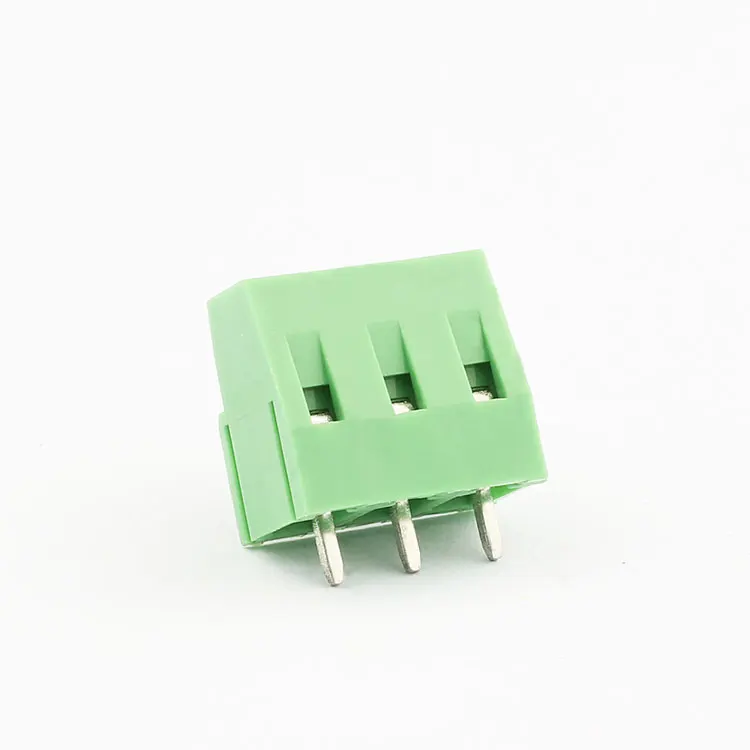

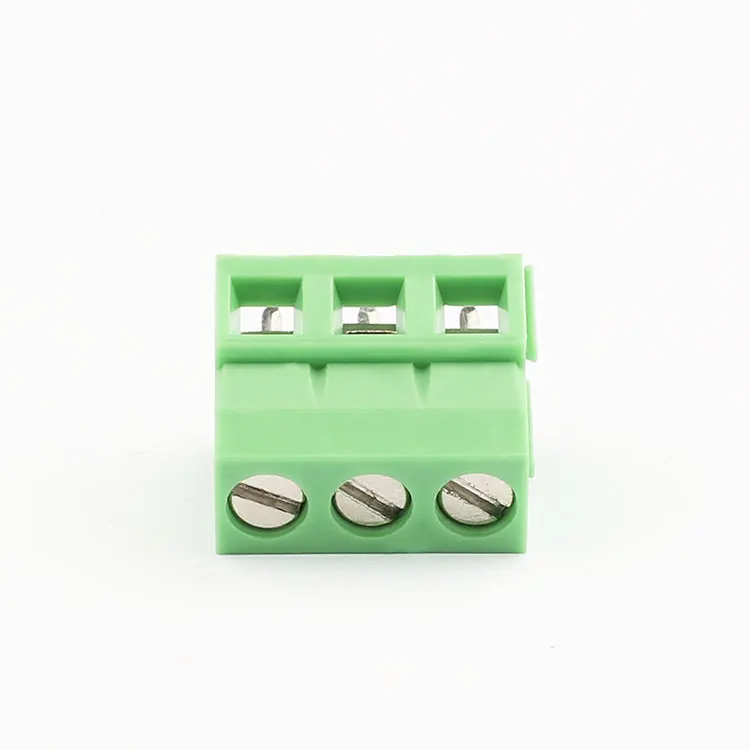

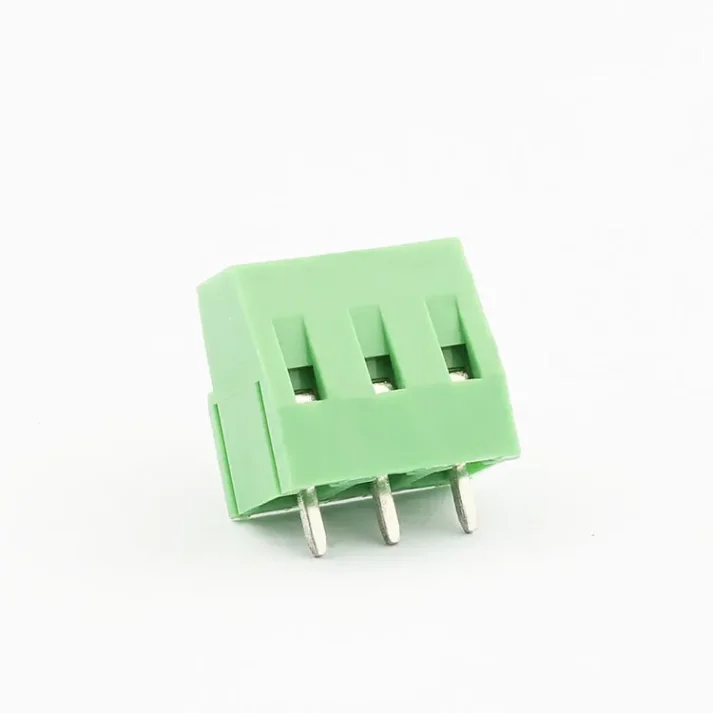

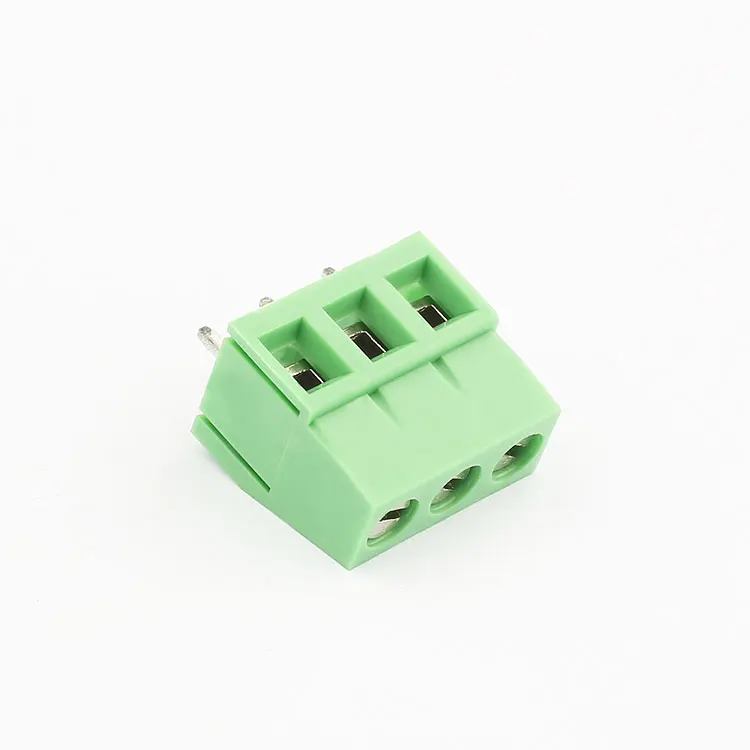

Why Choose Our 3 Pin 5.08mm PCB Screw Terminal Block?
Our terminal block stands out with its robust construction and high-performance capabilities. The brass contacts and steel screw ensure excellent conductivity and longevity, making it ideal for demanding electrical applications. The screw type connection provides a secure and reliable wiring solution, reducing the risk of loose connections and potential failures.
What Are the Key Features?
With a rated voltage of 300V and a rated current of 16A, this terminal block can handle significant electrical loads. It offers high insulation resistance and withstands voltages up to AC2000V/Min, ensuring safety and reliability. The wide wire range (24-12AWG) and operating temperature (-40°C to +150°C) make it versatile for various environments and applications.
Why Buy from Us?
As a factory and supplier, we offer wholesale pricing and direct supply, ensuring competitive rates and quick delivery. Our products are rigorously tested to meet high-quality standards, providing you with peace of mind. Trust us for all your terminal block needs, and experience the difference in quality and service.
