Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|

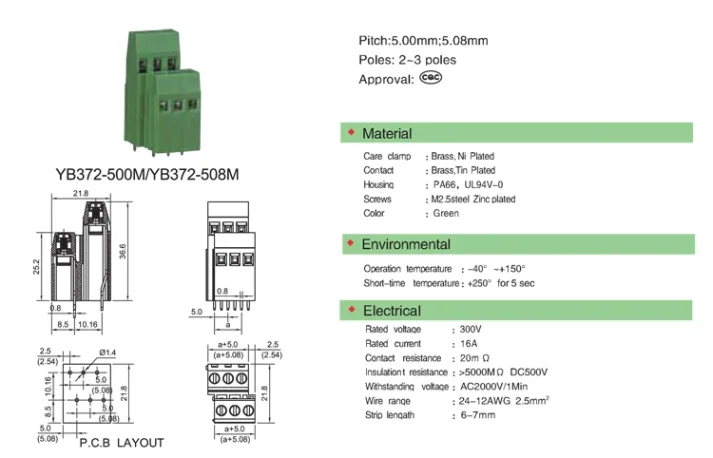

YB372-508M-3P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Wire range
|
24-12AWG 2.5mm(quadratic)
|
|
Strip Length
|
6-7mm
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Screw
|
M2.5steel Zinc plated
|
|
Contact
|
Brass,Tin plated
|

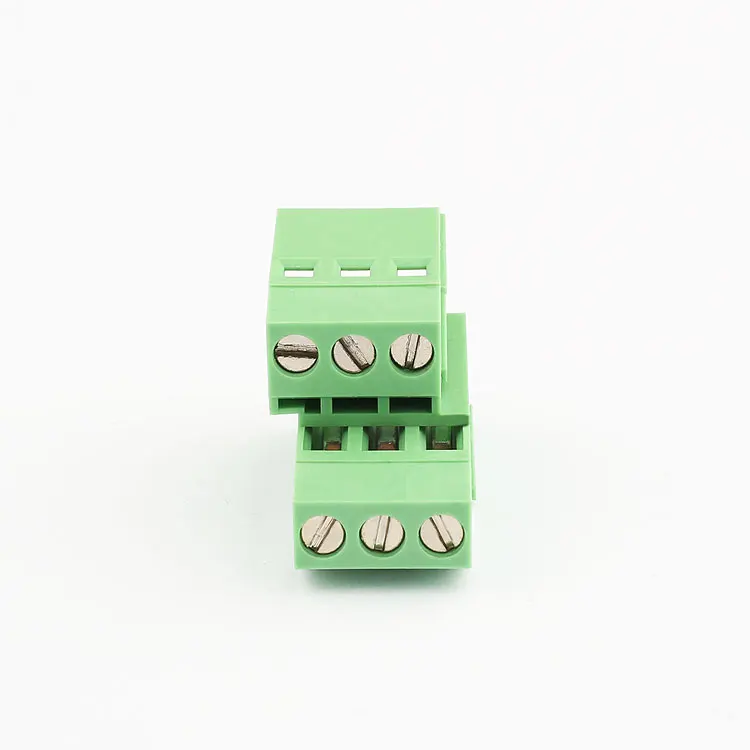

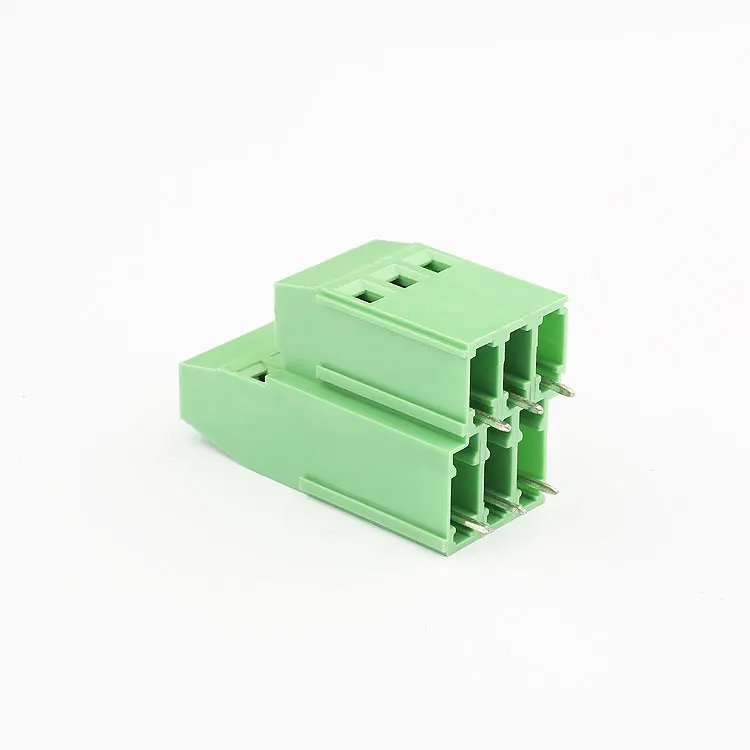

Why Choose Our 3 Pin 5.08mm PCB Terminal Block?
Our 3 Pin 5.08mm PCB Terminal Block stands out due to its high conductivity, ensuring efficient electrical connections. With a durable construction featuring brass, tin-plated contacts and M2.5 steel zinc-plated screws, it offers long-lasting performance. Additionally, its wide temperature range (-40℃ to +150℃) makes it suitable for various industrial applications.
What Are the Key Specifications of This Terminal Block?
This terminal block boasts a 3-pin, 5.08mm pitch design, rated at 16A and 300V. It accommodates wire sizes from 24-12AWG (2.5mm²) with a strip length of 6-7mm. The contact resistance is 20mΩ, and insulation resistance exceeds 5000MΩ at DC500V, ensuring reliable and safe connections.
Why Buy from Us as a Wholesale Supplier?
As a factory direct supplier, we offer competitive wholesale pricing on our 3 Pin 5.08mm PCB Terminal Blocks. With a focus on quality and reliability, we ensure that our products meet the highest standards. Choose us for your bulk purchases and benefit from our efficient supply chain and excellent customer service.
