Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|

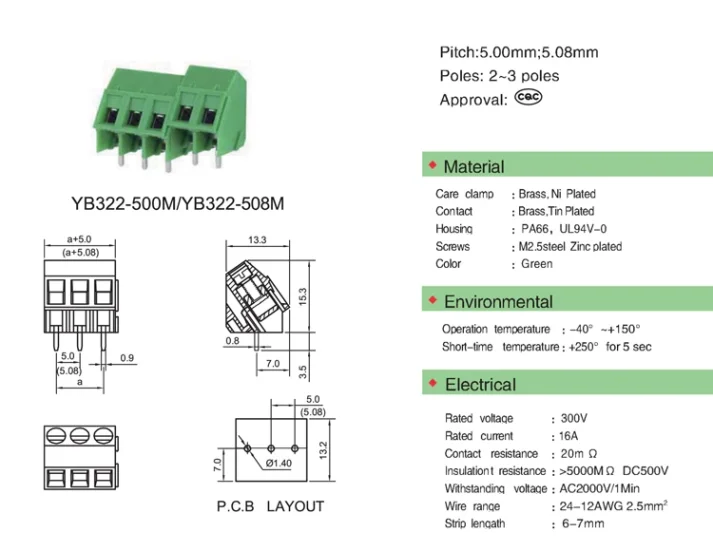

YB322-508-3P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Wire range
|
24-12AWG 2.5mm(quadratic)
|
|
Strip Length
|
6-7mm
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Screw
|
M2.5steel Zinc plated
|
|
Contact
|
Brass,Tin plated
|
Product Overview

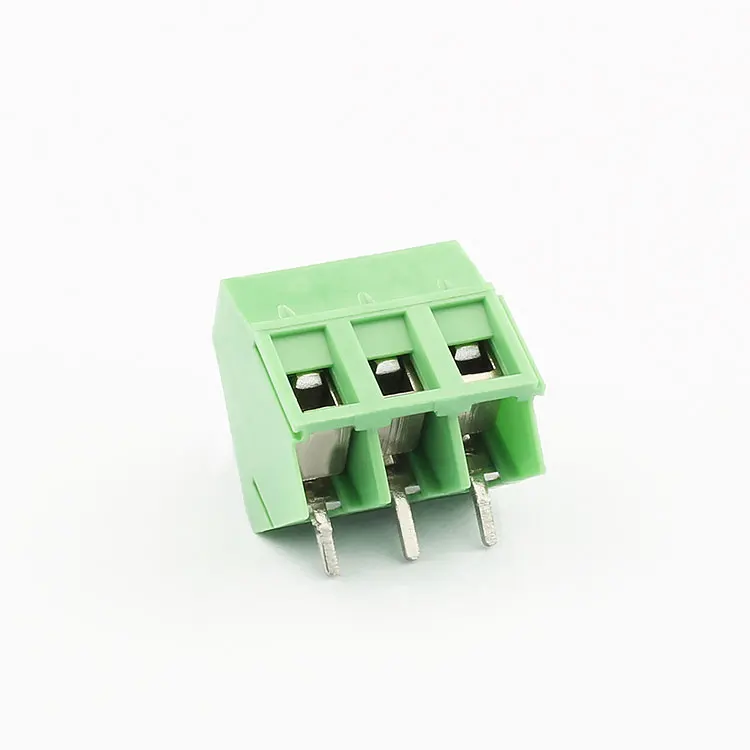

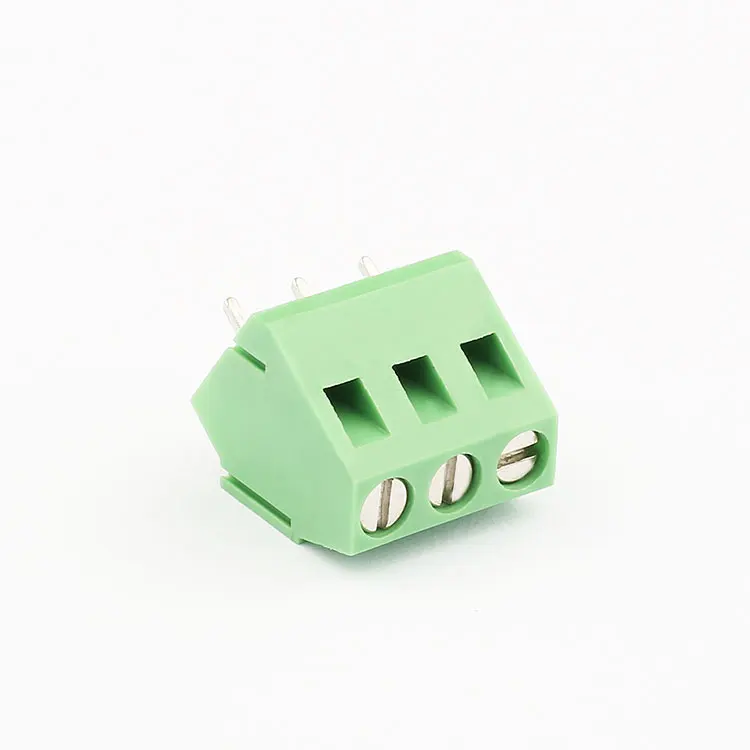

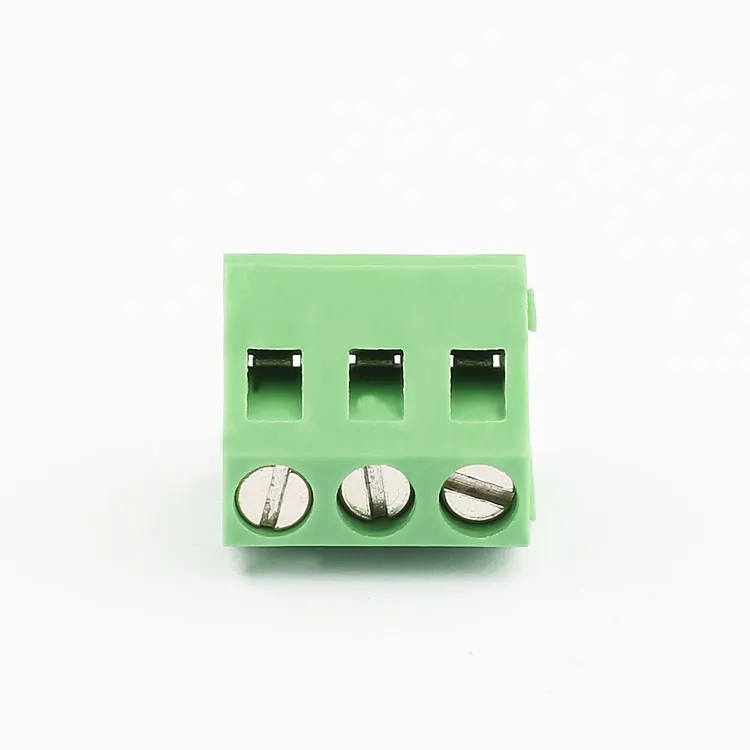

Our 3 Pin 5.08mm PCB Terminal Block is a versatile and reliable component designed for secure electrical connections. As a factory supplier, we offer wholesale pricing, making it an ideal choice for bulk purchases.
Key Features
With a rated voltage of 300V and a rated current of 16A, this terminal block can handle a wide range of applications. The screw-type terminals ensure easy and secure wiring, while the brass, tin-plated contacts provide excellent conductivity. It supports a wide wire range (24-12AWG, 2.5mm²) and operates efficiently in temperatures from -40°C to +150°C.
Why Choose Our Terminal Block?
Our terminal block stands out for its high insulation resistance (exceeding 5000MΩ at DC500V) and withstand voltage capability (up to AC2000V/Min). The M2.5 steel, zinc-plated screws offer durability and corrosion resistance, ensuring long-lasting performance. Choose our factory-direct terminal blocks for superior quality, competitive pricing, and reliable service.
